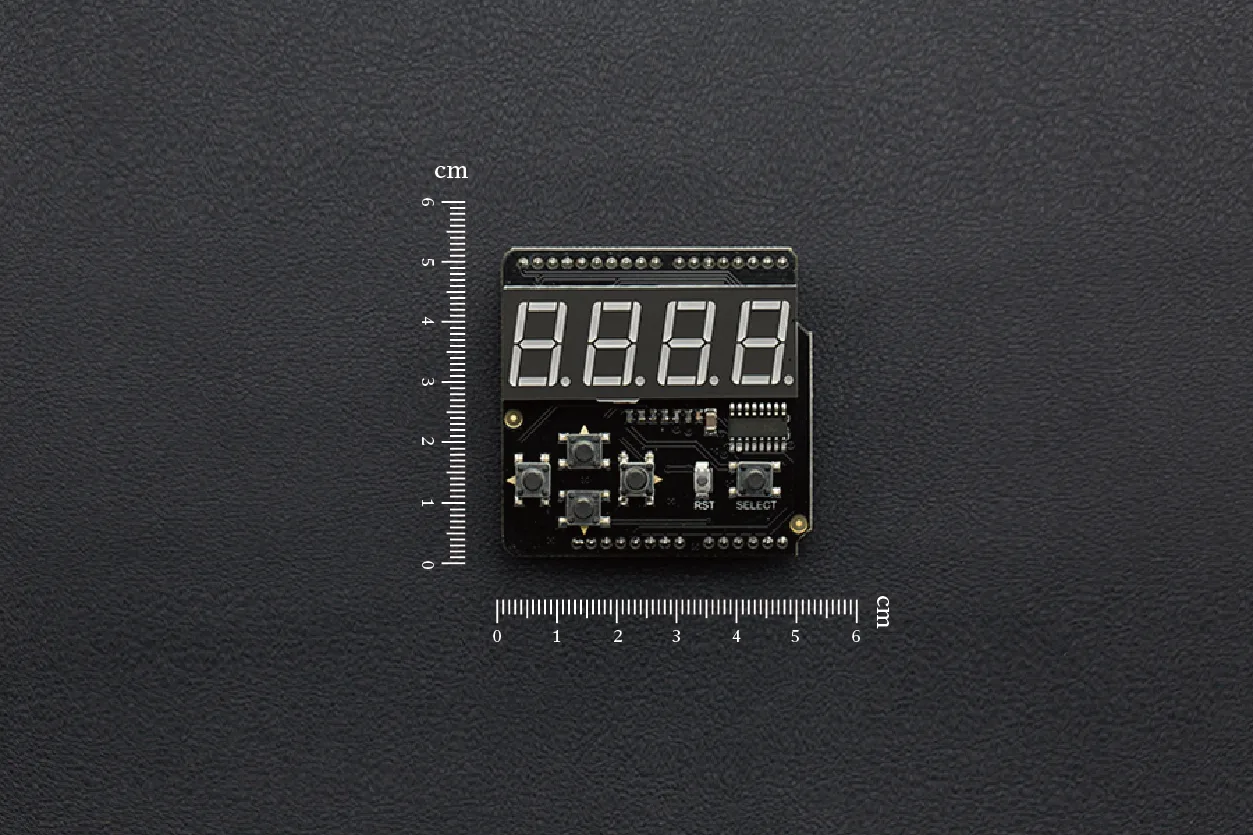

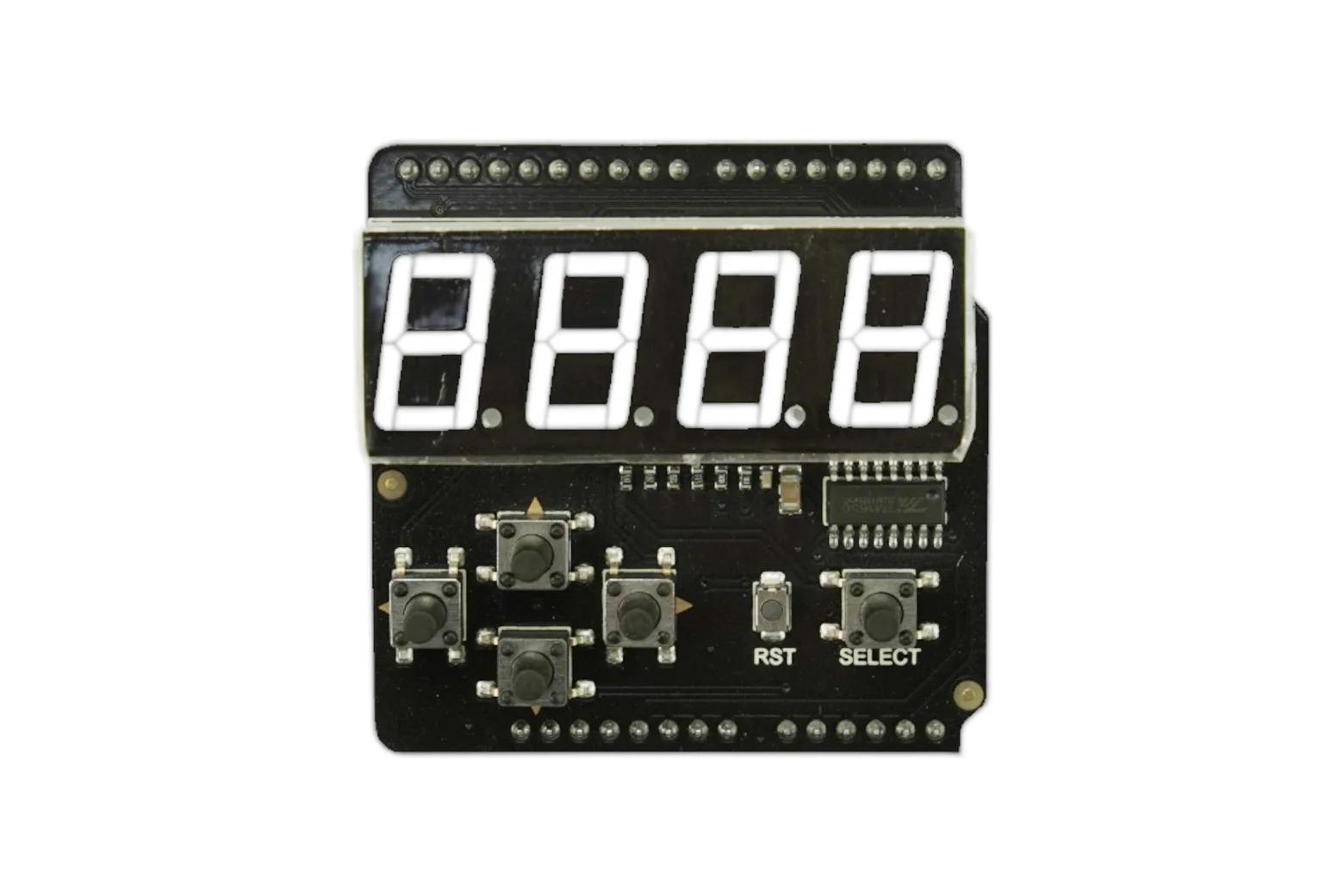

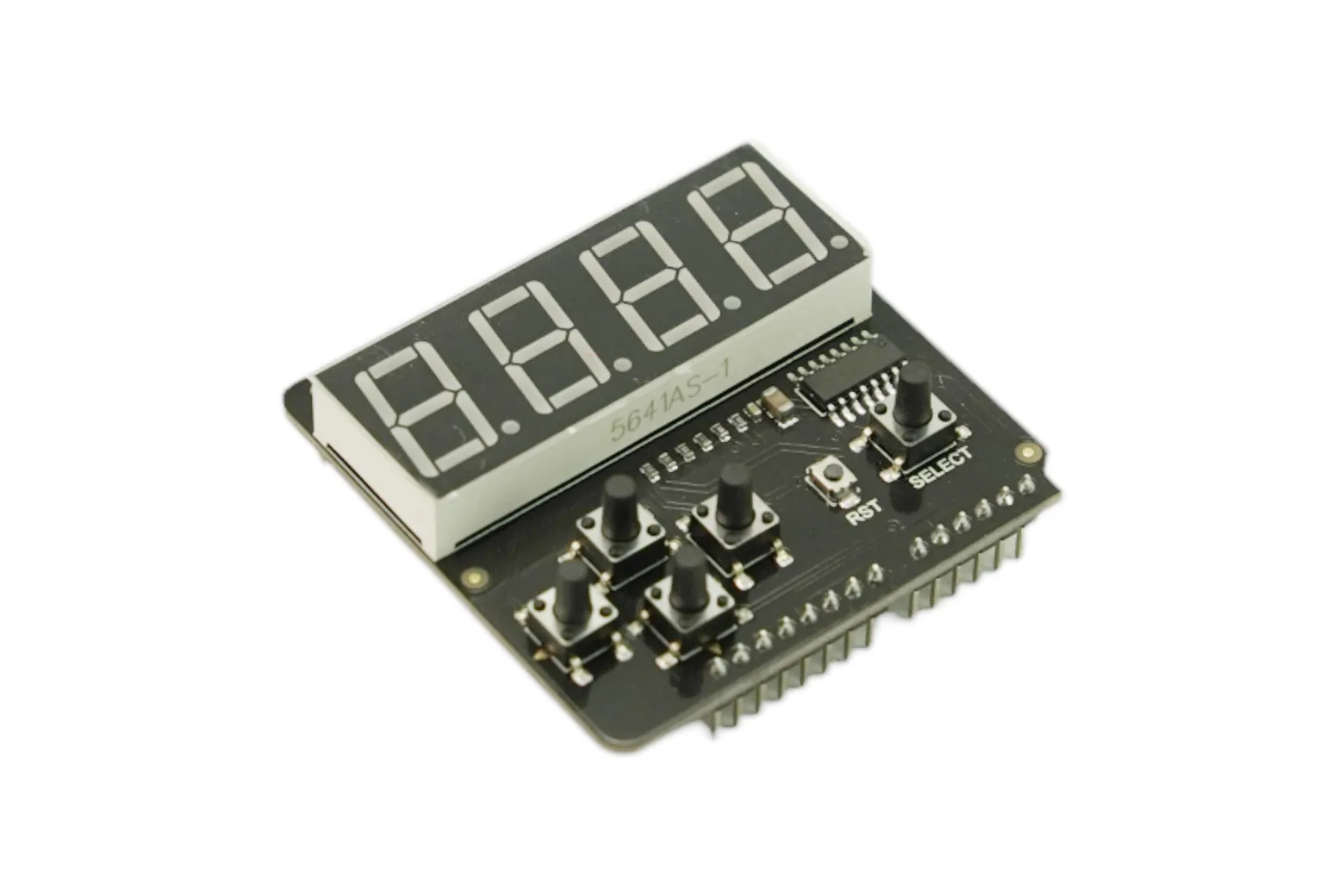

7 Segment LED Keypad Shield For Arduino

The 7 Segment LED Keypad Shield for Arduino provides a dedicated numeric output interface designed to mount straight onto your microcontroller. It is an ideal addition for students, educators, and hobbyists building interactive displays, timers, and counter projects.

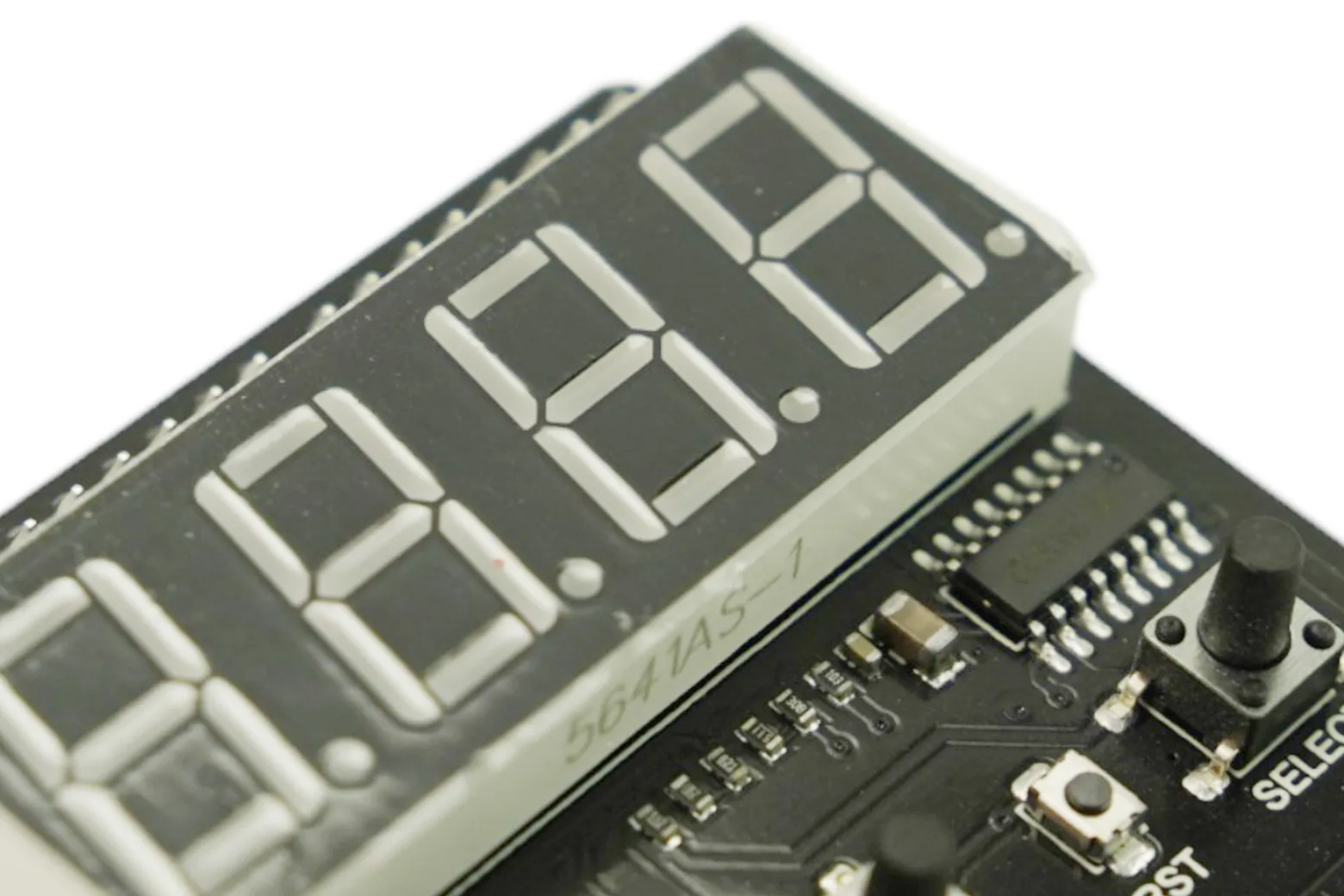

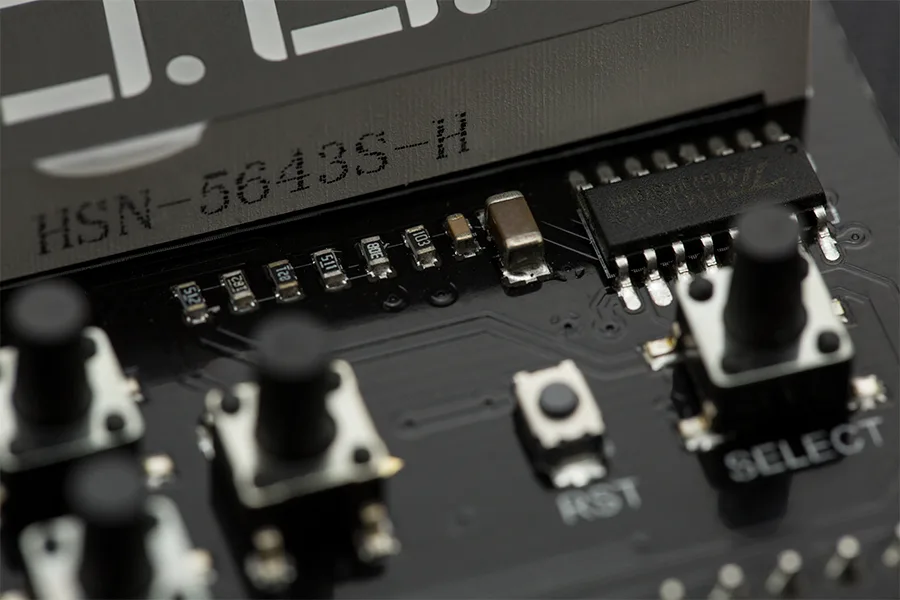

Four-digit numeric display

The shield features an integrated 4-digit 7-segment digital tube display for rendering numbers and basic characters. This makes it straightforward to monitor live sensor values, calculations, or system statuses.

Common cathode design

Built with a common cathode configuration, the digital tube connects standard Arduino driving logic with predictable pin control.

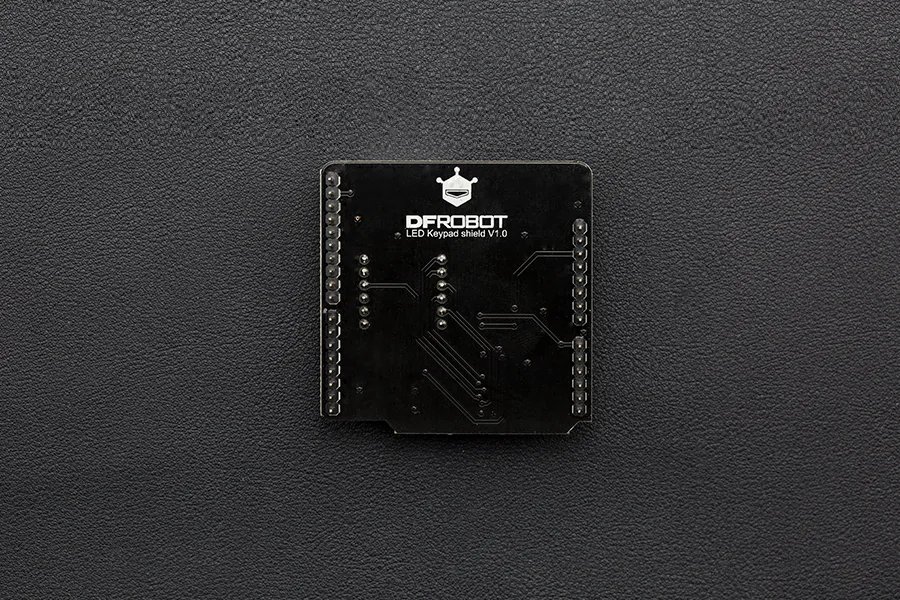

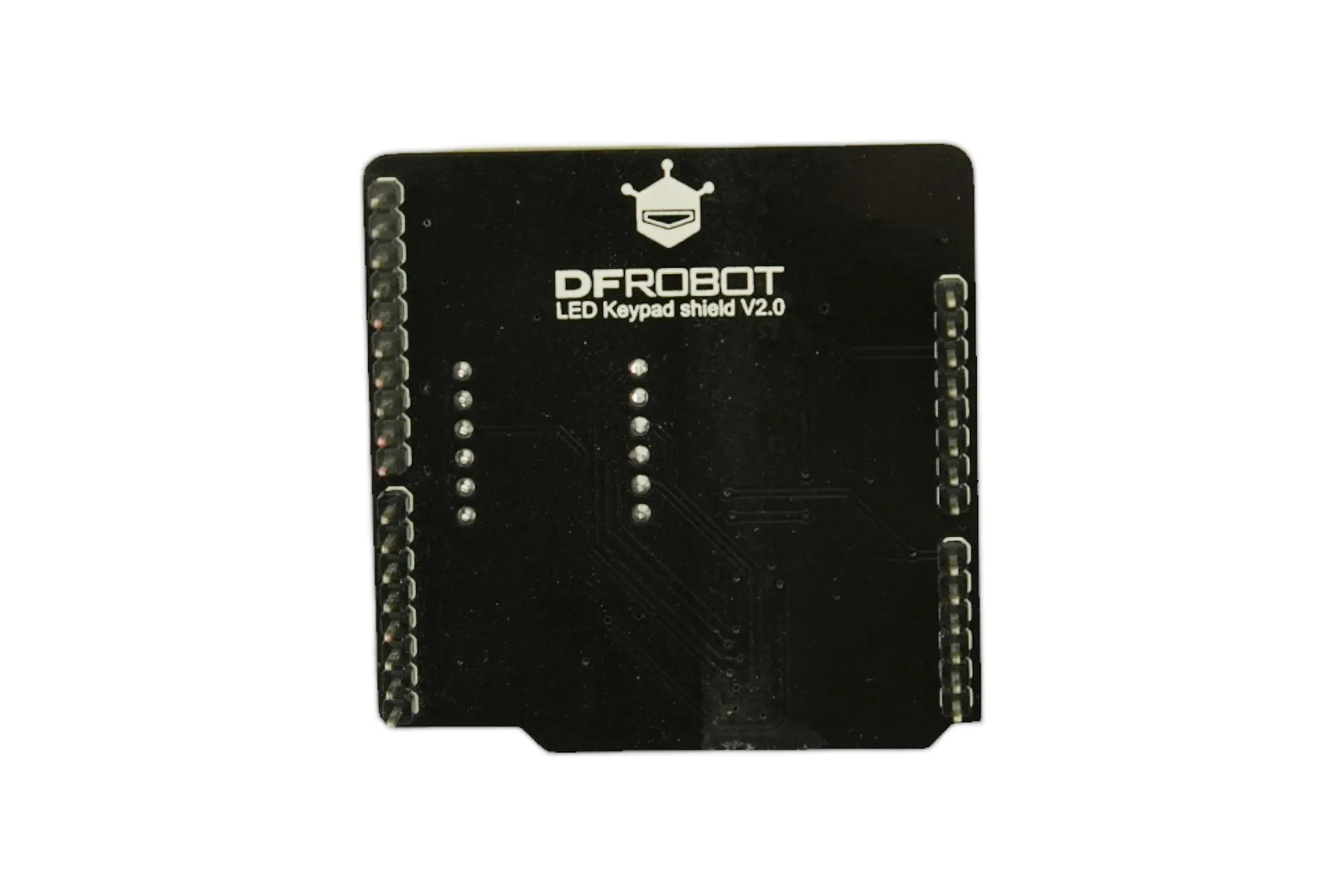

Direct shield form factor

Designed specifically for Arduino boards, the shield seats directly into the standard header layout. This eliminates messy wiring during prototyping and classroom workshops.

Interactive user interface

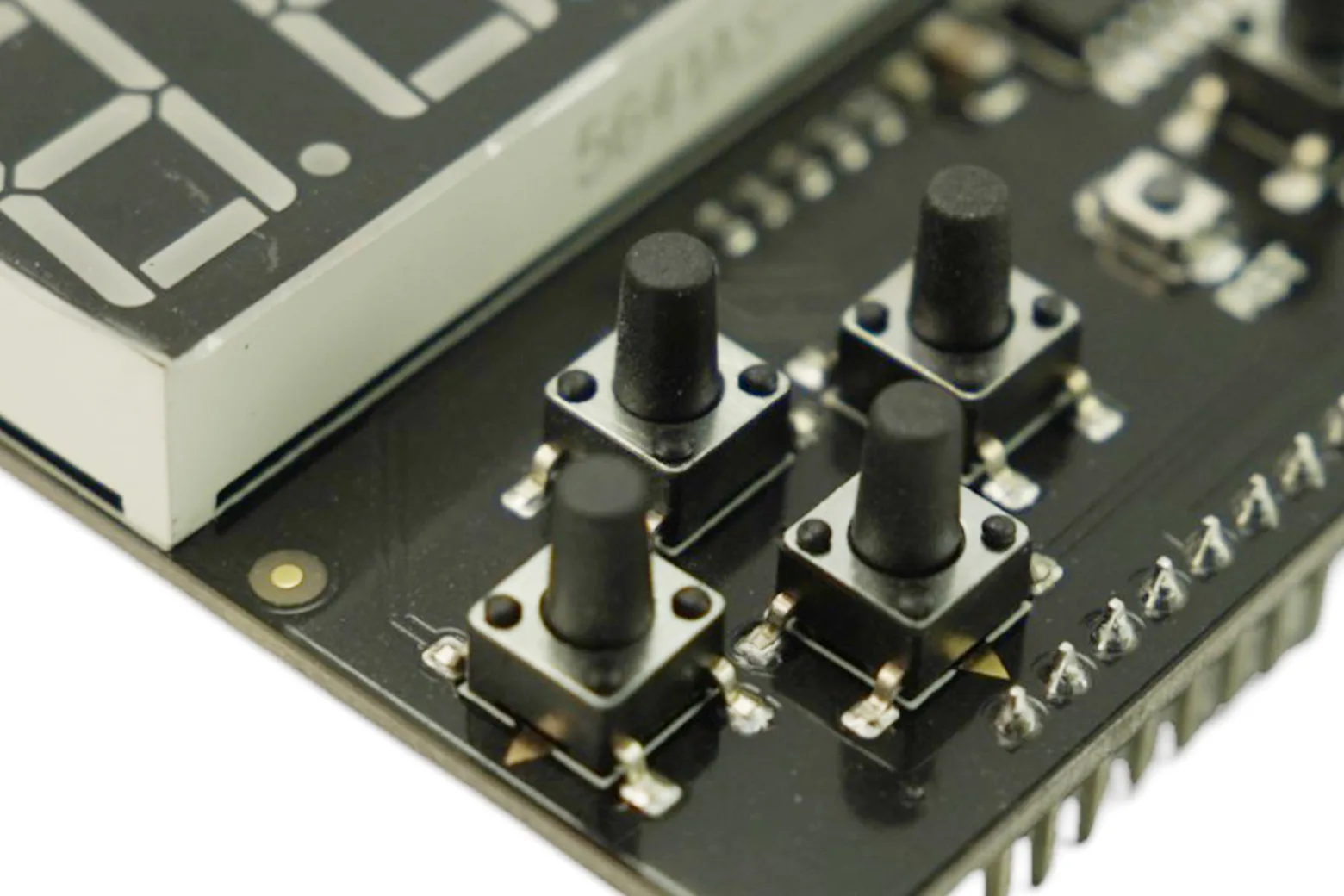

Combining a 7-segment display with keypad shield functionality, the board serves as a compact interface module for rapid project testing.

Downloads & documentation

• Product wiki (DFRobot)
