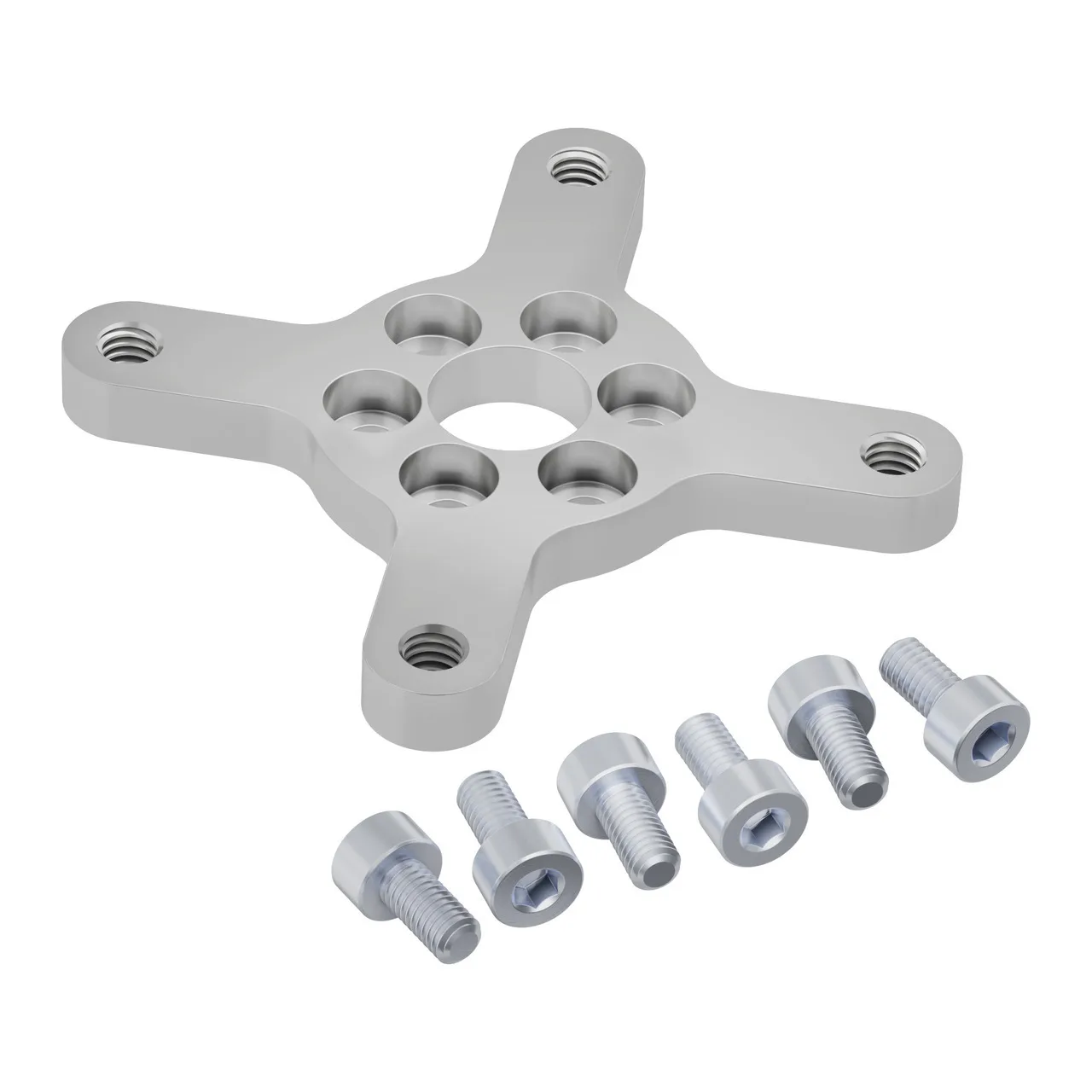

3701 Series Face Tapped Motor Mount (32-1)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

This motor mount is designed to be used with the REV Robotics Core Hex Motor. Given this motor is used in FIRST Tech Challenge, we want to provide teams the opportunity to easily integrate the motor into their thefirsttool framework. When you use two mounts (one on each side), the side-to-side measurement will be exactly 43mm so the assembly will slide down inside 1120 Series U-Channel perfectly and fasten using M4 x 6mm length screws.

Motor Compatibility REV Core HEX

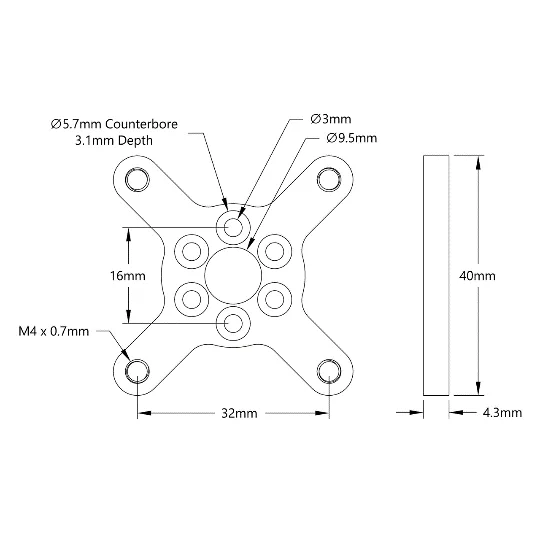

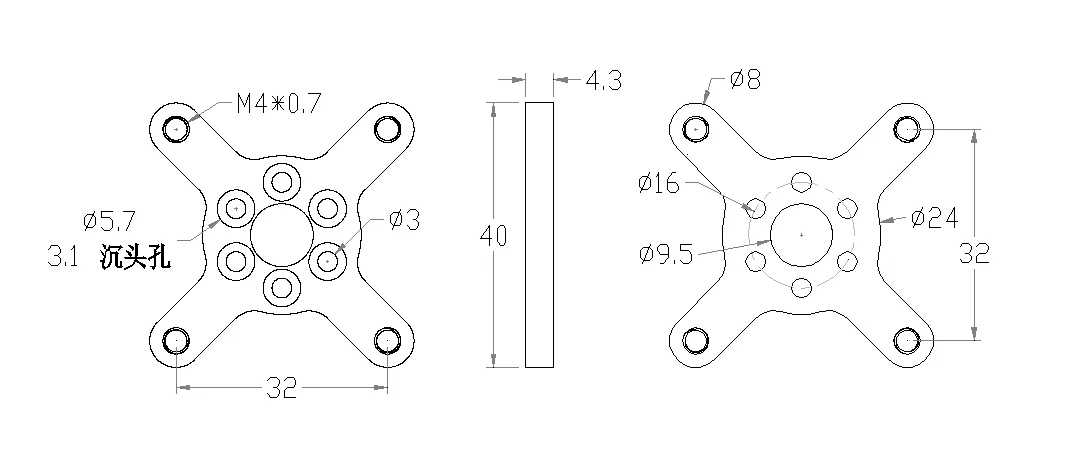

Technical drawing
