3700 Series Face Tapped Stepper Motor Mount (NEMA 23)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

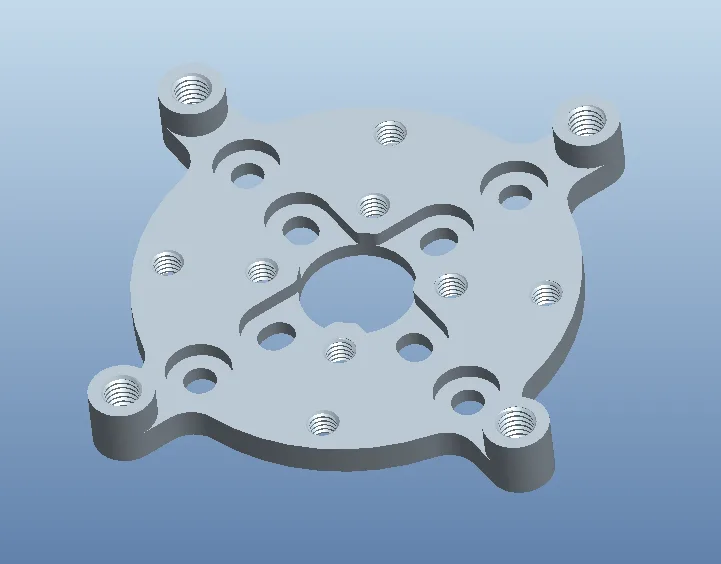

While we don’t currently offer stepper motors, they’re readily available and have standardized mounting patterns. These motor mounts make it easy for you to incorporate your stepper motors into a thefirsttool project.The NEMA 23 motor mount provides a clean and simple way to fasten a NEMA 23 stepper motor to your project. The mount has both threaded and thru-holes on the 16mm and 32mm patterns. The included M5 screws will pass through the tabs of the motor mount and thread into the motor mount for a solid and reliable connection.
Motor Compatibility NEMA 23 Stepper Motor

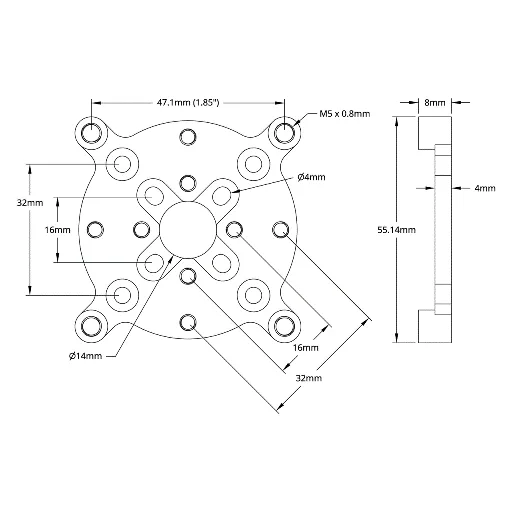

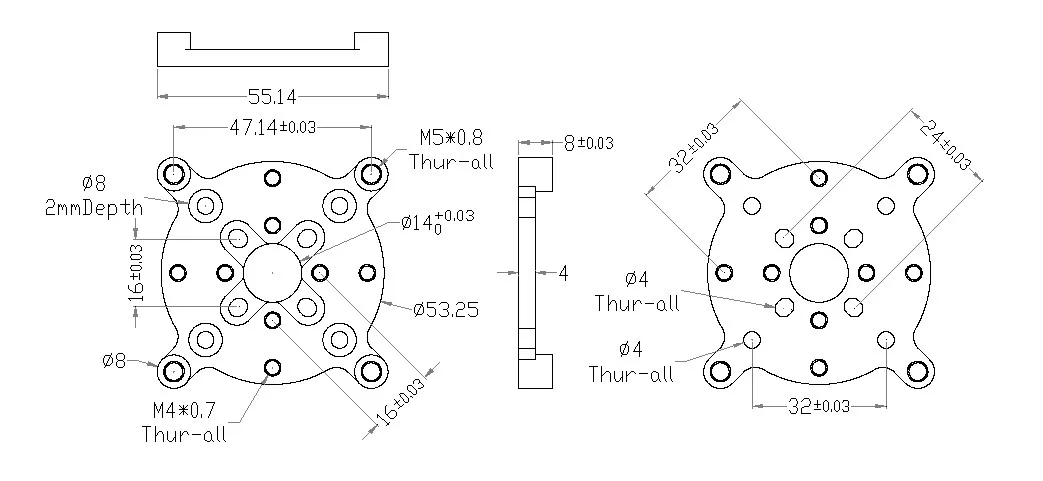

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3700-0016-0023 |
| Weight | 105g |
| Material | zinc alloy |
