3700 Series Face Tapped Stepper Motor Mount (NEMA 14)
SKU: ZY-3700-0016-0014
R 160,70Ex Tax: R 139,74
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

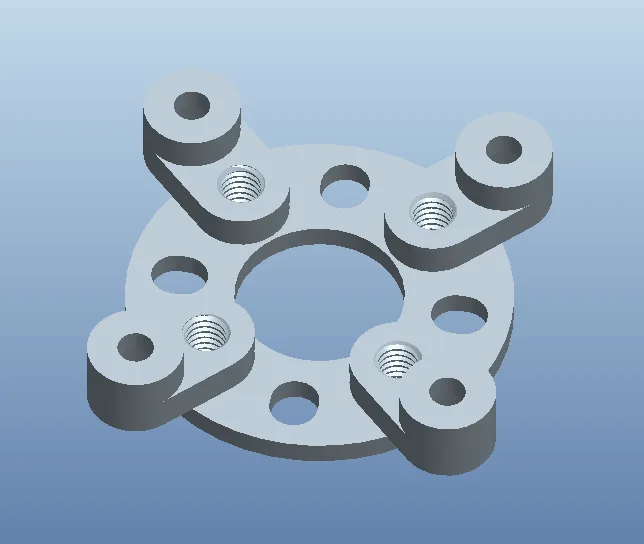

While we don’t currently offer stepper motors, they’re readily available and have standardized mounting patterns. These motor mounts make it easy for you to incorporate your stepper motors into a thefirsttool project.This mount allows you to fasten a NEMA 14 motor to any thefirsttool component that contains the 16mm pattern. The included M3 socket head screws hold the motor to the mount and the heads will remain below the mounting surface.
Motor Compatibility NEMA 14 Stepper Motor

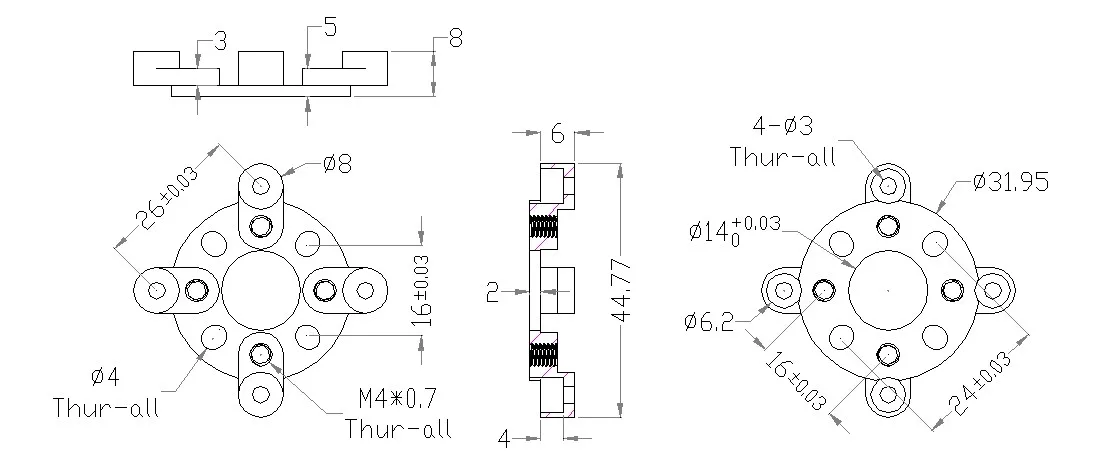

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3700-0016-0014 |
| Weight | 27g |
| Material | zinc alloy |
