3700 Series Face Tapped Stepper Motor Mount (NEMA 11)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

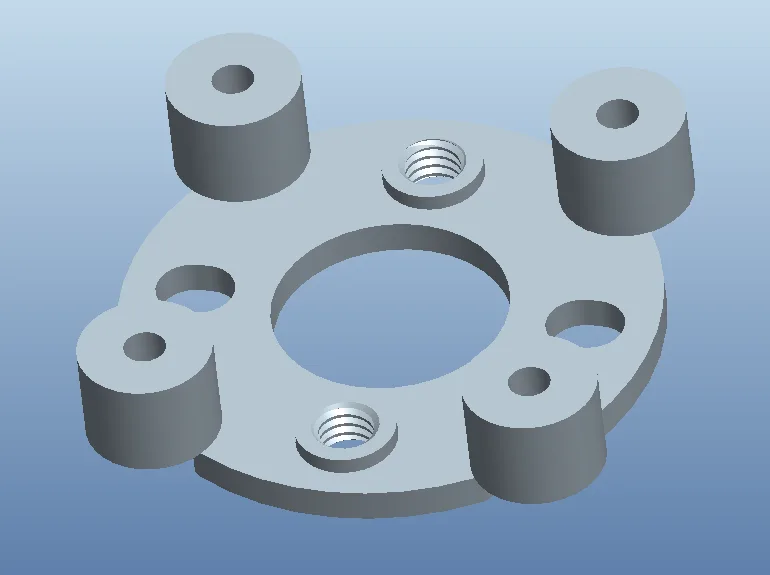

While we don’t currently offer stepper motors, they’re readily available and have standardized mounting patterns. These motor mounts make it easy for you to incorporate your stepper motors into a thefirsttool project.The NEMA 11 stepper motor mount is able to fasten to the face of a NEMA 11 motor using the supplied pan head screws. The screws are recessed into the counterbored holes in order to leave a smooth mounting surface. There are two thru-holes and two threaded holes on the 16mm pattern so that you have options for the best way to attach the mount to your structure.
Motor Compatibility NEMA 11 Stepper Motor

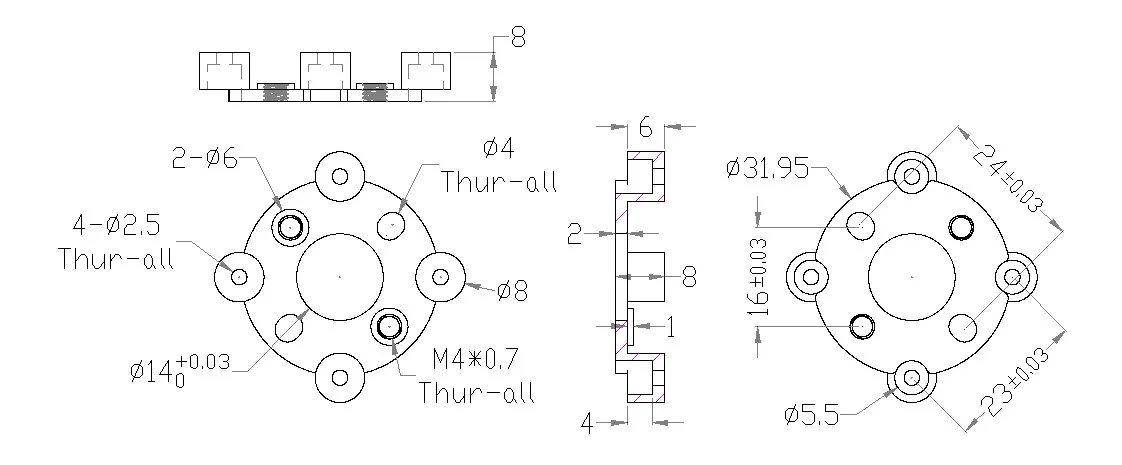

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3700-0016-0011 |
| Weight | 20g |
| Material | zinc alloy |
