3611 Series Flanged Ball Bearing (8mm REX ID x 14mm OD, 5mm Thickness)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
1.The 8mm REX Bore variant of our tried-and-true Mini-Flanged bearing keeps thesame 1mm flange that you'reused to, so it nestles perfectly in parts with a 16mm diameter, 1mm depth"Bearing Counterbore".
2.8mm REX bearings are a perfect match to 8mm REX shafting.While 8mm REX shafting is directly compatible with 8mm round bore bearings, having a REX bore provides more surface contact and more evenly disperses the loads applied to the inner race of the bearing.
3.The 3611 Series of flanged bearings are designed with a reduced diameter so that screws of many varieties can fit around the bearing flange when used on the 16mm square pattern such as on 3120 Series U-Channel
Supplied as a pack of 2.

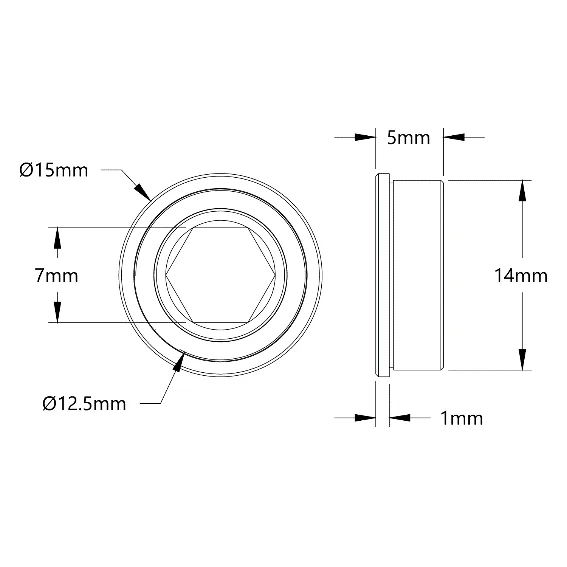

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3611-0514-4008 |
| Units per pack | 2 |
| Weight | 3.5g Each |
| Material | Stainless Steel |
| Bore | 8mm REX |
