3603 Series Face Thru-Hole Pillow Block (6mm Bore)
SKU: ZY-3603-0032-0006
R 130,63Ex Tax: R 113,59
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The mounting holes are oriented in the same direction as the bore of the bearing. This allows these pillow blocks to lay flush on a surface. They can be clad to the outside of channel, held in the interior of channel using Block Mounts, or stood off of a parallel surface using standoffs.

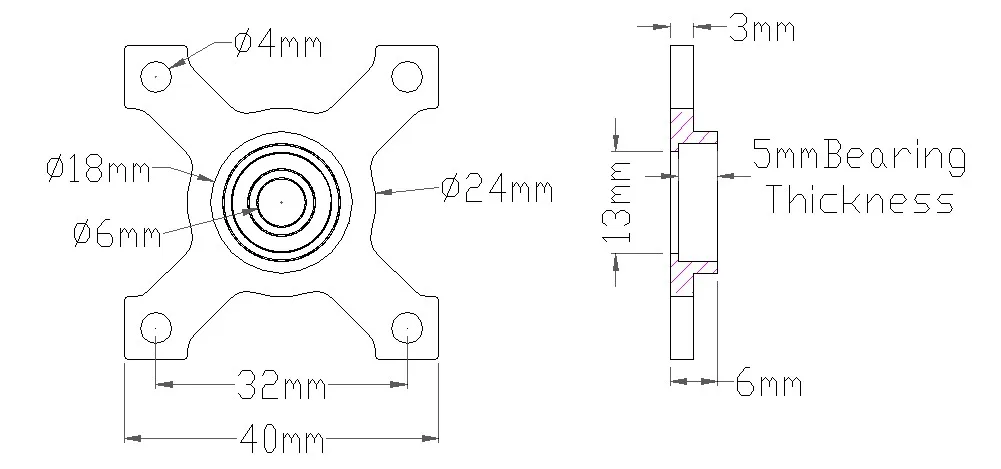

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3603-0032-0006 |
| Weight | 9g |
| Material | Aluminum Housing, Stainless Steel Bearing |
| Stainless Steel Bearing Bore | 6mm |
