Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This counterbored pattern spacer contains four M4 threaded holes on the 16mm thefirsttool® pattern and four 4mm thru-holes that align with the 8mm grid pattern. It can be fastened to any part containing the grid pattern or linear pattern and the counterbored holes leave the threaded mounting surface clear for attaching mating components to. It also serves as an adaptor from Tetrix® to thefirsttool®. The M4 thru-holes allow 6-32 screws (used with the Tetrix® build system) to pass through so that you can fasten this part to a Tetrix® component and leave you with (4) threaded holes on the thefirsttool® pattern.
size:10mm ID x 32mm OD
thread:M4 x 0.7mm

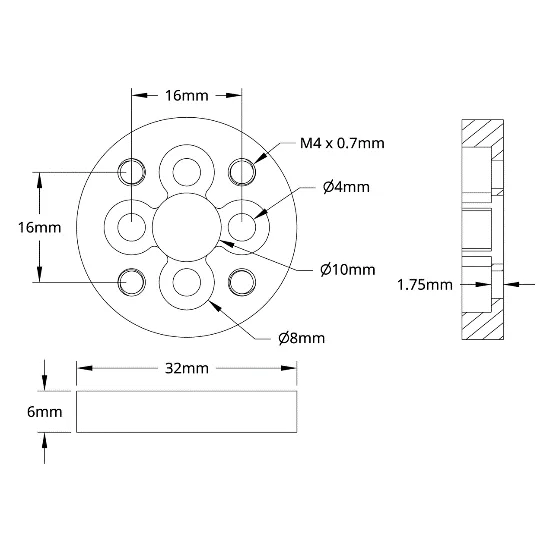

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3511-0032-0060 |
| Length | 6mm |
| Weight | 8.6g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
