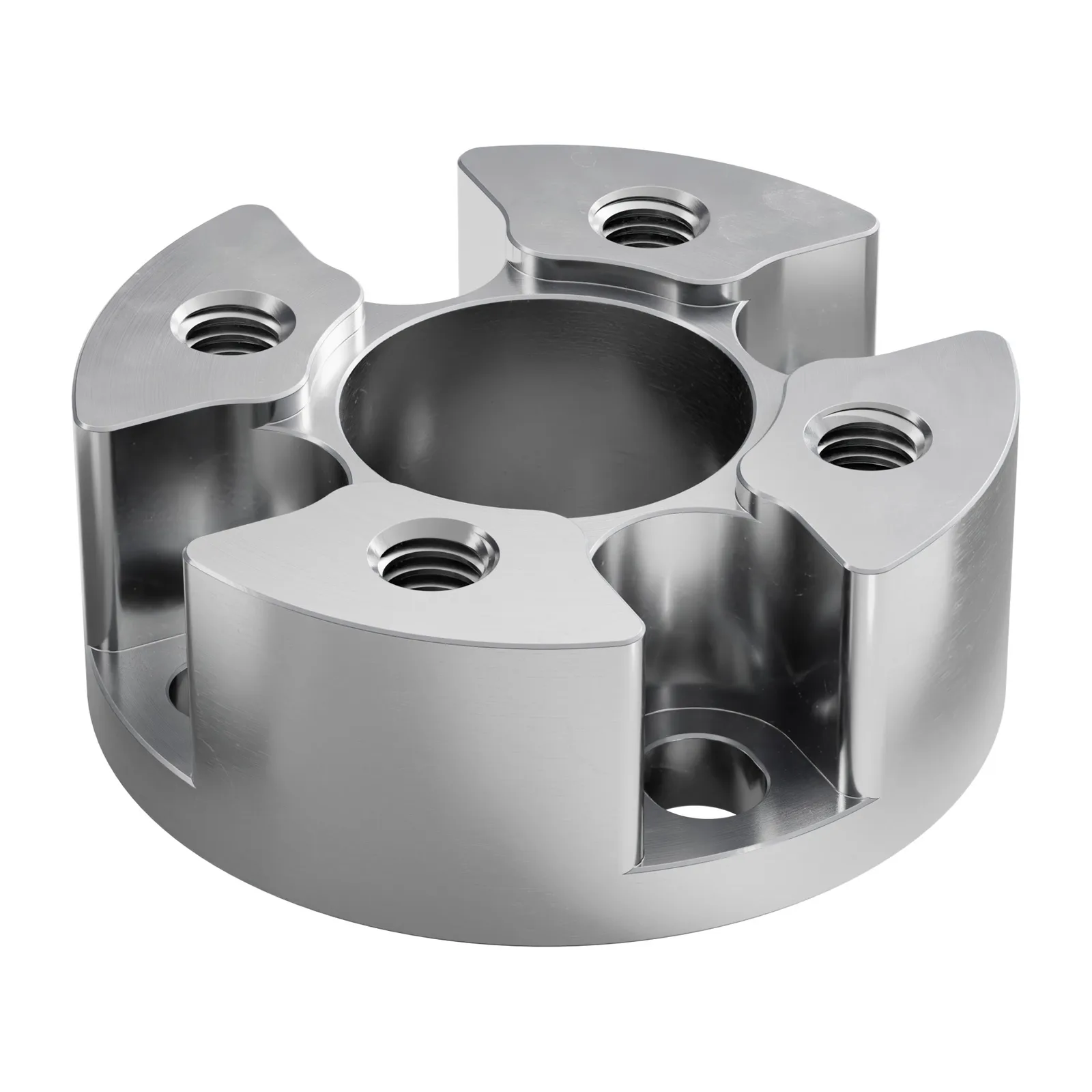

3505 Series 32mm OD Counterbored Pattern Spacer (12mm Length)
SKU: ZY-3505-0032-0120
R 114,95Ex Tax: R 99,96
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This 12mm length, 32mm OD pattern spacer boasts a 14mm bore with shallow counterbores on each side to provide clearance to flanged bearings. You can keep its build surface free of obstruction thanks to 16mm square pattern thru-holes with deep counterbores that allow screw heads to sit underneath the build surface.
Threaded holes, meanwhile, provide for attachment on either side. And just like all of our 32mm diameter components, this spacer can be used in 32mm ID bearings and clamps to create unique assemblies!

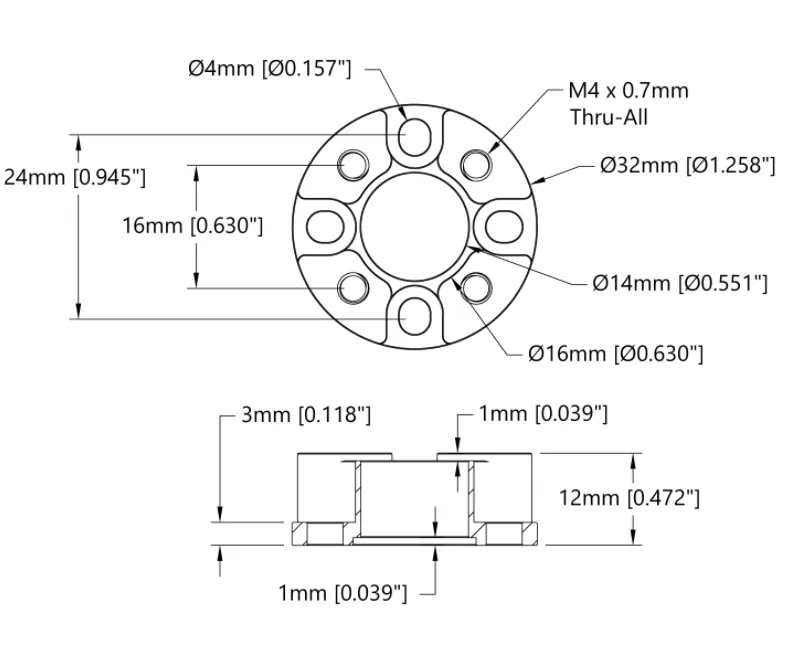

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3505-0032-0120 |
| Weight | 14g |
| Material | Aluminum |
| Finish | Clear Anodized |
