3504 Series 32mm OD Pattern Spacer (6mm Length)
SKU: ZY-3504-0032-0060
R 82,76Ex Tax: R 71,97
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These spacers have many uses beyond spacing two pieces apart. They can be used as a bearing mount for 14mm OD flanged ball bearings. The 1mm recess around the bore allows a flanged bearing to sit flush with the top of the pattern spacer. The OD of the pattern spacer is compatible with 32mm pillow blocks, and clamping mounts.
size:14mm ID x 32mm OD
thread:M4 x 0.7mm

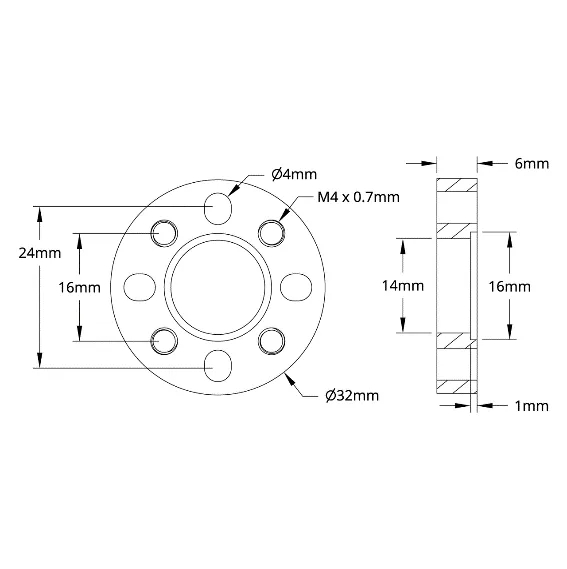

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3504-0032-0060 |
| Length | 6mm |
| Weight | 8.8g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
