3206 Series Pattern Adaptor (16-4)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

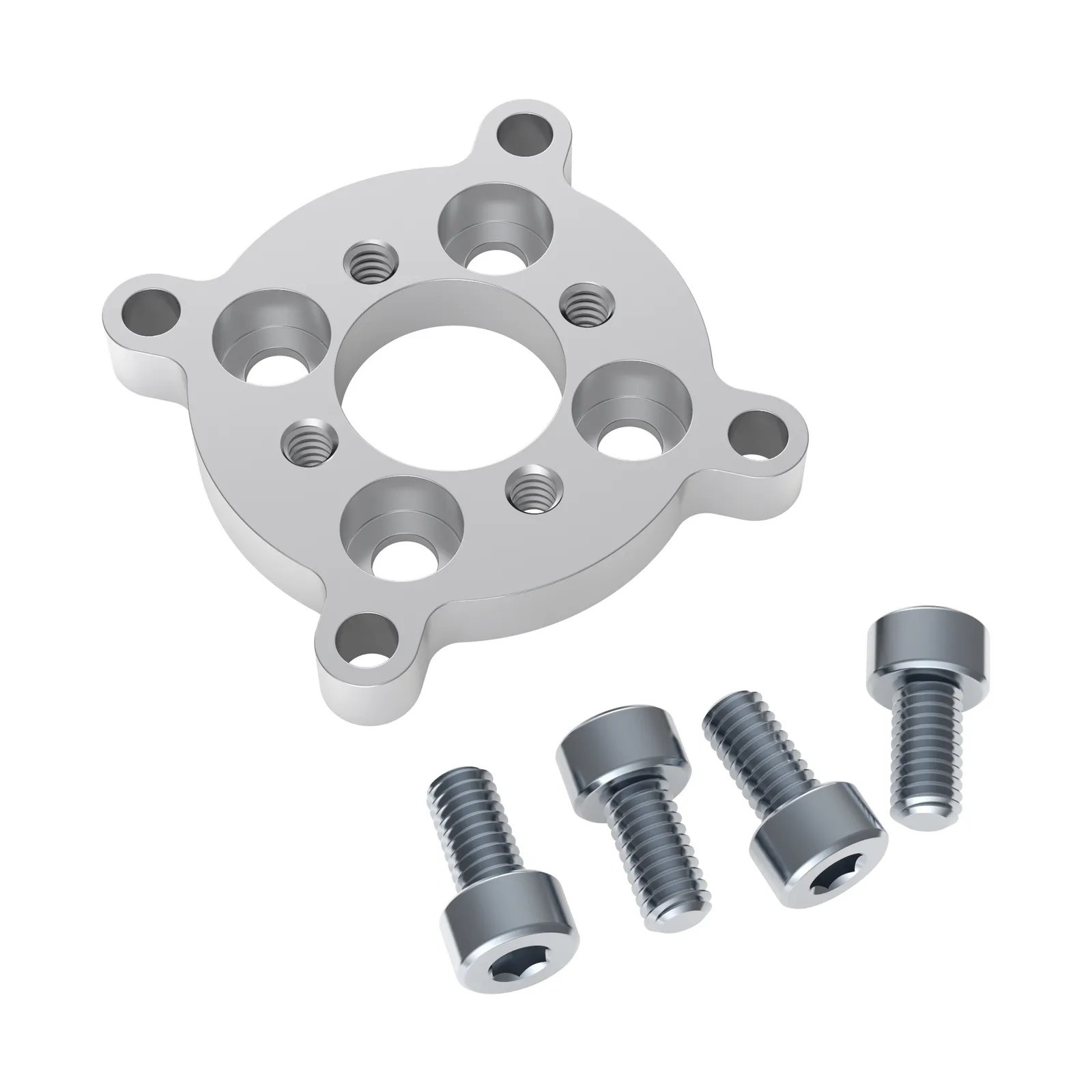

If your inventory of robot parts includes more than just thefirsttool, these adaptors will allow you to mix and match with ease.This pattern adaptor contains thru-holes for M4 screws on the thefirsttool 16mm pattern, 6-32 UNC threaded holes on the Actobotics 0.77" hub pattern and thru-holes for 6-32 screws on the Actobotics 1.5” hub pattern. Use it to adapt a 7202 Series Yellow Jacket Gear Motor to your Actobotics assembly or fasten structural components together with ease when mixing the two systems. When using with a 5202 Series Yellow Jacket Gear Motor, the included M4 screws will nest down into the counterbores of the part to allow the motor/adaptor assembly to rest flush against the Actobotics part you wish to fasten to.

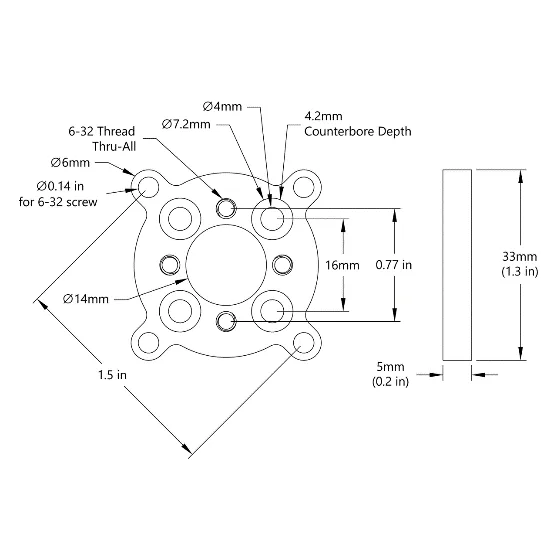

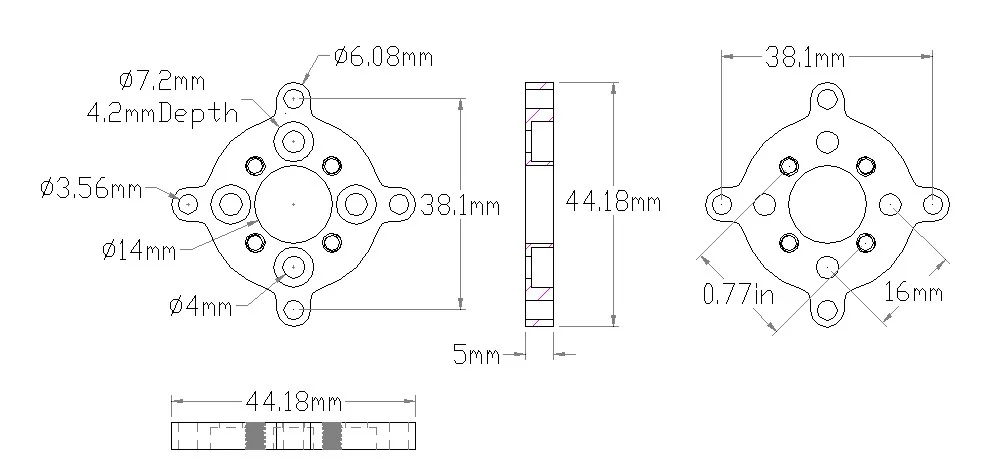

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3206-0016-0004 |
| Weight | 14g |
| Threaded | 6-32 |
| Material | Aluminum |
| Finish | Clear Anodized |
