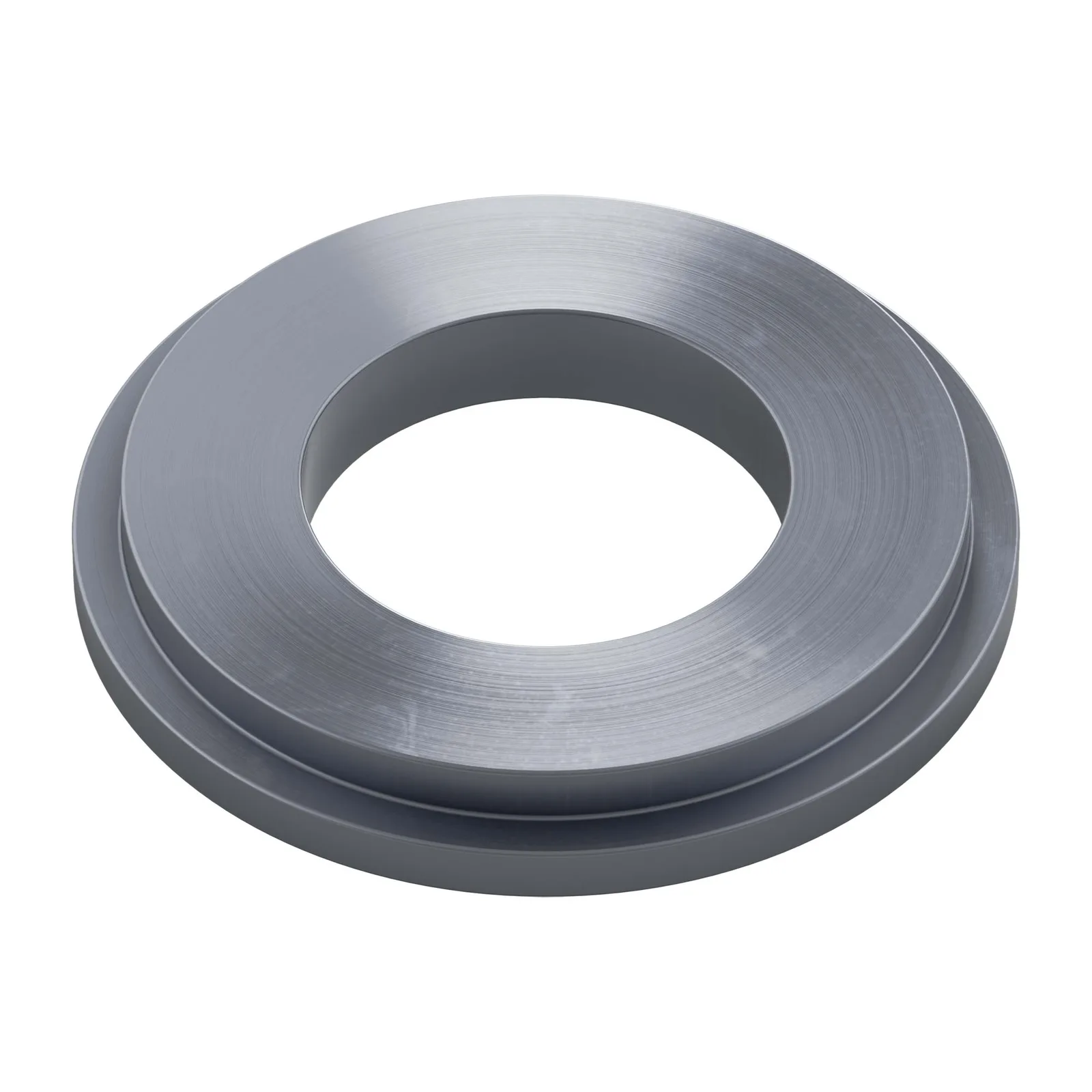

14mm to 8mm Hole Reducer - 4 Pack
SKU: ZY-4904-0008-0014
R 183,92Ex Tax: R 159,93
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This hole reducer fits over an 8mm OD (or 8mm REX) shaft and indexes into a 14mm hole. In some assemblies, 14mm bore hub-mount components can get farther away from the hub than is ideal. This hole reducer offers a means to remove the cantilever from your assembly by transferring the force from the 14mm bore down to the shaft.
Another use-case for this hole reducer is to allow you to use M8 hardware in a 14mm hole.
Supplied as a pack of 4.

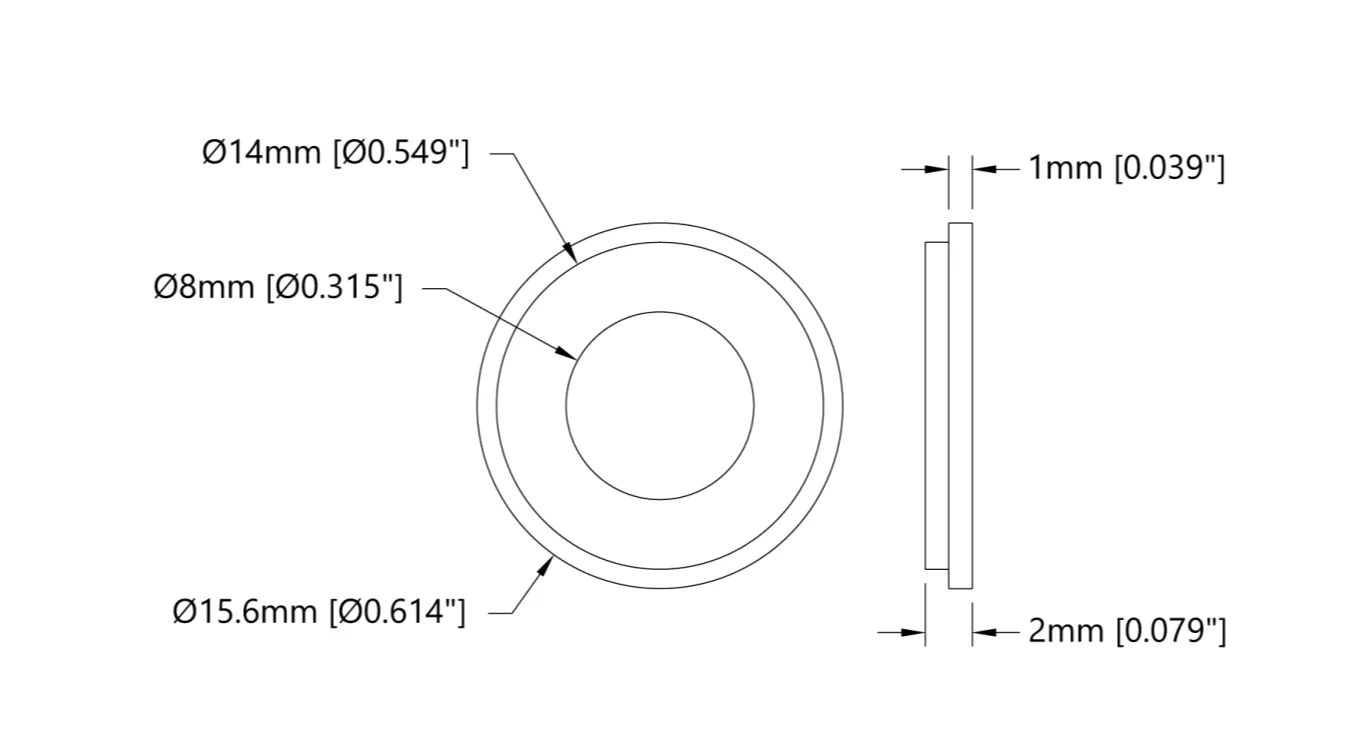

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4904-0008-0014 |
| Units per pack | 4 |
| Weight | 1.9g Each |
| Material | Steel |
| Finish | Zinc-Plated |
