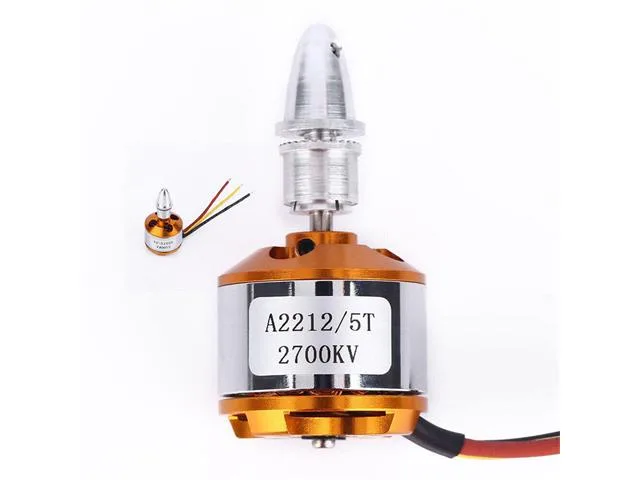

XXD A2212 2700KV Brushless Motor
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The XXD A2212 is a high-speed 2700KV brushless motor designed to deliver 2700 RPM per volt. Operating on 2 to 3 Li-Poly cells, it provides efficient propulsion for aerial and model vehicles. It is ideally suited to students, makers, and RC enthusiasts building custom drones and radio-controlled projects.
High-speed performance
With a 2700KV rating, this motor turns at 2700 RPM per volt and reaches up to 80% efficiency. It features a current capacity of 12A for up to 60 seconds.
Power and operating voltage
Designed for 2-3S Li-Poly batteries spanning 7.4V to 11.1V, the motor draws a no-load current of 0.5A at 10V. Its peak efficiency current operates within the 4A to 10A range.
Compact mechanical profile
The motor measures 27.5 x 30mm and incorporates a 3.17mm diameter shaft. Its compact dimensions make it suitable for lightweight drone frames and RC craft.
Specifications
| Device | Motor |
| Type | Brushless |
| KV | 2700 KV |
| Max Efficiency | 80% |
| Max Efficiency Current | 4-10A (>75%) |
| Current Capacity | 12A/60s |
| No Load Current @ 10V | 0.5A |
| No. Of Cells | 2-3 Li-Poly (7.4 - 11.1V) |
| Motor Dimensions | 27.5 x 30mm |
| Shaft Diameter | 3.17mm |
Reviews
No reviews yet — be the first to review this product.
