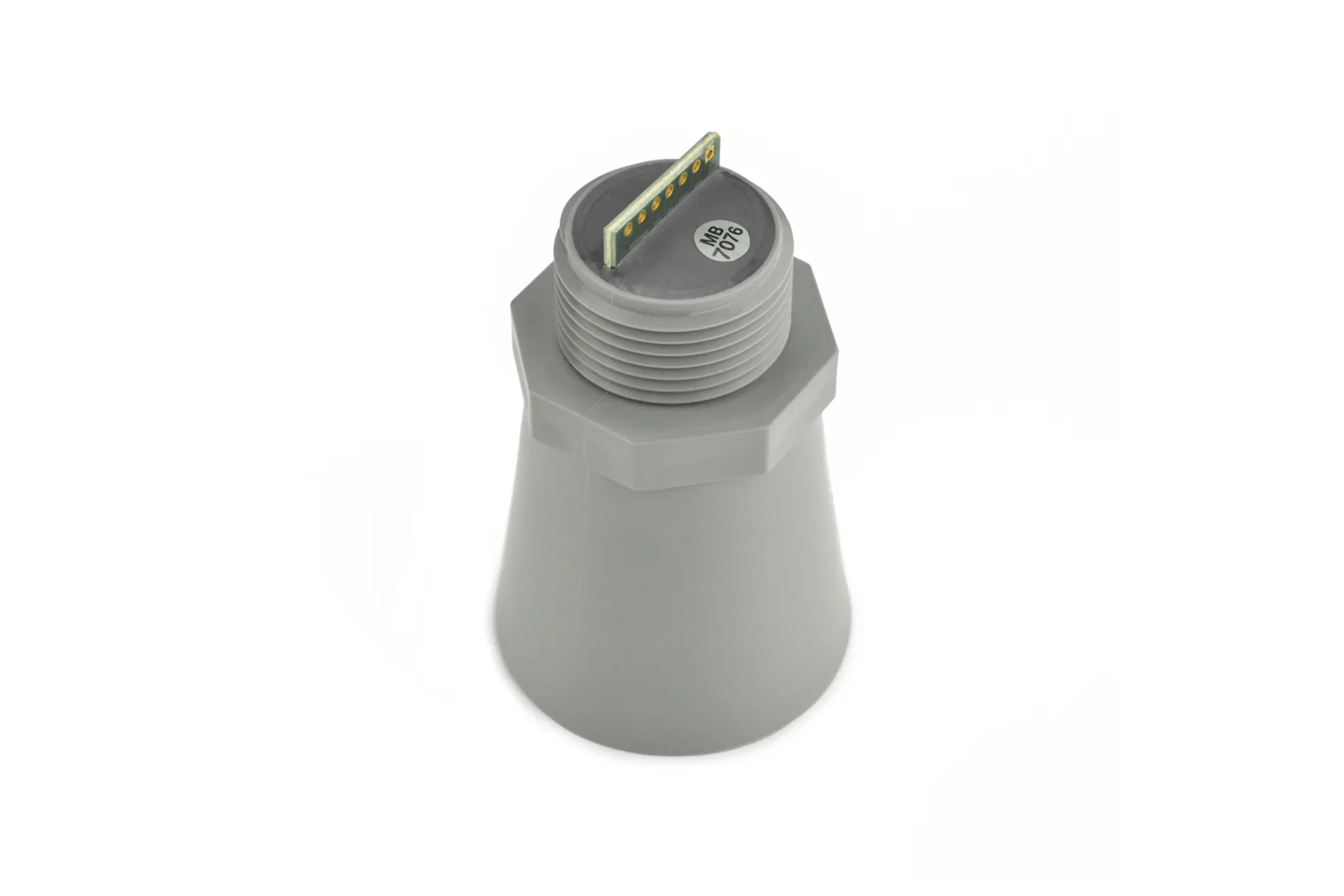

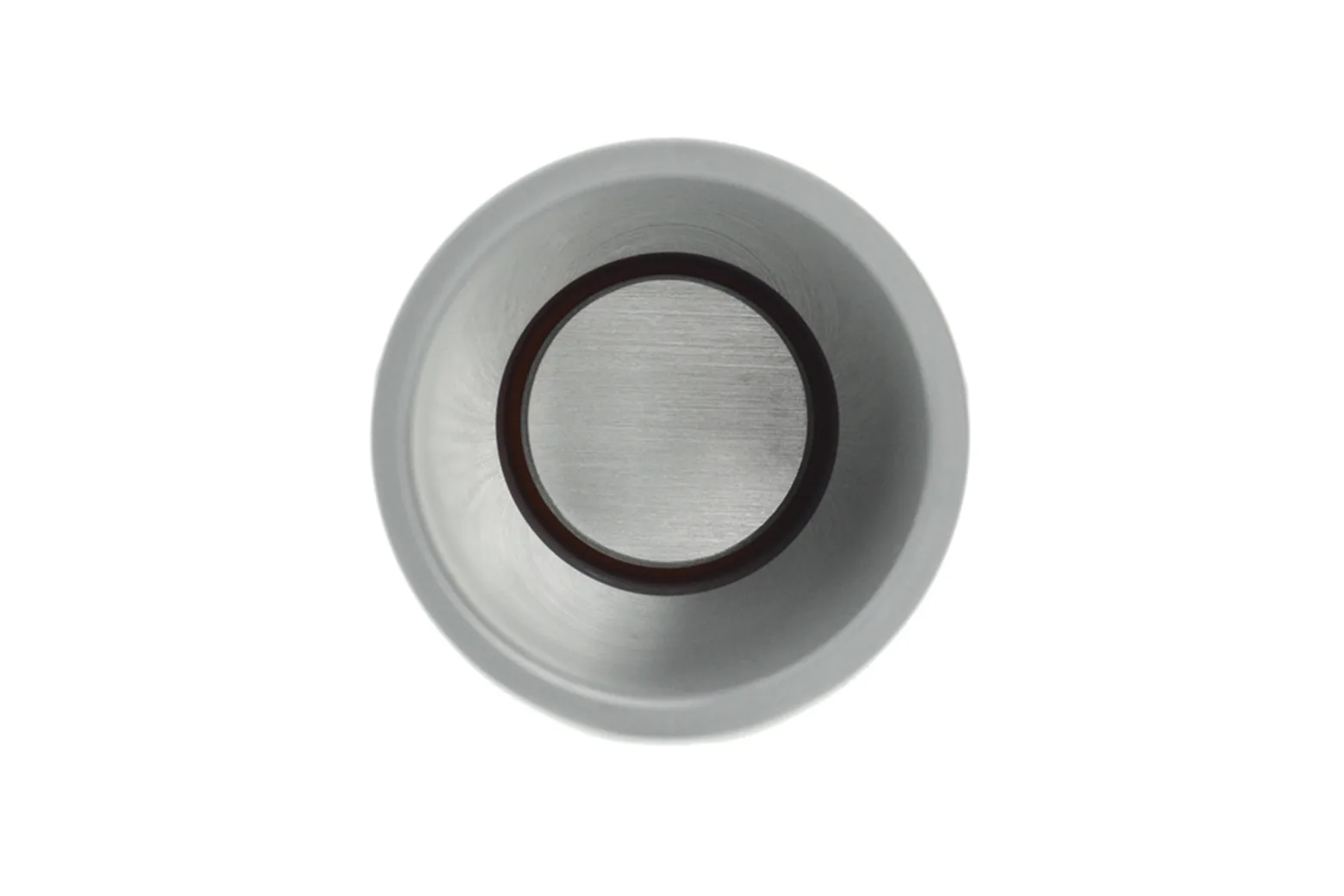

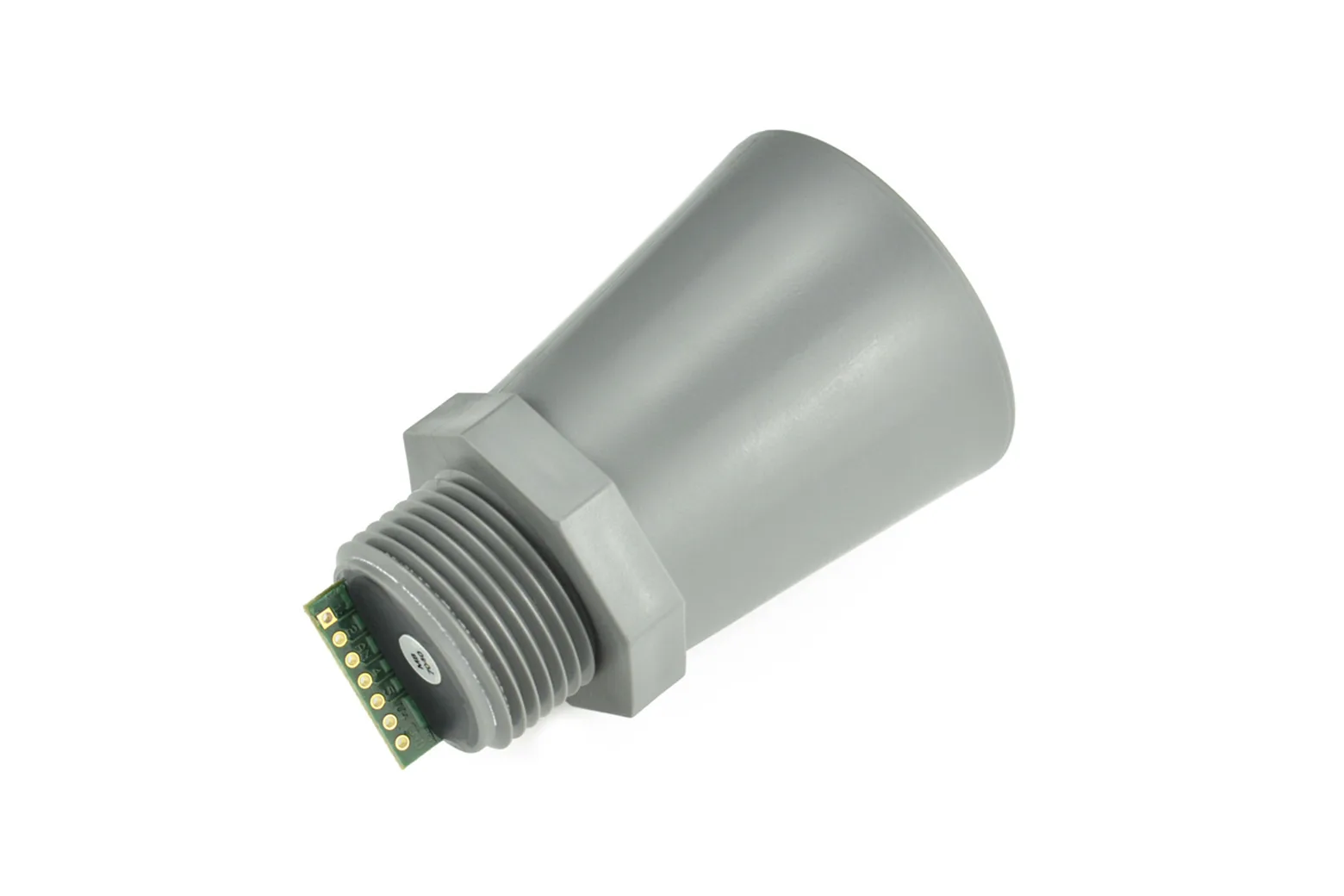

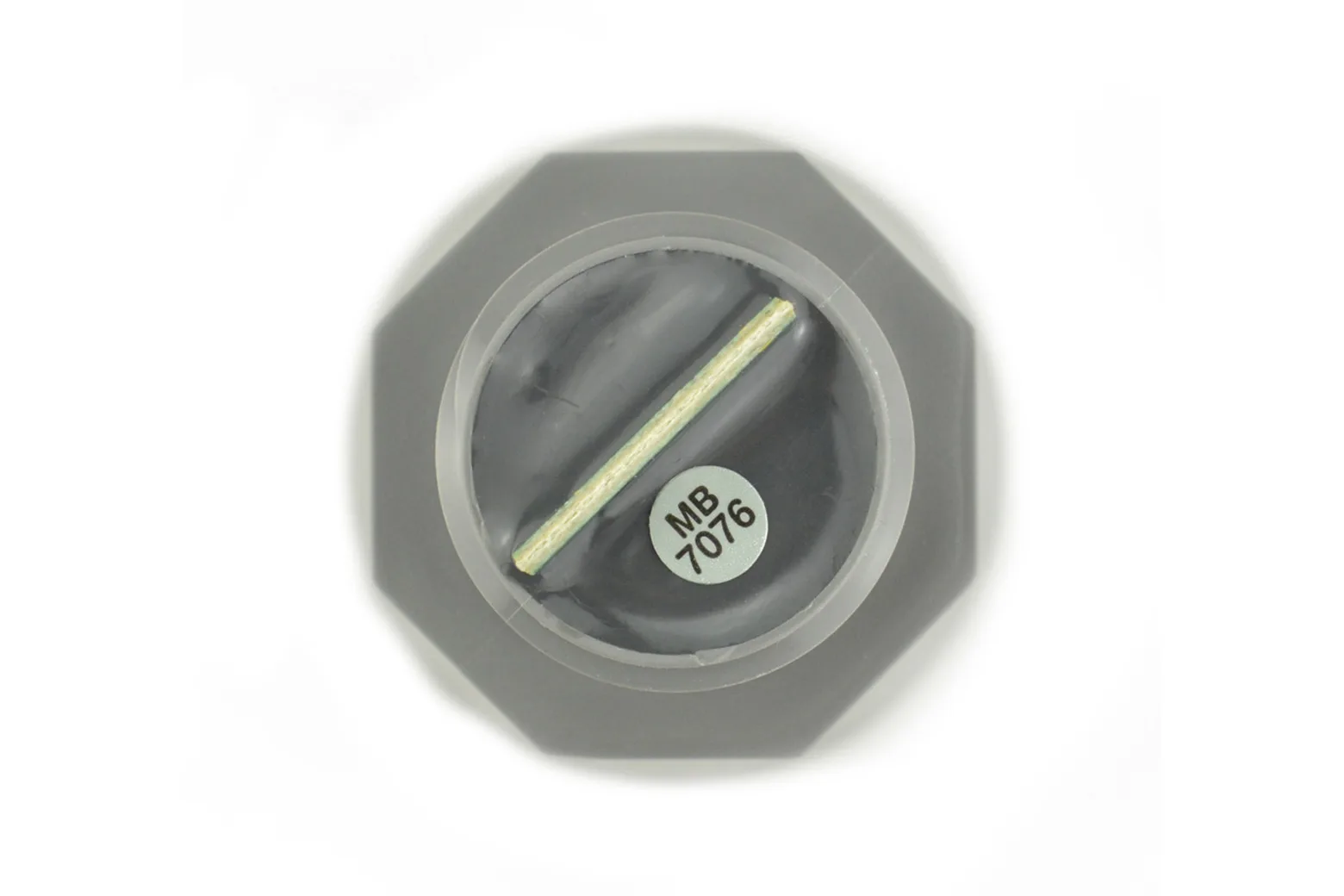

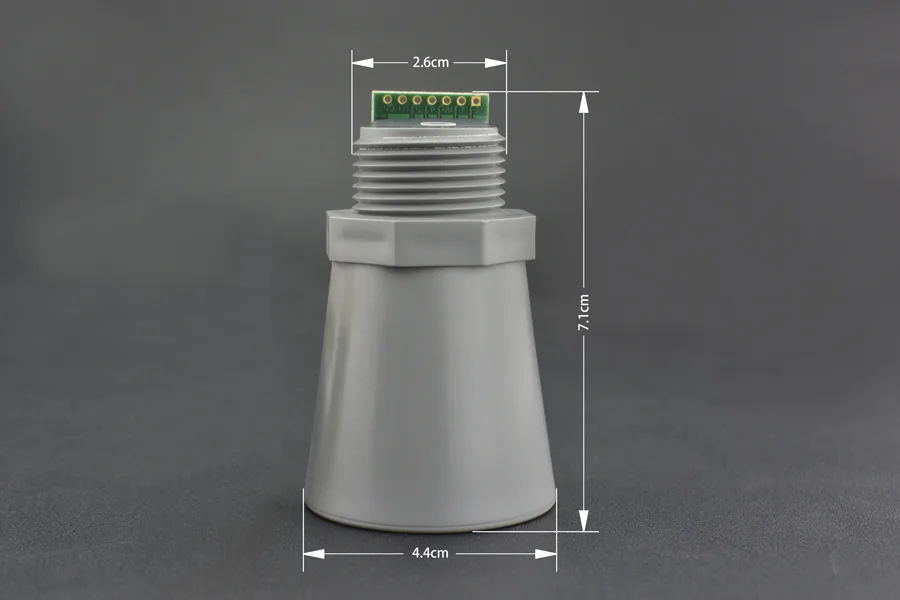

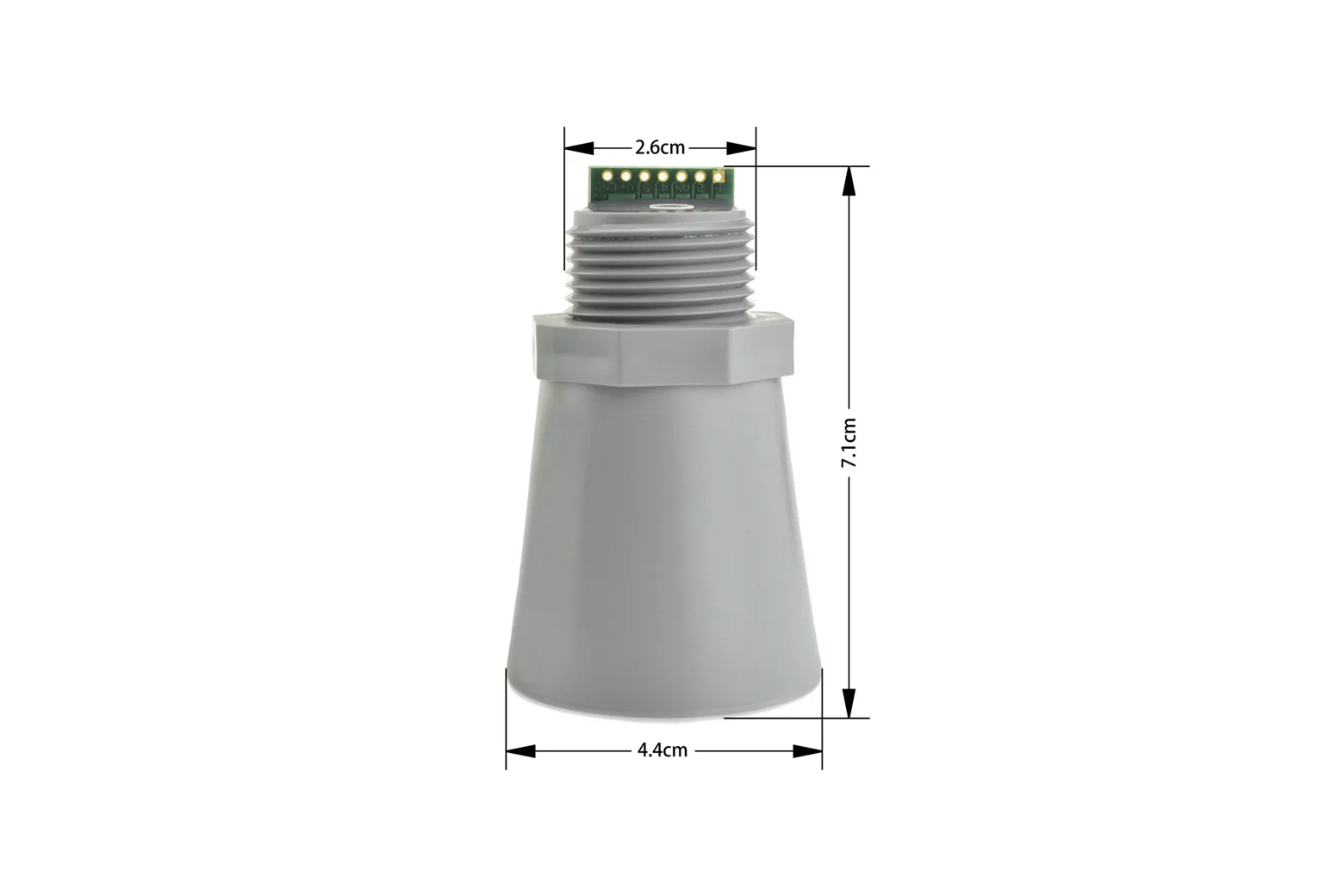

XL-MaxSonar-WRLA1 MB7076 Waterproof Ultrasonic Distance Sensor (20-1068cm, IP67)

The XL-MaxSonar-WRLA1 MB7076 is a rugged, weather-resistant ultrasonic distance sensor designed for reliable ranging in demanding environments. It provides precise measurements across a long detection envelope, making it an ideal choice for makers, students, and engineers developing outdoor robotics and automation systems.

Extended measuring range

This sensor accurately detects targets from 20cm up to 1068cm away with a fine 1cm resolution. The wide detection window suits both short-range awareness and long-range tracking requirements.

Rugged IP67 weatherproofing

Engineered with an IP67 rating, the transducer housing is protected against dust ingress and water immersion. This allows reliable deployment in outdoor robotics, weather stations, and harsh industrial environments.

Versatile output options

The module provides analog voltage, analog envelope, and RS232 serial data outputs. These flexible interfaces allow for seamless integration with a wide variety of microcontrollers and processing boards.

Continuous 10Hz update rate

Operating at a 10Hz reading frequency, the sensor delivers ten distance updates every second. This consistent data rate ensures responsive obstacle avoidance and dynamic distance tracking.
