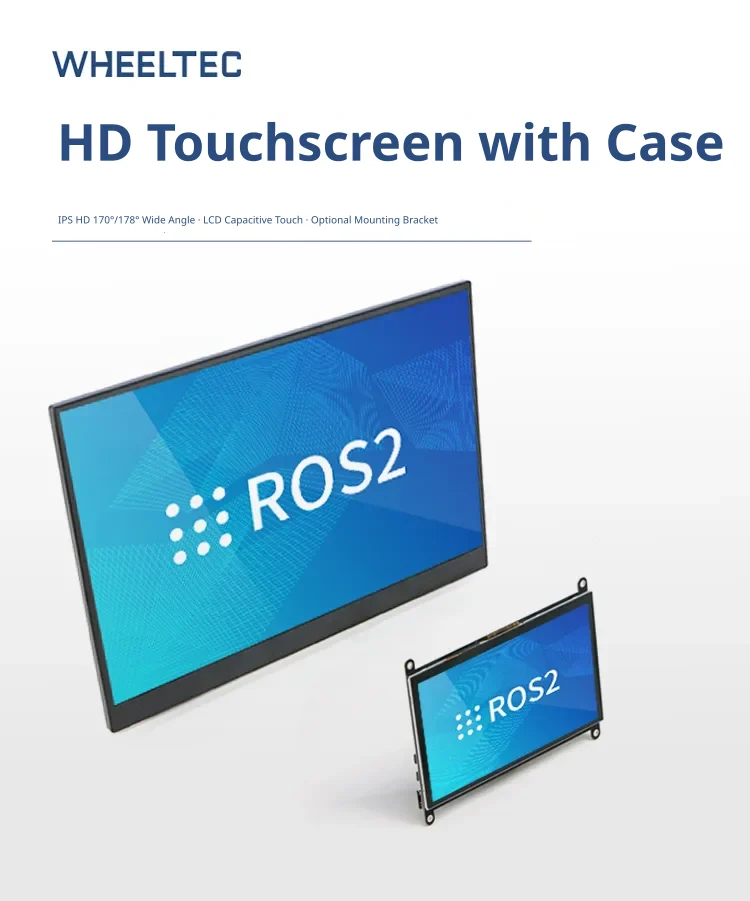

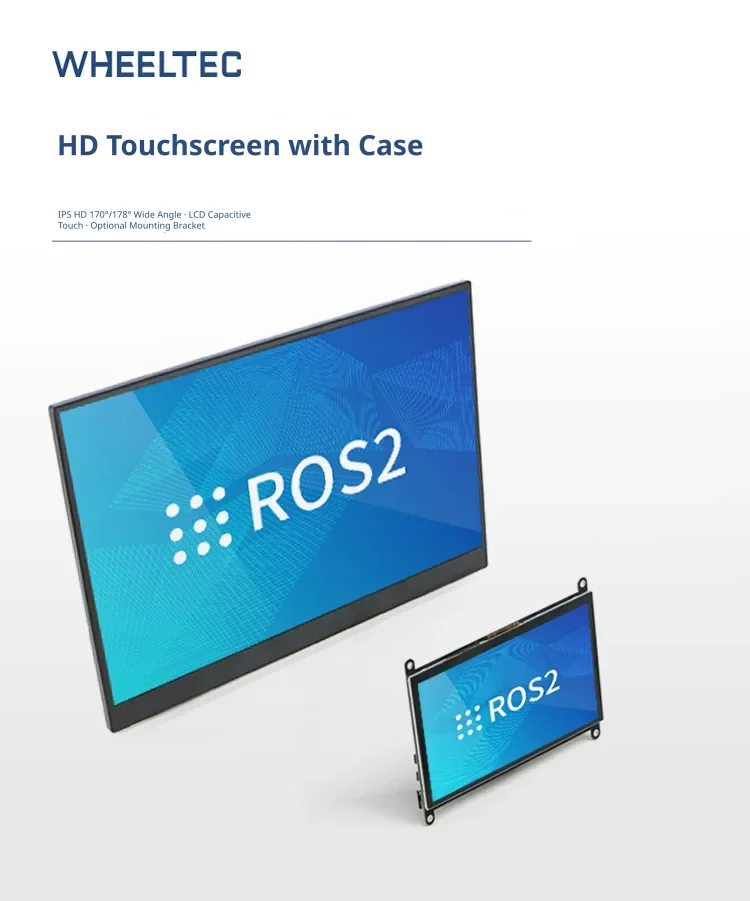

WHEELTEC HD Touch Screen Display with Case

The WHEELTEC HD Touch Screen Display with Case is a responsive, high-definition monitor designed for robotics developers, makers, and ROS2 educators. Available in compact 7-inch and 14-inch form factors, these displays provide clear, wide-angle visuals and capacitive touch control for portable projects and robot control stations.

High definition capacitive touch panel

This display features an IPS high-definition panel with capacitive touch technology for responsive user input. It offers wide viewing angles of up to 170 or 178 degrees, making it ideal for monitoring mobile robot platforms from various positions.

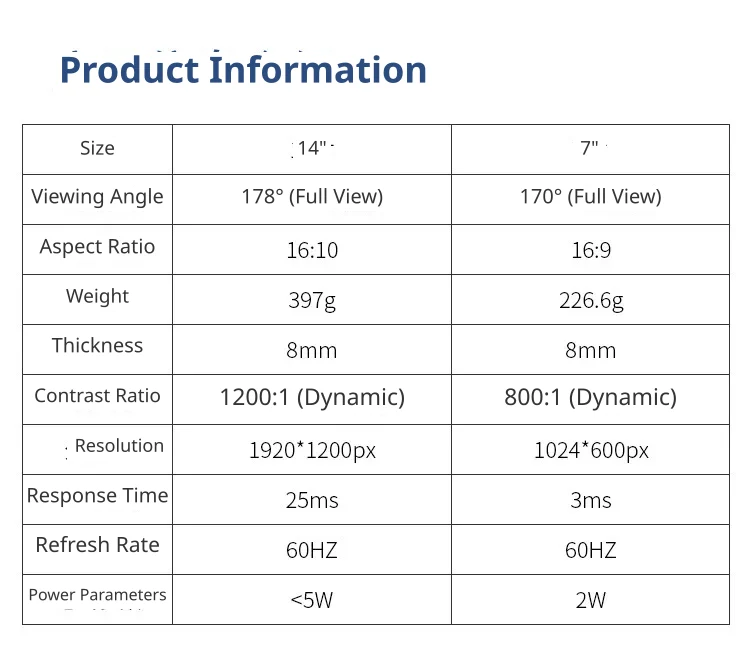

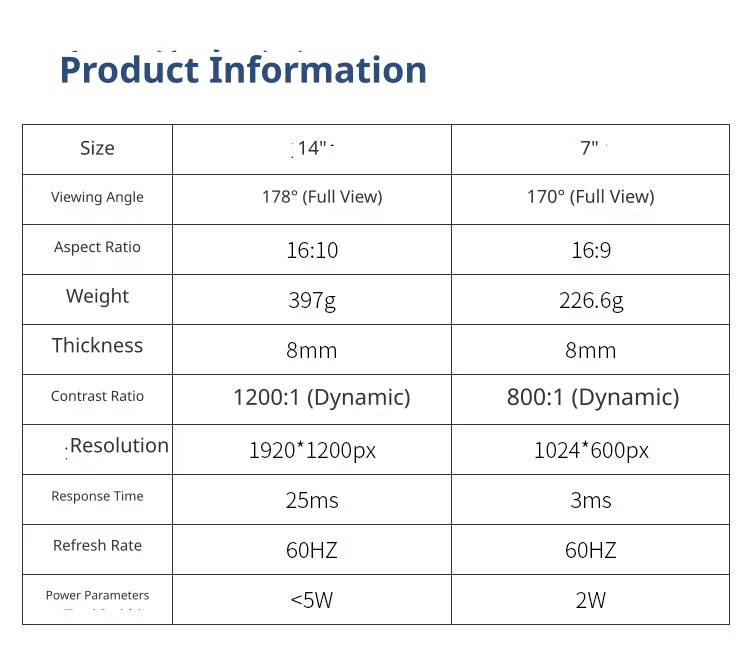

Dual size options and specifications

Choose between a compact 7-inch model and a larger 14-inch model to suit your project's space requirements. The 14-inch version offers a 1920 by 1200 pixel resolution with a 16:10 display ratio, while the 7-inch version provides a 1024 by 600 pixel resolution with a 16:9 ratio.

Lightweight and ultra-thin design

Designed with mobile robotics in mind, both screen sizes maintain an incredibly slim thickness of just 8mm. The 14-inch model weighs only 397g, while the 7-inch model is highly portable at 226.6g, ensuring minimal impact on your robot's payload capacity.

Low power consumption

These energy-efficient displays are optimised for battery-powered setups, with the 14-inch model drawing less than 5W and the 7-inch model requiring just 2W. This low power draw helps maximise the operating time of your mobile development platforms.

Smooth performance and high contrast

Both displays feature a smooth 60Hz refresh rate for fluid visual feedback. The 14-inch screen boasts a 1200:1 dynamic contrast ratio with a 25ms response time, while the 7-inch screen delivers an 800:1 dynamic contrast ratio and a rapid 3ms response time.
