WHEELTEC HD RGB Camera Module for ROS

The WHEELTEC HD RGB Camera Module is a high-definition, plug-and-play imaging solution designed specifically for ROS robotics development and computer vision projects. Available in C70 and C100 variants, this compact CMOS camera is ideal for students, educators, and makers building autonomous navigation or visual tracking systems. With native UVC support, it integrates seamlessly into your development workflow without the need for complex driver installations.

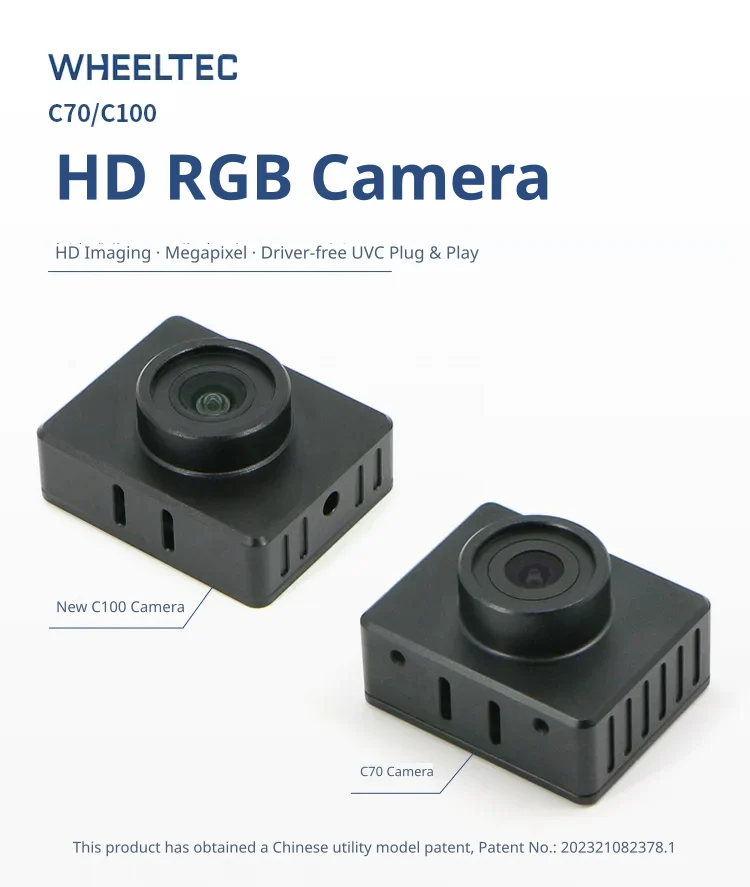

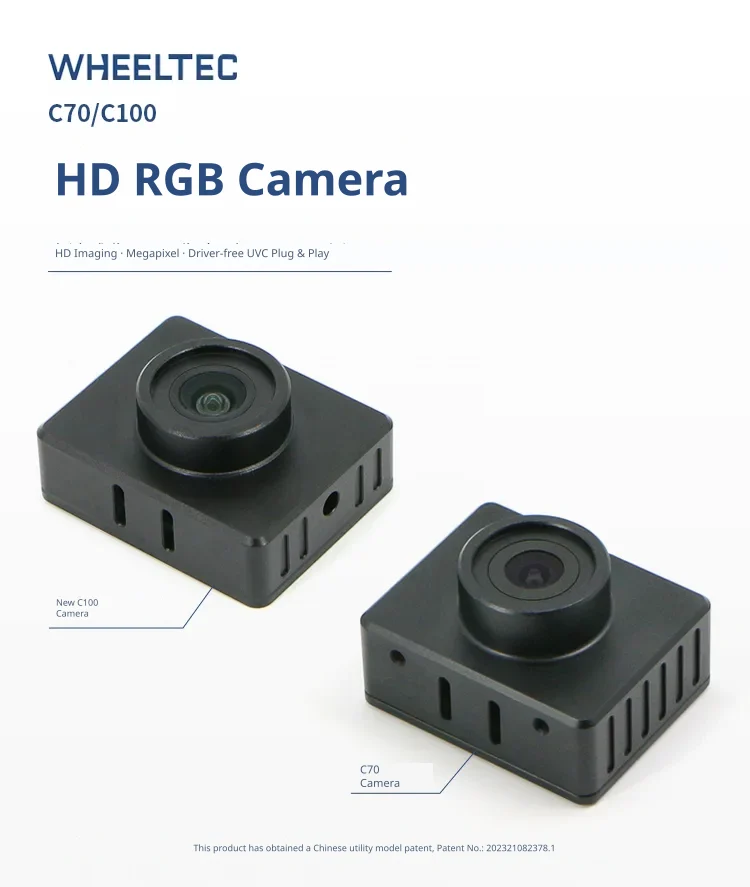

Driver-free plug and play

The WHEELTEC camera series features standard UVC support, allowing for immediate driver-free integration. Simply connect the module to get started with high-definition megapixel imaging on your robotics platform.

Comprehensive system compatibility

Designed for versatile development environments, this camera module supports a wide range of operating systems. It is fully compatible with Windows XP, Vista, Win7, Win8, Win10, Linux, and Ubuntu systems.

High performance C100 variant

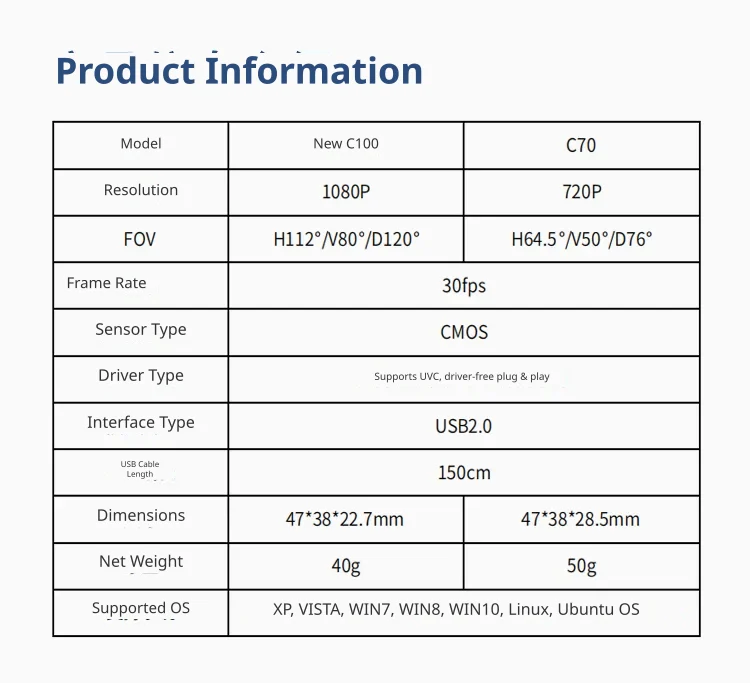

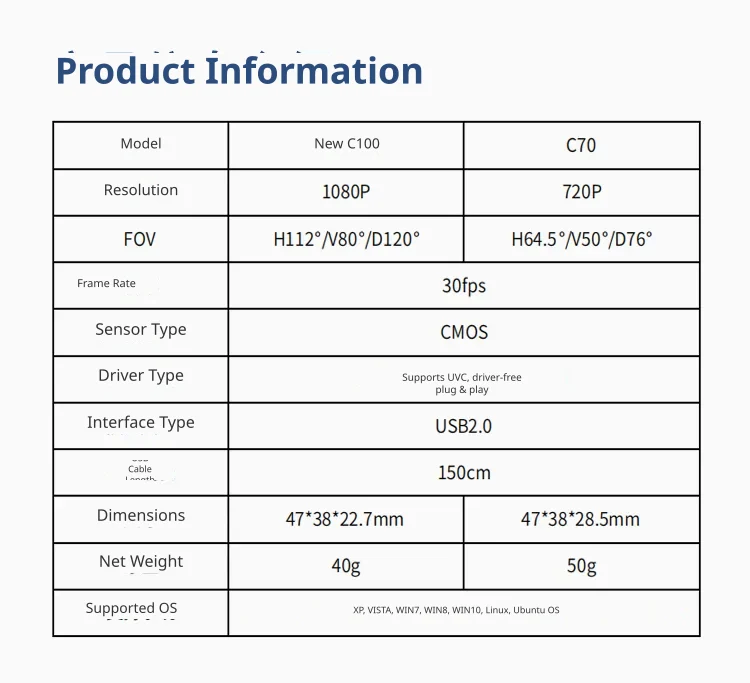

The C100 model delivers crisp 1080P resolution at 30fps with a wide field of view measuring H112, V80, and D120 degrees. Weighing just 40g, this compact 47 by 38 by 22.7mm module is perfect for weight-sensitive drone or mobile robot projects.

Reliable C70 camera option

The C70 variant offers 720P resolution at 30fps with a field of view of H64.5, V50, and D76 degrees. It features a slightly deeper housing measuring 47 by 38 by 28.5mm and weighs 50g.

Standard USB connectivity

Both camera models utilise a high-speed USB 2.0 interface for reliable data transmission. Each module comes equipped with a generous 150cm USB cable to easily route through your robot's chassis.
