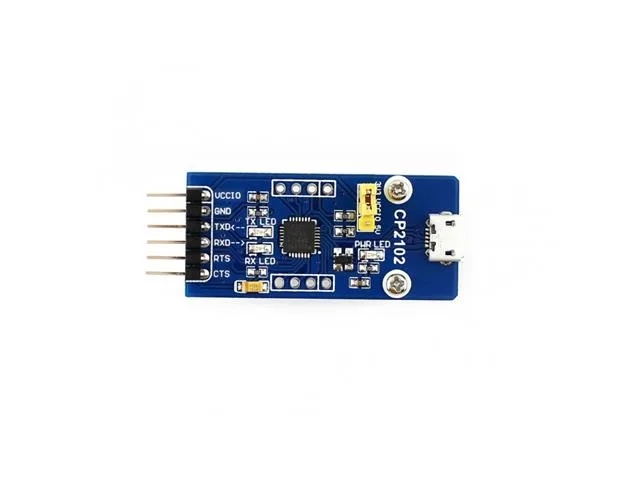

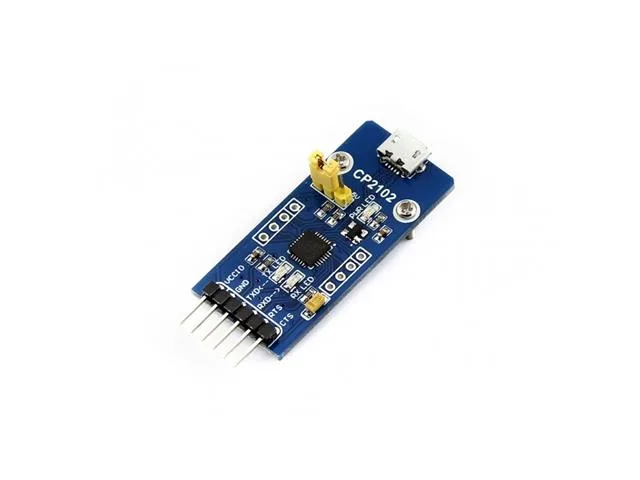

Waveshare CP2102 USB to UART Board with Micro USB

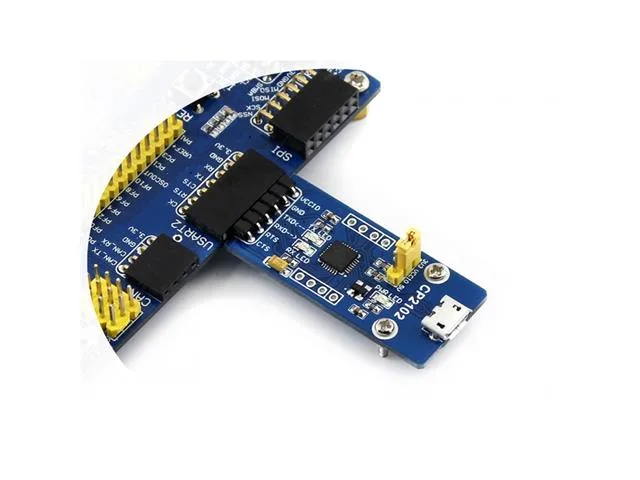

The Waveshare CP2102 USB to UART Board provides a reliable serial communication bridge between a computer and microcontrollers using a Micro USB interface. Powered directly from USB with selectable 3.3V or 5V logic output, it features onboard SP0503 protection and activity indicator LEDs. It is an ideal development tool for students, makers, and educators connecting embedded hardware to modern computers.

Robust USB to serial bridging

The onboard CP2102 controller provides full-speed USB 2.0 to UART data transfer at rates from 300 bps up to 1 Mbps without needing external crystals or resistors. An integrated SP0503 diode array safeguards the USB connection against electrical transients.

Configurable power and breakout pins

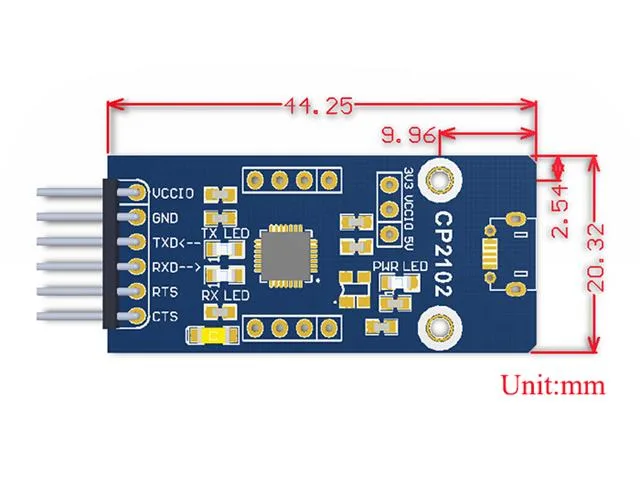

Main UART lines including TXD, RXD, RTS, and CTS are routed to accessible pinheaders alongside TX, RX, and power indicator LEDs. An onboard jumper selects between 3.3V and 5V VCCIO output to safely interface with various microcontroller logic levels.

Broad compatibility and protocol support

The module supports flexible data framing formats, hardware or X-On/X-Off handshaking, and built-in transmit and receive buffers. It is compatible with Windows, Mac OS, Linux, Android, and WinCE operating systems.

Downloads

• Datasheet
• Board Schematic - CP2102-
