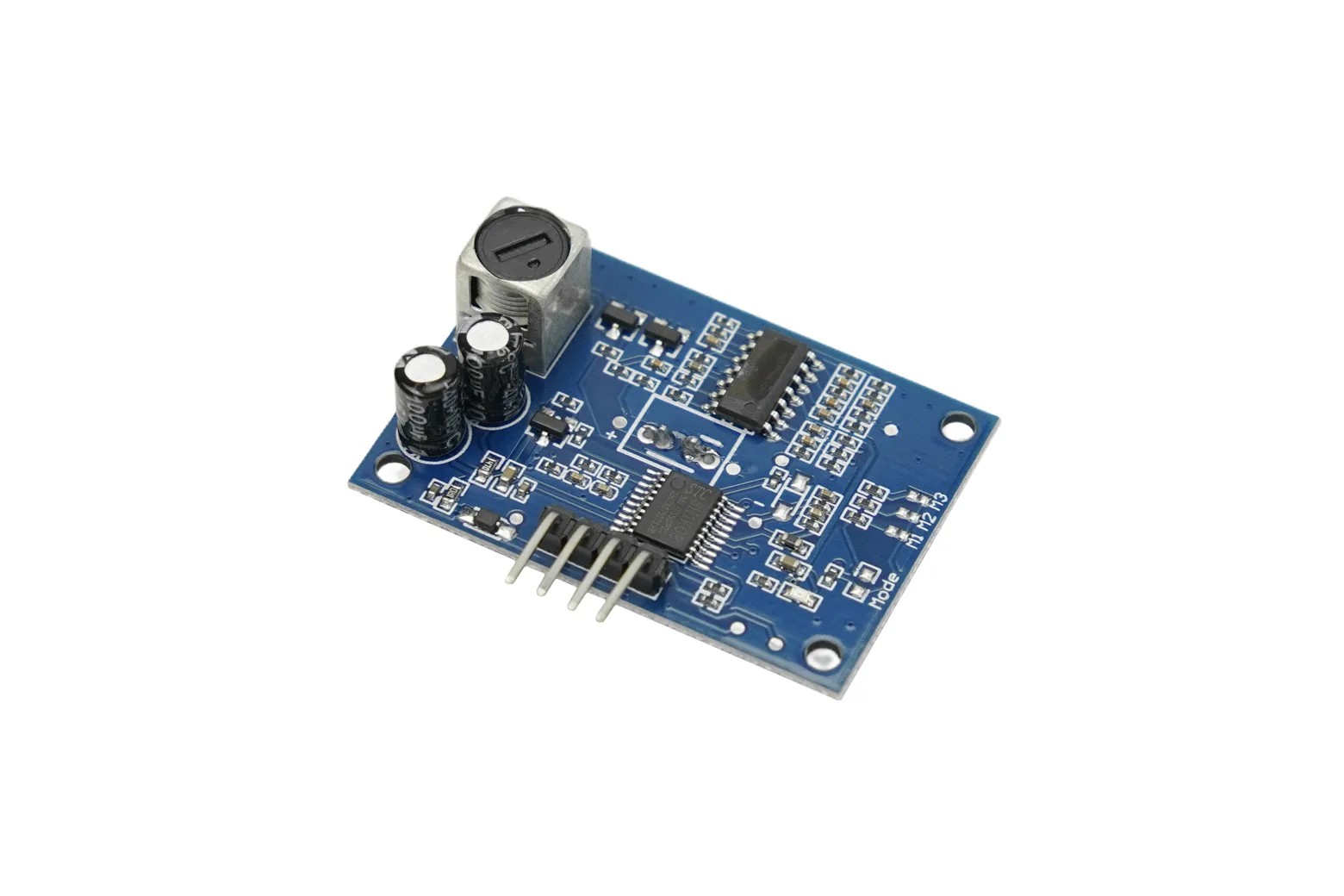

Waterproof Ultrasonic Distance Sensor (30~500cm)

The Waterproof Ultrasonic Distance Sensor is a rugged distance-measuring module featuring a fully sealed probe and a 30cm to 500cm detection range. Compatible with 3.3V and 5V microcontrollers like Arduino and Raspberry Pi, it suits makers, robotics students, and engineers building outdoor obstacle avoidance, liquid level monitoring, or parking assist systems.

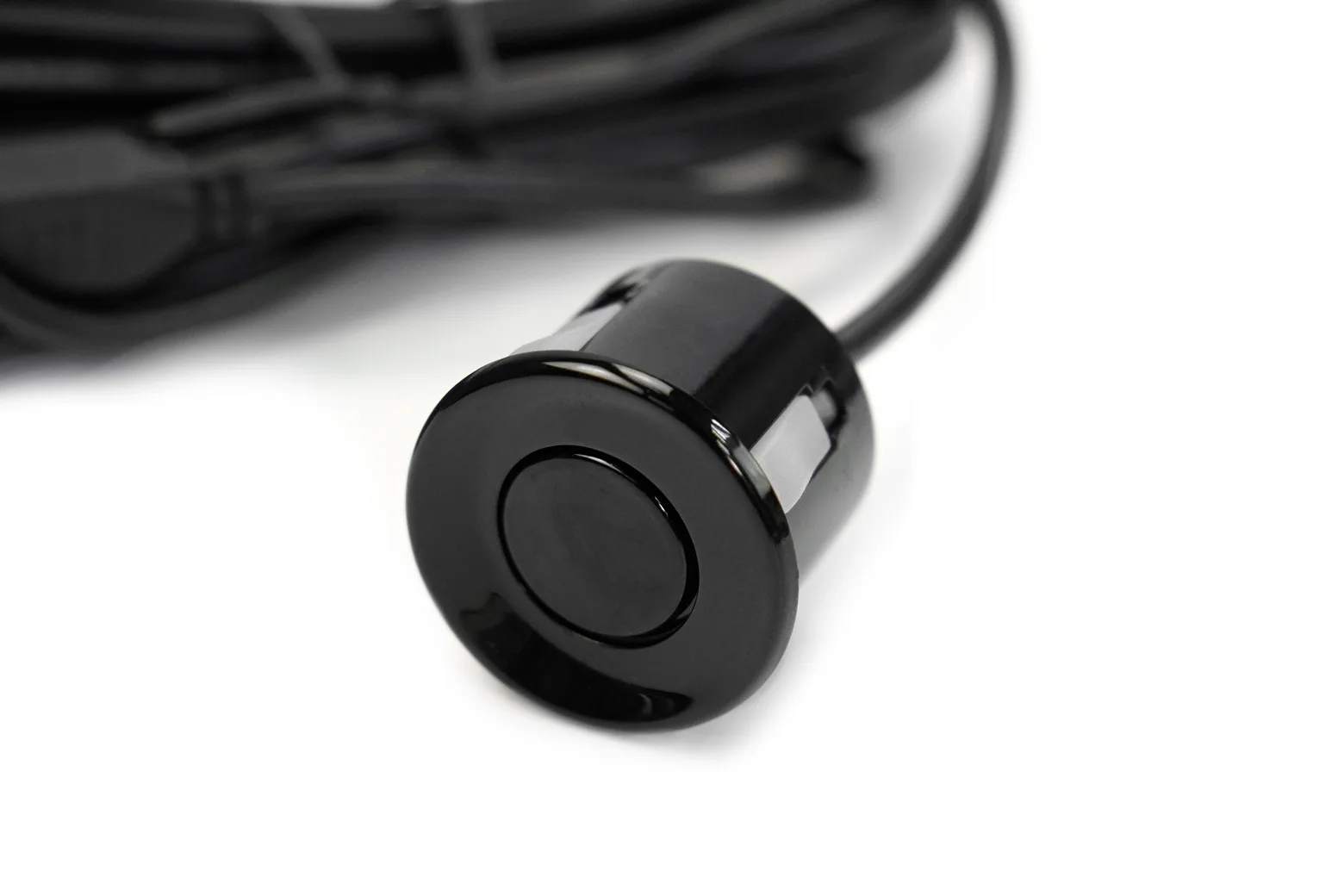

Sealed weatherproof probe design

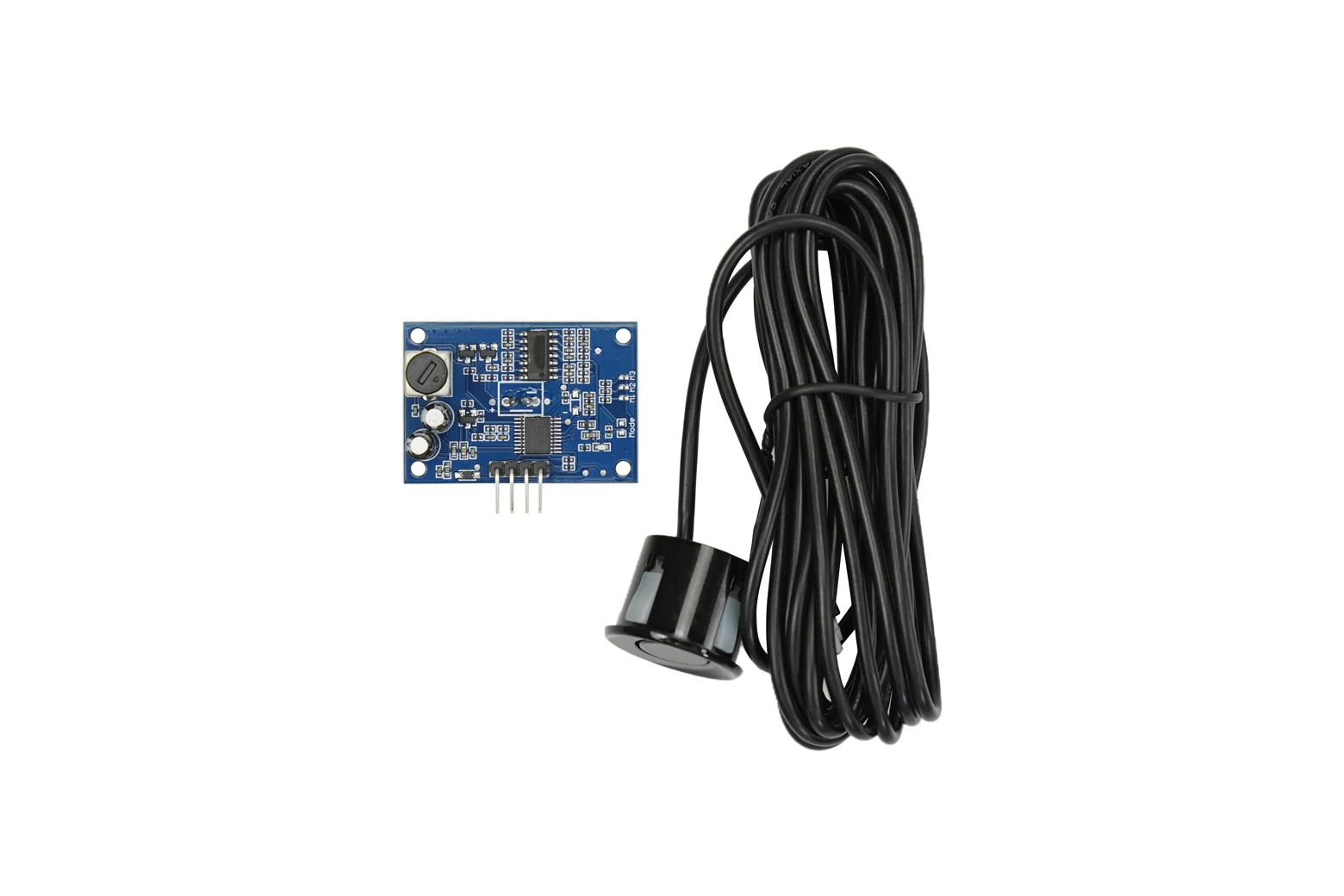

The sensor incorporates a fully enclosed ultrasonic probe separated from the main circuit board to protect against dust, rain, and moisture. This durable construction ensures reliable long-term deployment in demanding outdoor and industrial environments where standard open sensors fail.

Temperature-compensated precision ranging

With a detection span of 30cm to 500cm and 3mm resolution, the module provides dependable accuracy across a wide 60-degree measuring angle. Built-in temperature compensation automatically corrects for sound-speed shifts across operating temperatures from -20°C to 70°C.

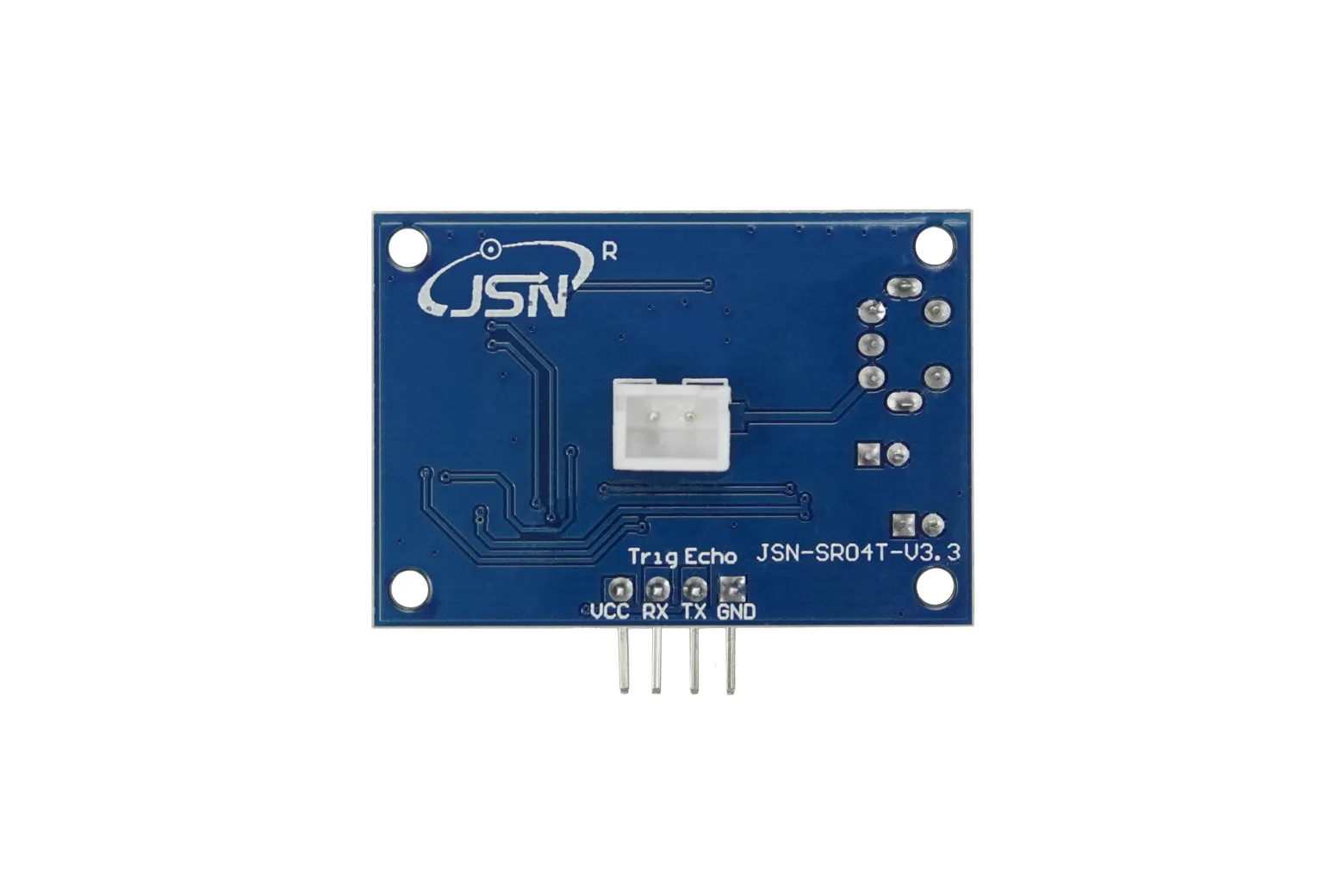

Selectable communication modes

The module offers four flexible operating modes, including standard microcontroller PWM pulse-width output and automated 100ms UART streaming. It also supports on-demand UART query commands and a non-contact proximity switch mode that outputs a high signal when targets cross a set distance threshold.

Broad 3.3V to 5V compatibility

Upgraded from older 5V-only units, this version operates directly across 3.3V to 5V DC with a 40mA operating current and 8mA quiescent draw. This allows straightforward connection to both 3.3V microprocessors and 5V development boards without extra logic-level shifters.

Robotics and automation applications

The unit is well-suited for all-weather autonomous vehicle navigation, tank liquid level measurement, and hopper material monitoring. It also serves reliably in automotive parking assist systems, outdoor security tripwires, and smart city waste monitoring.

Downloads & documentation

• Product wiki (DFRobot)
