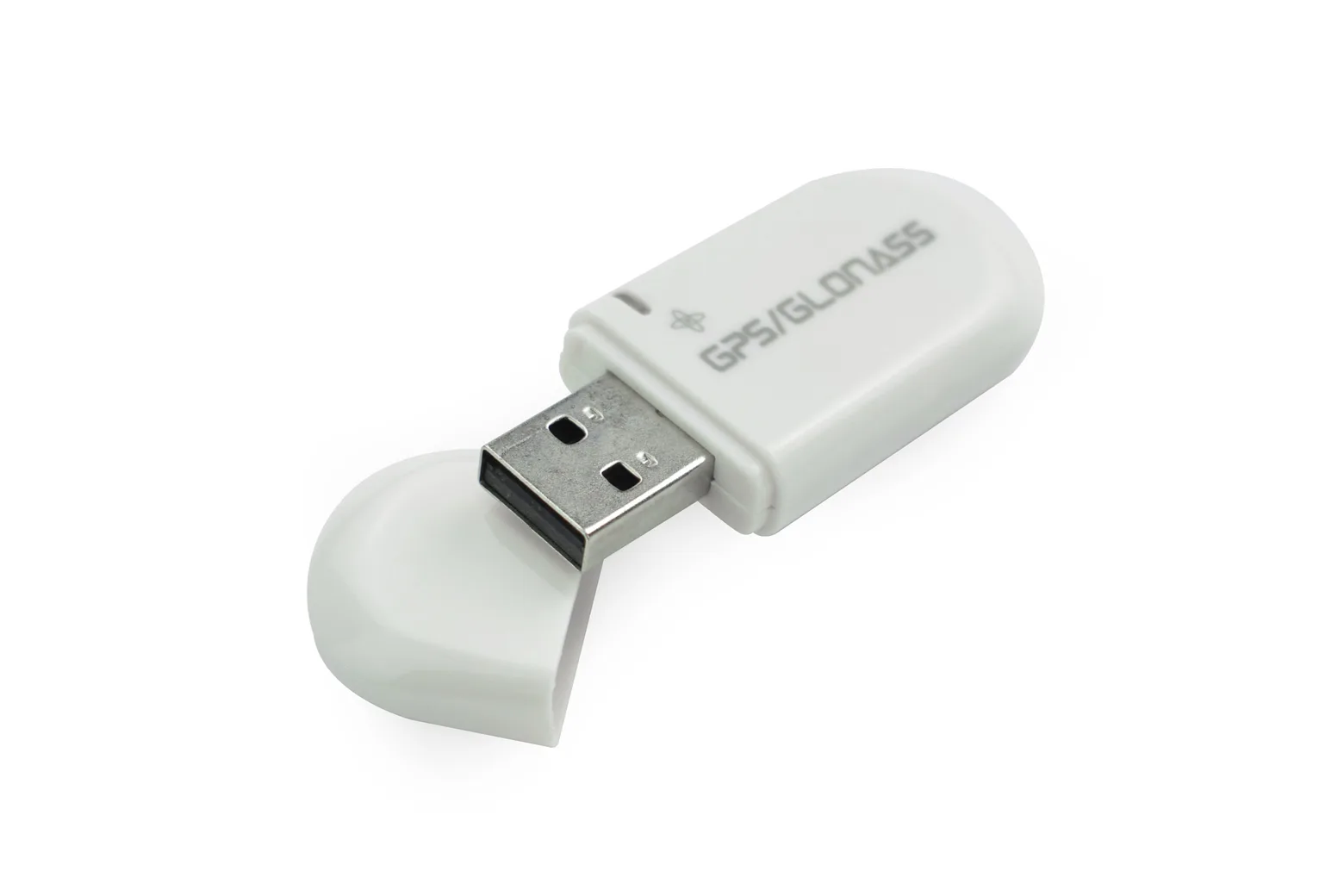

USB GPS Receiver (Compatible with Raspberry Pi/ LattePanda/ Jetson Nano)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The USB GPS Receiver is a compact, high-precision positioning module designed for single-board computers and portable electronics. Powered by a UBX-G7020-KT chip with a built-in antenna, it offers dependable satellite tracking for navigation, robotics, and timing projects. It is an ideal plug-and-play navigation tool for makers, educators, and developers working with Raspberry Pi, LattePanda, or Jetson Nano platforms.
High-precision satellite tracking
Powered by the UBX-G7020-KT positioning chip with 56 receiving channels, the module operates across L1, L2, and L3 frequencies. It provides tracking sensitivity down to -162dBm, a 1Hz update rate, and 30ns timing accuracy.
Integrated backup battery
An onboard battery preserves satellite data, last known position, and time settings during power-offs. This memory retention significantly speeds up acquisition on your next boot, achieving a 1-second hot start and a 3-second warm start.
Compact and durable form factor

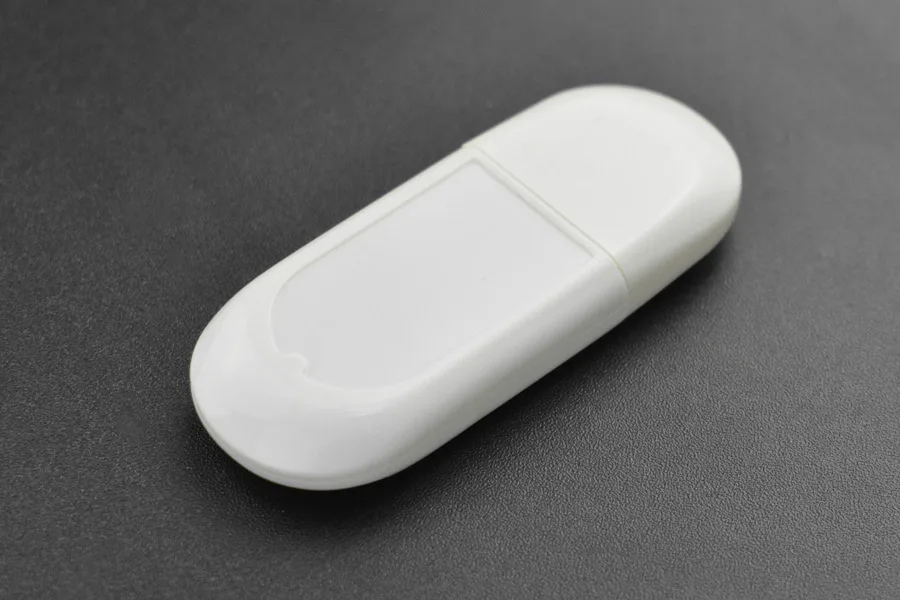

Measuring 60 x 24 x 9 mm and weighing 50g, the unit packs an integrated antenna and industrial-grade manufacturing into a pocket-sized shell. It is built to operate reliably in harsh environments across temperatures from -40°C to 85°C.
Broad controller compatibility
The standard USB interface allows direct connection to development boards including Raspberry Pi, LattePanda, and NVIDIA Jetson. Communication speeds are flexible, supporting baud rates ranging from 4800 to 115200 bps.

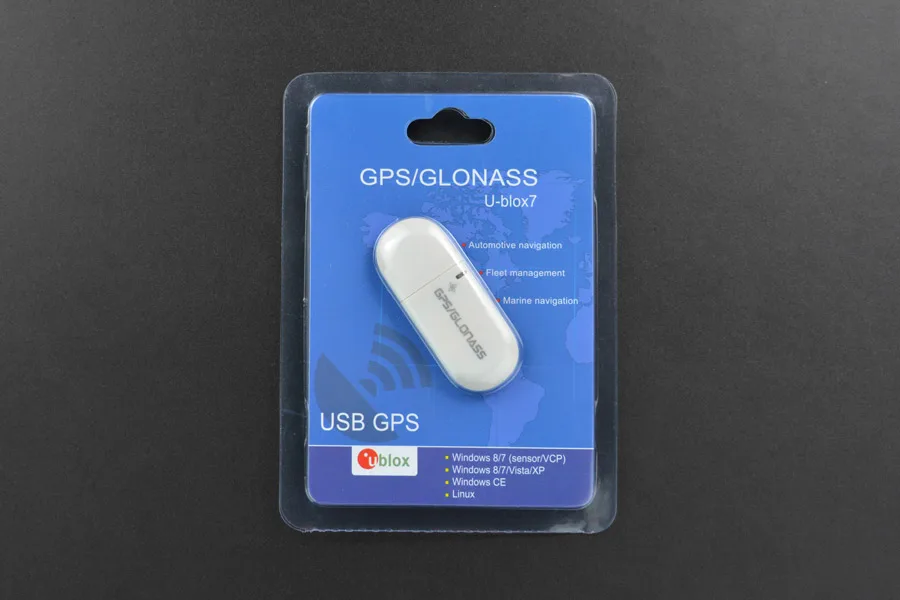

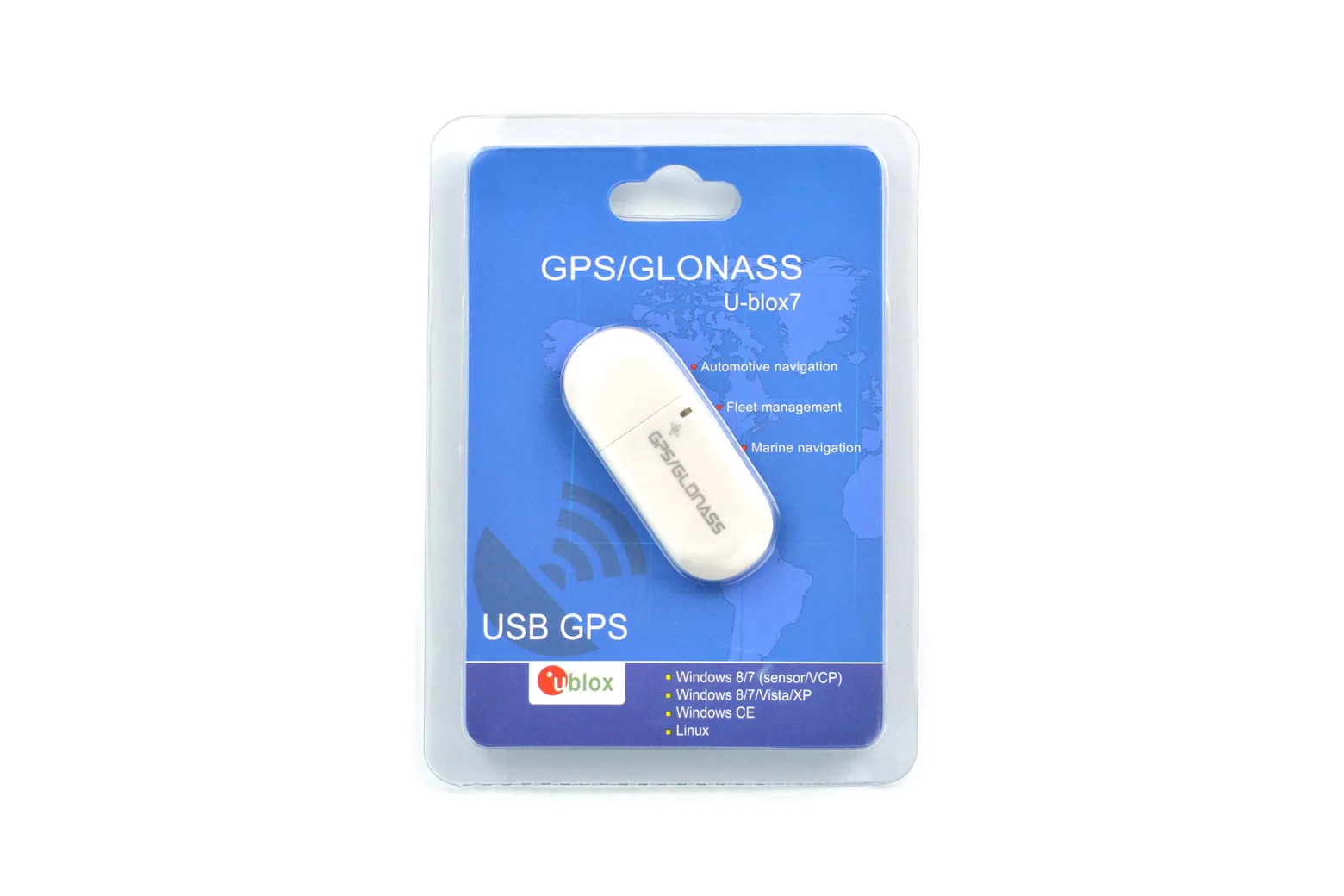

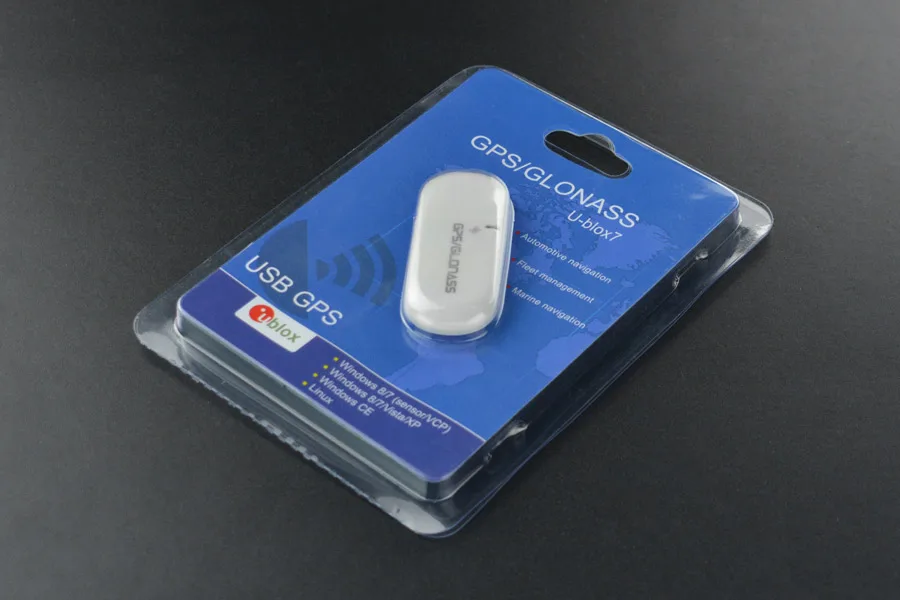

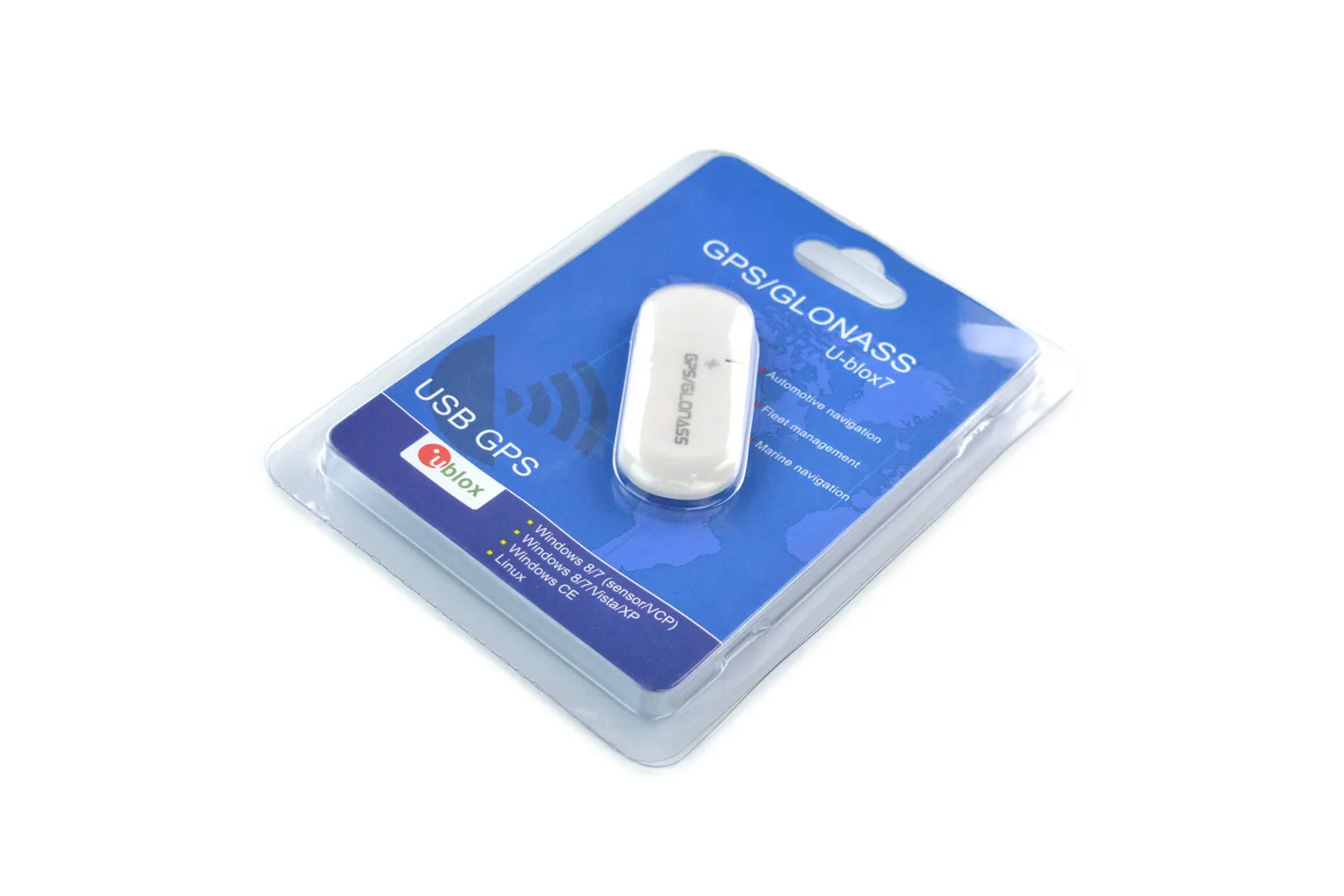

Included in the box
Each pack contains one USB GPS receiver, ready for vehicle navigation, asset tracking, and wearable device prototyping.
Downloads & documentation
Specifications
| Chip | UBX-G7020-KT |
| Frequency | L1, 1575.42MHz/L2,1561.10MHZ/L3,1602.00MHZ |
| Baud Rate | 4800,9600,19200,38400,57600,115200bps |
| Receiving Channel | 56CH |
| Sensitivity | tracking -162dBm; Acquisition: 160dBm; cold start: -148dBm |
| Cold Start | 29s average |
| Warm Start | 3s average |
| Hot Start | 1s average |
| Accuracy | horizontal position accuracy |
| Timing Accuracy | 30ns |
| Update Rate | 1Hz |
| Outline Dimension | 60×24×9mm |
| Weight | 50g |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~85℃ |
In the box
| USB GPS Receiver | 1 |
