UNIHIKER M10 - IoT Python Single Board Computer with Touchscreen

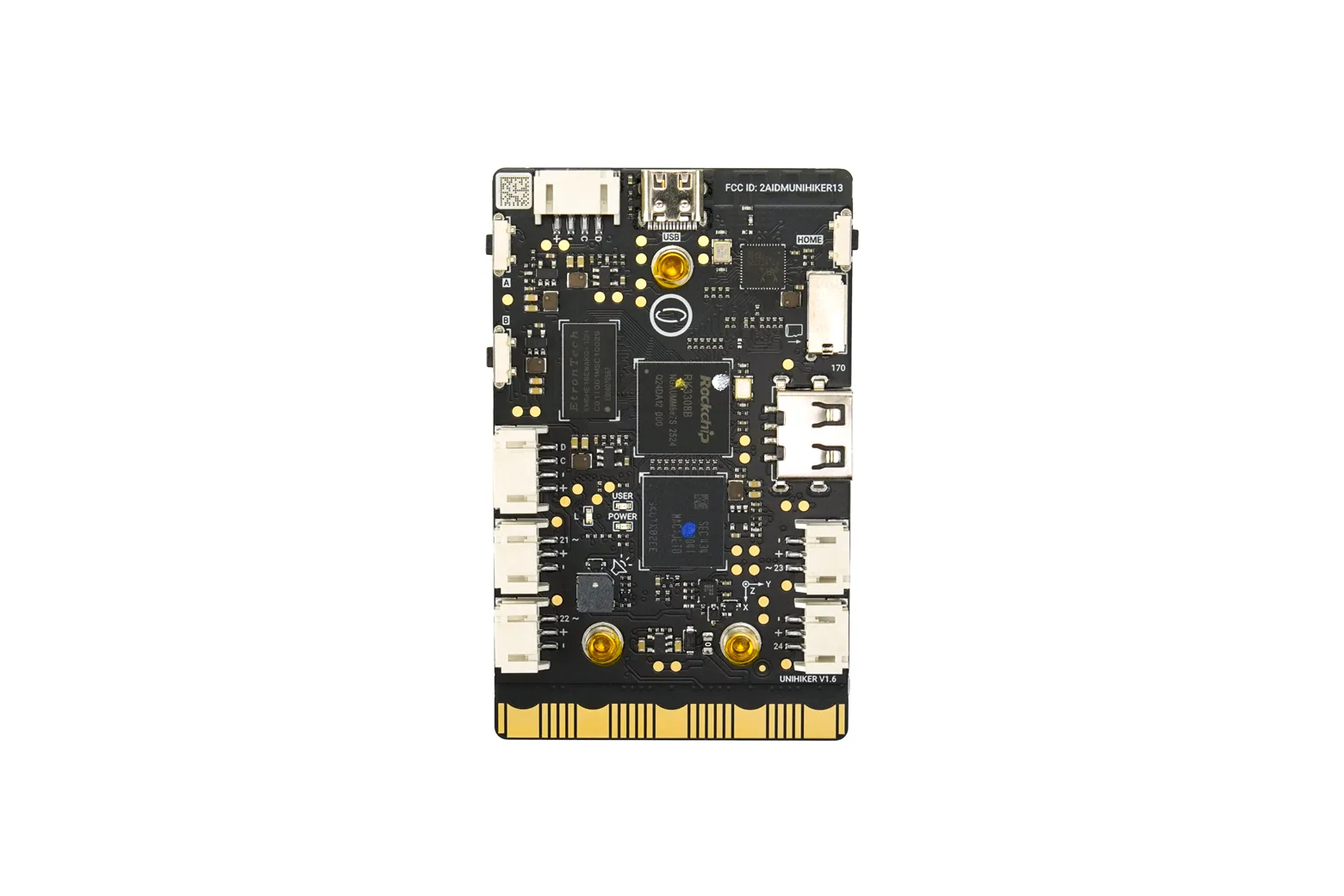

The UNIHIKER M10 is a Debian-based single board computer featuring a quad-core Arm Cortex-A35 processor, a RISC-V co-processor, and an integrated 2.8-inch touchscreen. Designed for IoT, AI, and STEM projects, it enables students, educators, and makers to develop Python applications straight out of the box.

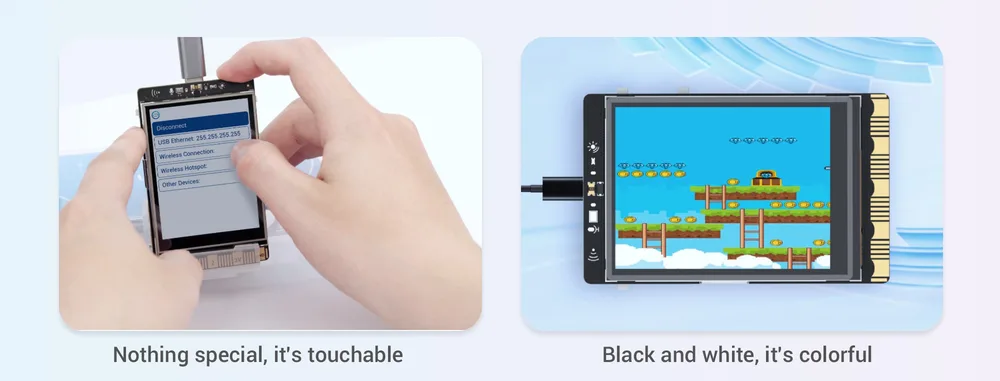

Integrated colour touchscreen display

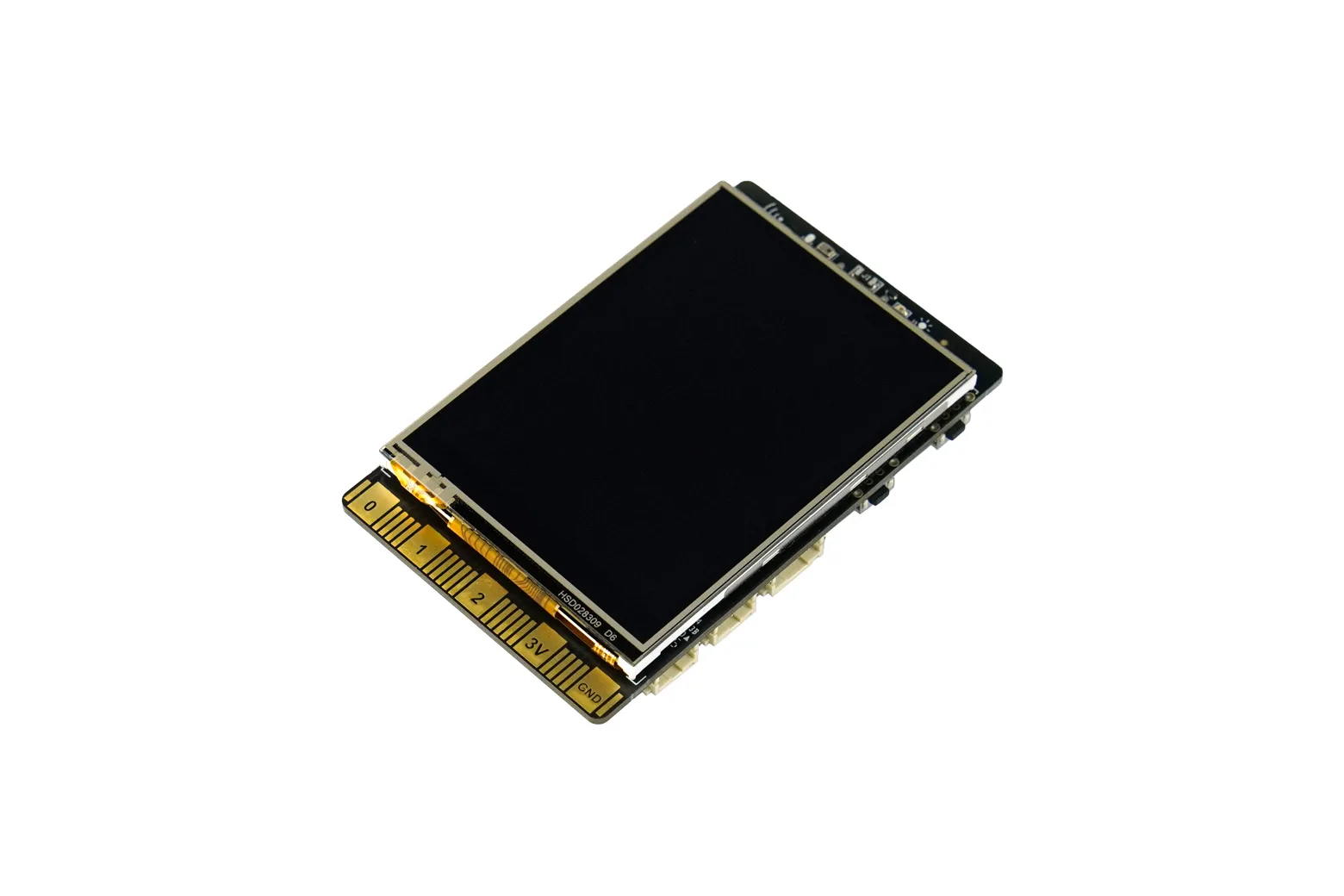

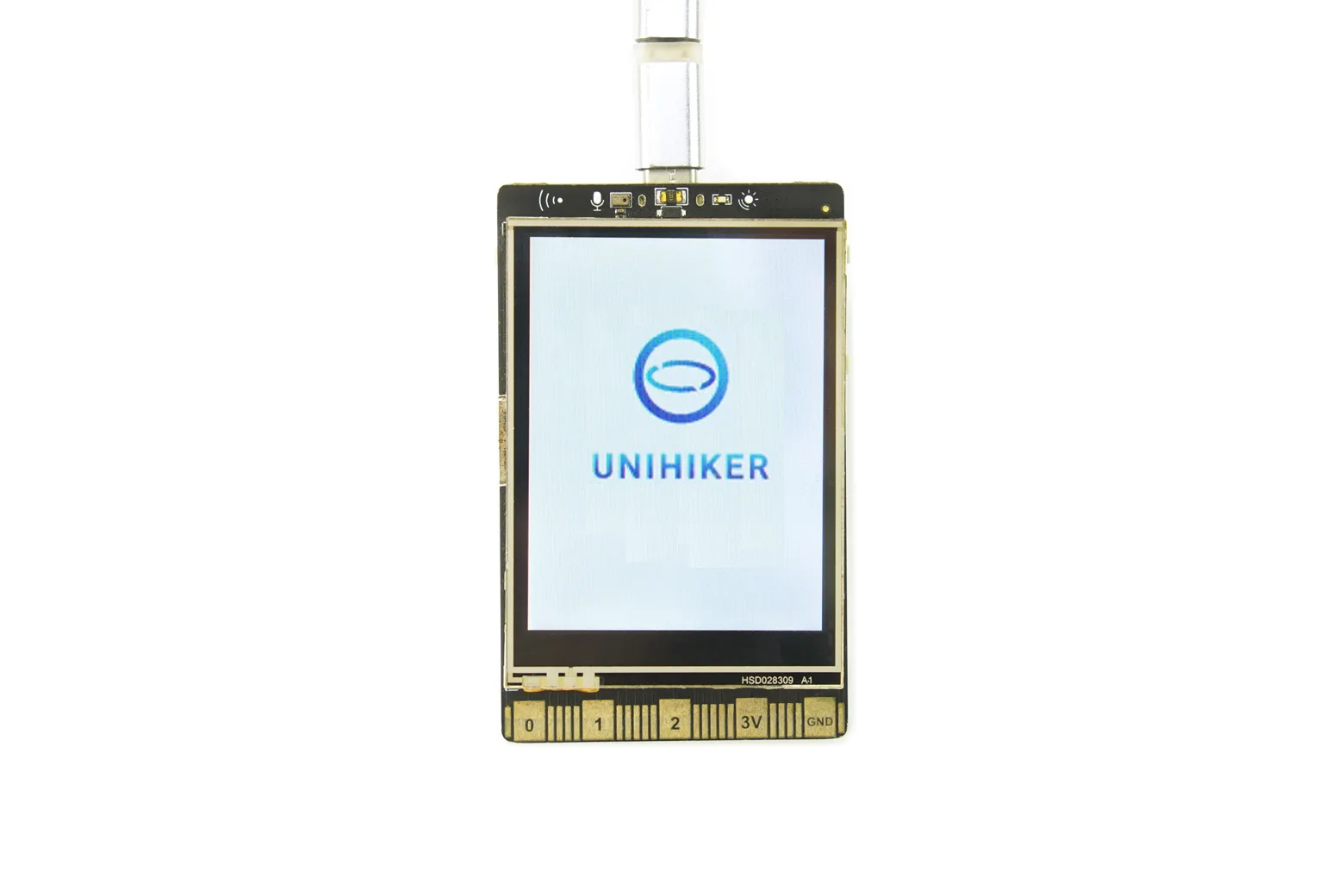

The onboard 2.8-inch 240x320 touchscreen allows users to visualise real-time sensor measurements, charts, and interactive user interfaces directly on the hardware.

Built-in sensors and RISC-V MCU

Equipped with a GD32VF103 RISC-V co-processor, the board includes a built-in light sensor, accelerometer, gyroscope, microphone, user button, LED, and buzzer.

Wireless and browser-based programming

With an integrated Jupyter Notebook environment and 2.4G Wi-Fi hotspot support, developers can program the board wirelessly from a computer, tablet, or smartphone.

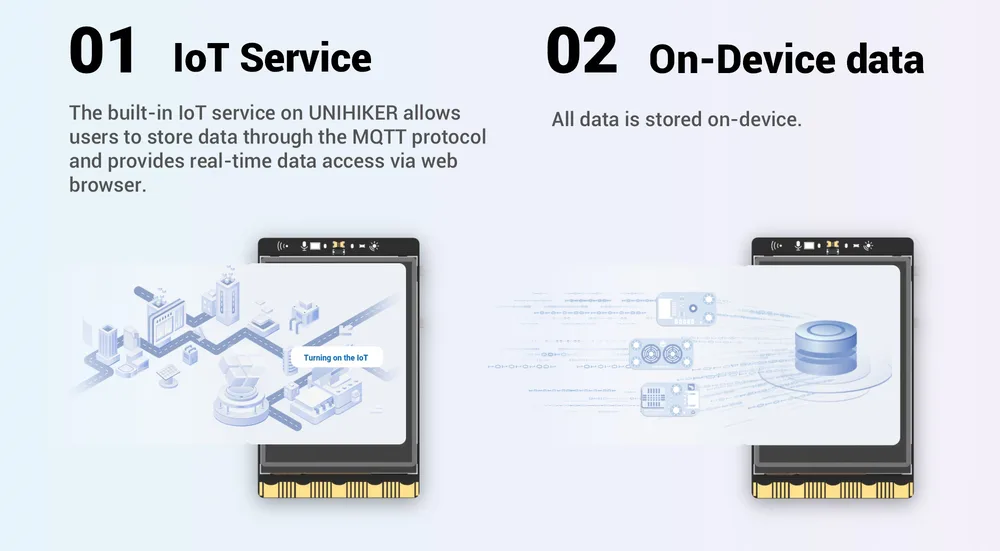

On-device IoT data service

The built-in SIoT service provides MQTT data storage and real-time web monitoring, keeping all collected project data stored securely on the local device.

Broad development environment support

In addition to Jupyter Notebook, developers can write Python code using VS Code, Thonny, or VIM with hardware access managed via the PinPong control library.

Extensive peripheral expandability

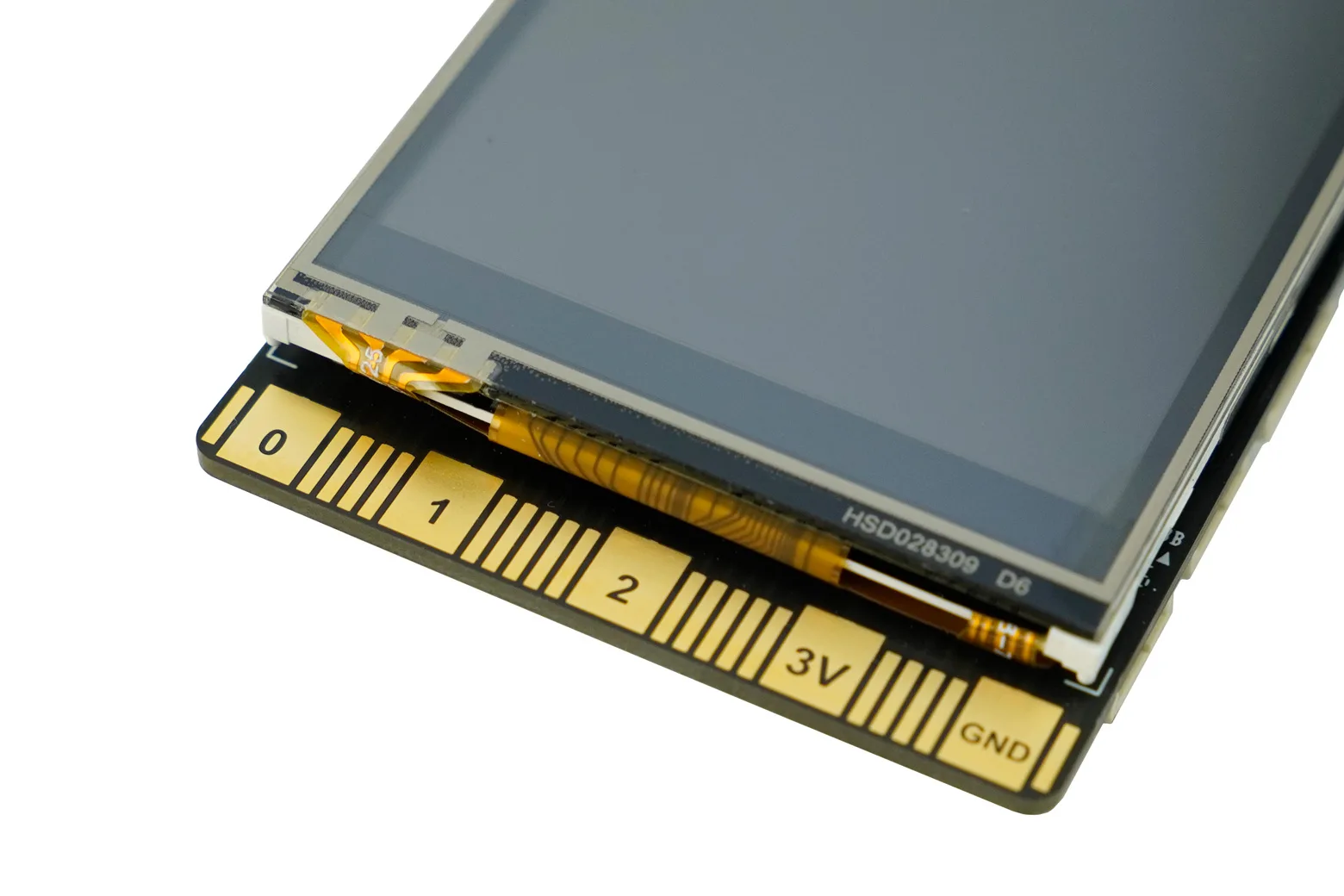

The board features Gravity 3-pin and 4-pin ports, an edge connector, USB-A, and a USB Type-C port to easily interface with analog, digital, I2C, UART, and SPI peripherals.

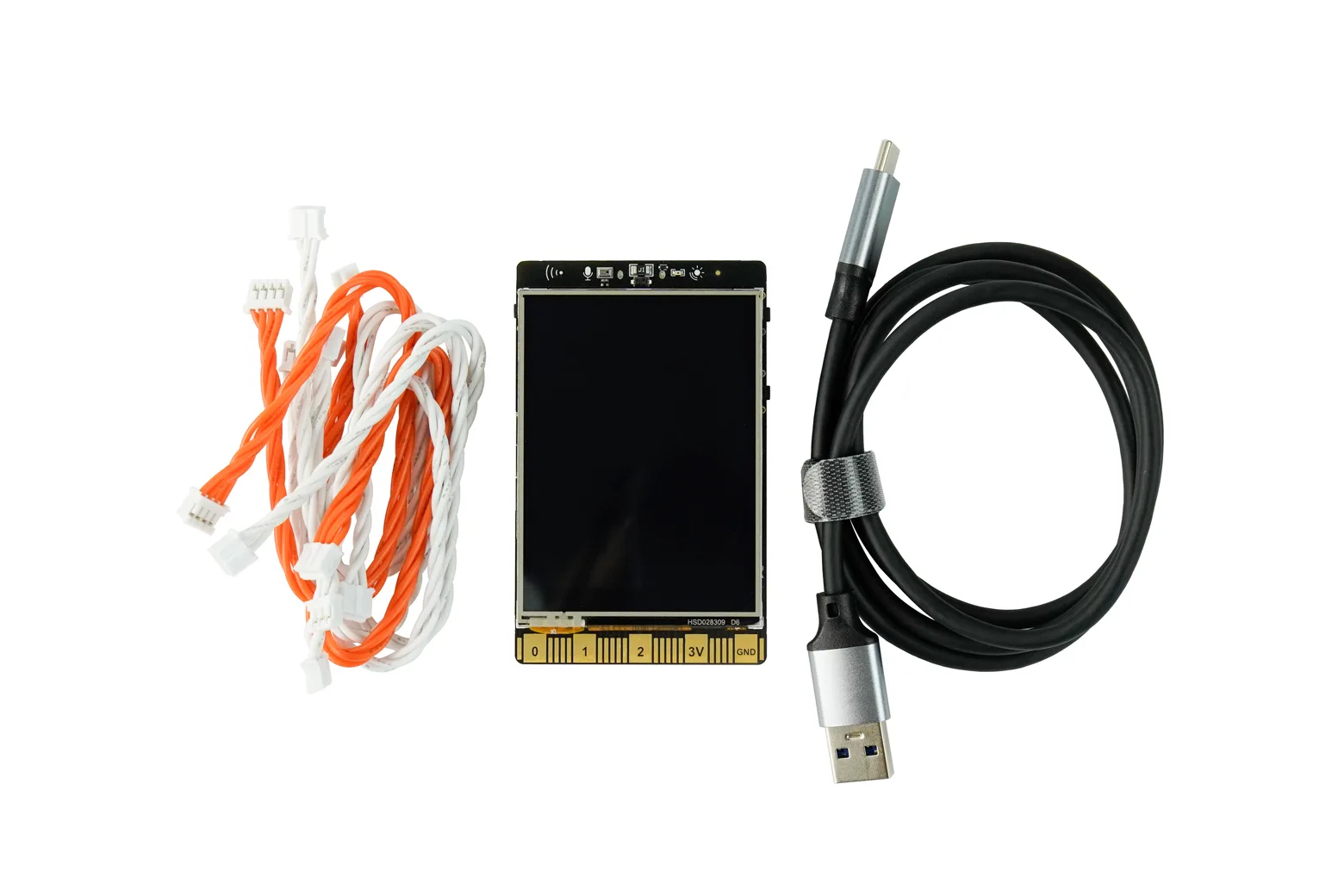

Included package contents

The package includes one UNIHIKER M10 single board computer, a USB Type-C cable, four double-sided PH2.0 3-pin silicone wires, and two double-sided PH2.0 4-pin silicone wires.

Downloads & documentation

• Product wiki (DFRobot)
• CE Certifications
• FCC Certifications
• RoHS Certifications
