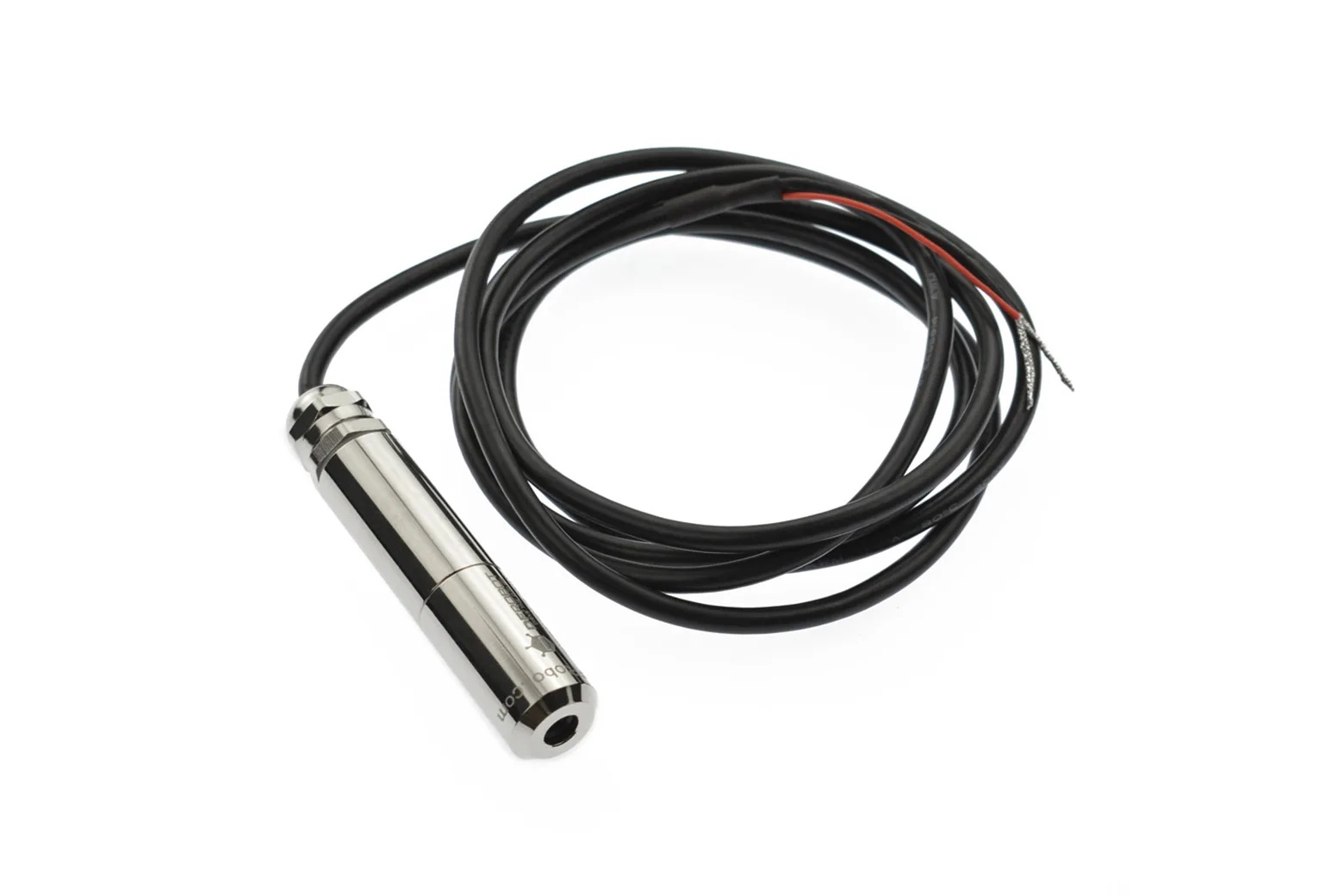

TS01 Non-Contact Analog Infrared Temperature Sensor (-70℃~380℃, IP65, 4-20mA)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The TS01 is an industrial-grade non-contact infrared temperature sensor designed to measure surface temperatures from -70°C to 380°C using a standard 4–20mA analog current loop. Encased in a rugged IP65-rated metal housing with optical filtering, it is ideal for makers, engineering students, and professionals building reliable thermal monitoring systems.
Non-contact thermal measurement
The sensor measures infrared intensity to calculate surface temperatures without physical contact across a range of -70°C to 380°C. Factory calibration and built-in temperature compensation ensure dependable measurement performance with accuracy up to ±0.5°C.
Industrial current loop output
Powered by a 7.5V to 36V DC supply, the sensor transmits data via an industry-standard 4–20mA current signal. Connecting the sensor to microcontrollers is straightforward when paired with a standard current-to-voltage converter module.
Narrow 5-degree field of view

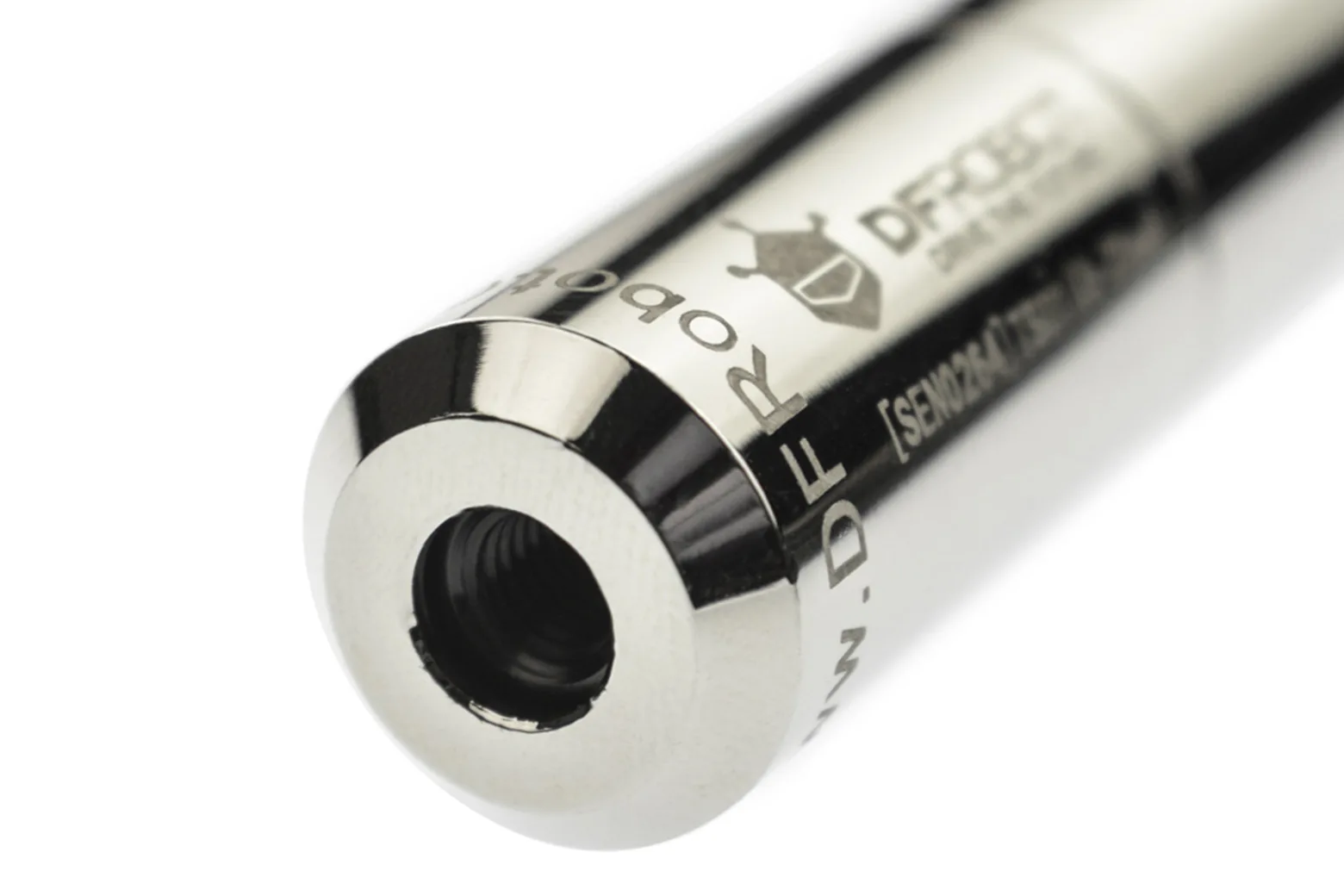

A tight 5° field of view enables accurate distance sensing, allowing measurement of a 10cm diameter heat source from up to 116cm away. An integrated optical long-wave pass filter cuts off visible and near-infrared radiant flux to provide ambient light and sunlight immunity.

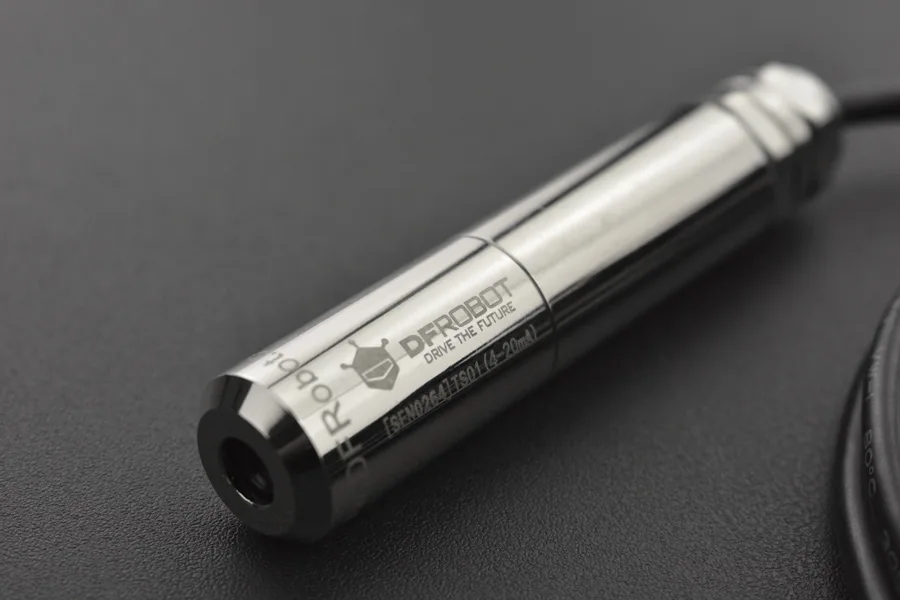

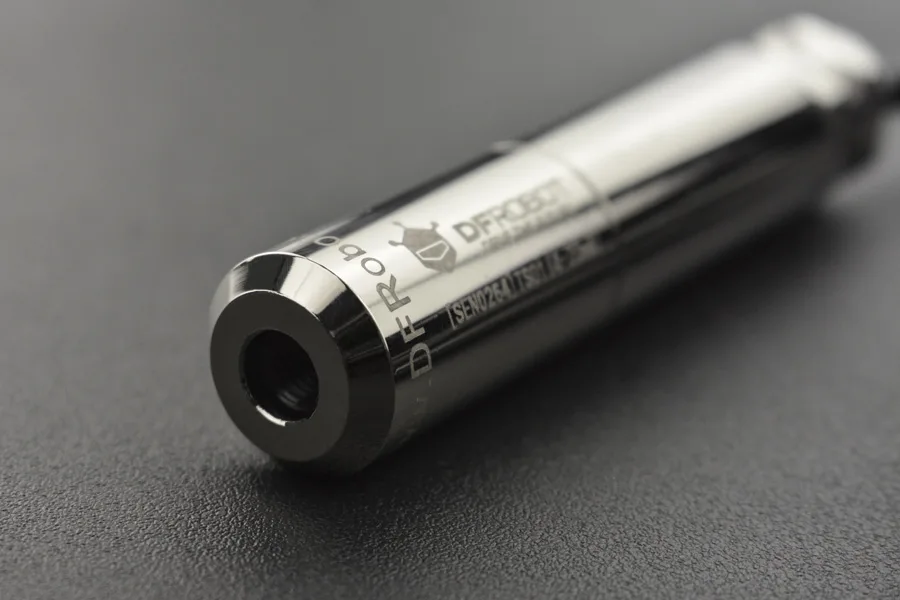

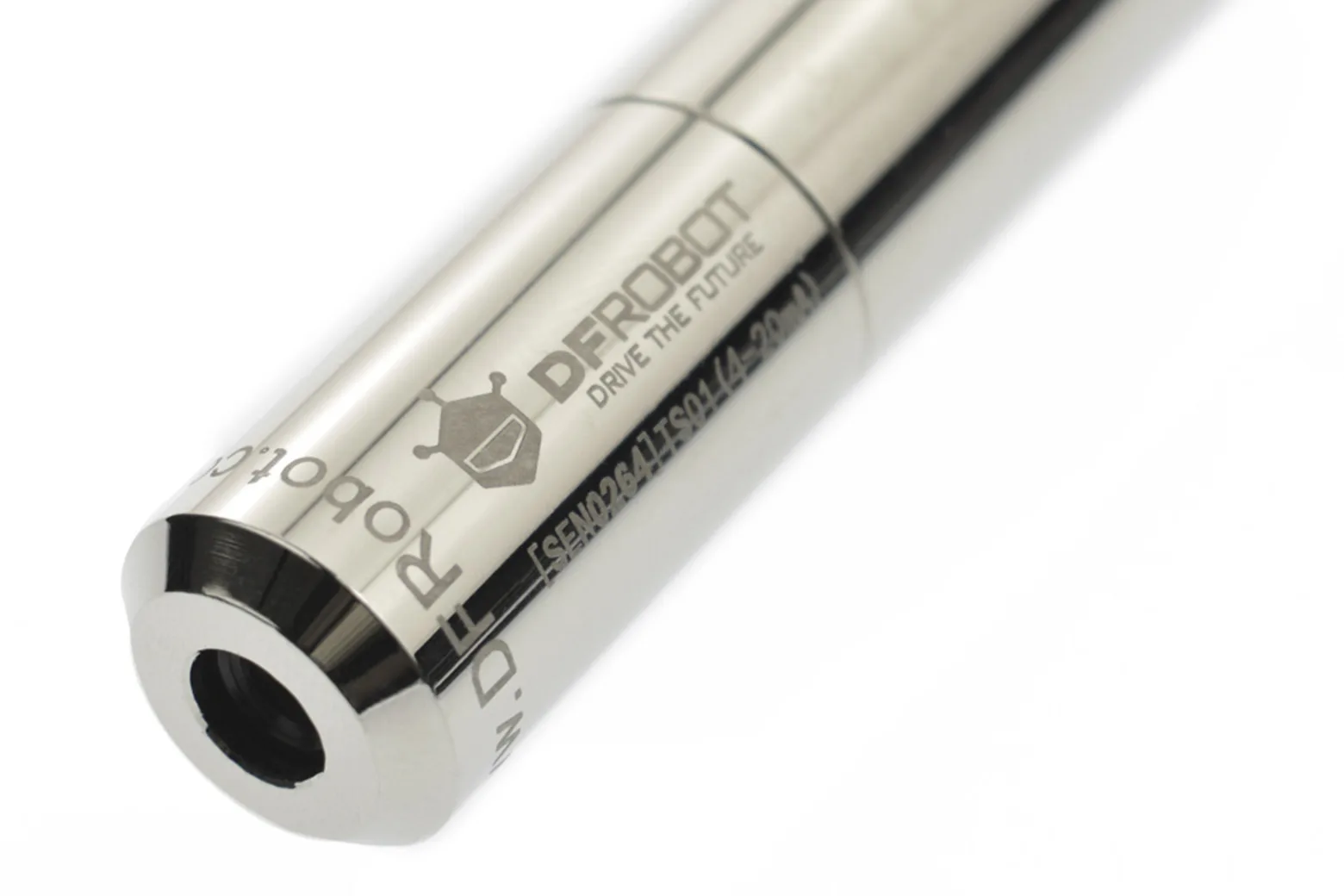

Rugged IP65 metal enclosure
The all-metal probe features an IP65 protection rating to withstand dust, water, and physical impacts in demanding conditions. It is rated for industrial operating environments with ambient temperatures between -40°C and 85°C.
Compact probe dimensions

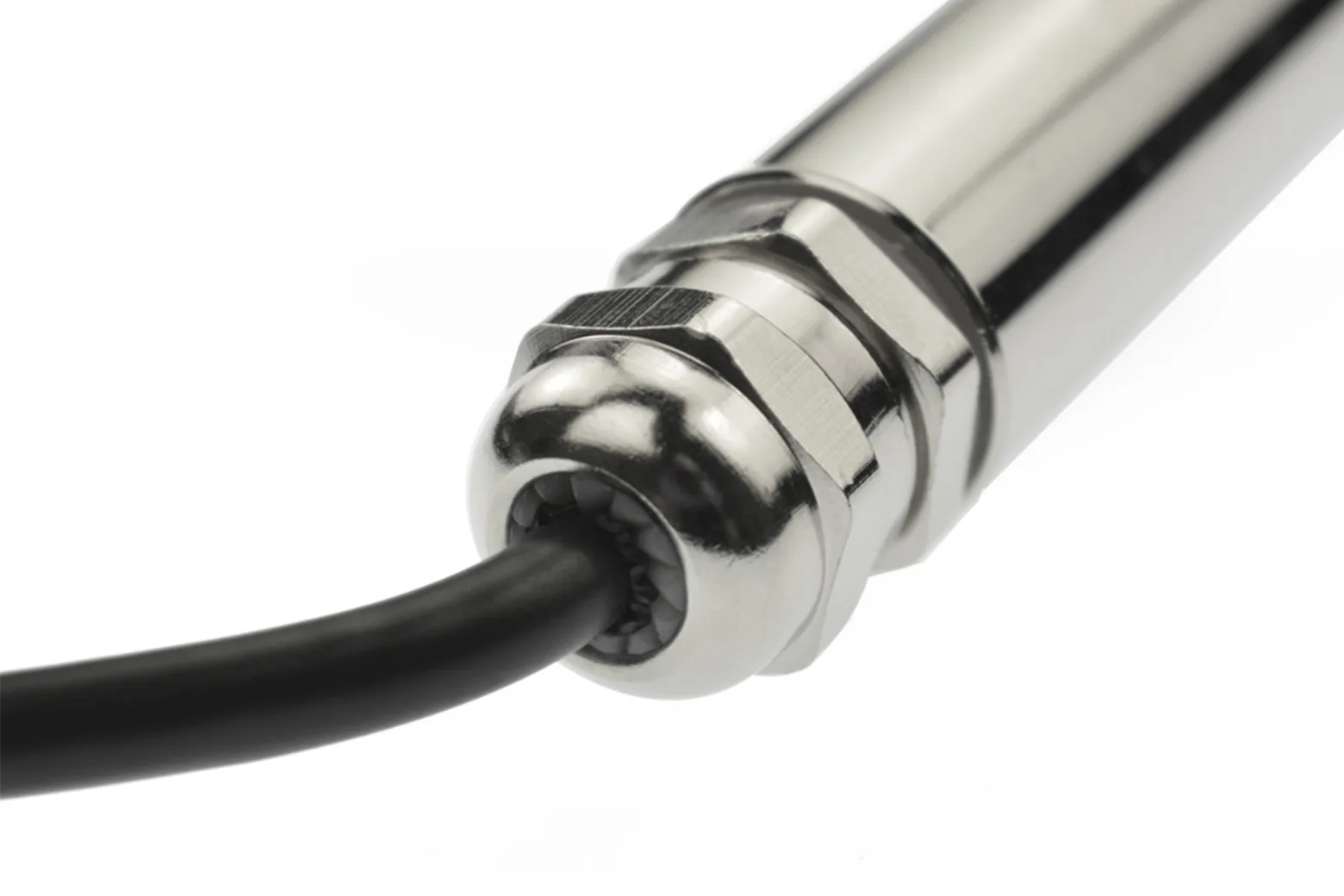

Measuring 15.4mm in diameter and 78mm in length, the probe integrates easily into machinery and tight enclosures. It comes pre-wired with a 1.5m cable terminated with stripped, tin-plated wire leads for clean connections.
Downloads & documentation
Specifications
| Supply Voltage | 7.5~36V DC |
| Operating Current | 20mA |
| Signal Output | 4~20mA |
| Operating Temperature | -40℃~85℃ |
| Measuring Temperature | -70℃~380℃ |
| Accuracy | ±0.5℃~±4℃ |
| FOV | 5° |
| Defense Grade | IP65 |
| Probe Diameter | 15.4 mm/0.61” |
| Probe Length | 78 mm/3.07” |
| Cable Length | 1.5m/59.06” |
| Interface Type | stripped tin-plating wire |

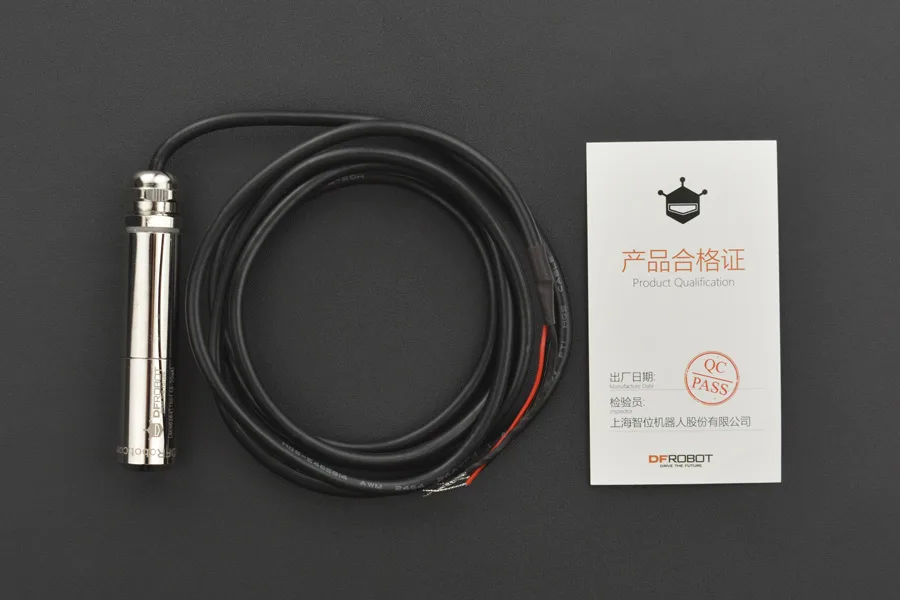

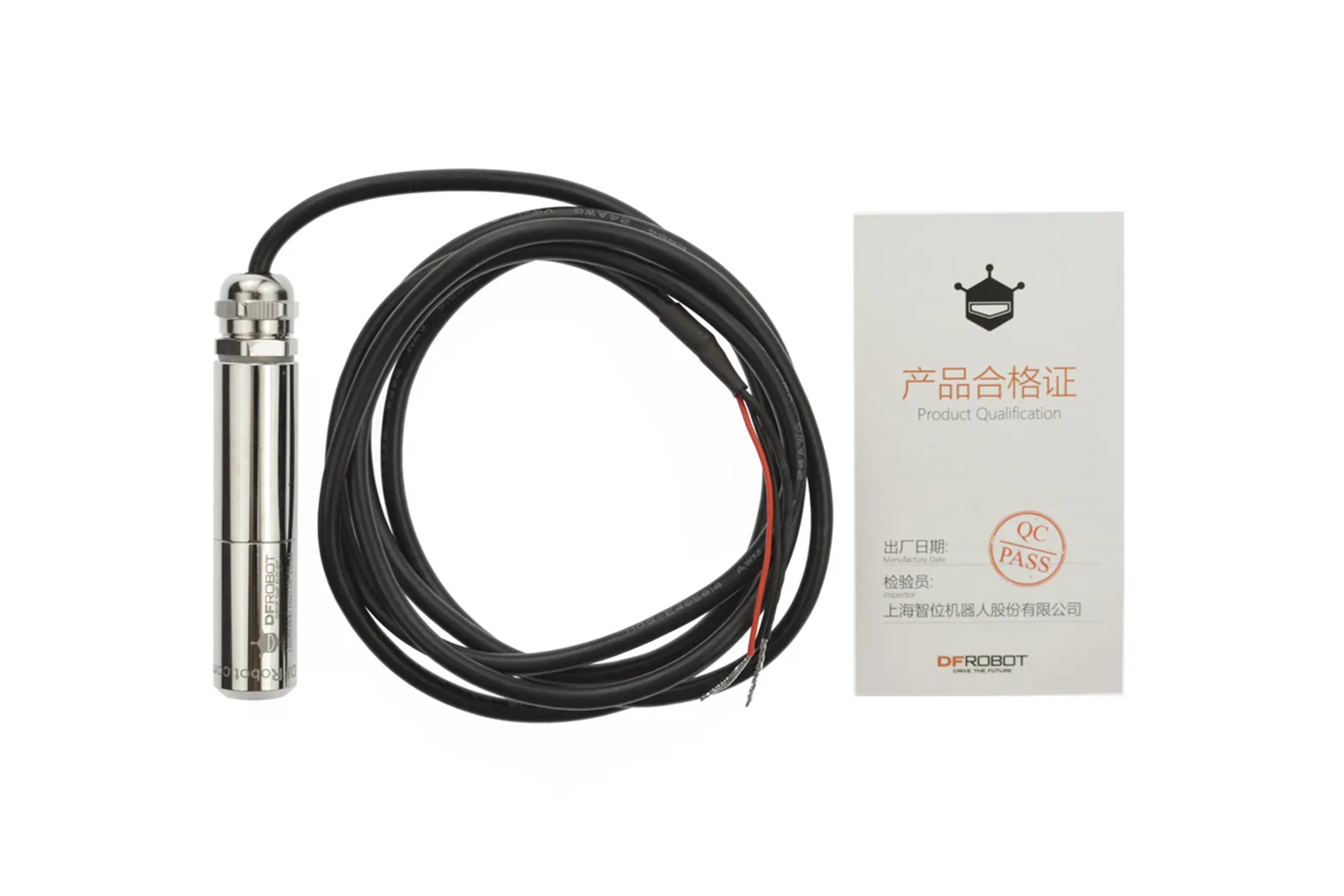

In the box
| TS01 Non-Contact Analog Infrared Temperature Sensor (-70℃~380℃, IP65, 4-20mA) | 1 |
