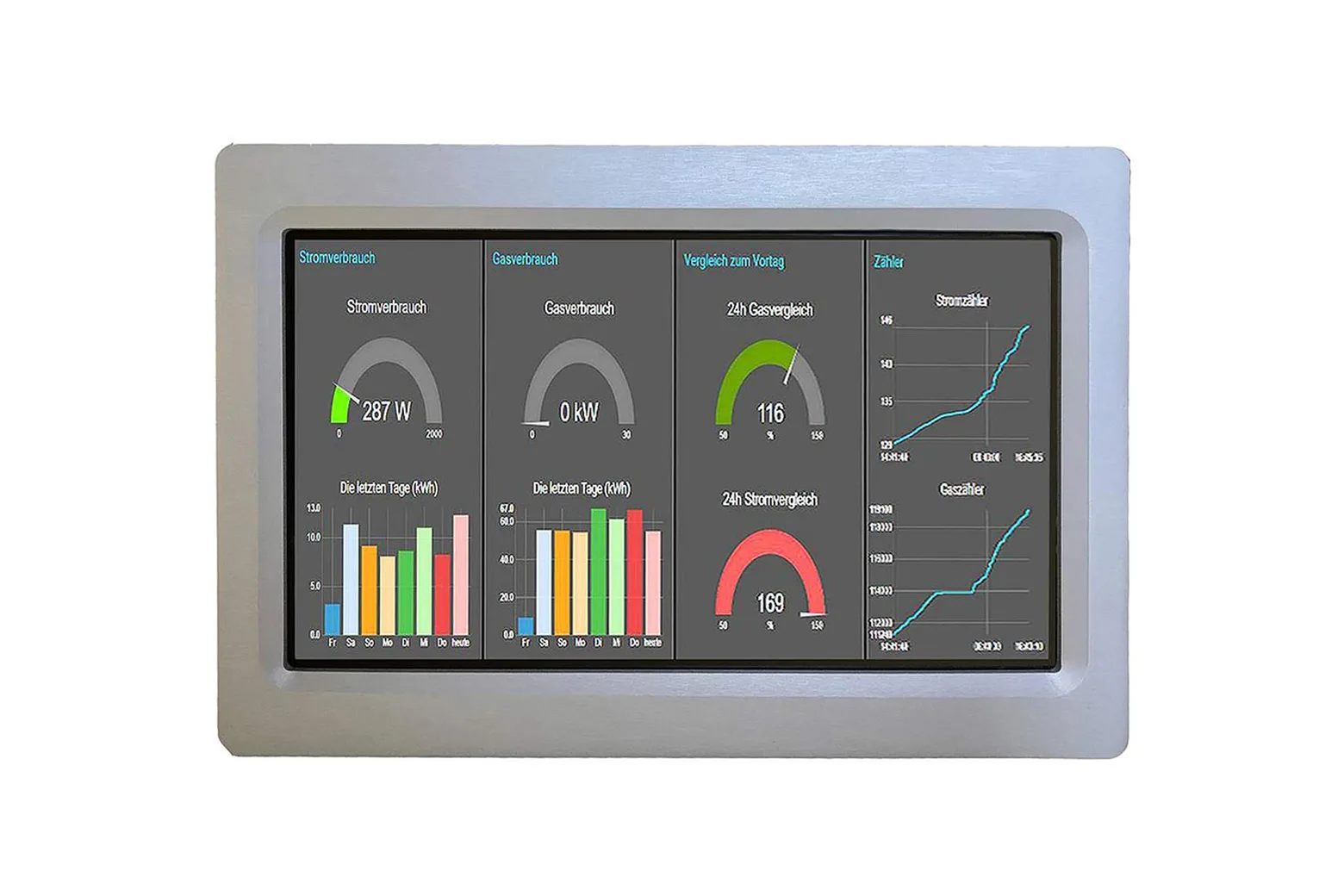

Touchberry Pi 4B 10.1” Industrial Screen

The Touchberry Pi 4B 10.1” Industrial Screen is a panel PC built around an integrated Raspberry Pi 4B computer for demanding industrial and IoT applications. Featuring a 10.1-inch 1280x800 display with multi-touch support, it provides a complete human-machine interface solution. It is suited to engineers, makers, and industrial integrators developing Linux-based control systems and monitoring dashboards.

High-resolution multi-touch display

The unit features a 10.1-inch screen with a 1280x800 resolution and a 16:9 aspect ratio. It utilizes Low Voltage Differential Signaling (LVDS) multi-touch support for clear visuals and reliable touch input in industrial settings.

Raspberry Pi 4B processing hardware

Driven by a Broadcom BCM2711 quad-core Cortex-A72 64-bit SoC clocked at 1.5GHz alongside a Broadcom VideoCore VI GPU. This architecture delivers dependable computing power for automation tasks and user interfaces.

Network connectivity and remote management

Built-in hardware interfaces include Ethernet, USB ports, and Wi-Fi. System inputs, outputs, data streams, and operational parameters can be monitored and controlled remotely across standard network connections.

Industrial power and environmental tolerance

The panel PC runs on a 12V to 24V DC power supply with a total power consumption of 28W. It is designed to operate in non-corrosive environments at temperatures between 0°C and 40°C with non-condensing humidity from 10% to 90%.

Broad operating system support

Compatible with Linux, Unix, and Windows IoT operating systems to fit diverse software workflows. The box includes one Touchberry Pi 4B 10.1” Industrial Screen unit.
