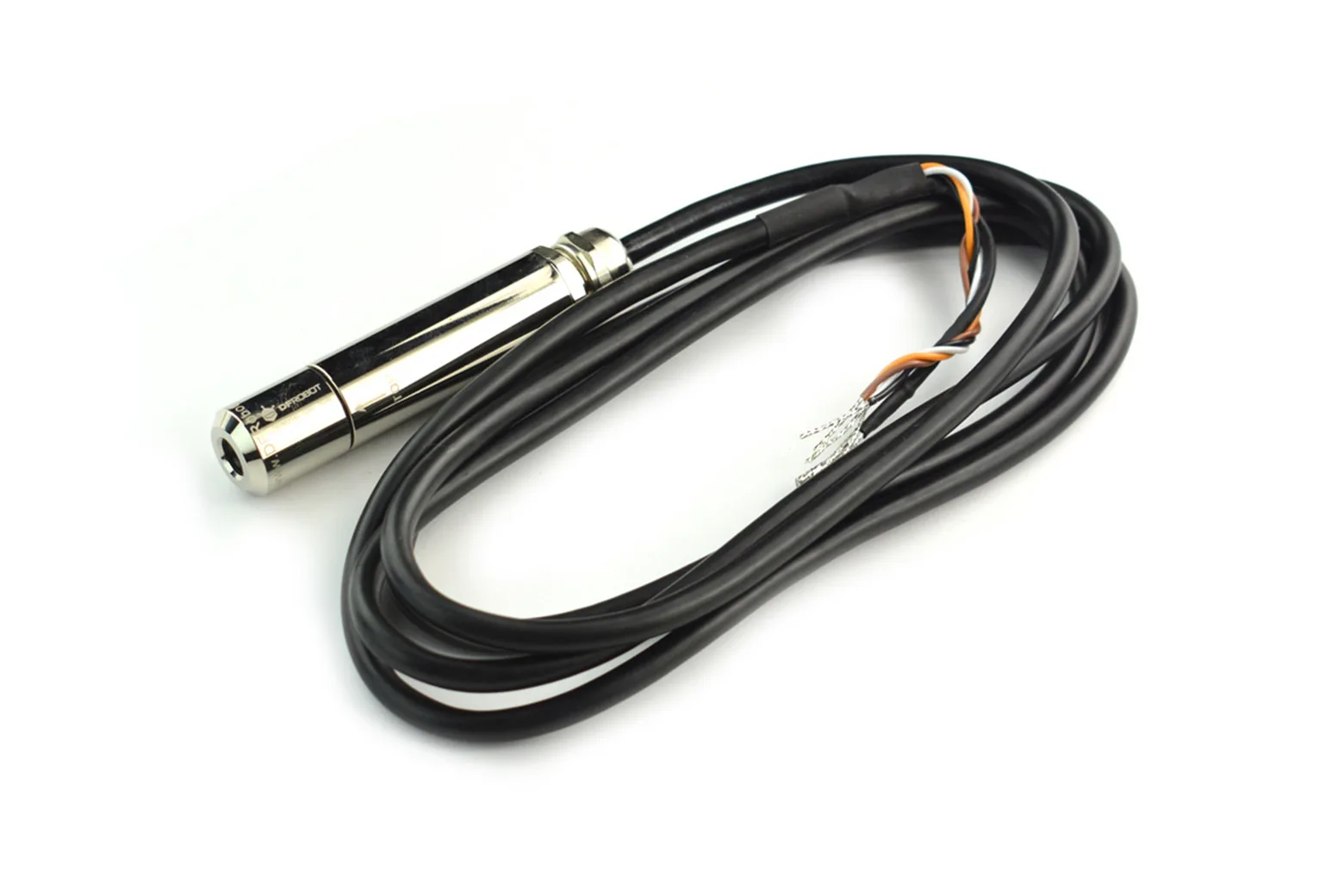

TC01 Non-contact 16x4 Pixel Infrared Temperature Sensor

The TC01 Non-contact 16x4 Pixel Infrared Temperature Sensor provides remote thermal detection across a 64-pixel matrix. Housed in a durable industrial enclosure with standard Modbus-RTU RS485 output, it is ideal for engineers, educators, and makers developing non-contact thermal monitoring or occupancy detection systems.

16x4 infrared thermal array

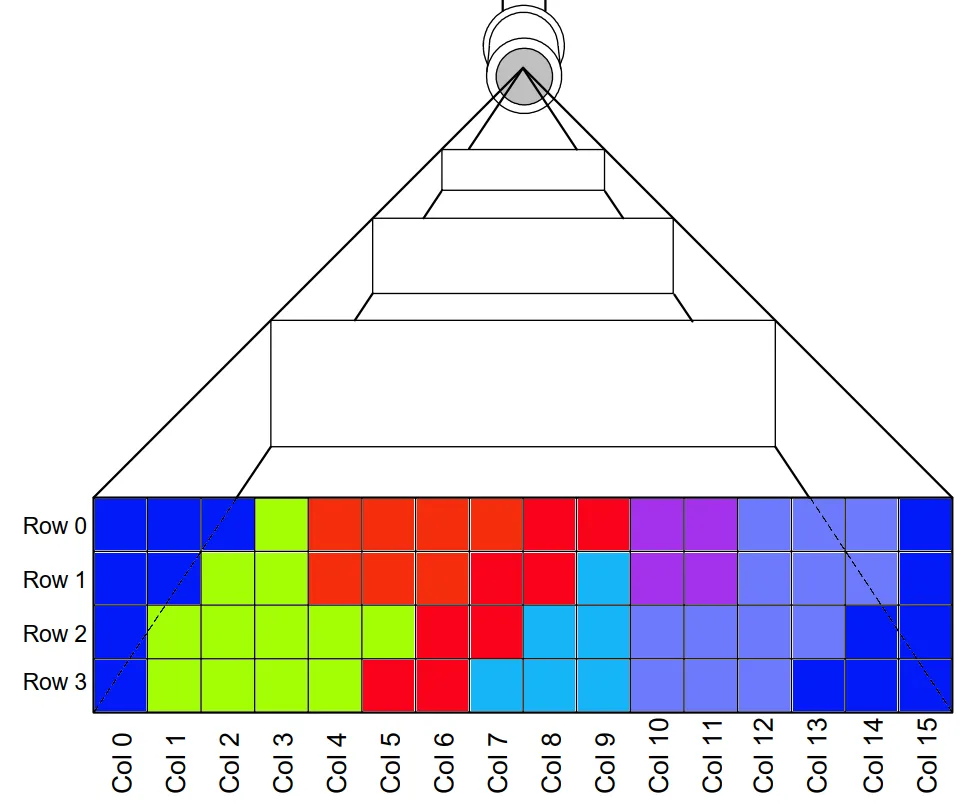

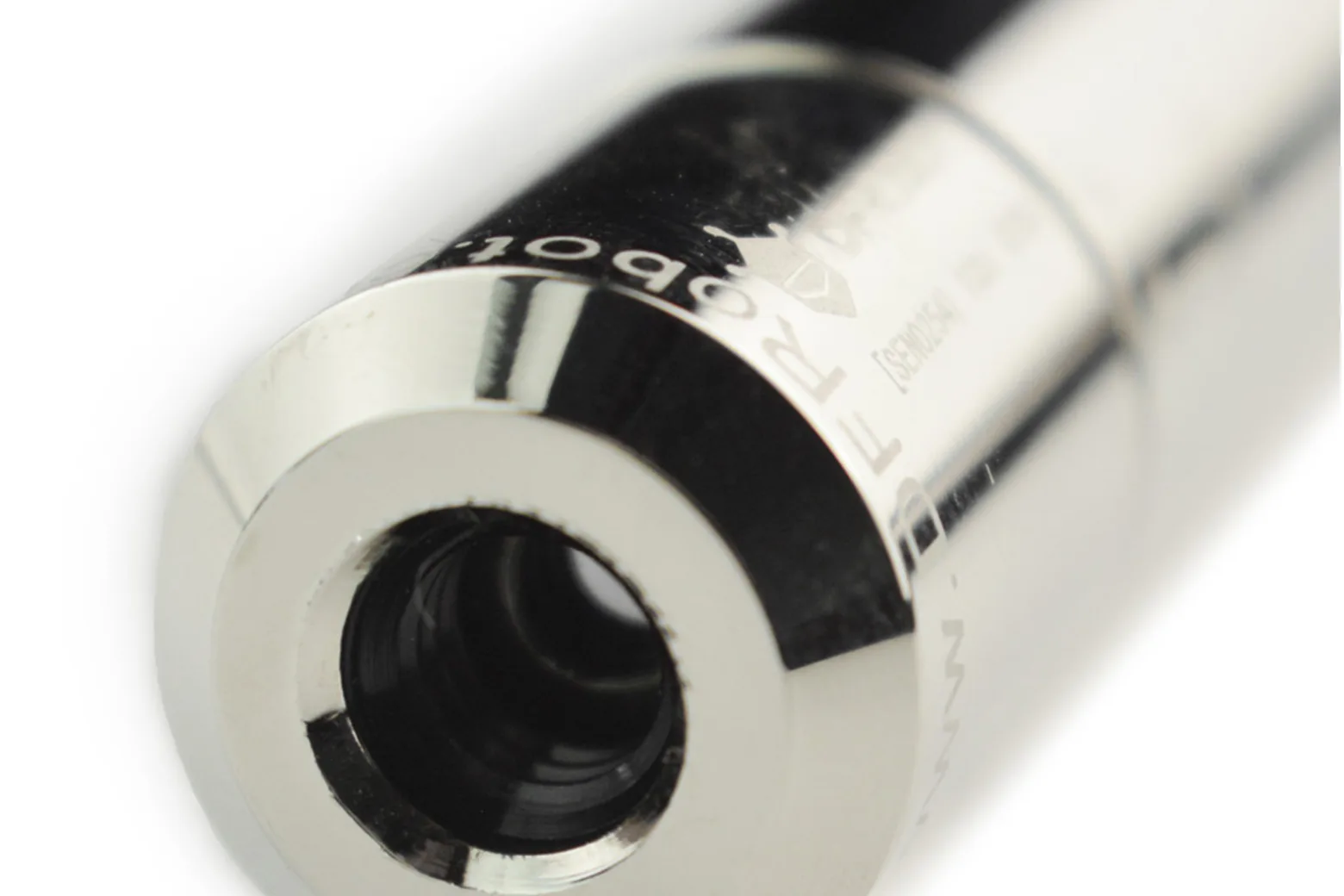

Equipped with a 16x4 pixel IR array, the sensor captures a 64-point temperature map across a 60° by 16° field of view. It detects temperatures ranging from -20°C to 300°C with precision between ±1°C and ±5.5°C without physical contact.

RS485 Modbus-RTU communication

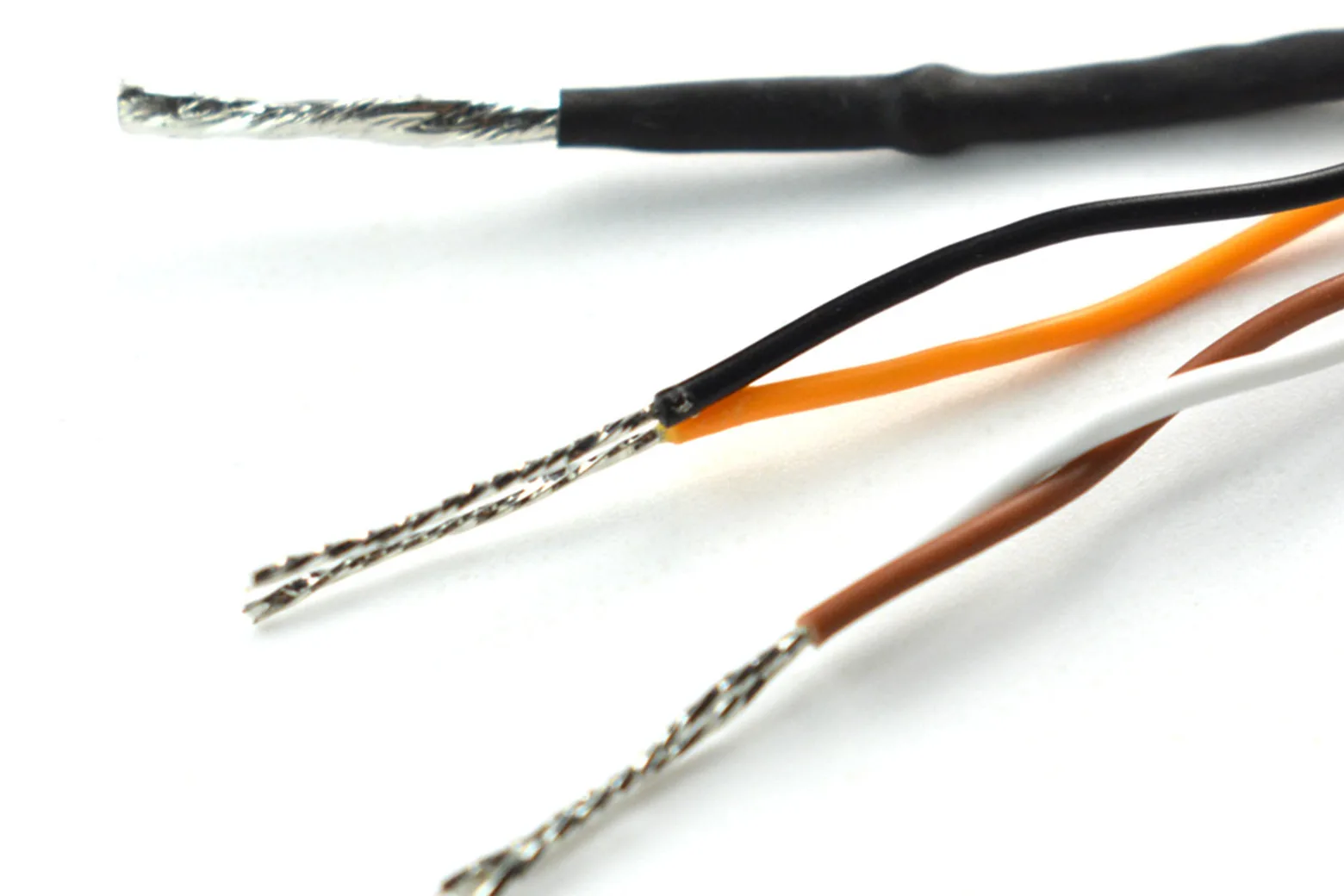

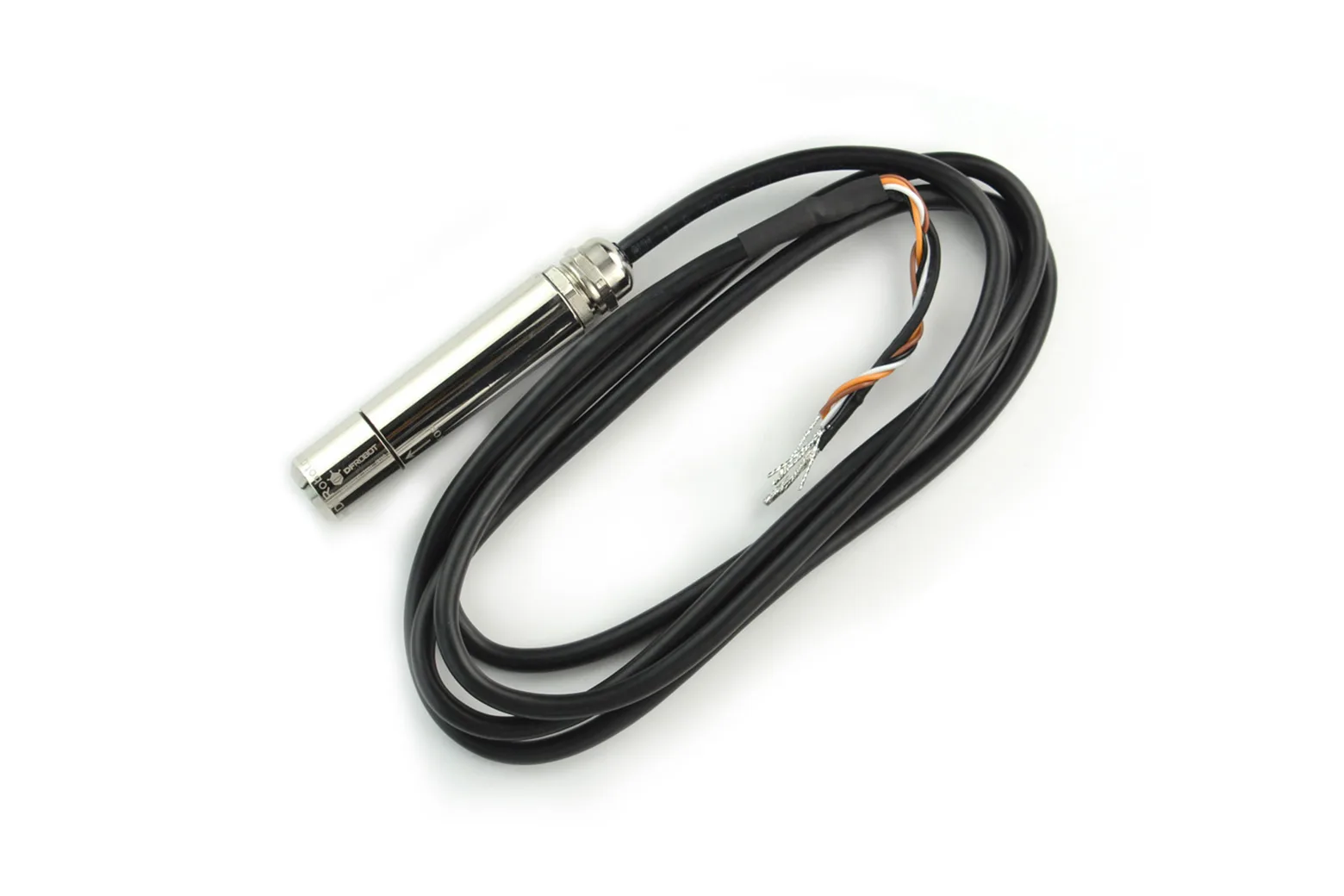

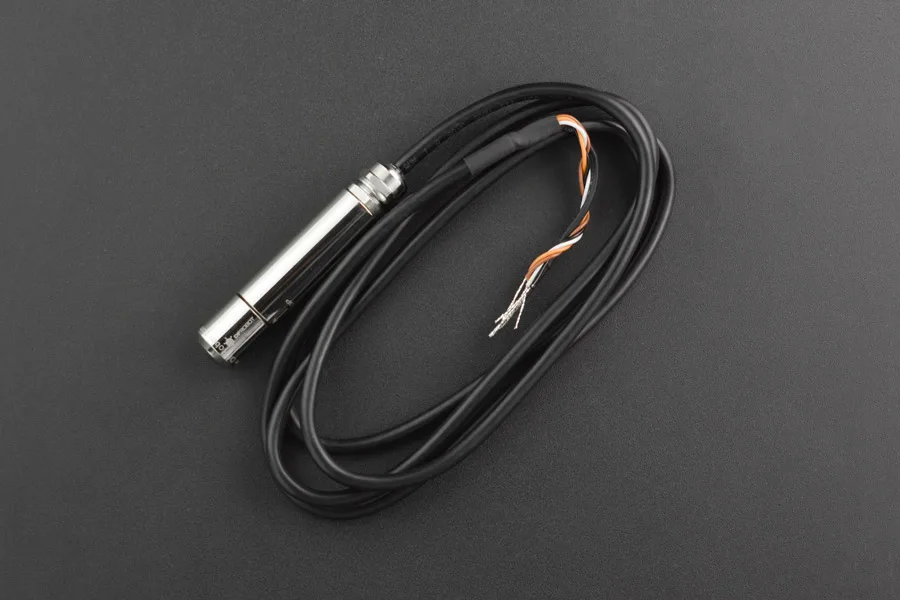

The sensor uses the standard Modbus-RTU protocol over an RS485 interface for seamless compatibility with industrial PCs, PLCs, and microcontrollers. It includes a 1.5-metre cable with stripped, tin-plated wire ends for secure wiring.

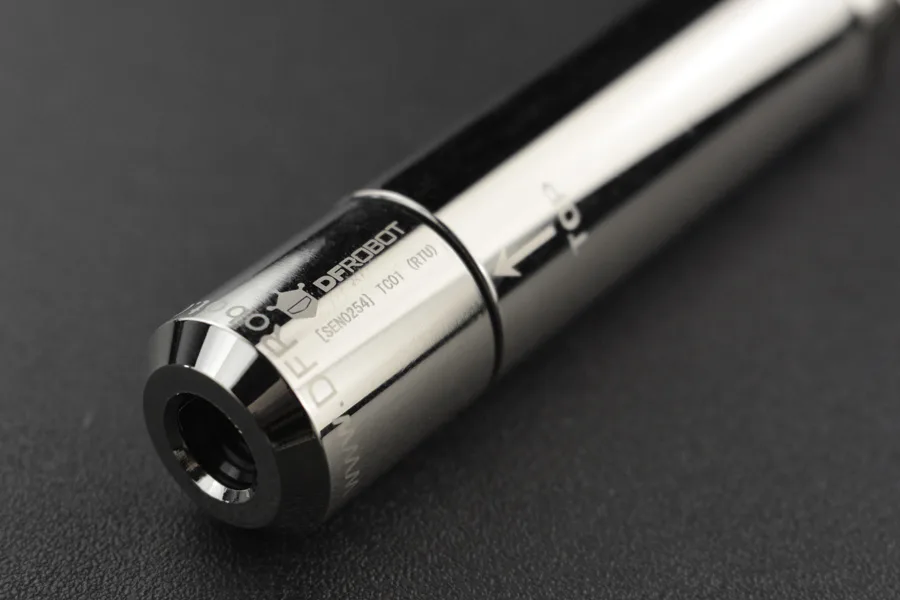

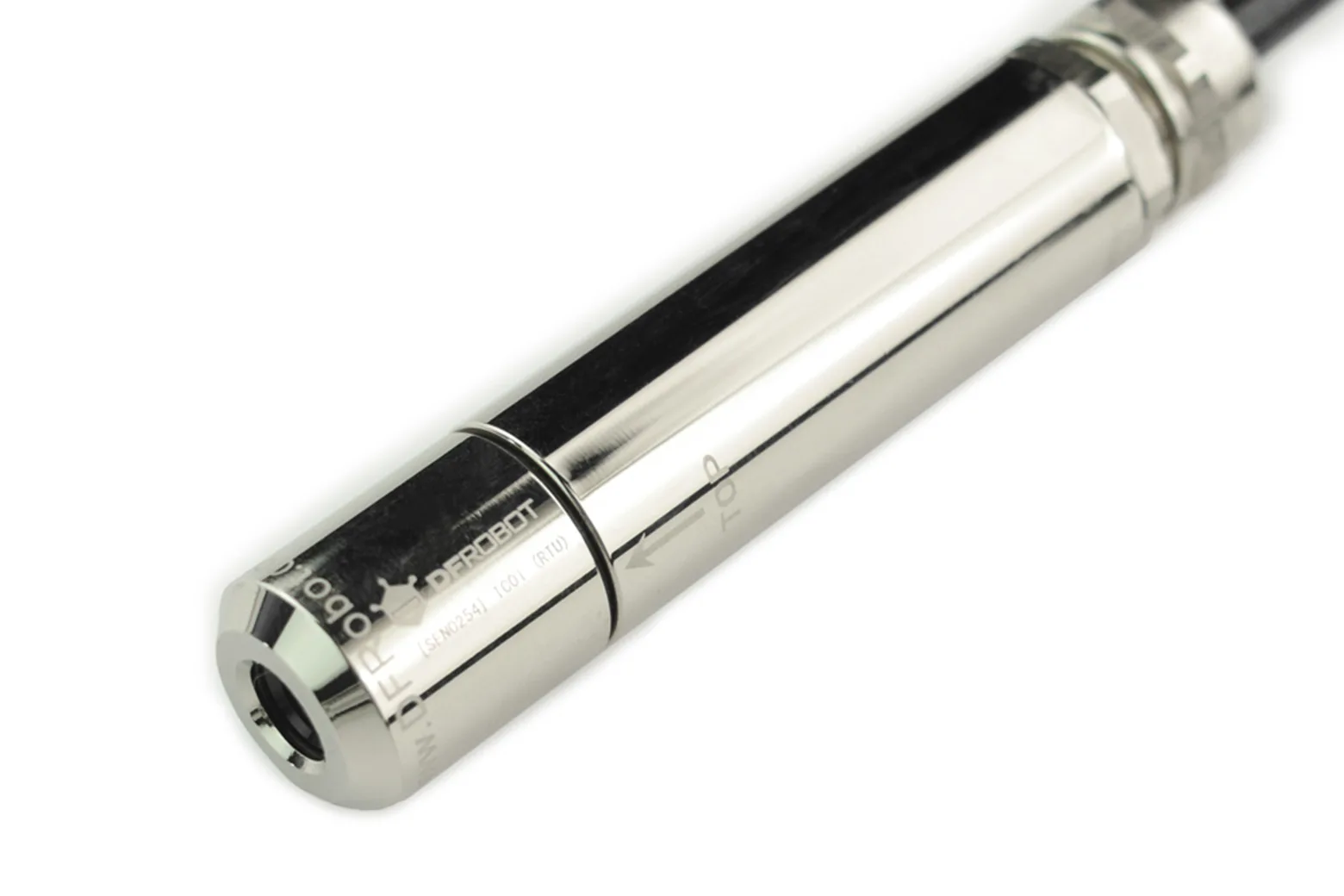

Rugged IP65 metal housing

Featuring an IP65-rated metal casing, the sensor probe is waterproof, dustproof, and engineered for high anti-interference in complex environments. It operates in ambient temperatures between -40°C and 85°C.

Wide supply voltage range

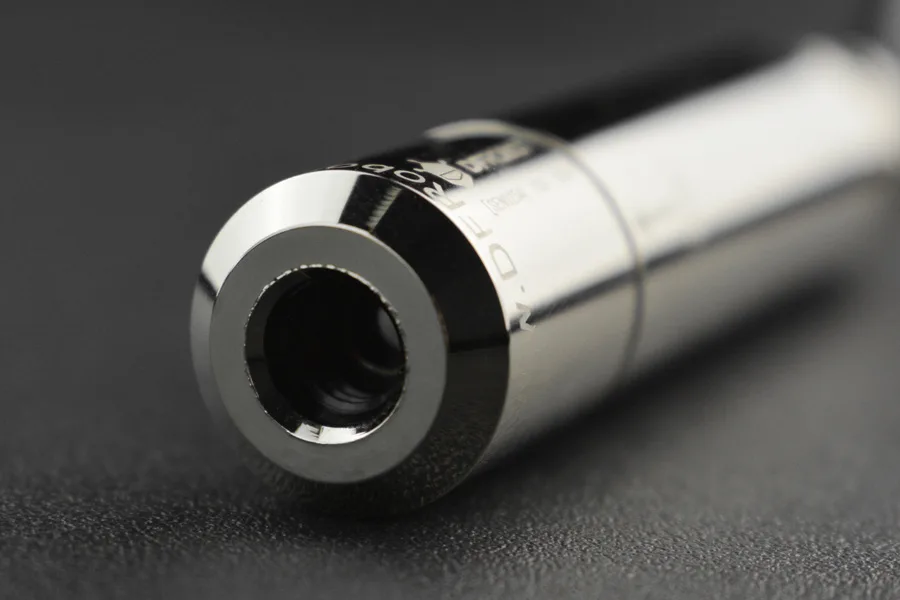

The unit operates on a wide DC supply from 9V to 24V with a low power consumption of 0.1W. The probe measures 15.4mm in diameter and 79mm in length, making it easy to install in compact assemblies.

Versatile detection applications

This thermal array sensor is well suited for high-precision contactless testing, automated temperature scanners, intrusion monitoring, and human positioning detection.
