Stepper Motor Linear Actuator, 300mm Stroke, 700N
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

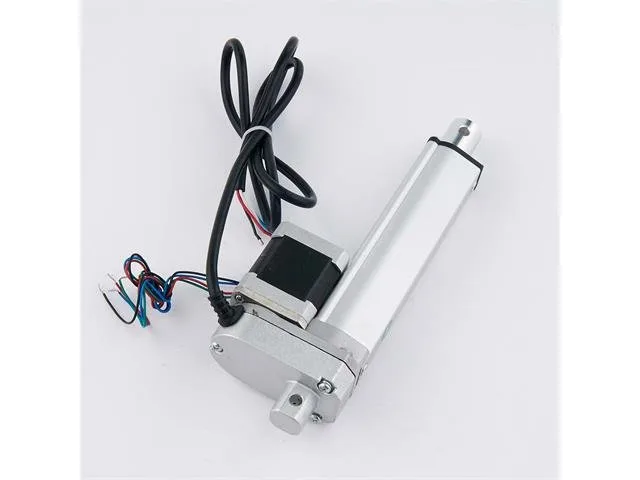

This linear actuator combines a 2-phase stepper motor with a 300mm stroke mechanism to provide precise linear motion and up to 700N of force. It offers smooth movement at speeds up to 8mm/s, housed within a durable aluminium casing. It is well suited to makers, students, and hobbyists building automated positioning systems and robotics projects.
Precise linear positioning

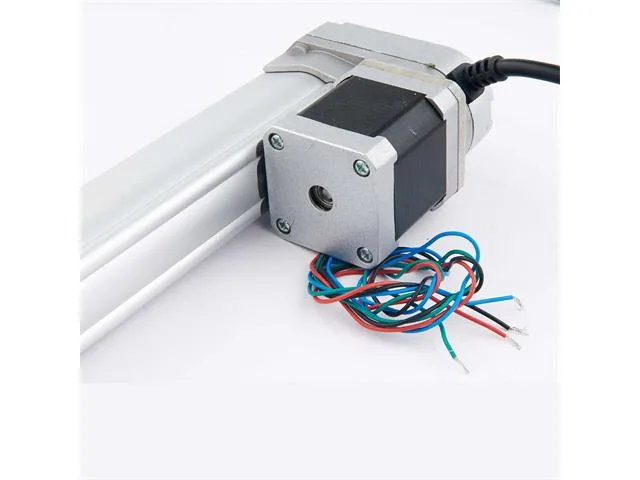

The integrated 2-phase stepper motor features a 1.8-degree step angle (200 steps per revolution) and a 5 kg.cm holding torque. This configuration allows for repeatable, incremental positioning across the full 300mm stroke.
Durable mechanical build

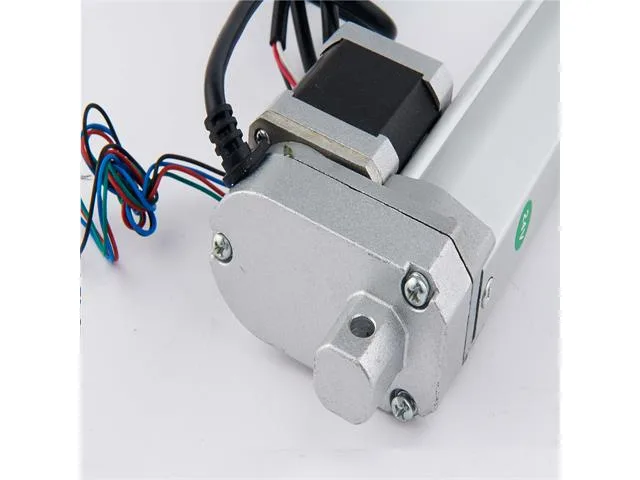

Built with an aluminium outer tube and stroke rod, the actuator carries an IP43 protection rating and weighs 1.11kg. It measures 405mm in retracted installation length and extends to a maximum of 705mm.
Driver and power requirements
The unit is rated for 12Vdc to 24Vdc supply input to the drive, with motor phase parameters of 2.8V and 1.68A. An external stepper motor driver is required for operation (M542 driver recommended) and is not included.
Specifications
| MODEL | STROKE (S) INSTALLATION SIZE (L) {RETRACTED} MAX - INSTALLATION {EXTENDED} WEIGHT (KG) |
| STEPPER ACTUATOR 300MM 700N | 300mm 405mm 705mm 1.11kg |
| Device | Linear Actuator |
| Type | Stepper Motor |
| Stroke Length | 300mm |
| Load | 700N |
| Speed | 8mm/sec (no load) |
| Installation Size (Retracted) | 405mm |
| Installation Size (Extended) | 705mm |
| Weight | 1.11kg |
| Input Voltage | 12Vdc to 24Vdc |
| Protection Grade | IP43 |
| Material | Aluminium outer tube and stroke rod |
| Duty Cycle | 10% |
| Phases | 2 |
| Step Angle | 1.8 degrees (200 steps per revolution) |
| Motor Voltage | 2.8V |
| Motor Current | 1.68A |
| Resistance | 1.65 ohms |
| Inductance | 2.3mH |
| Holding Torque | 5 kg.cm |
| Insulation Class | B |
