Stepper Motor Linear Actuator, 200mm Stroke, 700N
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

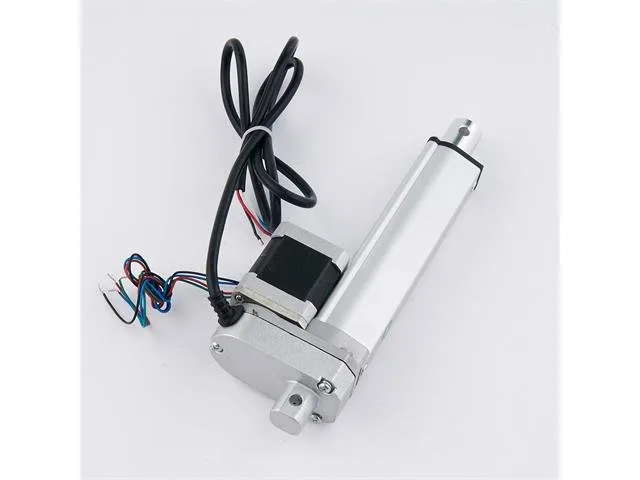

This stepper motor linear actuator provides precise linear positioning with a 200mm travel stroke and a thrust capacity of up to 700N. Driven by an integrated 2-phase stepper motor, it delivers repeatable movement at speeds up to 8mm/s under no load. It is well suited for makers, educators, and hobbyists building automated positioning mechanisms and robotics projects.
Precise stepper drive

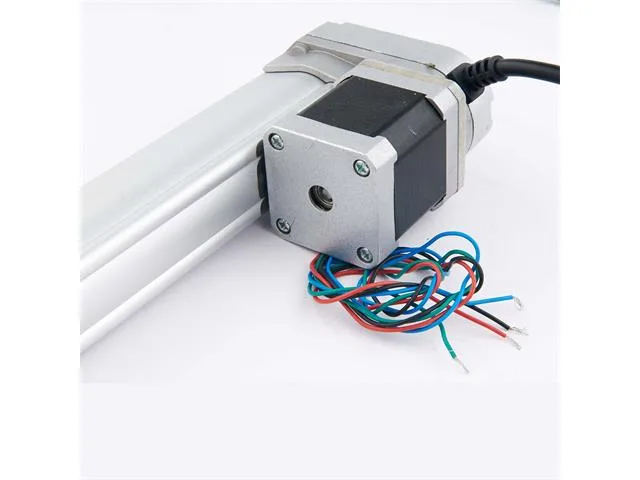

The integrated 2-phase stepper motor features a 1.8-degree step angle (200 steps per revolution) and a holding torque of 5 kg.cm, allowing for accurate speed and positional control.
Durable aluminium build

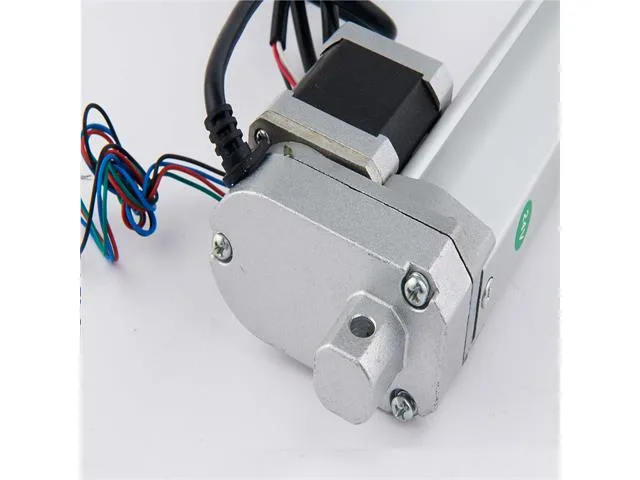

Constructed with an aluminium outer tube and stroke rod, the actuator offers an IP43 protection grade. It has a retracted installation length of 305mm, extends to 505mm at full stroke, and weighs 0.94kg.
Driver and power requirements
An external stepper motor driver is required to operate this unit, with the M542 stepper driver recommended. The recommended driver power supply input is 12Vdc to 24Vdc, with the motor rated at 2.8V, 1.68A per phase, and a 10% duty cycle.
Specifications
| MODEL | STROKE (S) INSTALLATION SIZE (L) {RETRACTED} MAX - INSTALLATION {EXTENDED} WEIGHT (KG) |
| STEPPER ACTUATOR 200MM 700N | 200mm 305mm 505mm 0.94kg |
| Device | Linear Actuator |
| Type | Stepper Motor |
| Device Type | Linear Actuator |
| Motor Type | Stepper Motor |
| Stroke Length | 200mm |
| Load Capacity | 700N |
| Speed (No Load) | 8mm/sec |
| Retracted Installation Length | 305mm |
| Extended Installation Length | 505mm |
| Weight | 0.94kg |
| Protection Grade | IP43 |
| Material | Aluminium outer tube and stroke rod |
| Duty Cycle | 10% |
| Driver Input Voltage | 12Vdc to 24Vdc |
| Motor Phase | 2 |
| Step Angle | 1.8 degrees (200 steps per revolution) |
| Motor Voltage | 2.8V |
| Motor Current | 1.68A |
| Motor Resistance | 1.65 ohms |
| Motor Inductance | 2.3mH |
| Holding Torque | 5 kg.cm |
| Insulation Class | B |
