Snap-In PCB Support Spacer with Dome Base, 12 mm
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

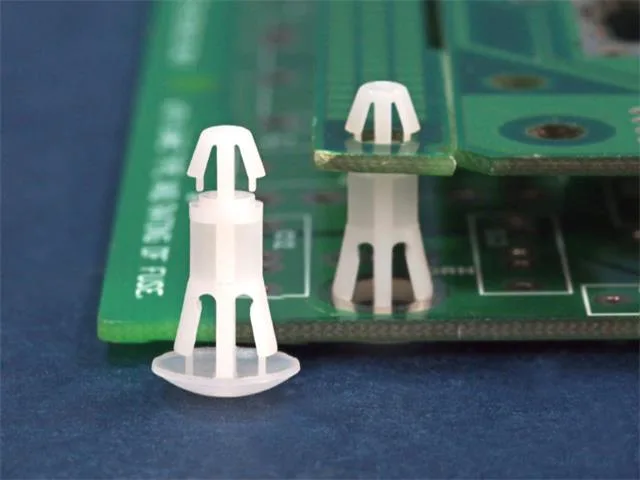

This 12 mm snap-in PCB spacer is designed to securely mount and elevate circuit boards without the need for threaded fasteners. It features a dome base rest design for fast, push-fit assembly into panels. Ideal for makers, students, and hobbyists building tidy robotics chassis and custom electronics enclosures.
Snap-in dome base design
The spacer uses a push-in dome base configuration that locks securely into place, enabling tool-free installation and reliable board separation.

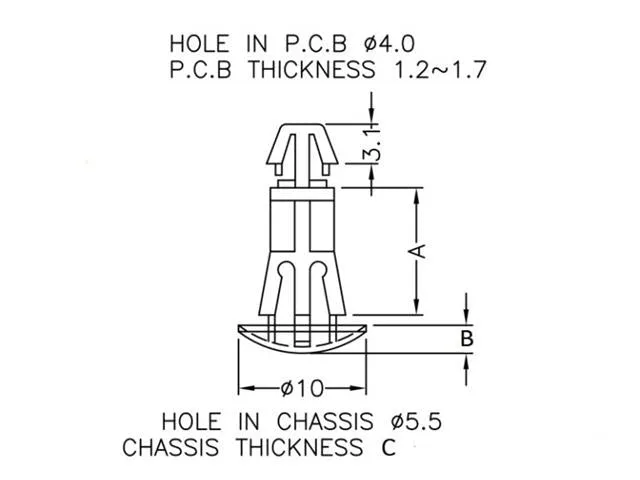

Panel mounting dimensions
Engineered for panels with a 5,5 mm hole diameter, this spacer accommodates panel thicknesses ranging from 0,8 mm to 1,6 mm.
Board fitment specifications
The upper mounting section fits standard 4 mm PCB holes for circuit boards with a thickness between 1,2 mm and 1,7 mm, maintaining a 12 mm standoff height.
Specifications
| Device | Spacer |
| Type | Rest Snap in | Dome Base |
| Length (L) | 12mm |
| Width (W) | 10mm |
| Panel Hole | 5,5mm |
| Panel Thickness | 0,8-1,6mm |
| PCB Hole | 4mm |
| PCB Thickness | 1,2-1,7mm |
