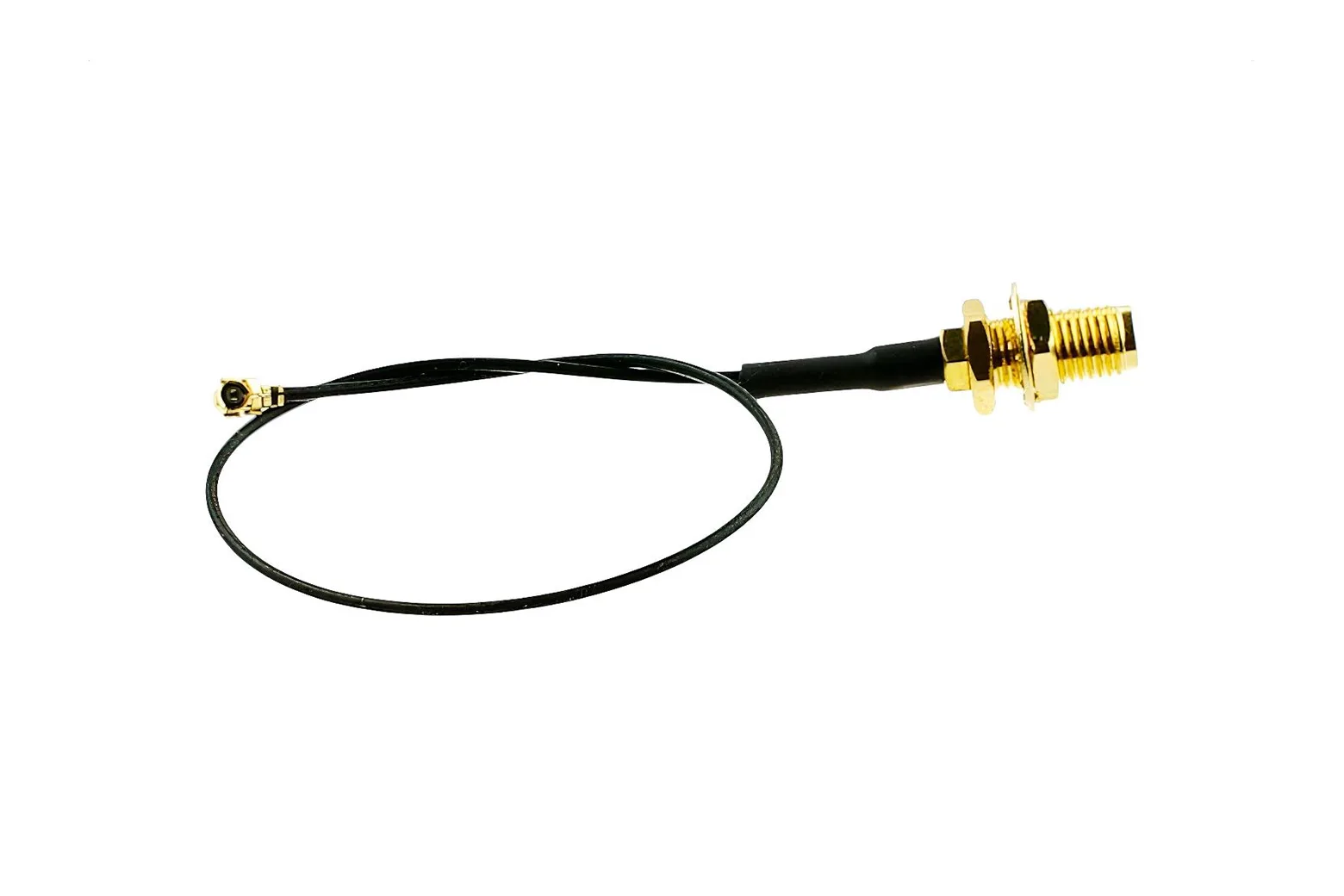

SMA Female to U.FL RF Interface Cable (150mm)

The SMA Female to U.FL RF Interface Cable is a 150mm coaxial adapter designed to bridge compact radio frequency boards with standard external antennas. It is ideal for makers, students, and engineers integrating wireless connectivity into their electronics and robotics projects.

Standardised RF connector pairing

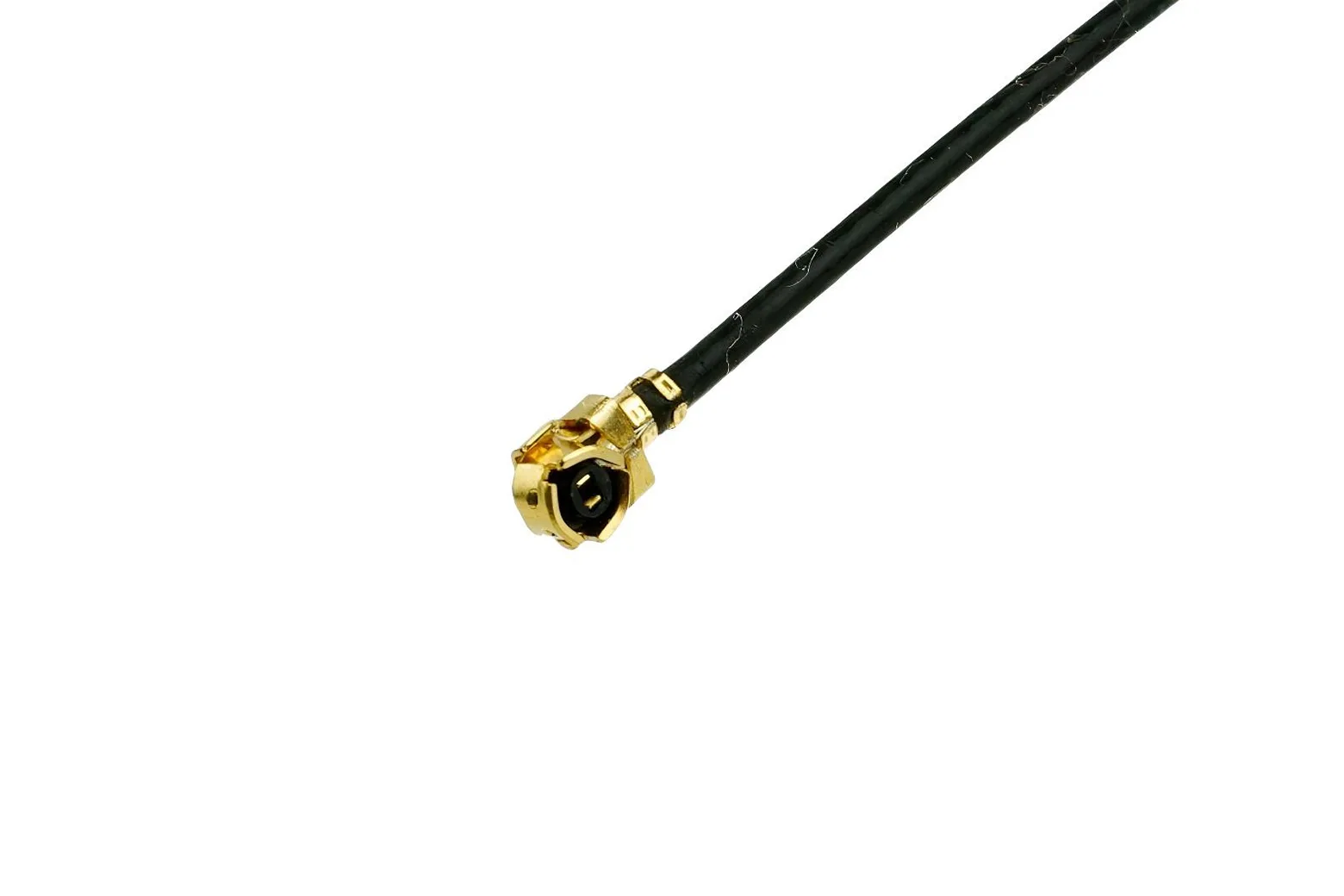

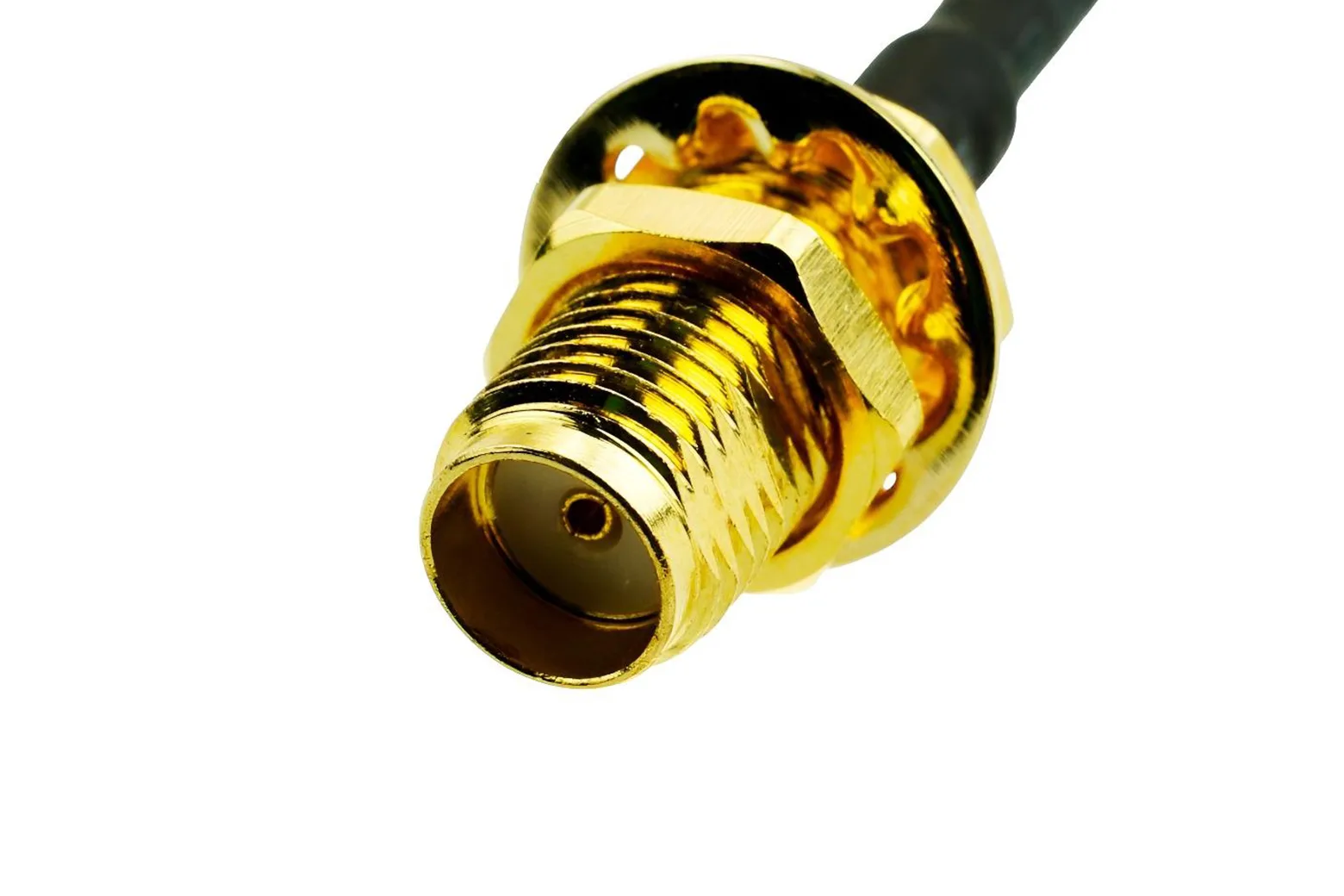

This cable features a bulkhead SMA female connector on one end and a low-profile U.FL connector on the other. It allows secure external antenna mounting on enclosures while connecting directly to miniature onboard sockets.

Wide operating frequency range

Rated for operation from DC up to 12.4GHz, this interface cable supports high-frequency signal transmission with minimal signal degradation. It ensures dependable RF performance across diverse communication bands.

Matched 50-ohm impedance

Engineered with a standard 50Ω impedance, the coaxial assembly prevents impedance mismatches between your radio module and antenna. This helps maintain signal integrity and transmission efficiency.

Versatile wireless module compatibility

Measuring 150mm in length, the cable provides ample reach for internal routing in custom builds. It is suitable for connecting GPS, GSM, IoT, and general wireless modules to external antennas.
