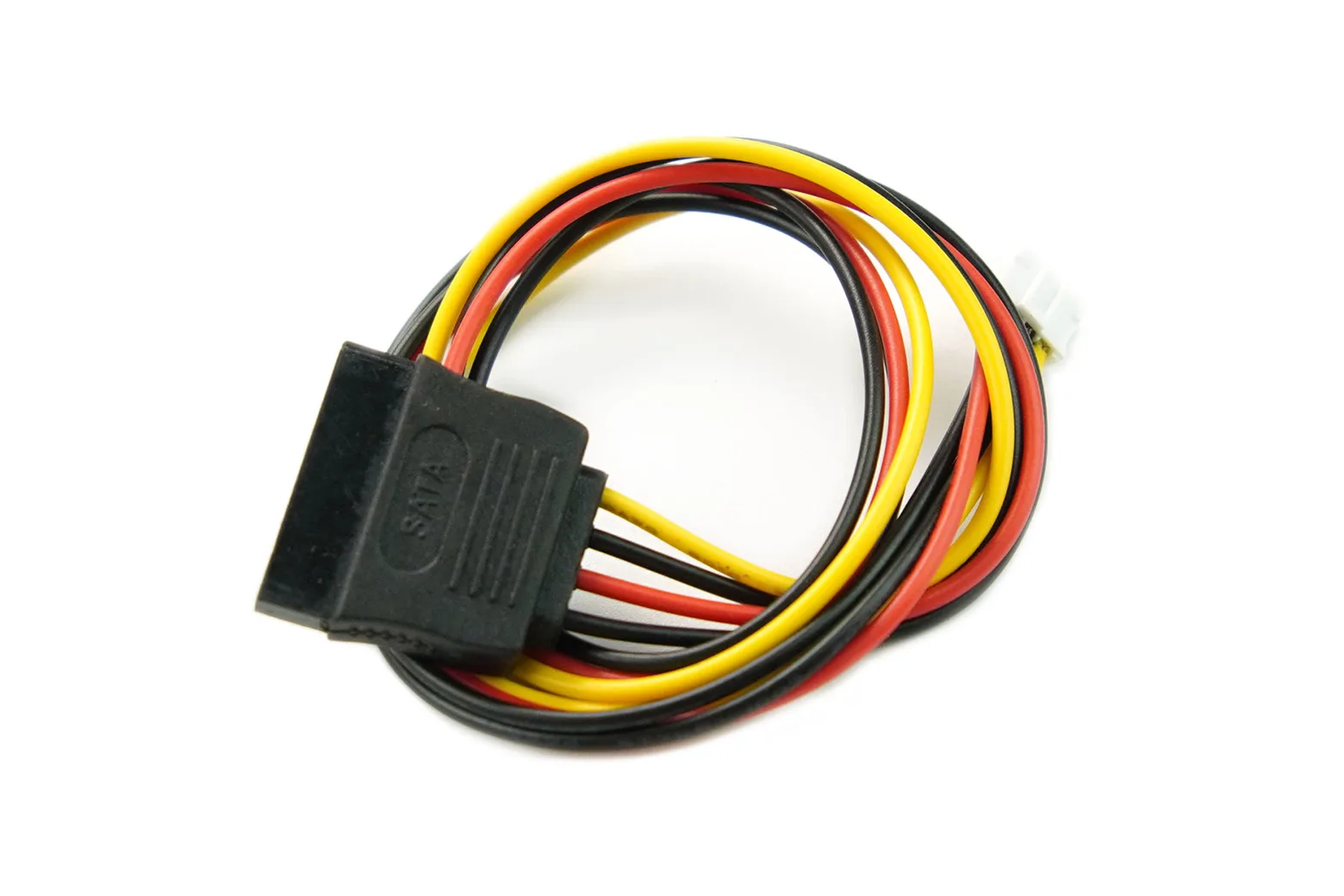

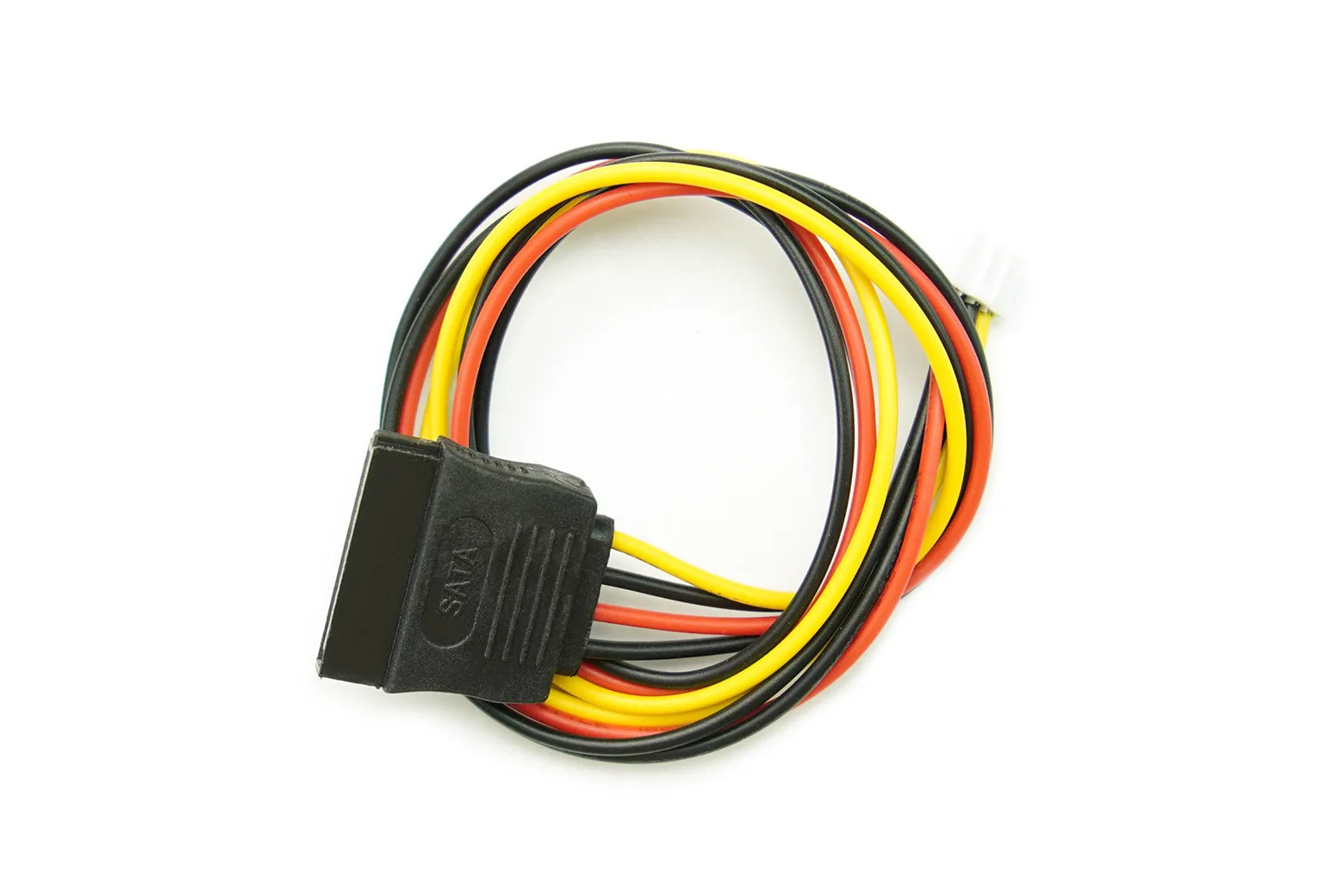

SATA Power Cable for LattePanda Sigma (PH2.0 4 Pin to SATA 15 Pin, 40cm)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This dedicated power supply cable allows you to connect SATA hard drives, SSDs, and compatible peripherals directly to your LattePanda Sigma single-board computer. Featuring a PH2.0 4-pin connector on one end and a standard 15-pin female SATA power receptacle on the other, it delivers both 12V and 5V lines. It is ideal for makers, developers, and enthusiasts expanding their SBC storage capacity.
LattePanda Sigma board interface
Designed specifically for the LattePanda Sigma single-board computer, this cable plugs into the onboard PH2.0 power header to power external SATA devices.
PH2.0 to SATA 15-pin termination

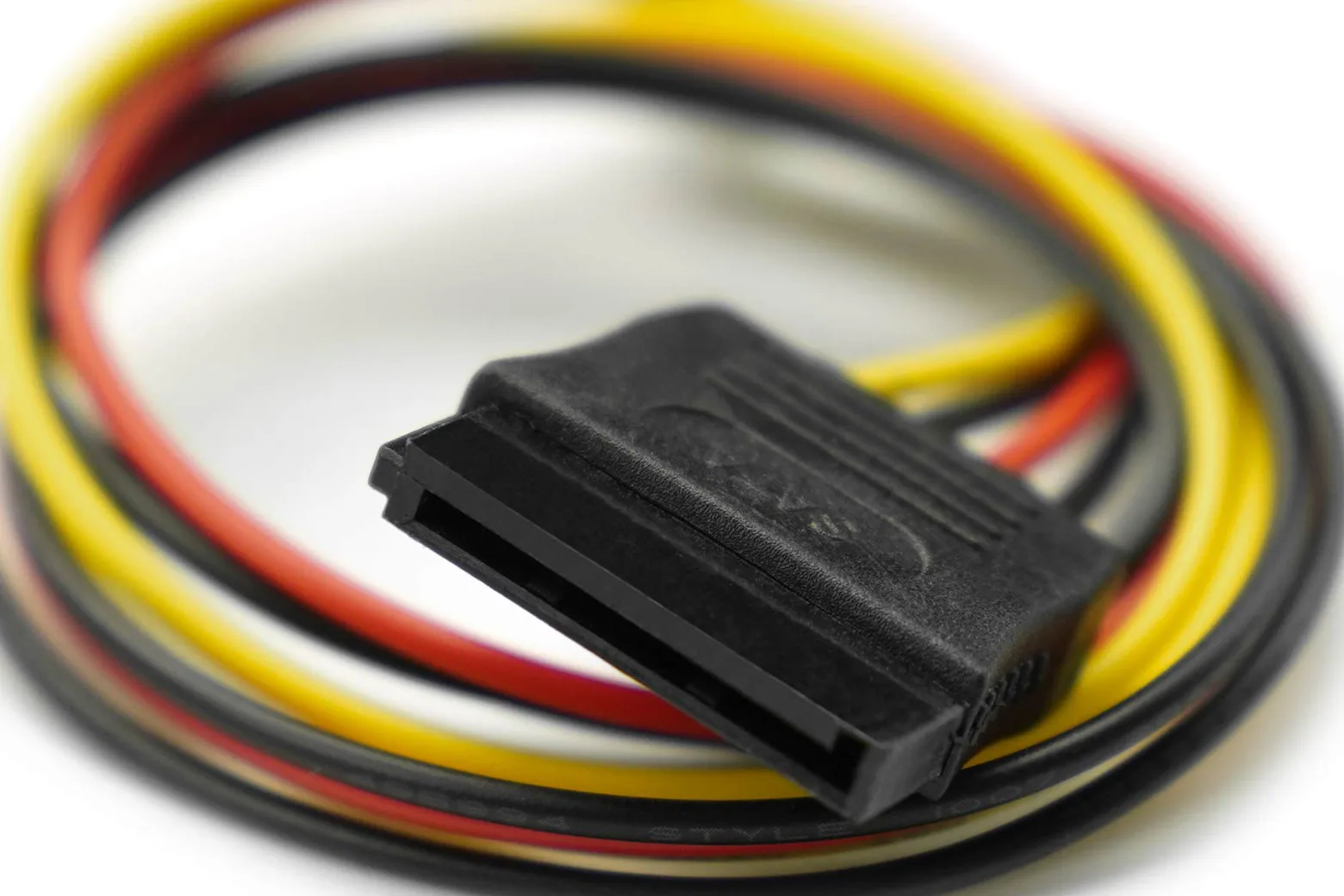

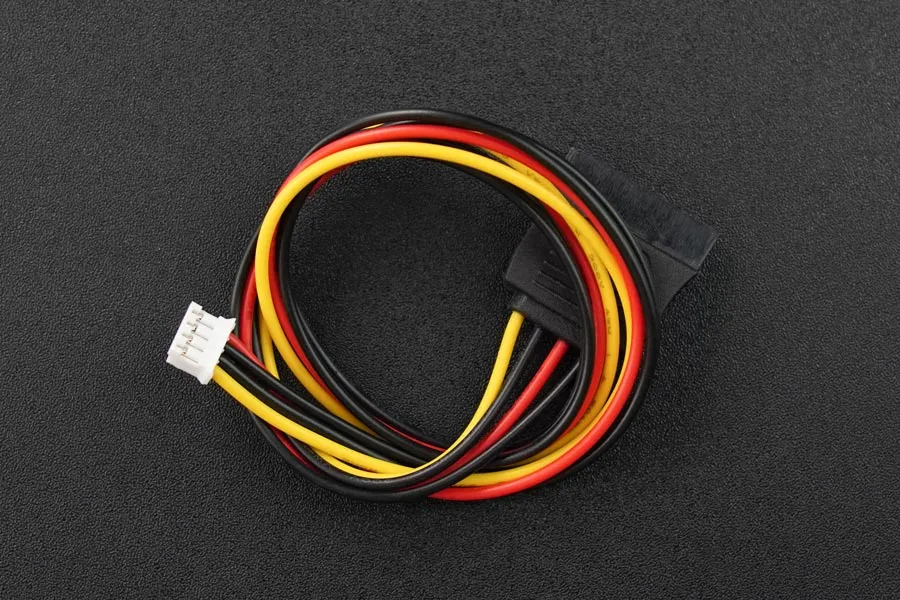

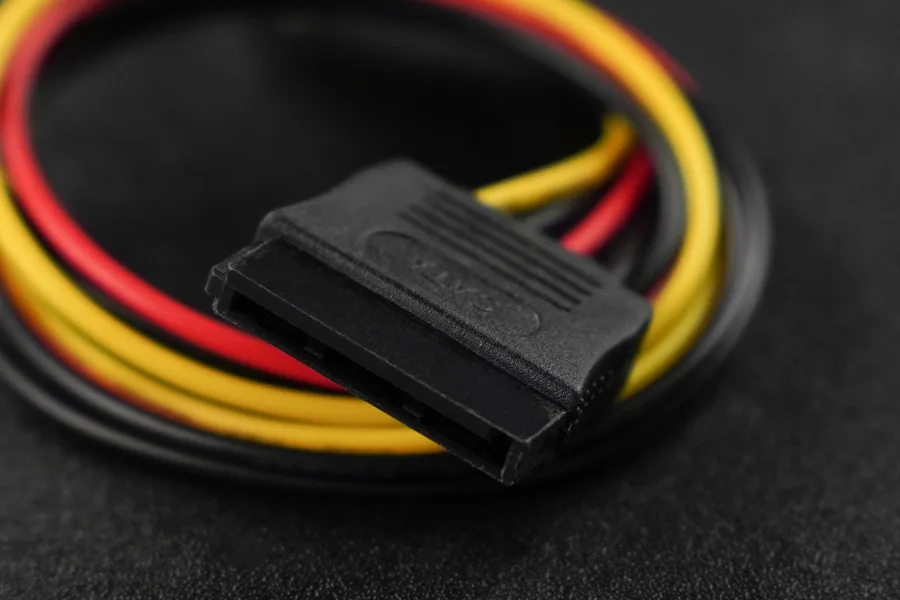

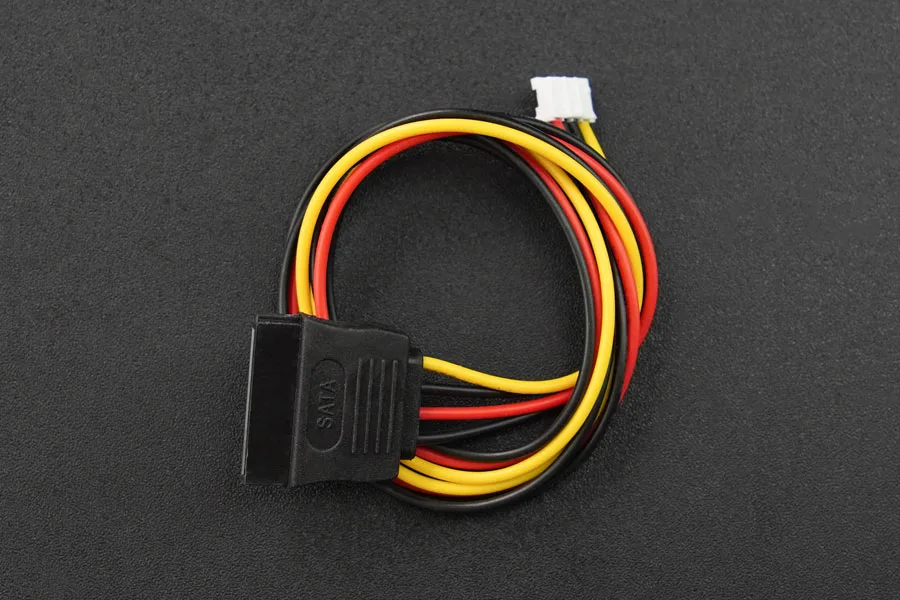

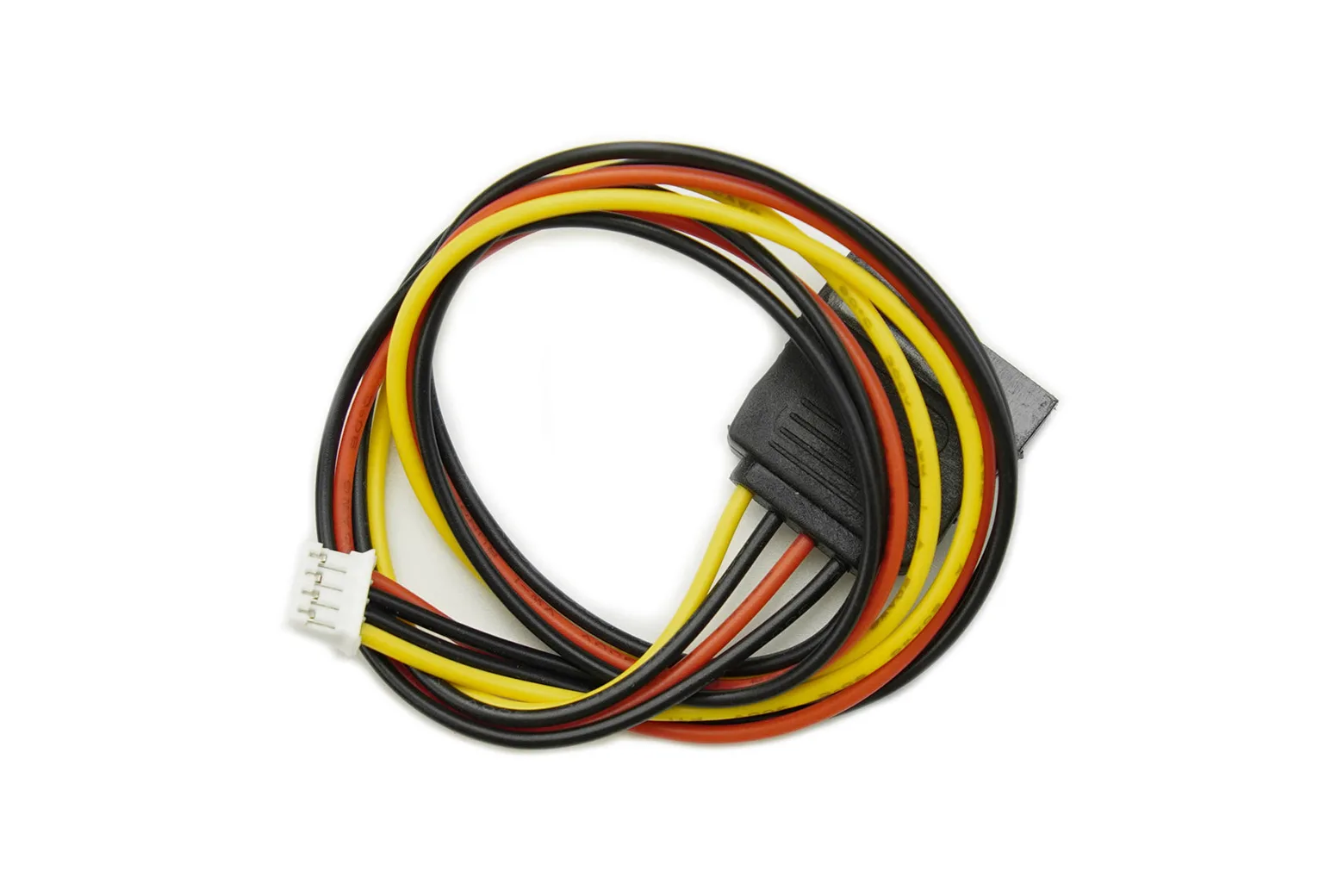

The lead terminates in a PH2.0-4P connector on the board side and a standard SATA-15P female connector on the drive side for plug-and-play installation.
Standard colour-coded pinout
Wiring is clearly coded with yellow carrying 12V, red carrying 5V, and two black lines serving as ground across both connection points.
20AWG pure copper wiring

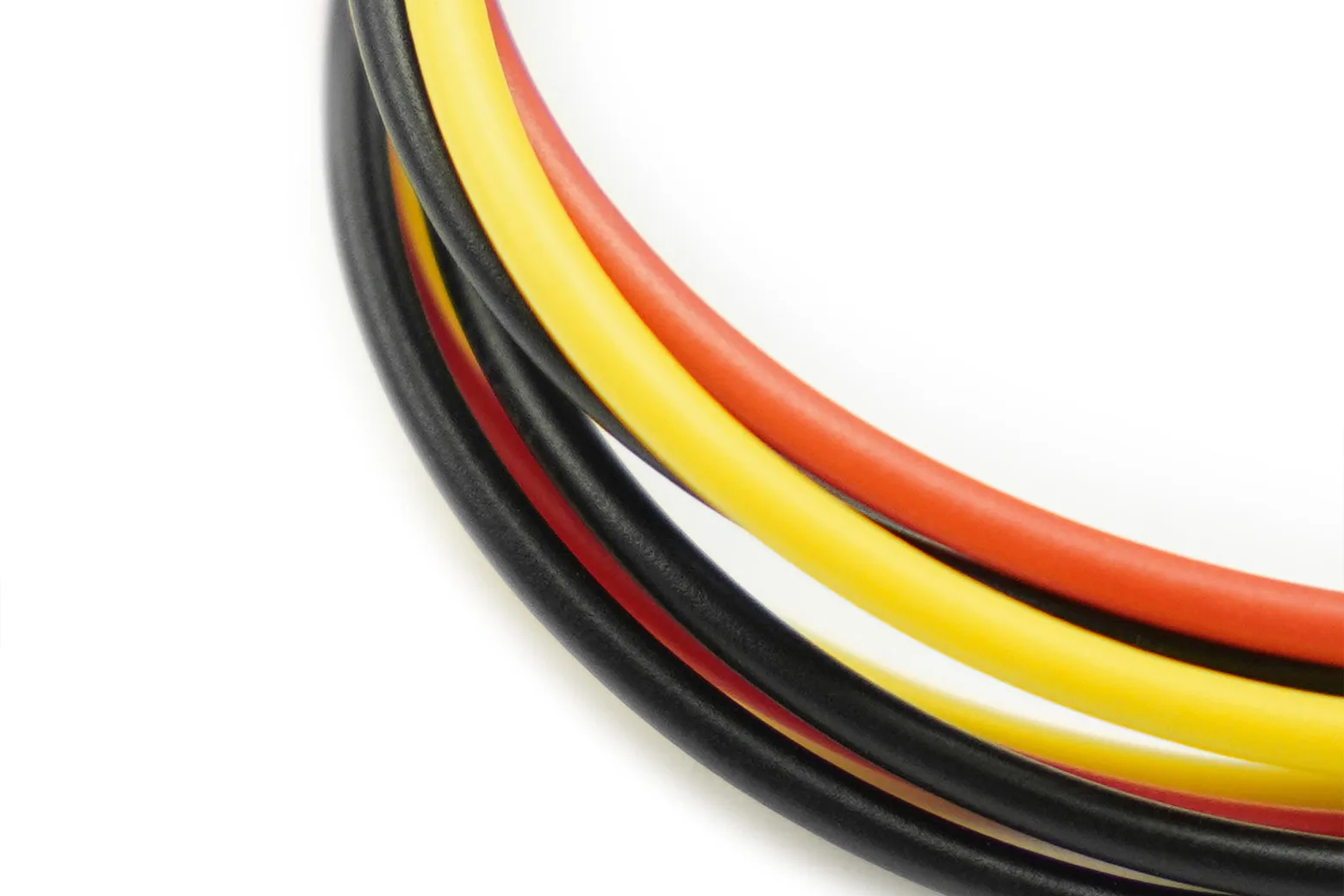

Manufactured using 20AWG pure copper conductors with durable PVC insulation, the cable measures 1.8mm in outer diameter to deliver stable power.
40cm reach for clean routing
With a total length of 40cm, this cable provides generous reach to position drives cleanly inside enclosures and custom projects.
Specifications
| Interface | PH2.0-4P, SATA-15P female connector |
| Length | 40cm |
| Cable Colors | PH2.0 end - Yellow (12V), Black (GND), Black (GND), Red (5V); SATA end - Yellow, Black, Red, Black |
| Wire Gauge | 20AWG |
| Insulation Material | PVC insulation |
| Conductor Material | Pure copper |
| Cable Outer Diameter | OD1.8mm |
In the box
| SATA to PH2.0 Connection Line for LattePanda Sigma (40cm) | 1 |
| Review | 1 |
| Michael.Barton Apr 01, 2025 | 1 |
| Have not used it yet, but it should work just fine. Will need to wait untill I have an ssd for install. | 1 |
Reviews
No reviews yet — be the first to review this product.
