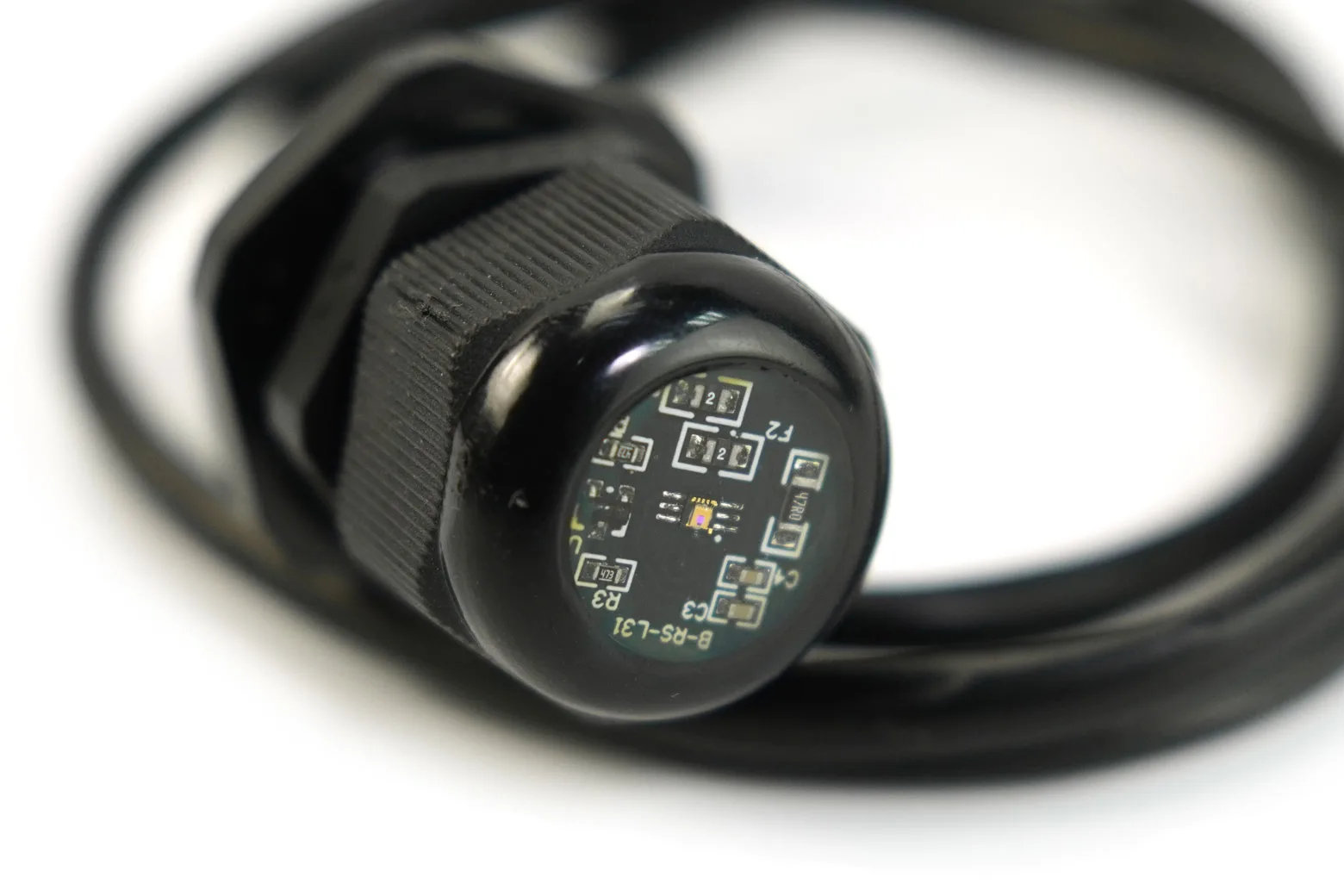

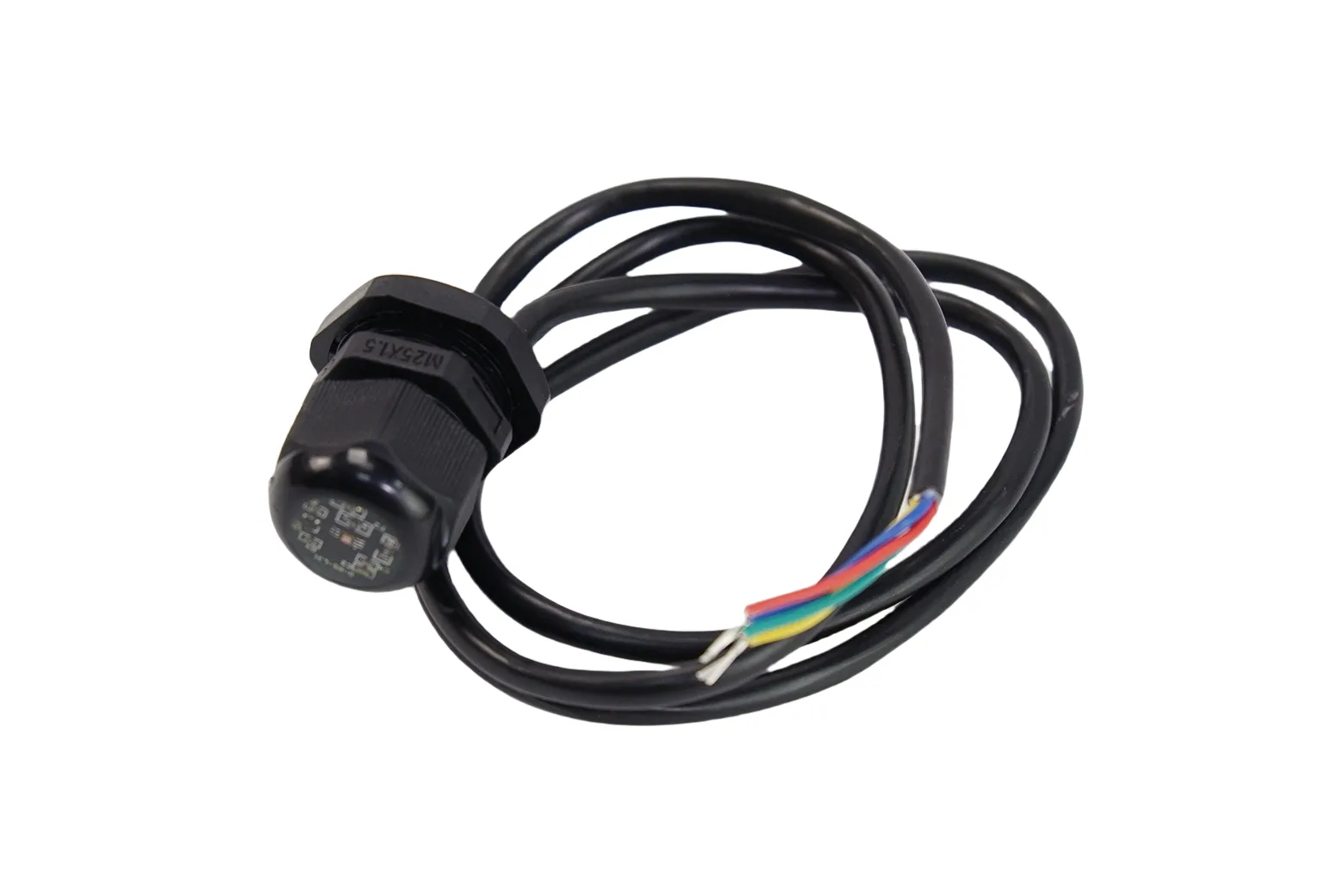

RS485 Waterproof Ambient Light Sensor (0-200,000 Lux)

The RS485 Waterproof Ambient Light Sensor is an industrial-grade illuminance sensor designed to measure light intensity from 0 to 200,000 Lux using the Modbus-RTU protocol. Featuring an IP68 waterproof rating and a wide DC 5-32V input range, it suits makers, agricultural engineers, and educators building weather stations, greenhouse automation, and outdoor lighting monitors.

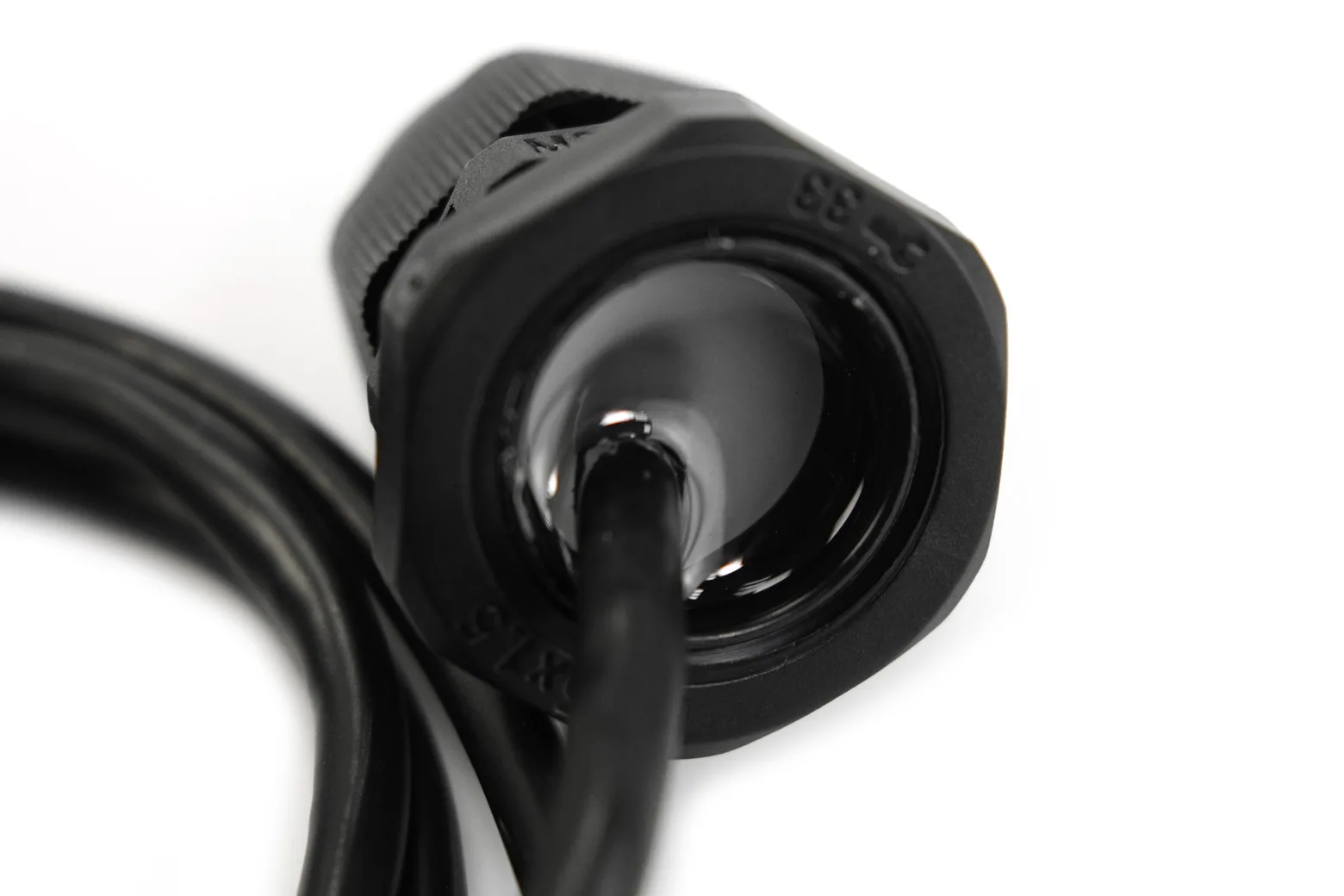

Submersible IP68 waterproof construction

Rated to IP68 standards, the sensor withstands complete submersion in water and operates in temperatures from -40°C to +80°C. This durable design ensures continuous operation in wet greenhouse conditions, exposed weather stations, and automotive setups.

Wide range and precise measurement

The unit captures light levels from 0 to 200,000 Lux with a fine resolution of 0.01 Lux and an accuracy of ±5%. This allows for accurate readings across varied conditions, from dark indoor rooms to direct, bright sunlight.

Modbus-RTU over RS485 communication

The sensor uses the Modbus-RTU 485 protocol for reliable long-distance data transmission. It interfaces readily with Arduino and other microcontrollers using standard TTL-to-RS485 converters or isolated expansion adapters.

Wide supply voltage and low power draw

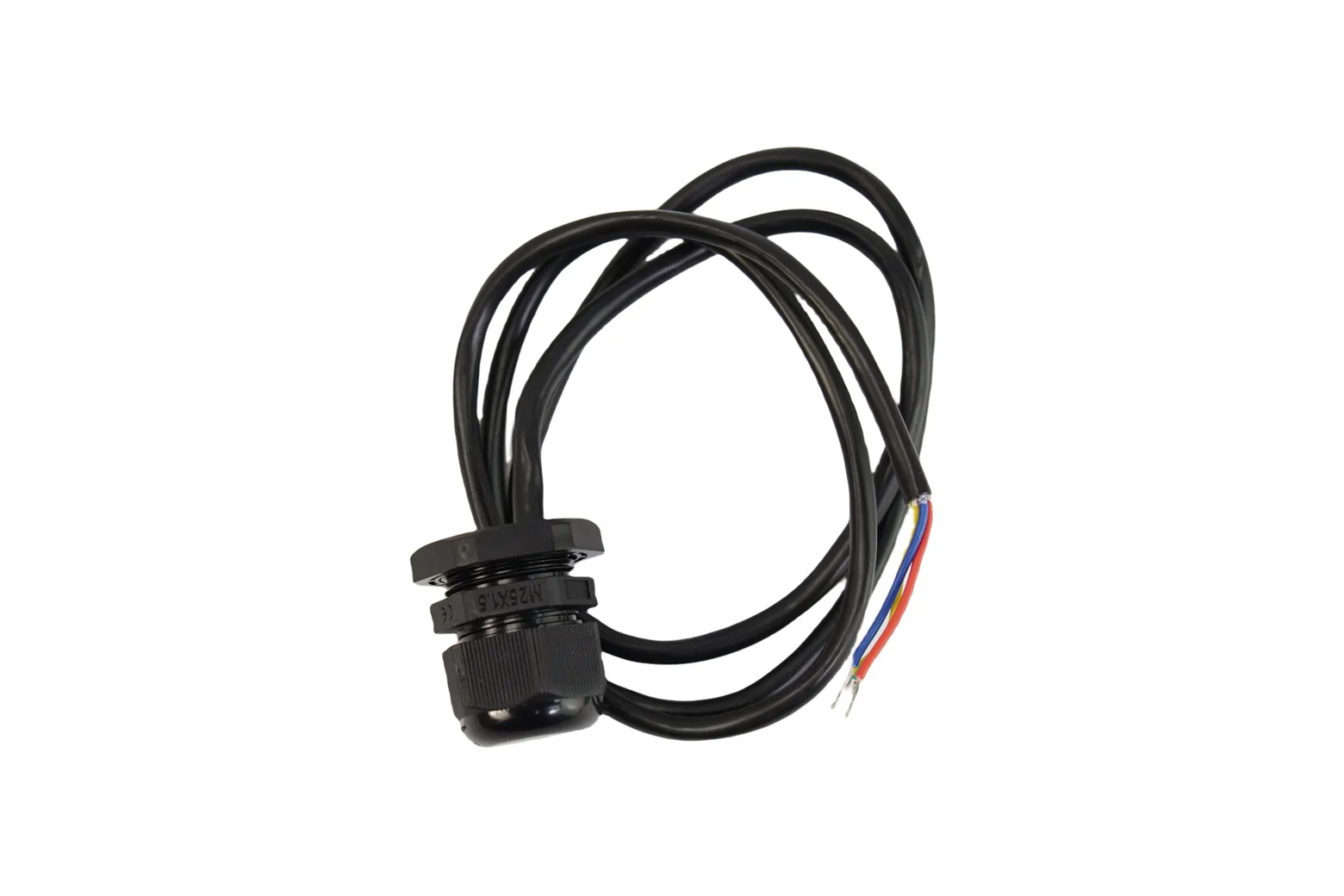

Powered by DC 5-32V with an operating current under 10mA, the sensor integrates easily into battery, solar, or industrial power systems. It comes with a 1m cable and mounts via a 25mm opening with a 10mm thread length.

Broad environmental and automation applications

This sensor is well-suited for collecting ambient solar data in weather stations, regulating lighting for greenhouse plant growth, and managing automated street or factory lighting systems.

Downloads & documentation

• Product wiki (DFRobot)
