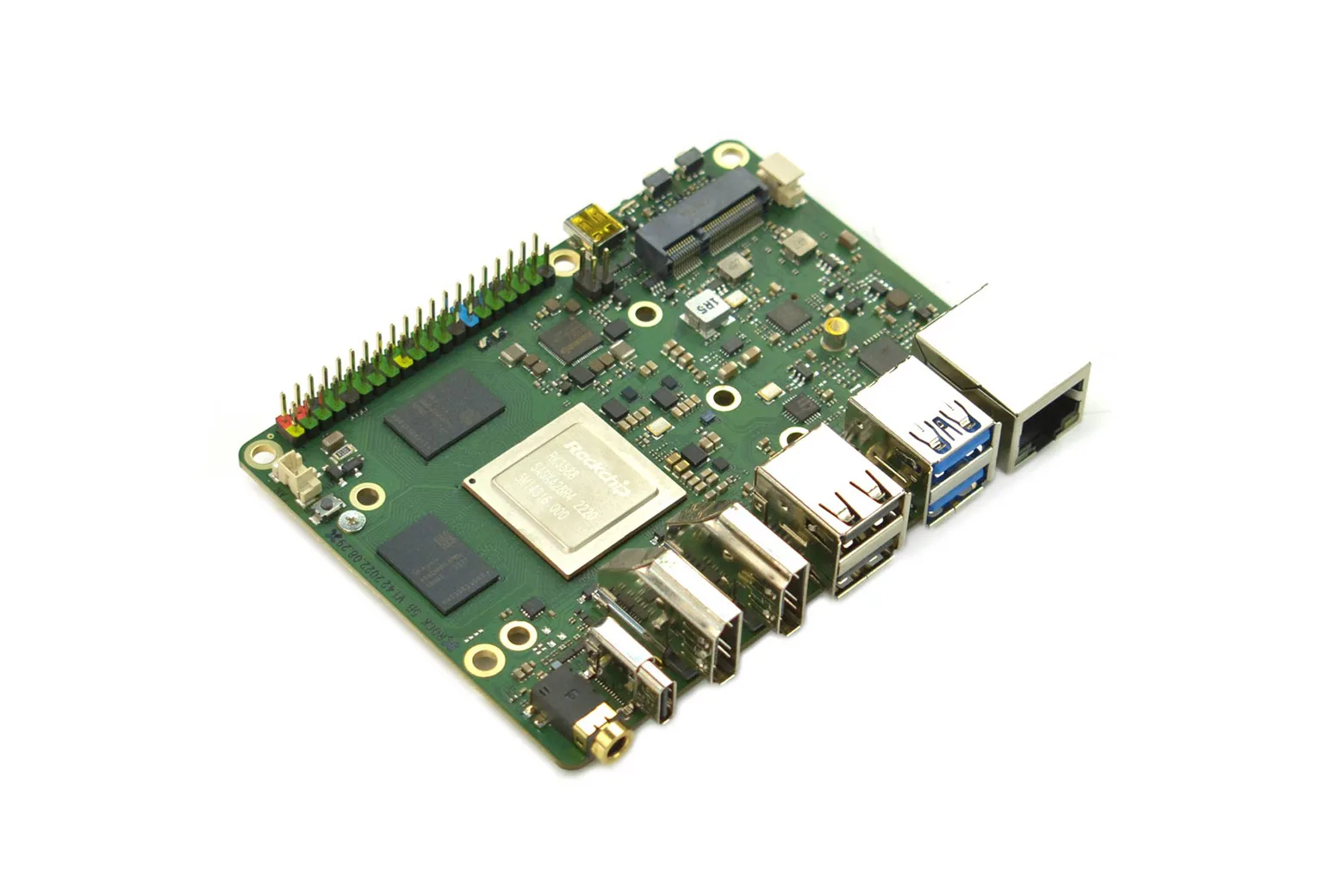

ROCK Pi 5B Model - Rockchip RK3588 ARM SoC Single Board Computer (8GB RAM)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The ROCK 5B is a high-performance single board computer powered by the octa-core Rockchip RK3588 SoC and 8GB of LPDDR4 RAM. Designed for demanding applications such as edge AI, computer vision, robotics, and multimedia processing, it delivers substantial computing power over traditional SBC platforms. It is an ideal platform for developers, makers, and educators seeking top-tier performance and versatile hardware expansion.

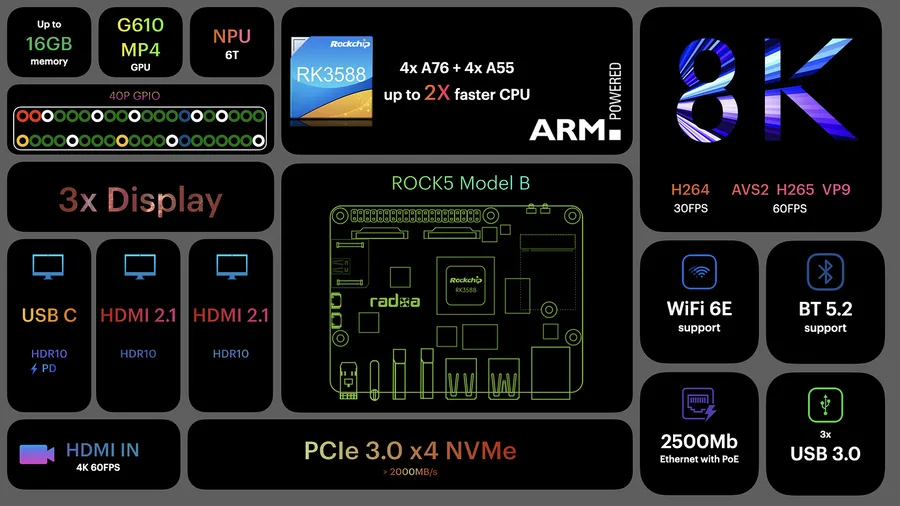

Flagship octa-core processing power

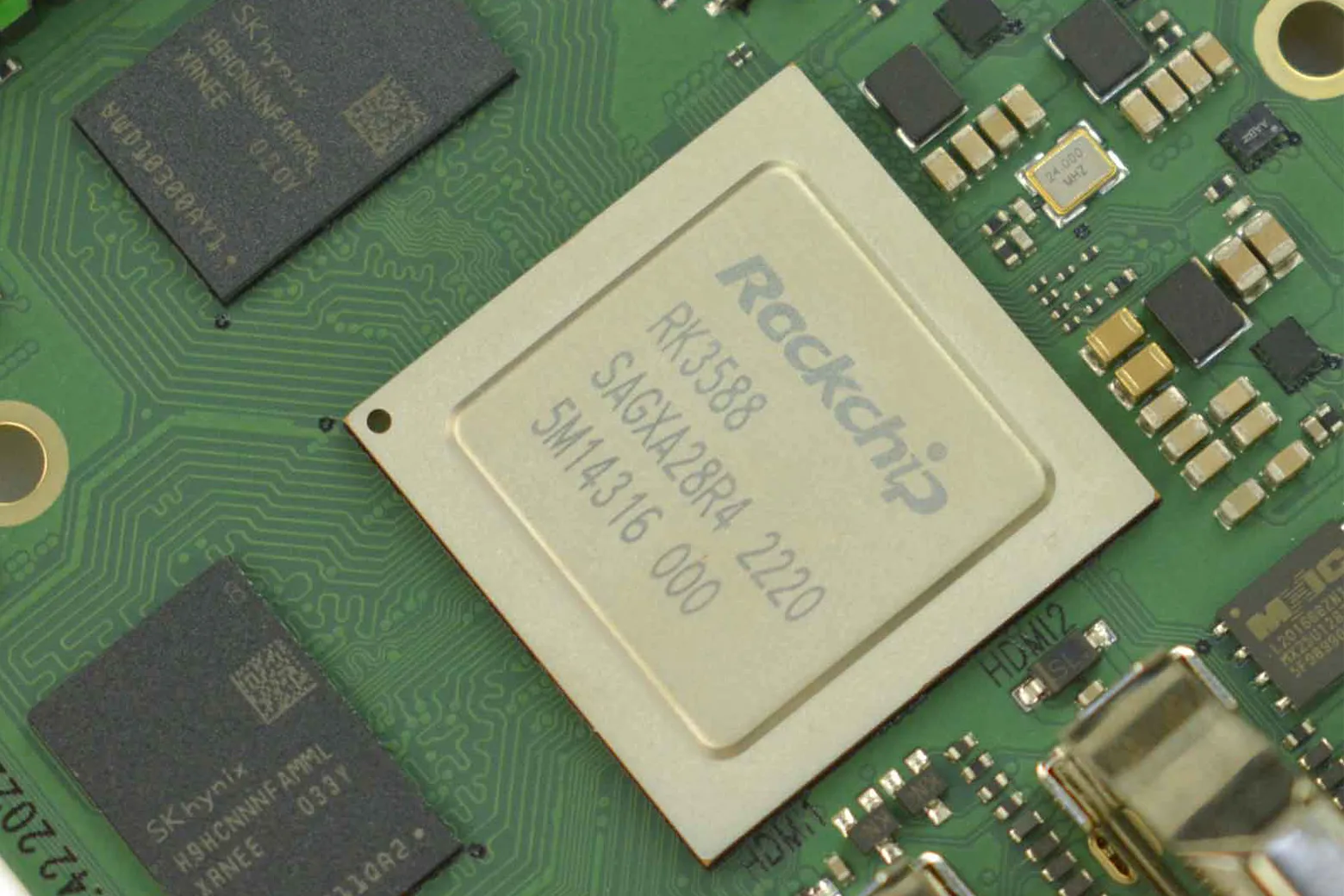

The board features the Rockchip RK3588 SoC with a Quad Cortex-A76 and Quad Cortex-A55 processor alongside an Arm Mali-G610MC4 GPU. Paired with 8GB of 64-bit LPDDR4 RAM, it reliably handles high-throughput edge computing and advanced IoT tasks.

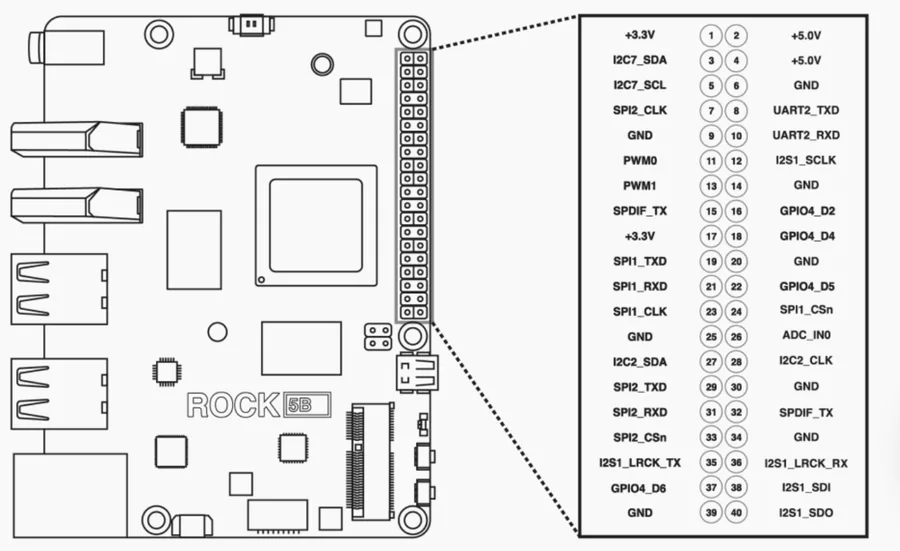

Flexible GPIO and hardware expansion
A 40-pin GPIO expansion header provides versatile connectivity options to maintain broad compatibility with standard SBC accessories. Dedicated onboard connectors also provide access to 4-lane MIPI CSI camera and 4-lane MIPI DSI display interfaces.
Ultra-high-definition 8K video output

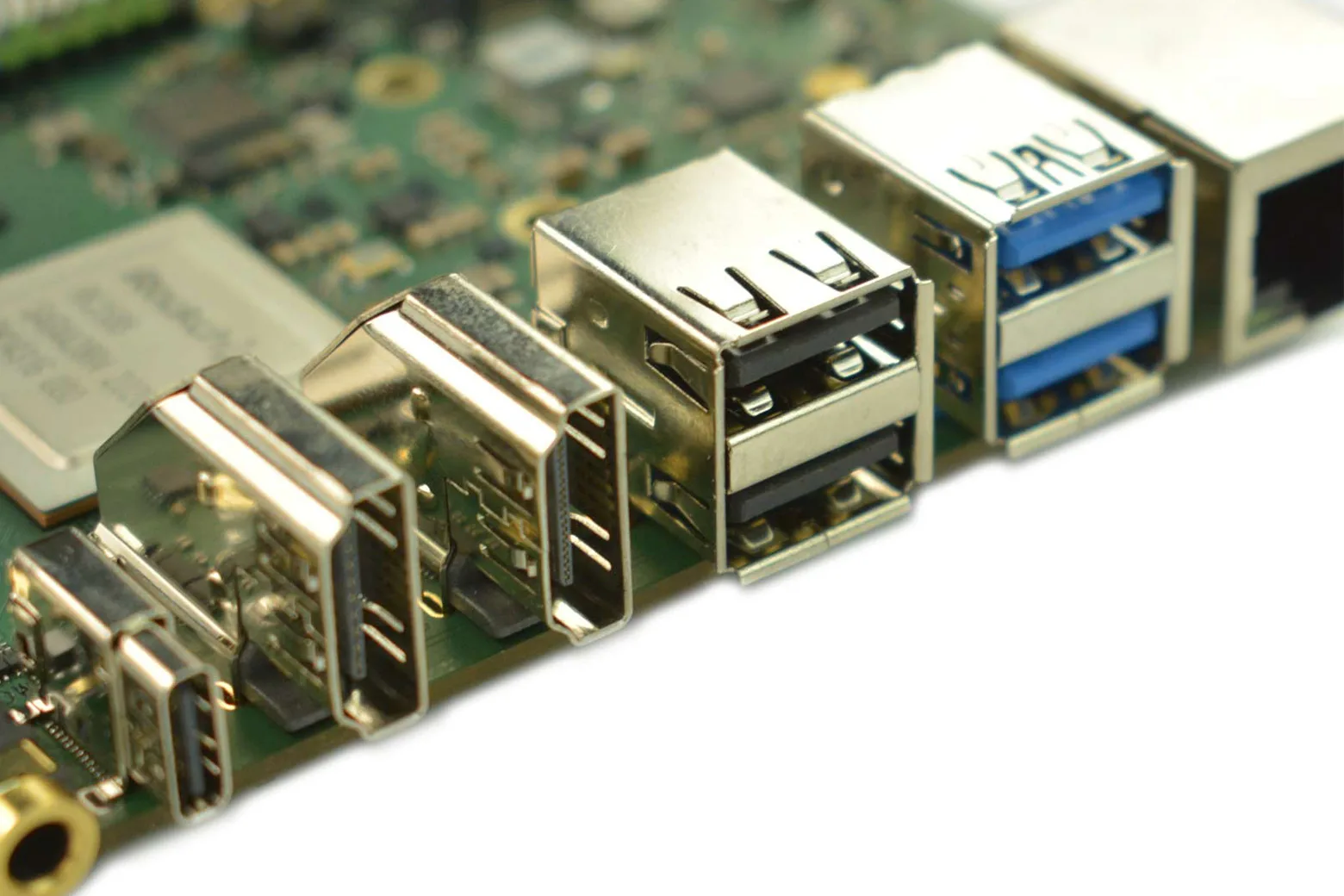

Dual HDMI outputs support displays up to 8Kp60 and 4Kp60 resolution for advanced digital signage, gaming, and multimedia installations. An integrated micro-HDMI input port enables 4Kp60 video capture directly onto the board alongside a 3.5mm stereo audio jack.

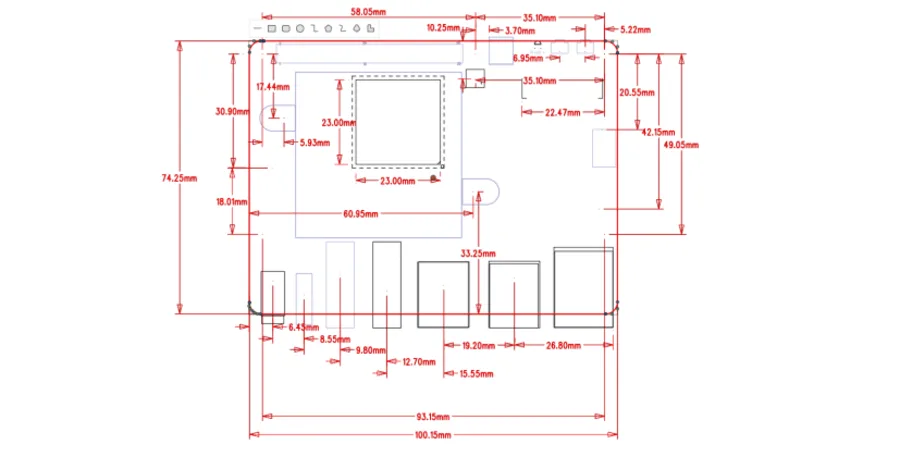

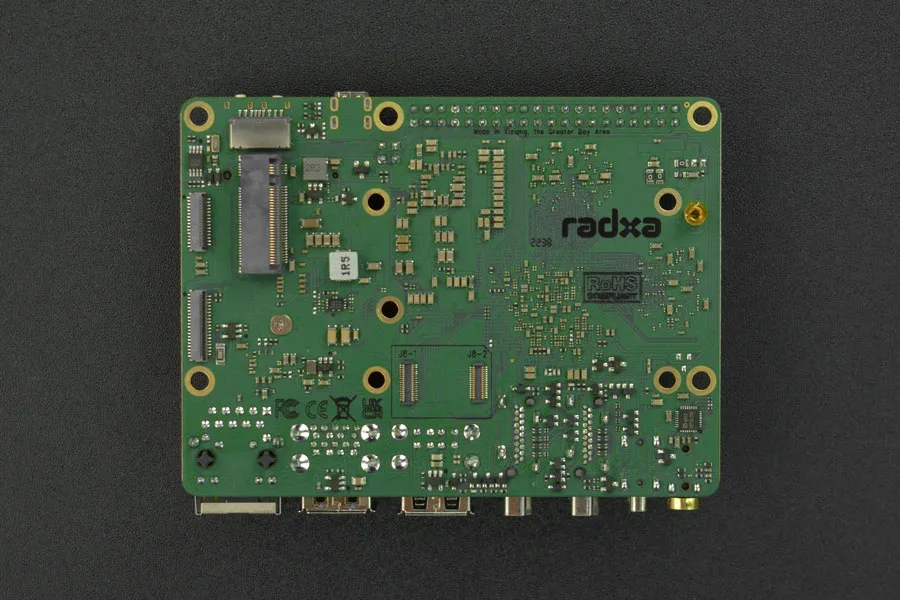

Compact layout and thermal control
The physical layout includes dedicated heatsink mounting holes and a PWM fan connector to manage thermal performance under heavy processing loads. This layout ensures reliable operation across operating temperatures ranging from 0 to 50 degrees Celsius.
Robust peripheral connectivity and power control
Peripheral options include two USB 2.0 ports, two USB 3.0 ports with OTG support, a high-speed eMMC module socket, and a Micro SD slot. A built-in physical On/Off power button allows users to perform safe system shutdowns without entering command-line instructions.
Broad operating system support
The platform offers wide software compatibility, supporting Android 12, Debian Linux, Ubuntu, and Windows 11. It provides full implementation of the Armv8 instruction set, the RKNPU2 NPU software stack, and dedicated hardware control libraries.
Video
Downloads & documentation
Specifications
| SoC | Rockchip RK3588 |
| Processor | Arm DynamIQ (Quad Cortex – [email protected] /2.4GHz, Quad Cortex – [email protected] ) |
| GPU | Arm Mali G610MC4 |
| Memory | 8GB 64bit LPDDR4 RAM |
| Power Requirements | USB Type C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A. The recommended power source capacity is at least 24W without an M.2 SSD or 36W with an M.2 SSD. |
| HDMI | Dual HDMI ports supporting displays up to 8Kp60 resolution and 4Kp60, and a micro-HDMI input port supporting up to 4Kp60 resolution. |
| USB | 2×USB2 HOST ports, 1 USB3 HOST port, 1 USB3 OTG/HOST port |
| MIPI | 1×4 lane DSI, 1×4 lane CSI |
| Storage | Micro SD / eMMC |
| UART | 2×UART |
| On/Off Power Button | Yes |
| Operation temperature | 0 to 50 °C |
| Storage temperature | -20 to 80 °C |

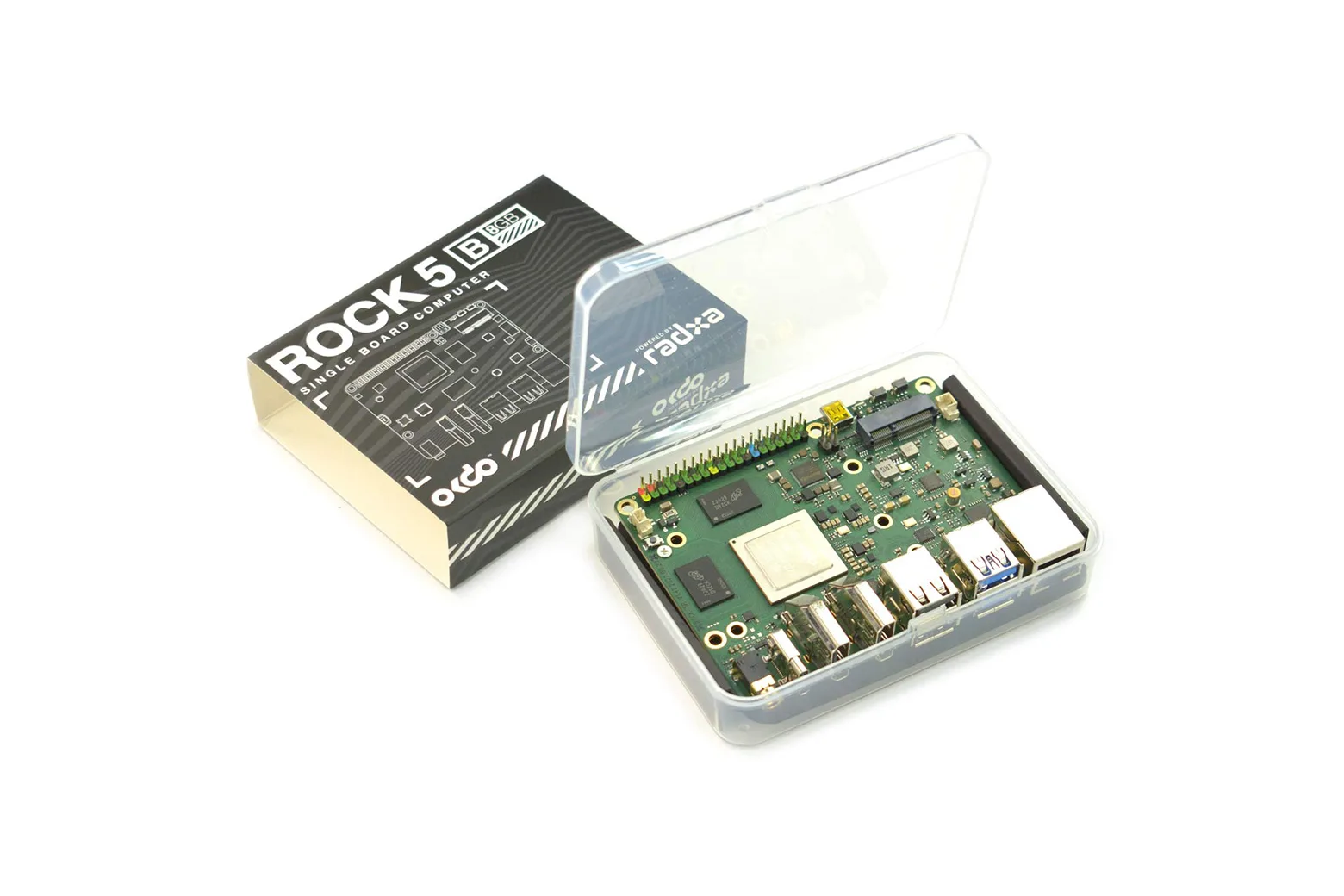

In the box
| ROCK 5B 8GB Single Board Computer × 1 | 1 |
