Description
The Raspberry Pi Pico 2 W is a compact microcontroller development board powered by the RP2350 chip and equipped with 2.4GHz wireless connectivity. Featuring onboard Wi-Fi 802.11n, Bluetooth 5.2, and 4MB of flash memory, it is an ideal choice for makers, students, and engineers developing smart IoT systems and connected sensor nodes.
Dual-core RP2350 processing power
The board is powered by the RP2350 microcontroller, offering dual Cortex-M33 or Hazard3 RISC-V cores running at speeds up to 150MHz. It integrates 520KB of SRAM and 4MB of external Quad-SPI flash with 16KB on-chip cache for fast, dependable execution of embedded code.
Integrated Wi-Fi and Bluetooth connectivity
Equipped with a 2.4GHz wireless module, the board supports Wi-Fi 802.11n as well as Bluetooth 5.2 with Bluetooth Classic and Bluetooth Low Energy roles. This built-in wireless interface streamlines communication for home automation, telemetry, and remote sensing projects.

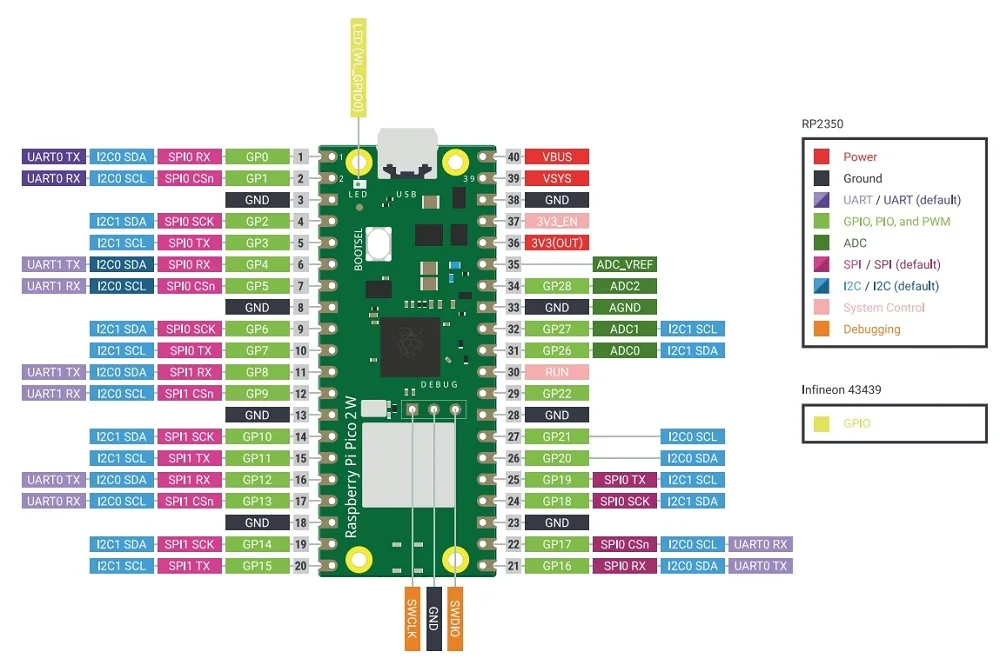

Versatile pinout and programmable IO
The platform exposes 26 multifunction GPIO pins, including 3 analog-to-digital converter inputs, 24 PWM channels, dual UART, dual SPI, and dual I2C interfaces. It also includes 3 programmable I/O blocks with 12 state machines to emulate custom digital peripherals.
On-chip security and hardware debugging
Integrated security features include Arm TrustZone architecture and SHA-256 hardware acceleration for protected operations. A dedicated 3-pin Arm serial wire debug port is also provided for seamless development and code debugging.
Flexible power and mounting options
The compact 40-pin DIP form factor features 0.1-inch pitch through-hole pins and castellated edges, enabling use on breadboards or direct surface mounting as a module. It can be powered via micro USB, batteries, or external power sources with support for 1.8V to 3.3V I/O.
Downloads & documentation
Specifications
| RP2350 | Dual Cortex-M33 or Hazard3 RISC-V cores, up to 150MHz |
| Memory | 520KB SRAM, 4MB Flash memory |
| Security | Arm TrustZone, SHA-256 hardware acceleration |
| Wi-Fi | 802.11n (2.4GHz) |
| Bluetooth | Bluetooth 5.2 (LE Central & Peripheral roles, Bluetooth Classic) |
| Debug Port | 3-pin Arm serial wire debug (SWD) port |

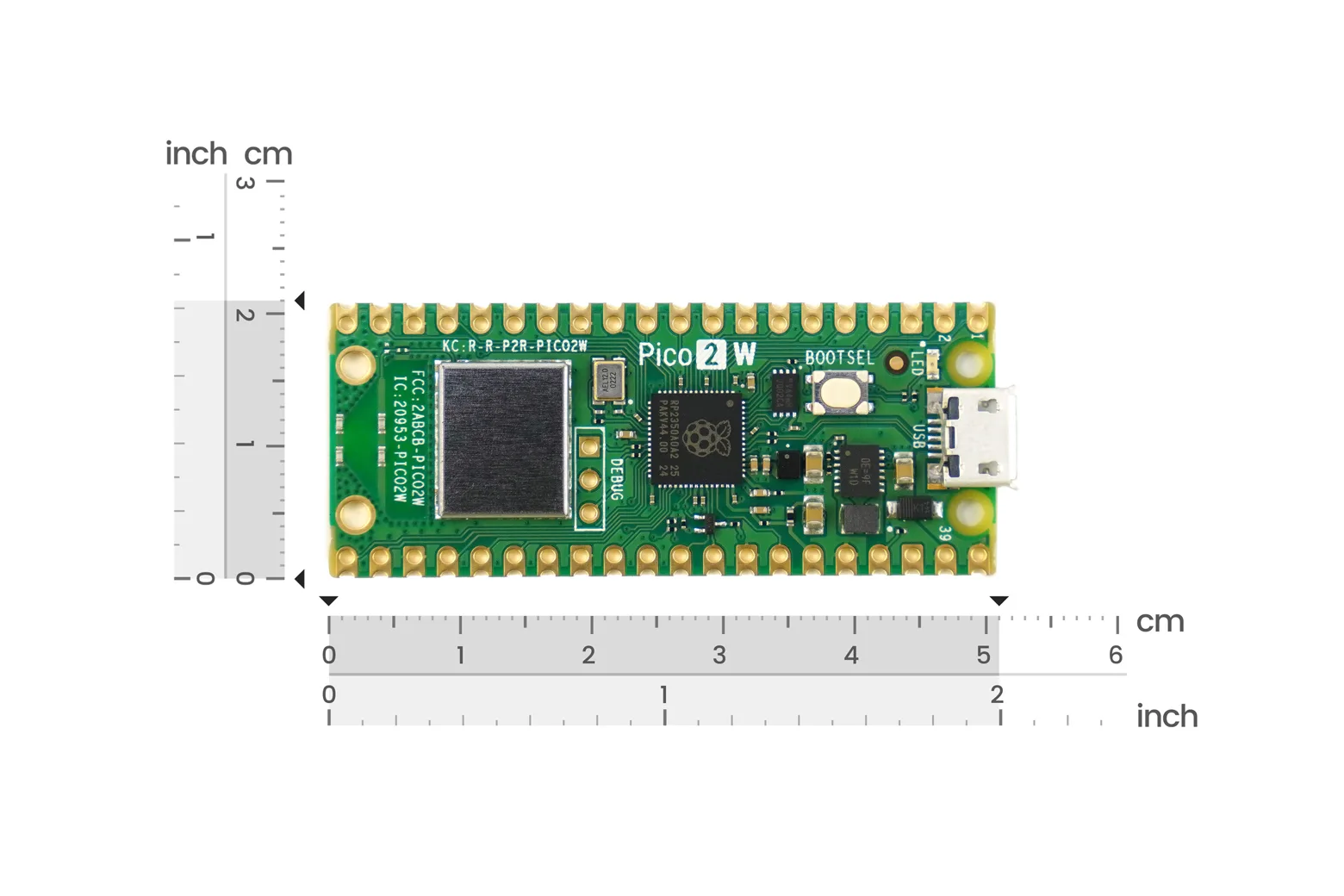

| Form Factor | 40-pin DIP-style PCB (21mm x 51mm, 1mm thick) with 0.1" through-hole pins and castellated edges |
| Mounting | Can be surface-mounted as a module |
| Power Options | Micro USB B port for power, data, and reprogramming |
| Flexible Powering | Options for micro USB, external power supplies, or batteries |
| USB 1.1 | Device or host support |
| ADC | 12-bit, 500ksps analog-to-digital converter |
| External Flash | Quad-SPI flash with eXecute In Place (XIP) and 16KB on-chip cache |
| PLLs | Dual PLLs for variable core and peripheral frequencies |
| I/O Voltage | Supports 1.8V to 3.3V I/O |
| SDK & Documentation | Comprehensive software development kit, examples, and documentation for easy development |
In the box
| Raspberry Pi Pico 2 W | 1 |
