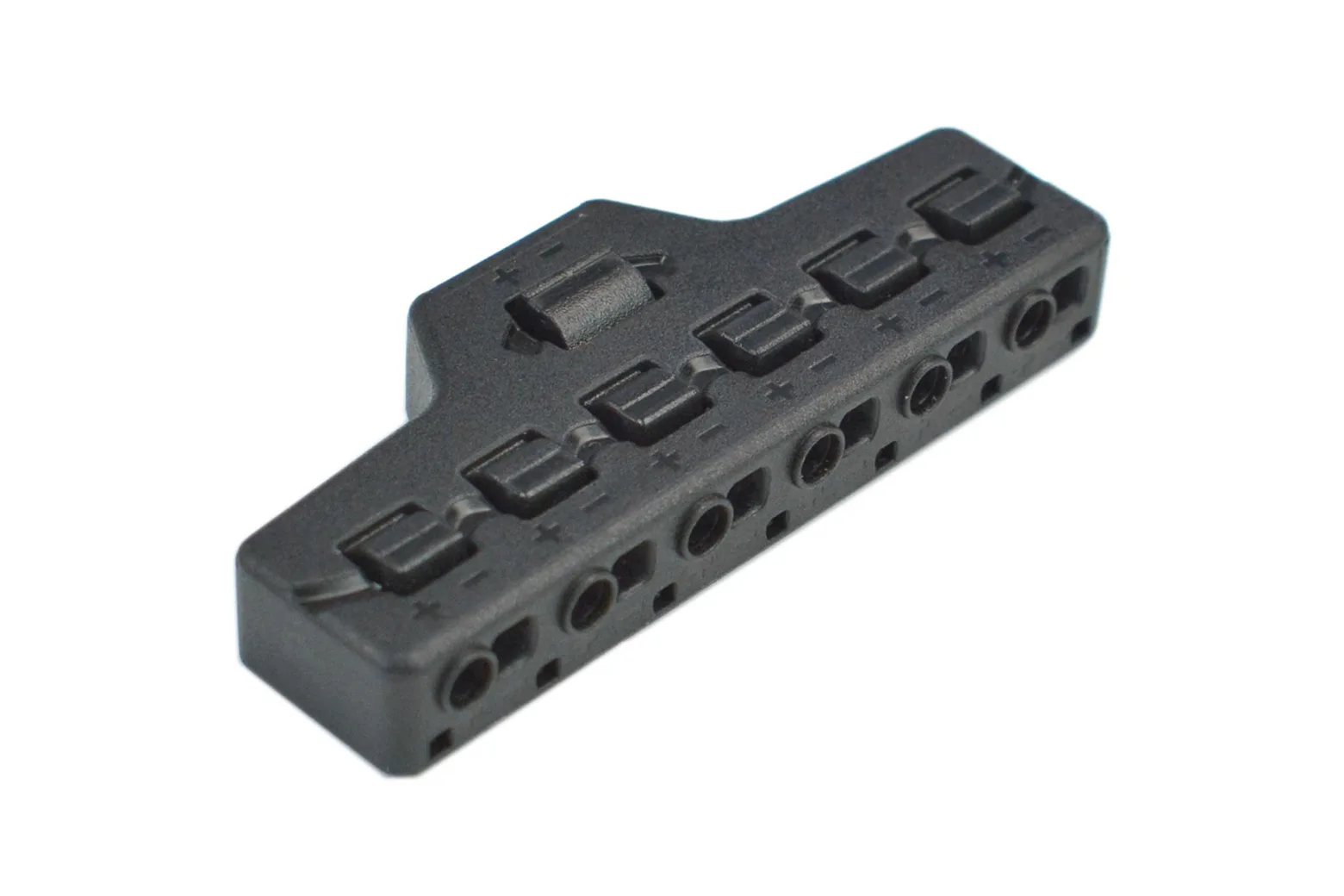

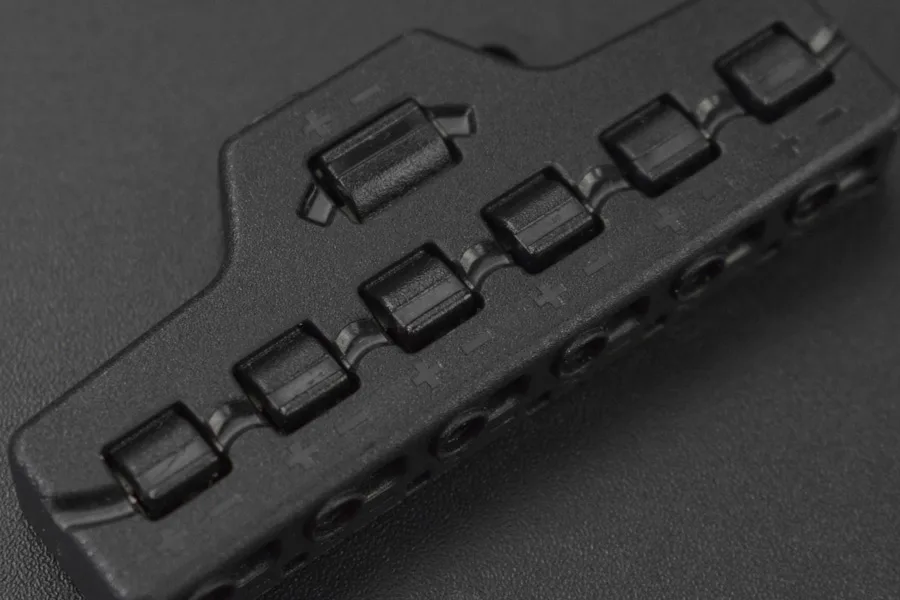

Push-in Wire Connector (1 Input to 6 Outputs)

The Push-in Wire Connector (1 Input to 6 Outputs) lets you split a single electrical input into six independent output channels quickly and securely. It is ideal for hobbyists, students, and makers needing tidy, reliable power distribution in robotics and electronics projects.

Effortless power distribution

This connector turns one input into six outputs using a convenient push-in mechanism, eliminating the need for complex terminal blocks or soldering. It is reusable and provides firm, dependable wire retention.

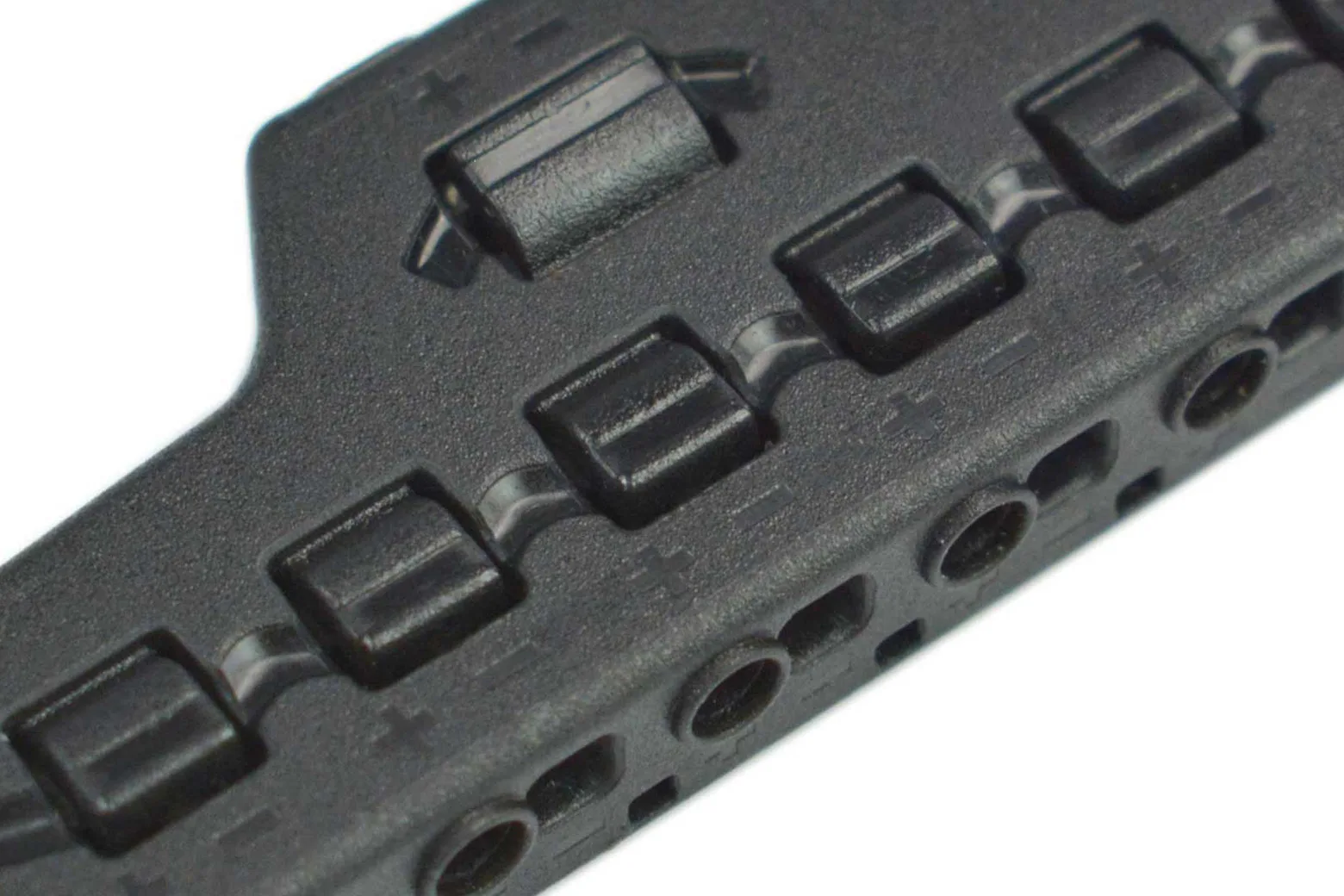

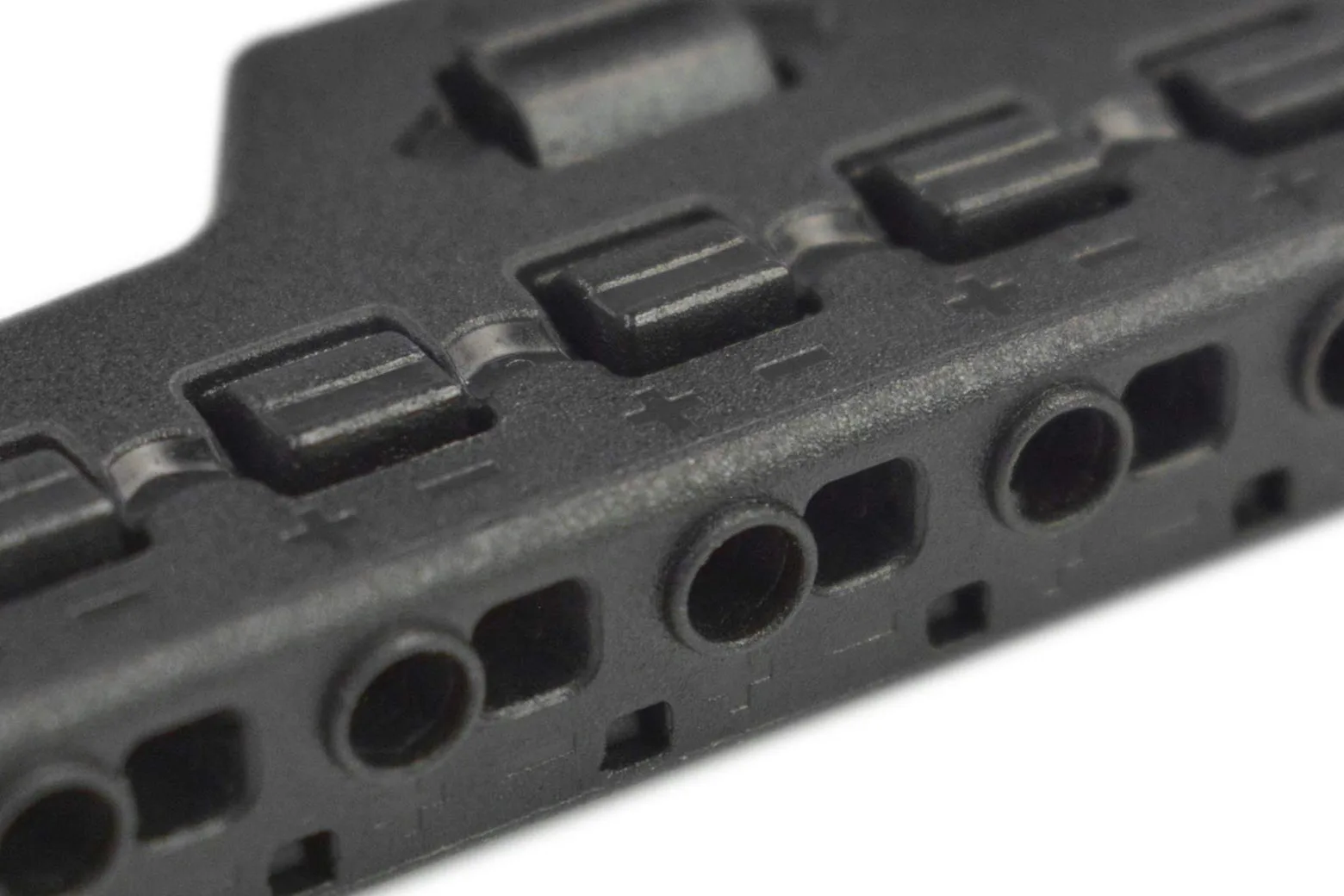

Corrosion-resistant internal clamps

Internal conductive spring clamps are crafted from copper and nickel-coated stainless steel to prevent corrosion. This durable clamping system ensures wires remain tightly seated and will not easily loosen or fall out.

Flame-retardant housing

The body is moulded from Polyamide 66 insulation with a UL 94V-2 fire-proof rating. The unit is CE-certified for dependable operation in low-voltage circuits.

Electrical ratings

The connector supports rated voltages from 0 to 42V DC with an operating temperature range of 0 to 40°C. It accommodates an input current of up to 9A and output currents up to 1.5A per channel.

Supported wire gauges

The input port accepts 0.34 to 0.75mm² solid, stranded, or tinned flexible conductors, as well as 0.5 to 0.75mm² conductors with copper sleeves. Each output port supports 0.2 to 0.5mm² solid, stranded, or tinned conductors, and 0.5mm² conductors with copper sleeves.

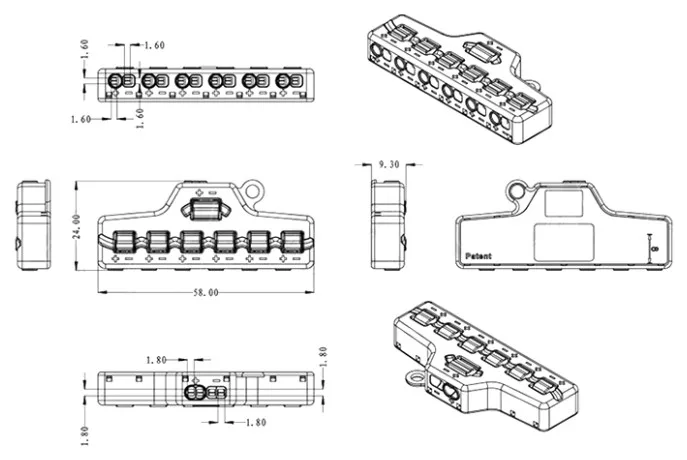

Compact physical dimensions

Measuring 58 x 24 x 9.3mm, this low-profile connector fits neatly inside tight electronics enclosures, prototyping boxes, and custom project chassis.

Downloads & documentation

• TL CE Test Verification
