ProtoBoard Pro - Double Sided (100x75mm)

The ProtoBoard Pro - Double Sided (100x75mm) is a versatile prototyping circuit board designed for makers, students, and electronics hobbyists. Featuring standard 0.1-inch spacing and dedicated leaf pads, it provides a reliable platform for assembling both through-hole and surface-mount circuits.

Standard grid layout

The board features a double-sided layout with standard 0.1-inch spacing. This universal grid allows for straightforward component placement and quick wiring during circuit development.

DIP and SMD support

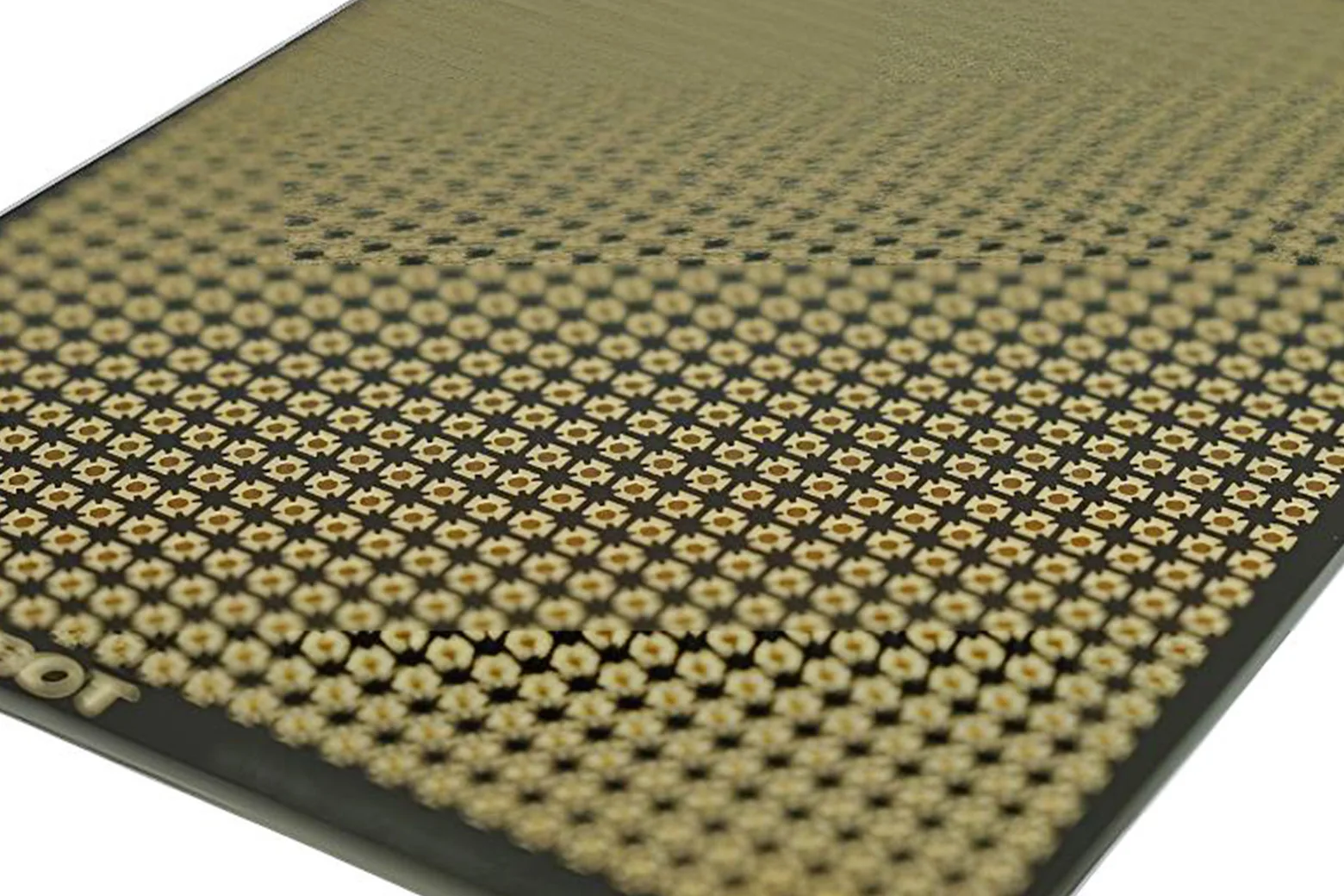

Designed with specialised leaf pads, the board accommodates standard DIP through-hole parts as well as surface-mount (SMD) components. This makes it practical for assembling compact, mixed-technology prototypes and stackable circuits.

Arduino shield compatibility

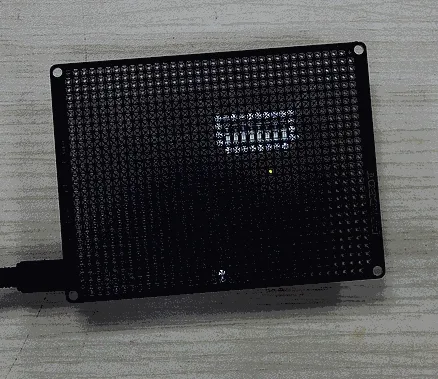

Solder digital and analogue I/O pins directly to the board to mount it onto an Arduino like a standard custom shield. This allows direct hardware communication for microcontrollers in project setups like LED sequencers.

Board dimensions and mounting

The board measures 100 x 75 mm (3.94 x 2.95 inches) to provide ample prototyping surface area. It includes 4 x 3 mm (0.16 x 0.12 inch) mounting holes for secure enclosure and chassis installation.

Included in the package

Each package contains one double-sided ProtoBoard Pro (100x75mm) ready for immediate soldering and circuit assembly.
