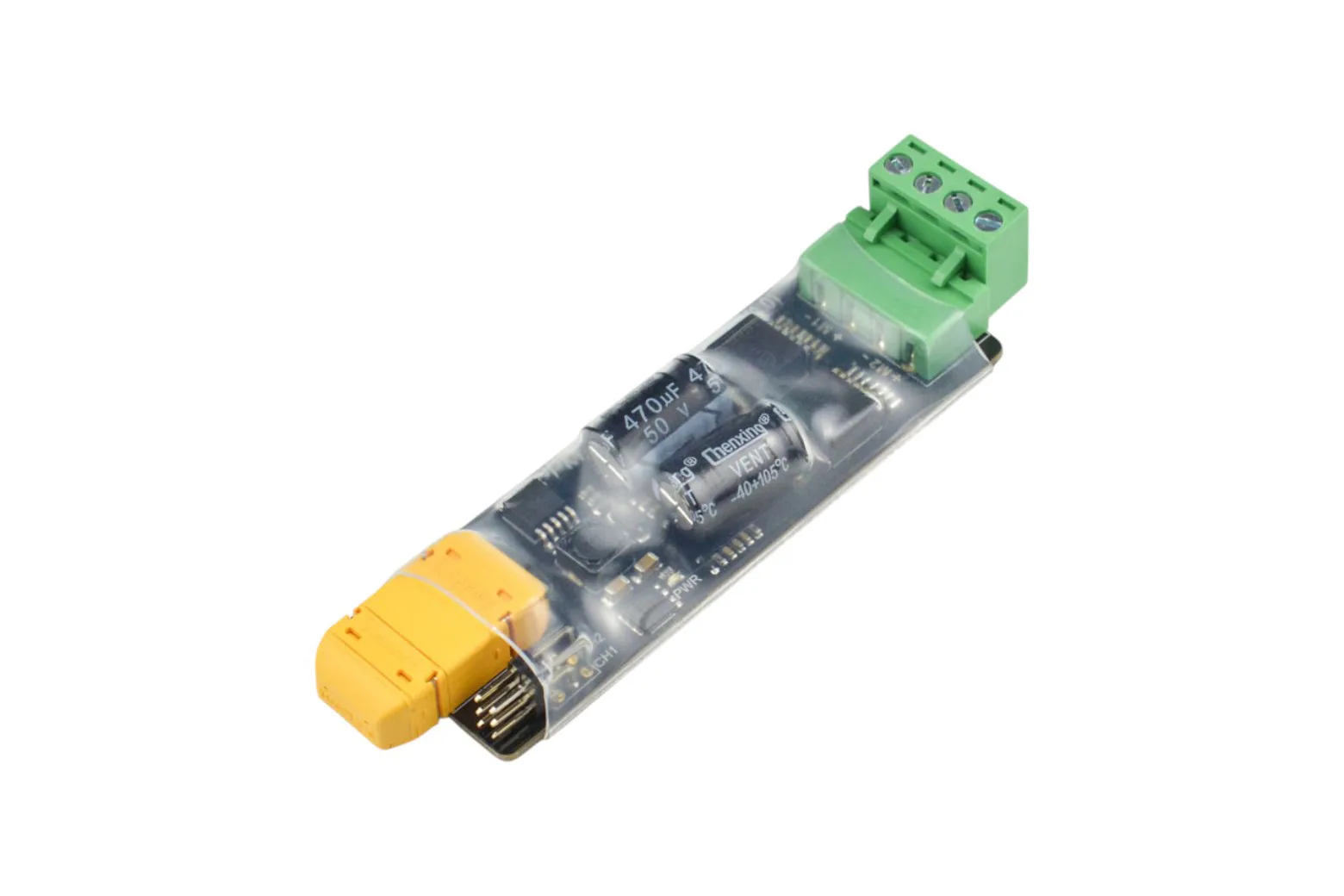

PPM 2x3A DC Motor Driver

The PPM 2x3A DC Motor Driver is a dual-channel drive module designed for standard radio control systems and robotics platforms. Built around a robust TLE5205 architecture, it allows makers, hobbyists, and students to control two brushed DC motors directly using PPM signals. Its compact footprint makes it a straightforward choice for remote-controlled rovers and custom combat robots.

Dual-channel 3A continuous drive

The board provides independent control for two DC motors with a continuous current output of 3A per channel.

TLE5205 driver architecture

Built using integrated TLE5205 circuitry, the driver delivers dependable H-bridge switching and motor control performance.

Direct PPM signal interfacing

Standard PPM input support allows direct plug-and-play connection to standard RC receivers and microcontroller PPM output pins.

7-12V input with 6A protection

The unit supports an input voltage range between 7V and 12V and features built-in 6A protection against overcurrent events.

Onboard 5V receiver supply

An integrated regulator provides a 5V power supply output to power connected RC receivers and external control logic directly from the main battery.

Downloads & documentation

• Product wiki (DFRobot)
