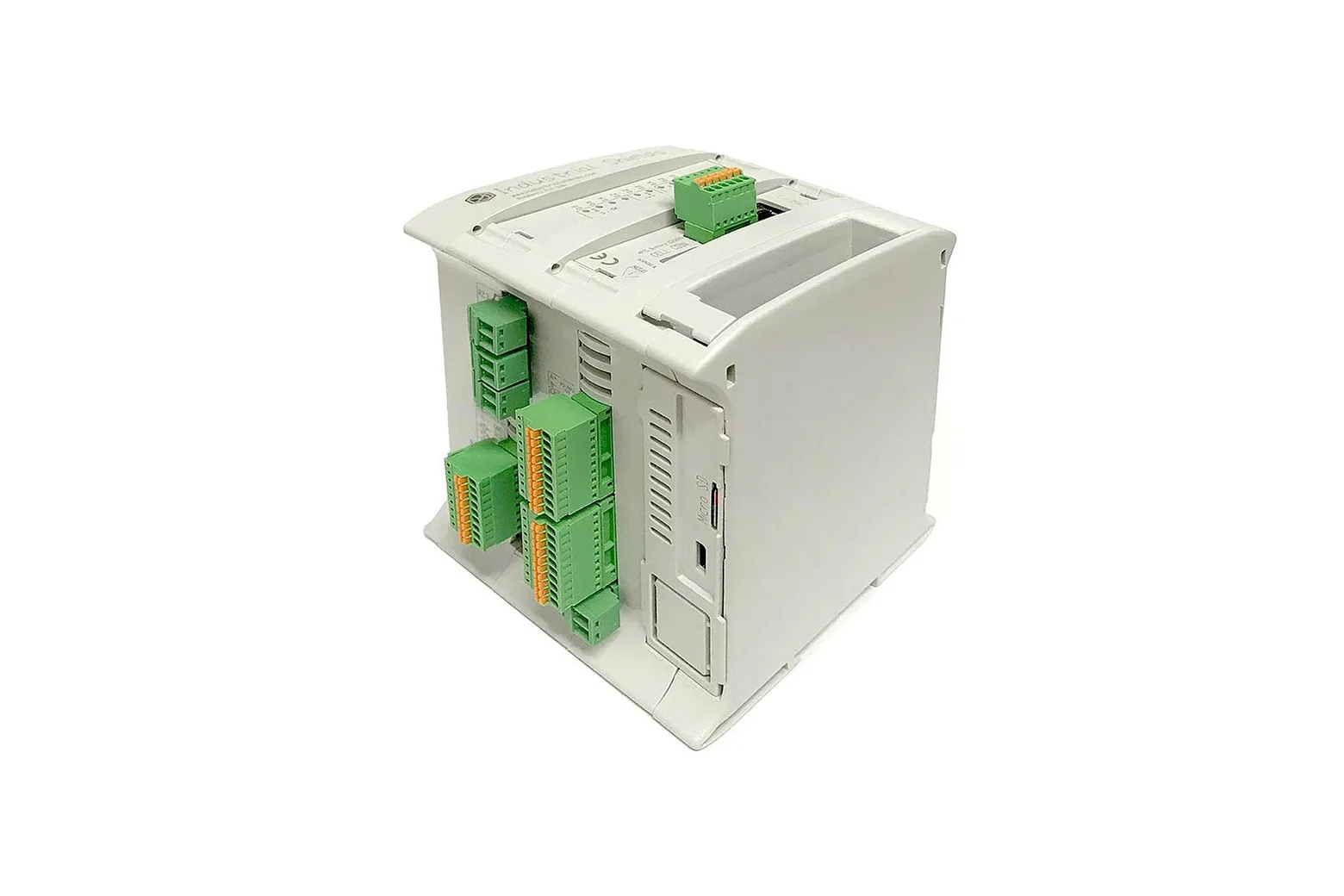

PLC Industrial Controller compatible with Raspberry Pi (Relay Output)

The PLC Industrial Controller brings the processing power and software flexibility of Raspberry Pi and Linux into professional automation environments. Equipped with relay outputs, extensive digital and analogue I/O, and integrated fieldbus interfaces, it is designed for engineers, makers, and IoT developers. It provides reliable real-time execution alongside industrial hardware safeguards.

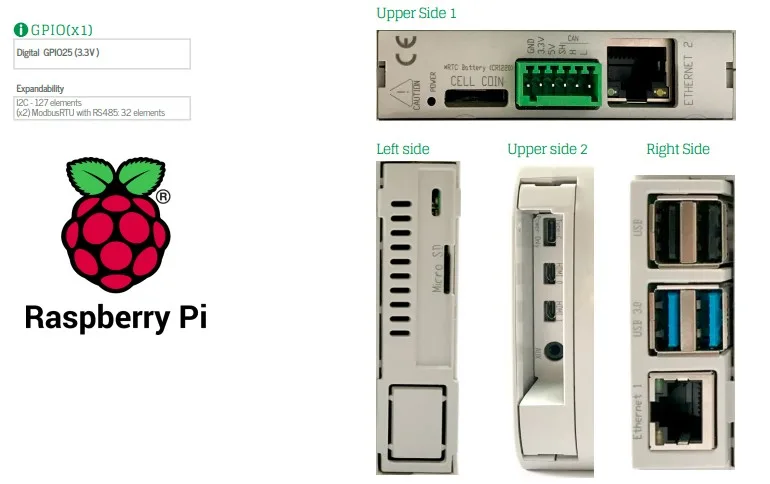

Industrial processing with Raspberry Pi OS

Powered by Raspberry Pi technology, this controller runs standard Linux or Raspberry Pi OS for multitasking applications. It delivers high-speed real-time processing tailored for industrial monitoring and IoT project deployments.

Extensive relay and analogue interface

The controller integrates up to 36 digital inputs, 16 analogue inputs (0 to 10 Vdc), 8 analogue outputs (0 to 10 Vdc), and up to 23 relay outputs. It also includes 6 interrupt pins and dedicated fan control to manage complex switching setups.

Dual Ethernet, CAN, and RS-485

Network seamlessly across industrial systems using dual Ethernet ports, dual RS-485 interfaces, and a CAN bus. Built-in Wi-Fi, Bluetooth, I2C, SPI, serial TTL, and four USB ports provide extensive peripheral connectivity.

Integrated UPS and real-time clock

An internal uninterruptible power supply protects your operating system and data against unexpected power failure. An onboard real-time clock ensures accurate timekeeping and date tracking for scheduled industrial operations.

Robust electrical protection and power

Designed for 12 to 24 Vdc input (operating range 11.4 to 25.4 Vdc), the unit includes 2.5 A fuse protection and polarity protection. It operates reliably in environments from 0 to 50 degrees Celsius when using Raspberry Pi OS Lite.
