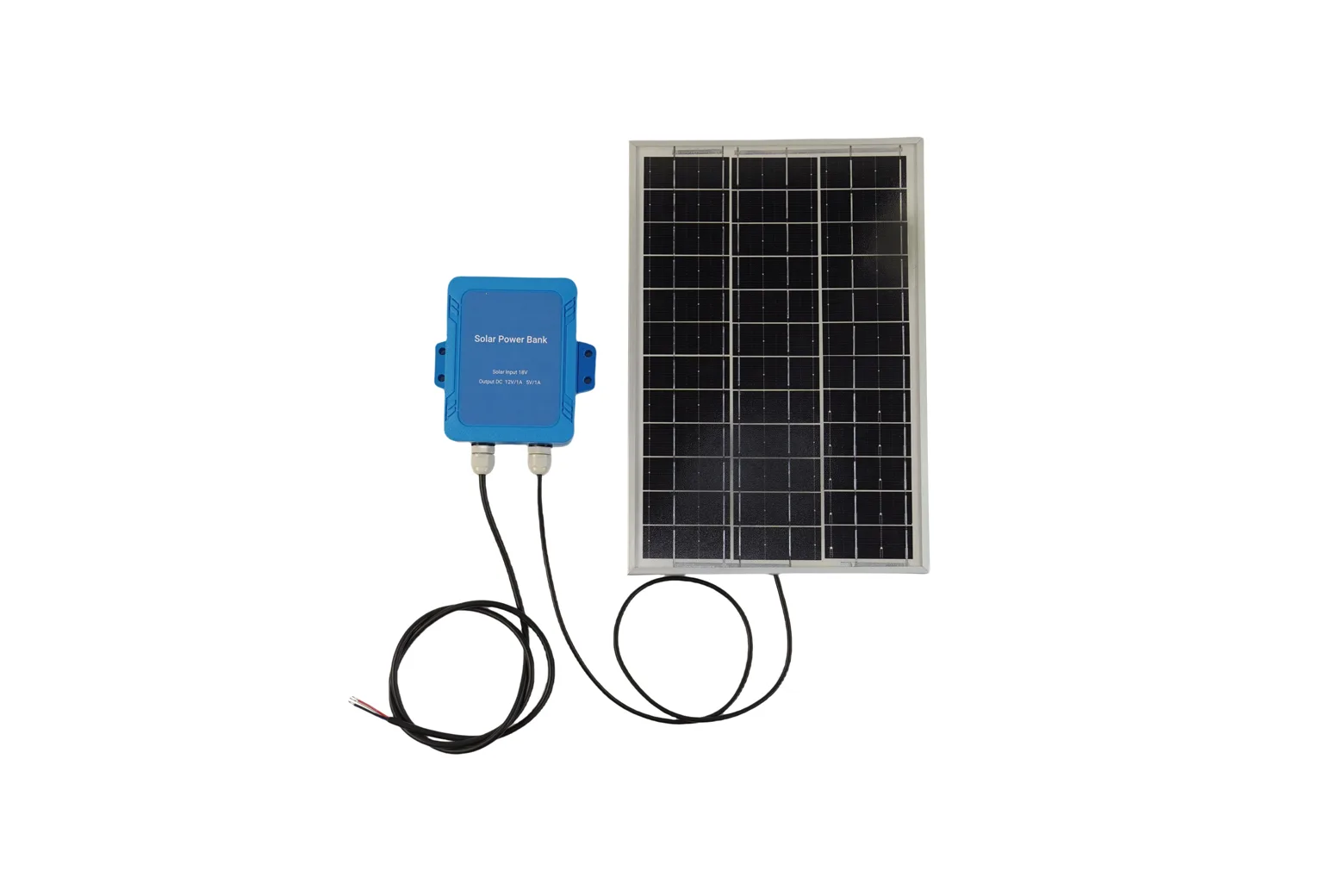

Outdoor Solar Power Kit - 10W Monocrystalline Panel + 12V / 5V Outputs
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Outdoor Solar Power Kit provides reliable, off-grid energy for remote IoT nodes, microcontrollers, and field sensors. Combining a 10W monocrystalline solar panel, an IP-rated weatherproof enclosure, and dual voltage outputs, it is ideal for students, makers, and researchers deploying unattended outdoor monitoring projects.

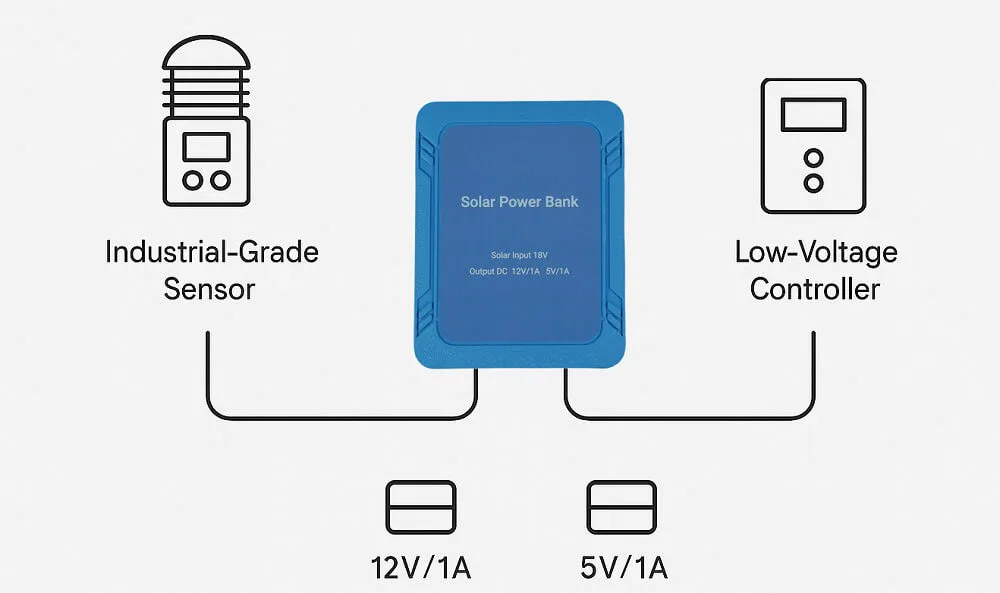

Dual 12V and 5V regulated outputs
The integrated controller delivers simultaneous 12V/1A and 5V/1A DC outputs, allowing you to power low-voltage microcontrollers alongside higher-voltage industrial sensors without separate voltage regulators.

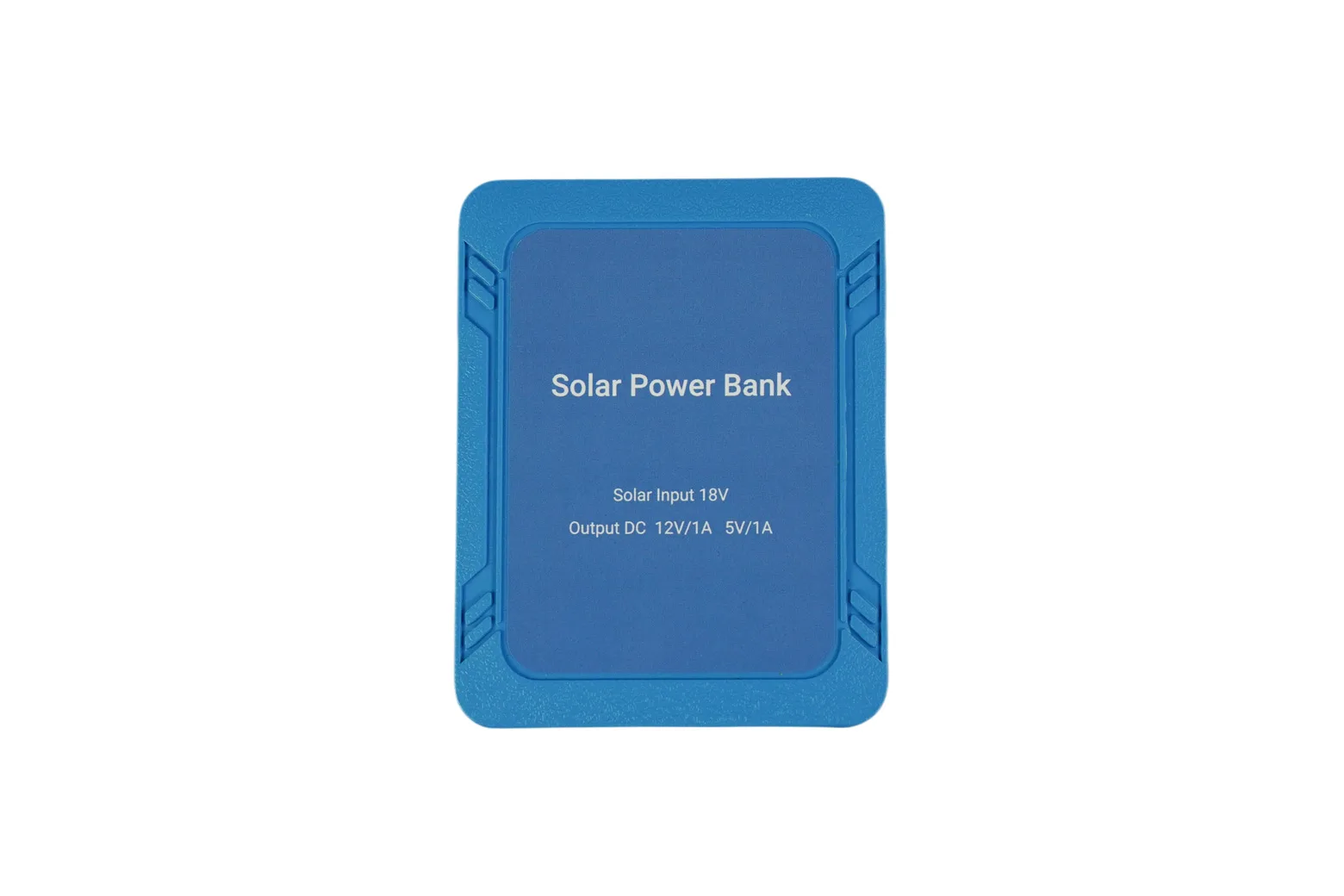

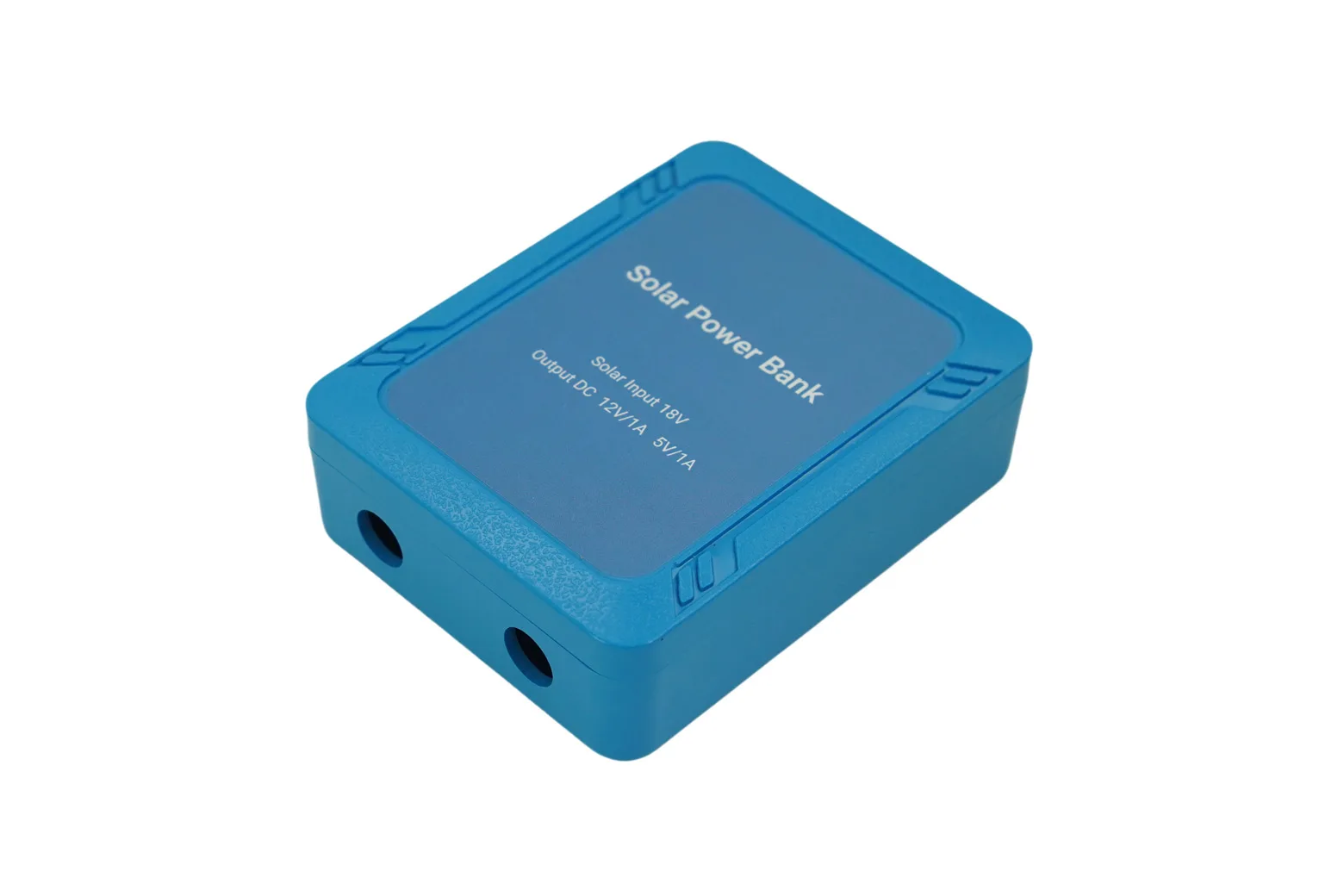

Weatherproof enclosure with mounting lugs

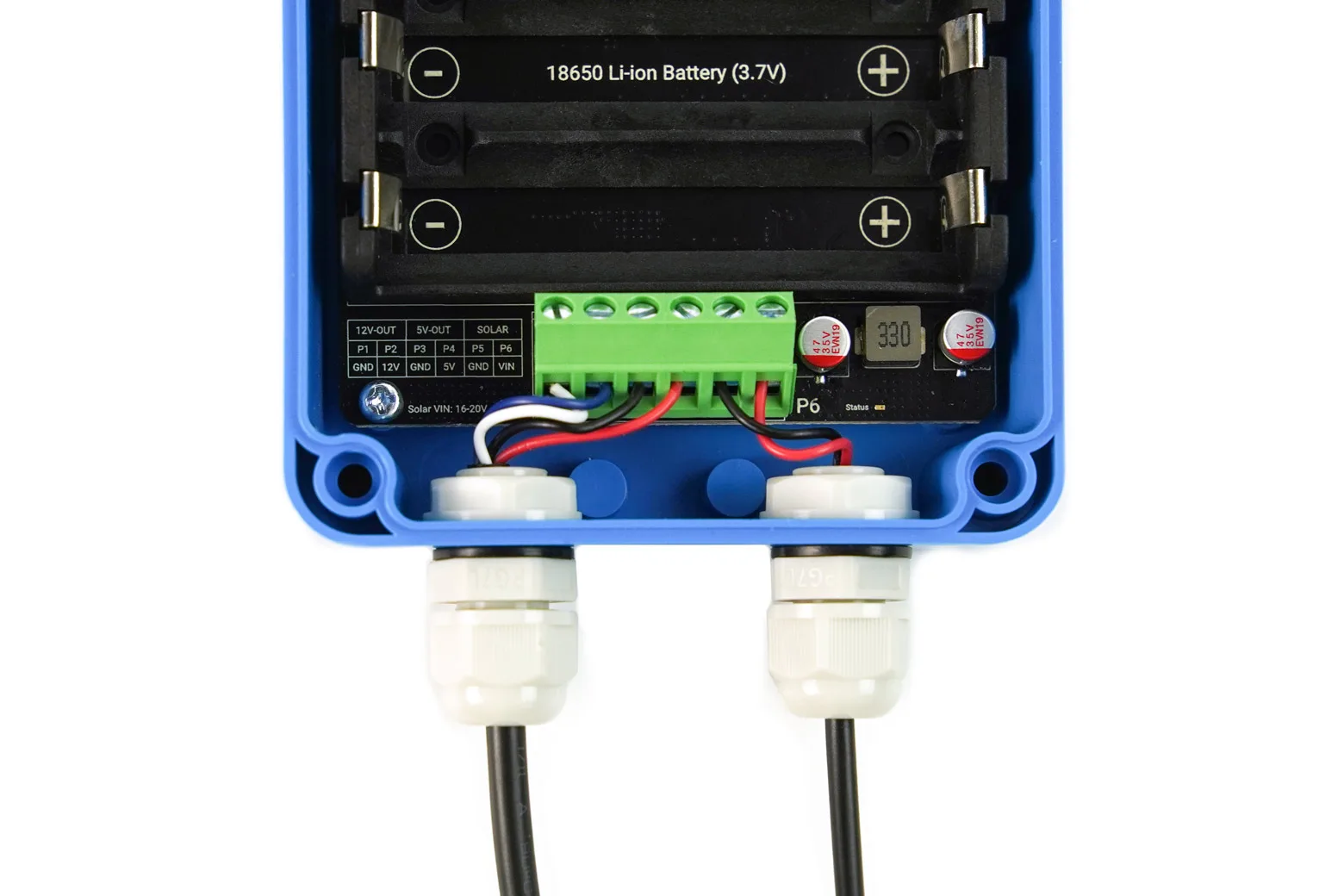

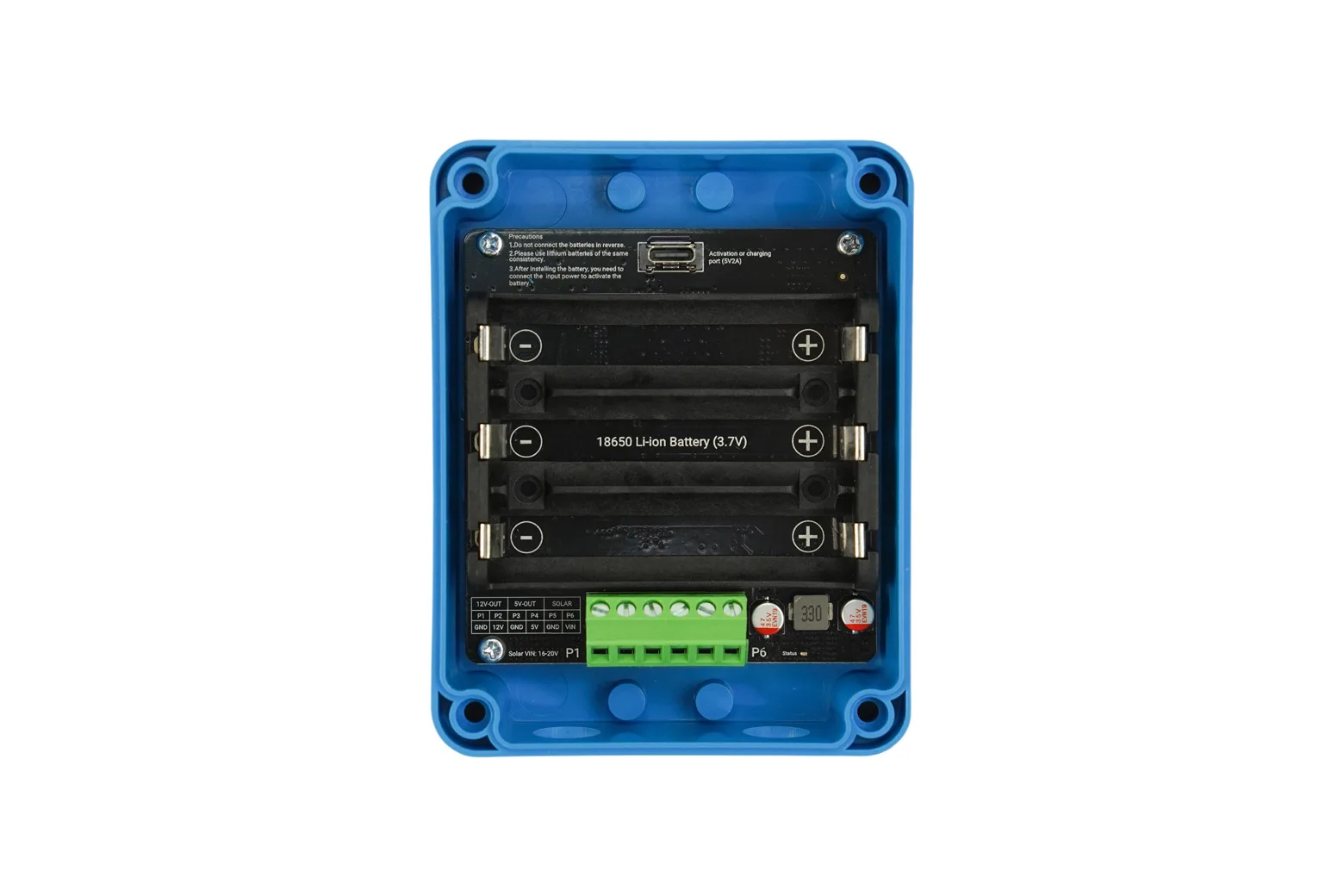

The system is housed in a sealed, IP-rated enclosure with pre-drilled lugs for easy mounting to walls, poles, or outdoor fixtures. It is designed to hold three 18650 lithium batteries to maintain continuous operation through low-light periods.
10W monocrystalline charging with integrated BMS
The high-efficiency 10W panel can replenish three 18650 cells in roughly eight hours under direct sunlight. Integrated battery management safeguards cells against overcharge, over-discharge, and imbalances to extend operational life in the field.

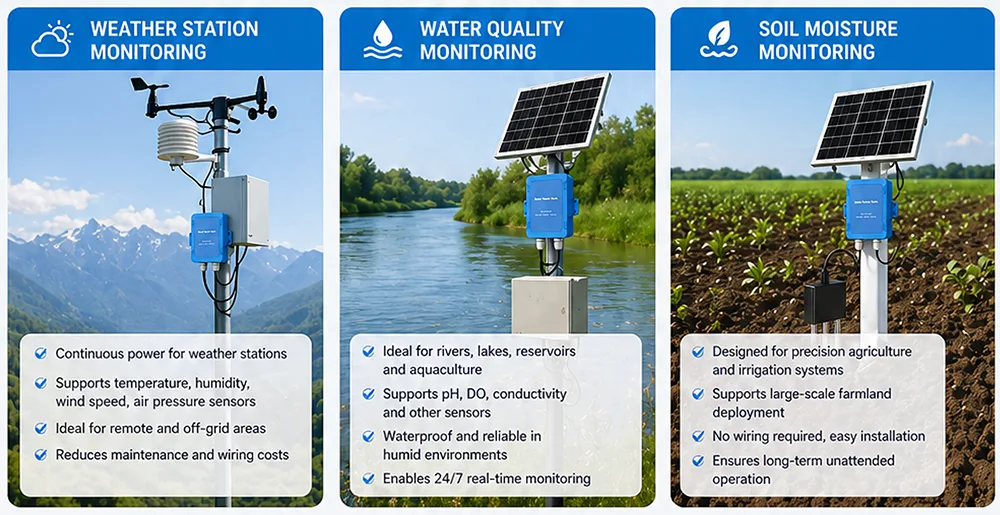

Ideal for off-grid environmental sensing
This setup is suited for compact weather stations, agricultural soil monitoring, outdoor water quality analysis, and remote telemetry using LoRaWAN, NB-IoT, or cellular gateways.

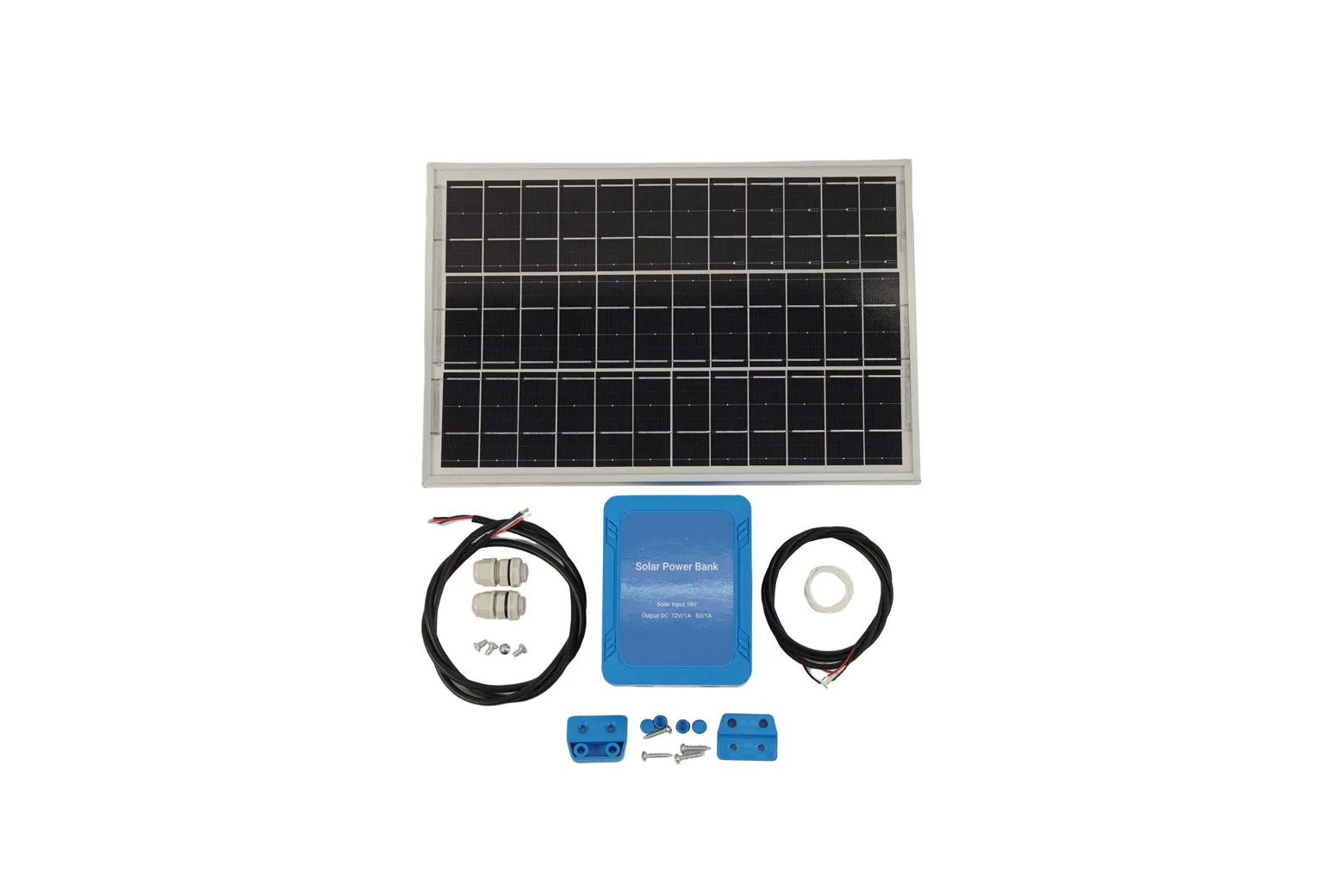

Comprehensive hardware and wiring kit
The package includes the solar controller, 10W monocrystalline panel, controller mounting lugs, two PG7 waterproof cable glands, a 1m 2-conductor 22AWG cable, and a 1m 4-conductor 22AWG cable.
Downloads & documentation
Specifications
| PV Input Voltage | 17–20V |
| USB Type-C Input | 5V 2A |
| Charging Current | Up to 0.5A |
| Charging Cut-Off Voltage | 12.6V |
| Output Voltage | 12V/1A and 5V/1A |
| Enclosure Dimensions | 115 × 90 × 35 mm (not including mounting tabs) |
| Maximum Output | 10W |
| Peak Voltage | 18V |
| Peak Current | 0.55A |
| Open-Circuit Voltage | 21.6V |
| Short-Circuit Current | 0.6A |
| Panel Dimensions | 210 × 310 × 17 mm |
In the box
| Solar Power Controller ×1 | 1 |
| Set of Mounting Lugs for Controller ×1 | 1 |
| 10W Monocrystalline Solar Panel ×1 | 1 |
| PG7 Waterproof Cable Glands ×2 | 1 |
| 1m 22AWG 2-Conductor Cable ×1 | 1 |
| 1m 22AWG 4-Conductor Cable ×1 | 1 |
