MSGEQ7 Audio Analyzer Module for Arduino

The MSGEQ7 Audio Analyzer Module brings sound perception to your Arduino or microcontroller projects. It is ideal for makers, students, and hobbyists looking to build music-reactive lighting, sound visualisers, or audio pattern detectors.

Seven-band frequency analysis

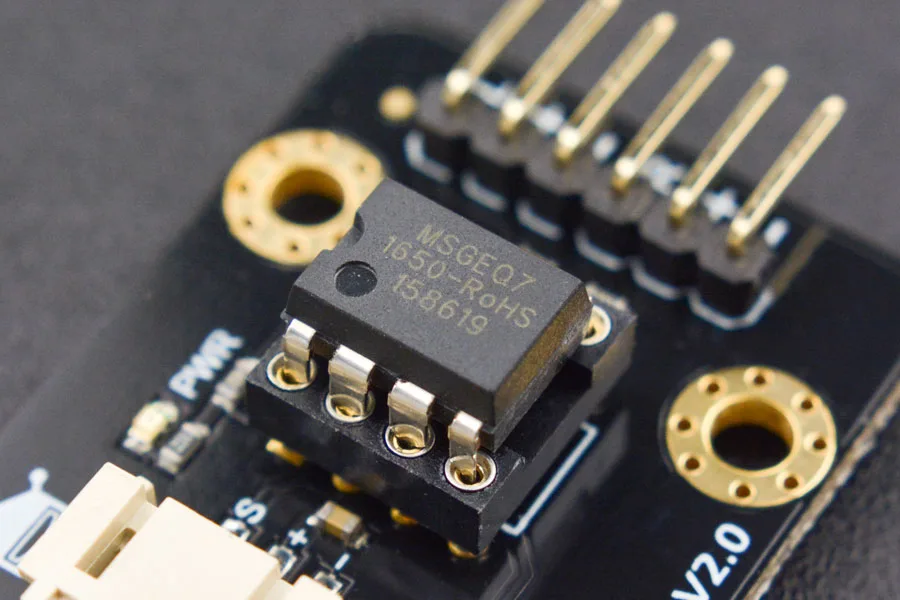

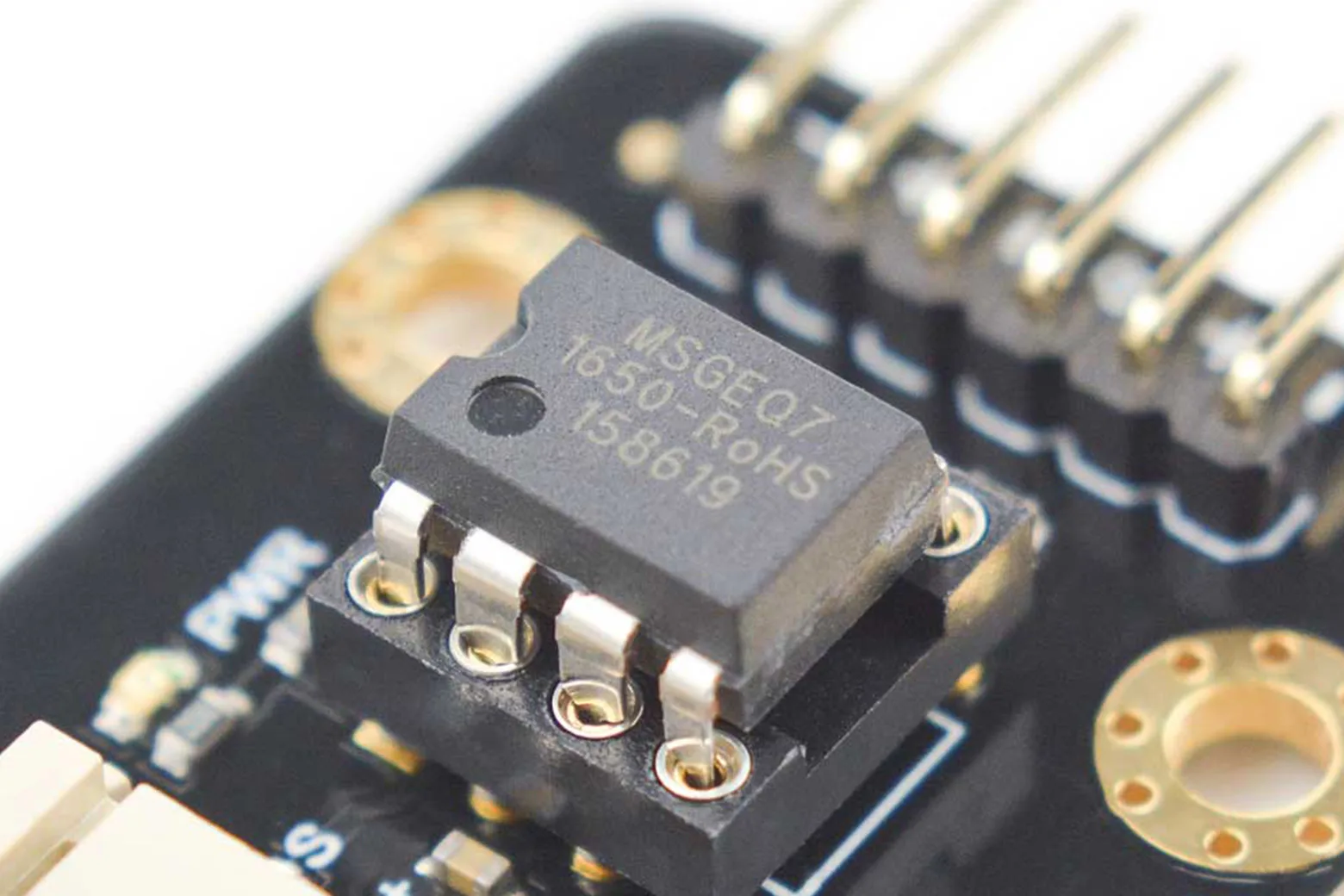

The on-board MSGEQ7 graphic equaliser display filter splits audio signals into seven distinct frequency bands. Your microcontroller can read peak levels at 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.25kHz, and 16kHz.

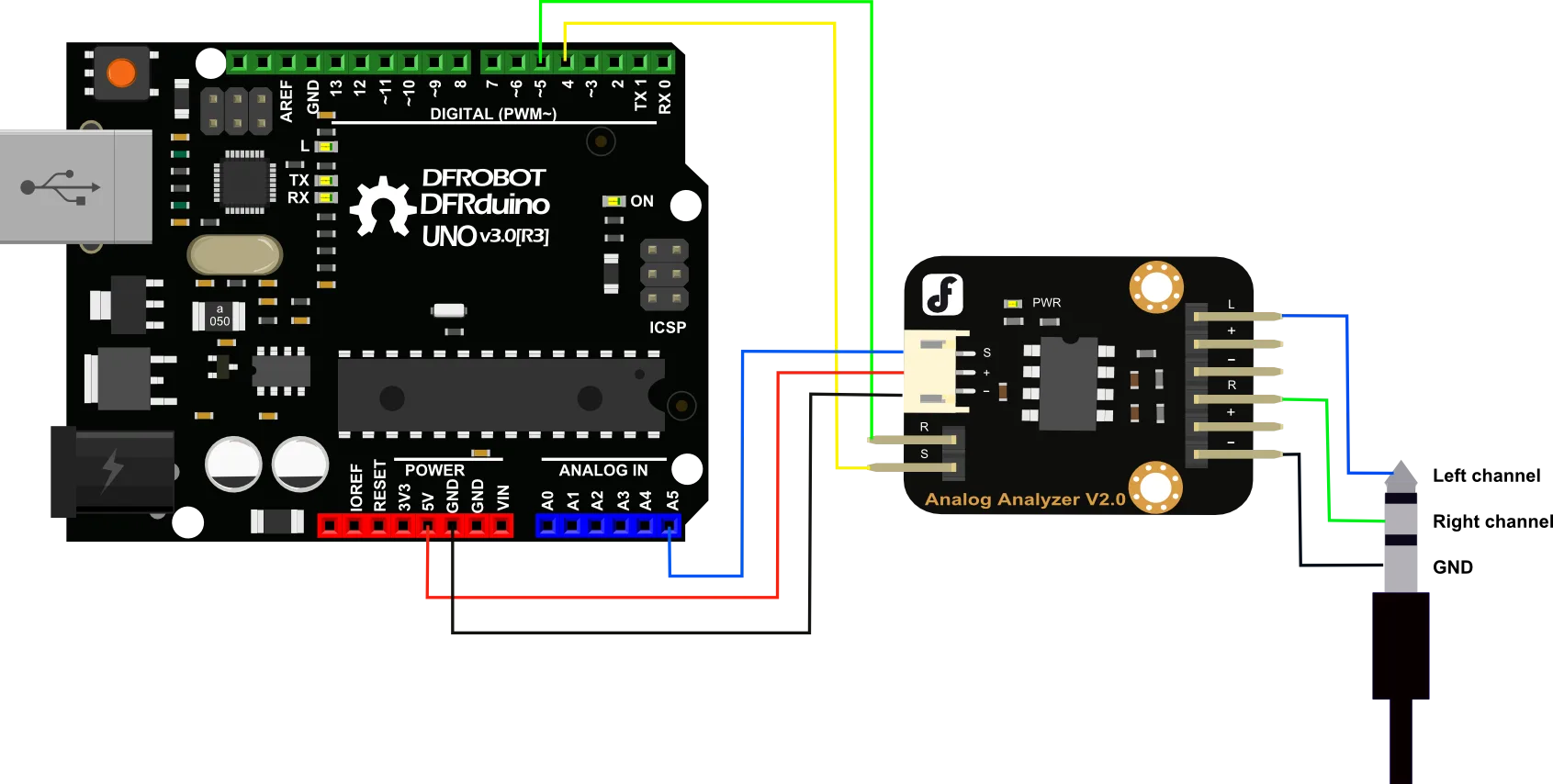

Simple microcontroller connection

Connect the module directly to your development board using standard analog and digital lines to read real-time amplitude data across all bands.

Music visualisation and robotics

Processed frequency data can drive LED matrices for ambient visual displays or synchronize robot movements to the rhythm of external music.

Audio fingerprinting and acoustic sensing

The module allows projects to capture sound profiles and monitor specific frequency ranges for voice analysis or custom acoustic triggers.

Compact 5V hardware design

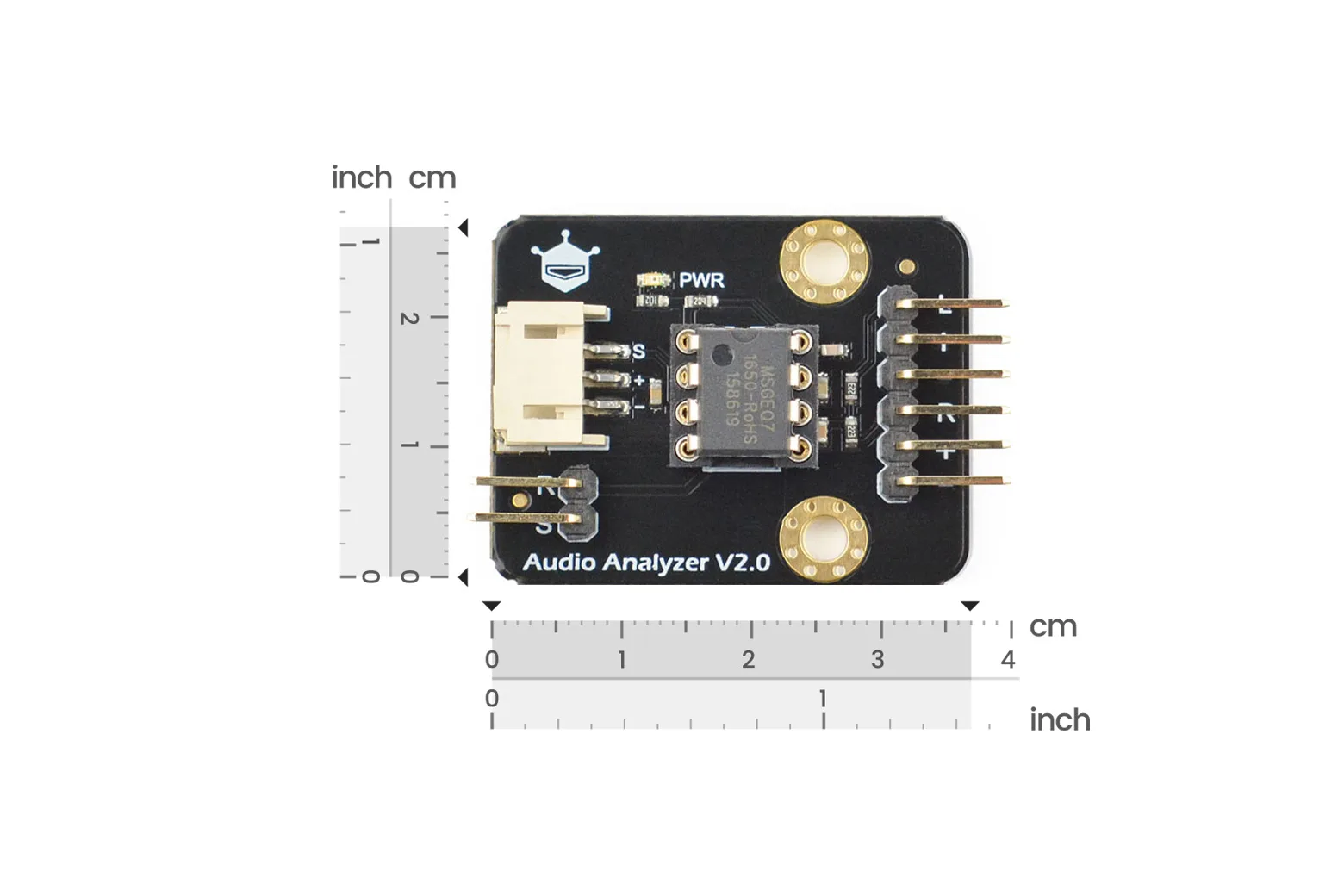

Operating at 5V, the lightweight board measures 30 x 20 mm and weighs just 5 grams, fitting easily into space-constrained enclosures and vehicle setups.

Included cables and accessories

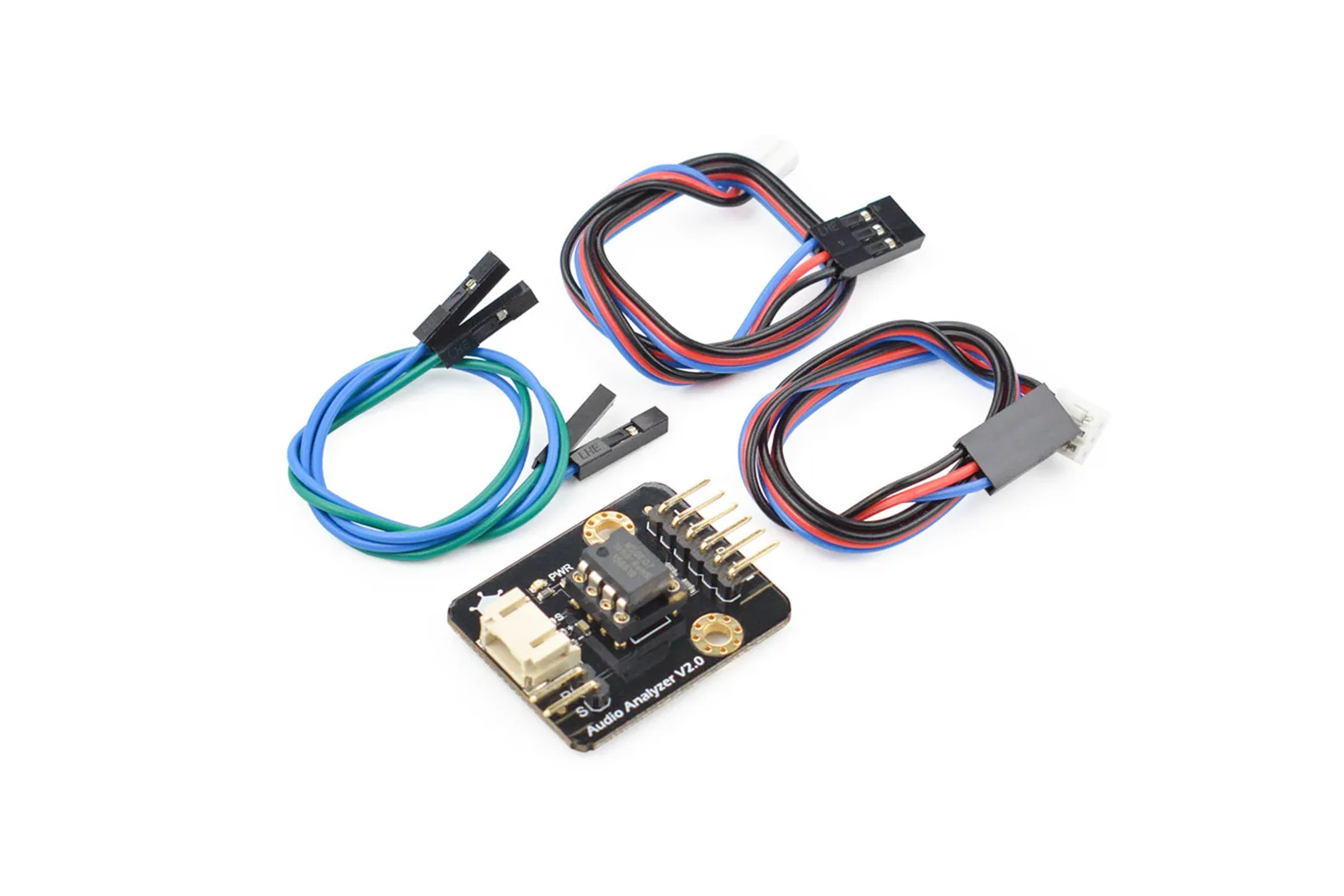

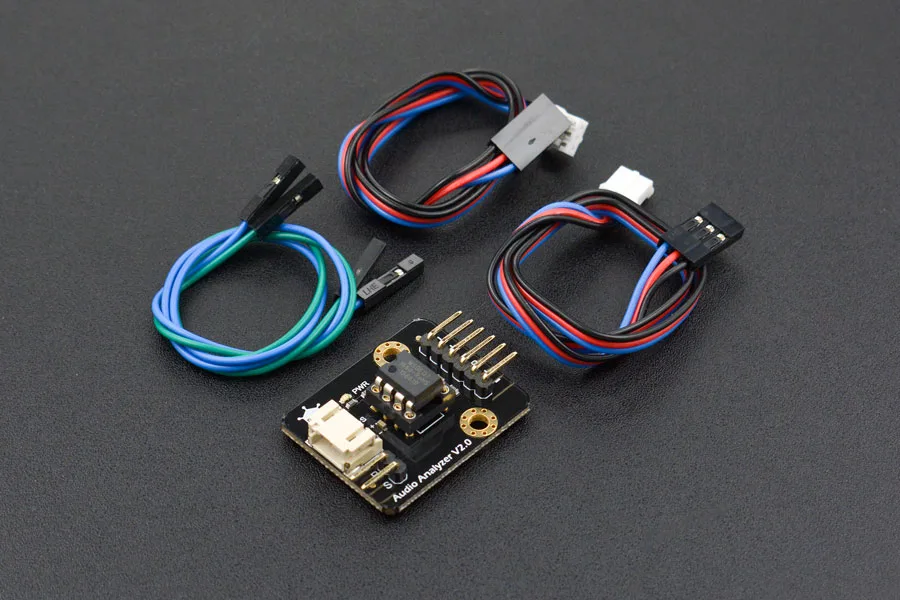

Each pack includes one audio analyzer module, two analog cables, and one digital cable for immediate wiring to your microcontroller.
