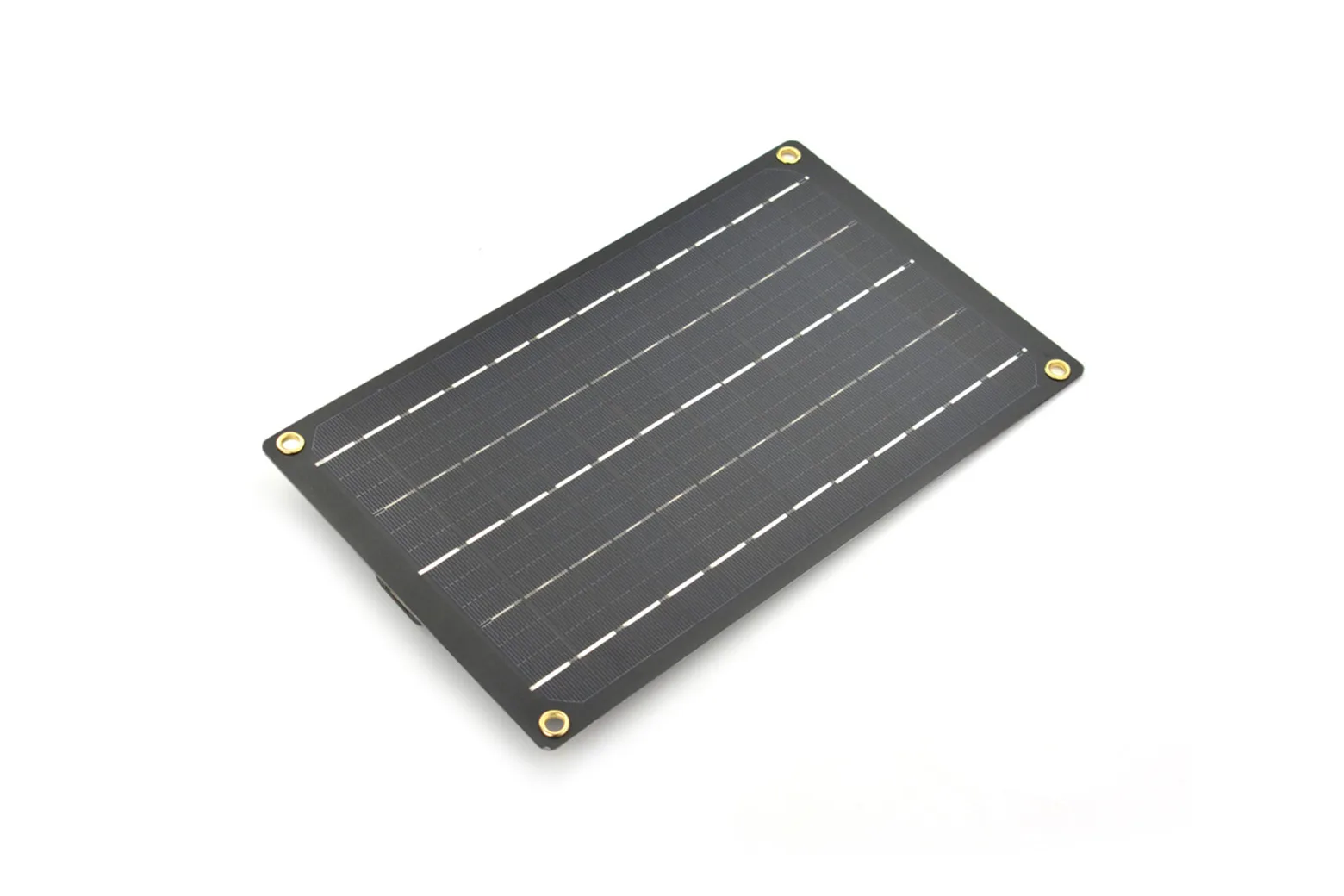

Monocrystalline Solar Panel (5V 1A)

The Monocrystalline Solar Panel (5V 1A) is a lightweight, ultra-thin flexible panel designed to power portable electronics and outdoor maker projects. Equipped with an integrated 5V voltage regulator and standard USB Type-A port, it offers straightforward plug-and-play power delivery for microcontrollers, power banks, and field sensors. It is ideal for students, hobbyists, and educators building off-grid or wearable robotics projects.

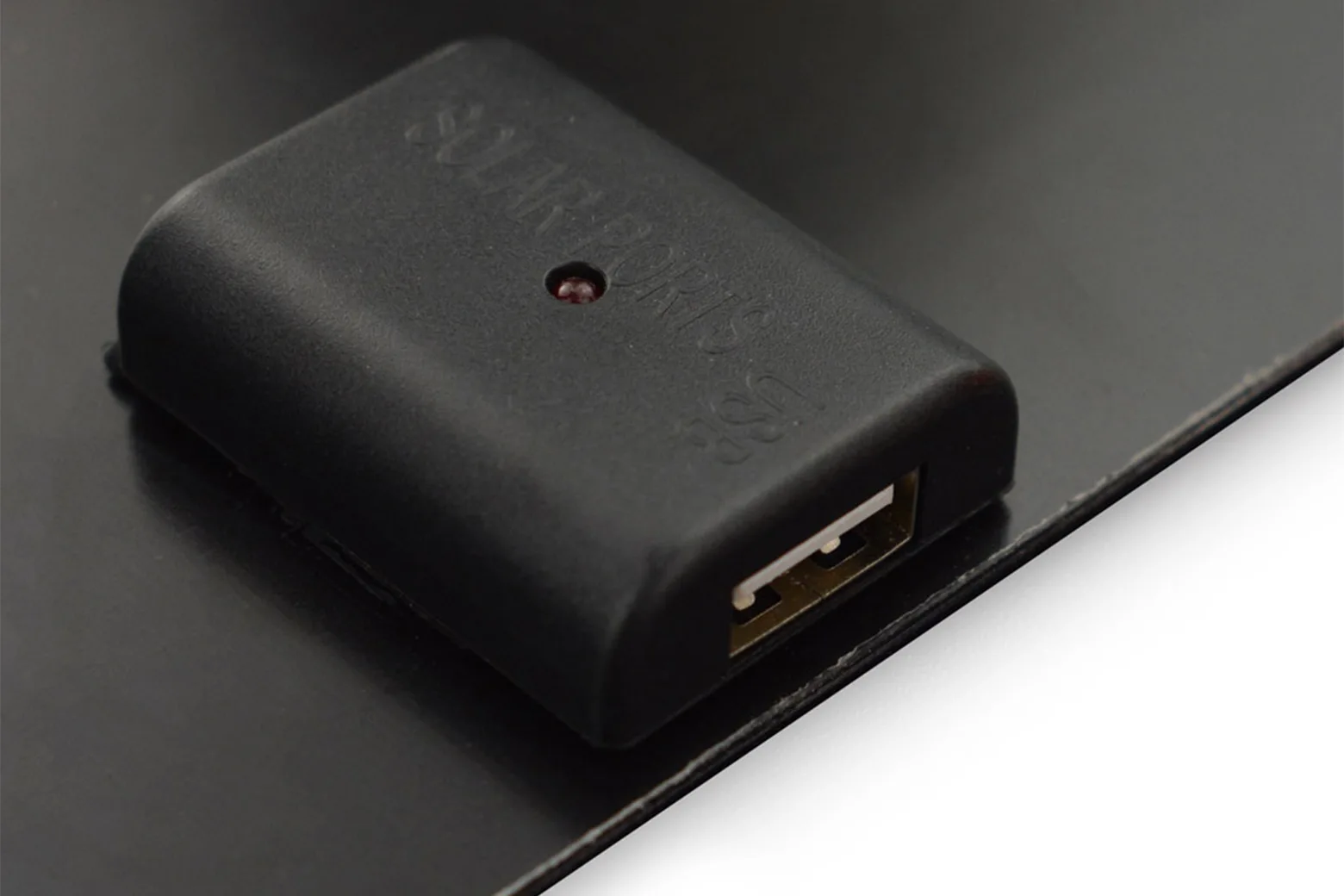

Regulated USB 5V output

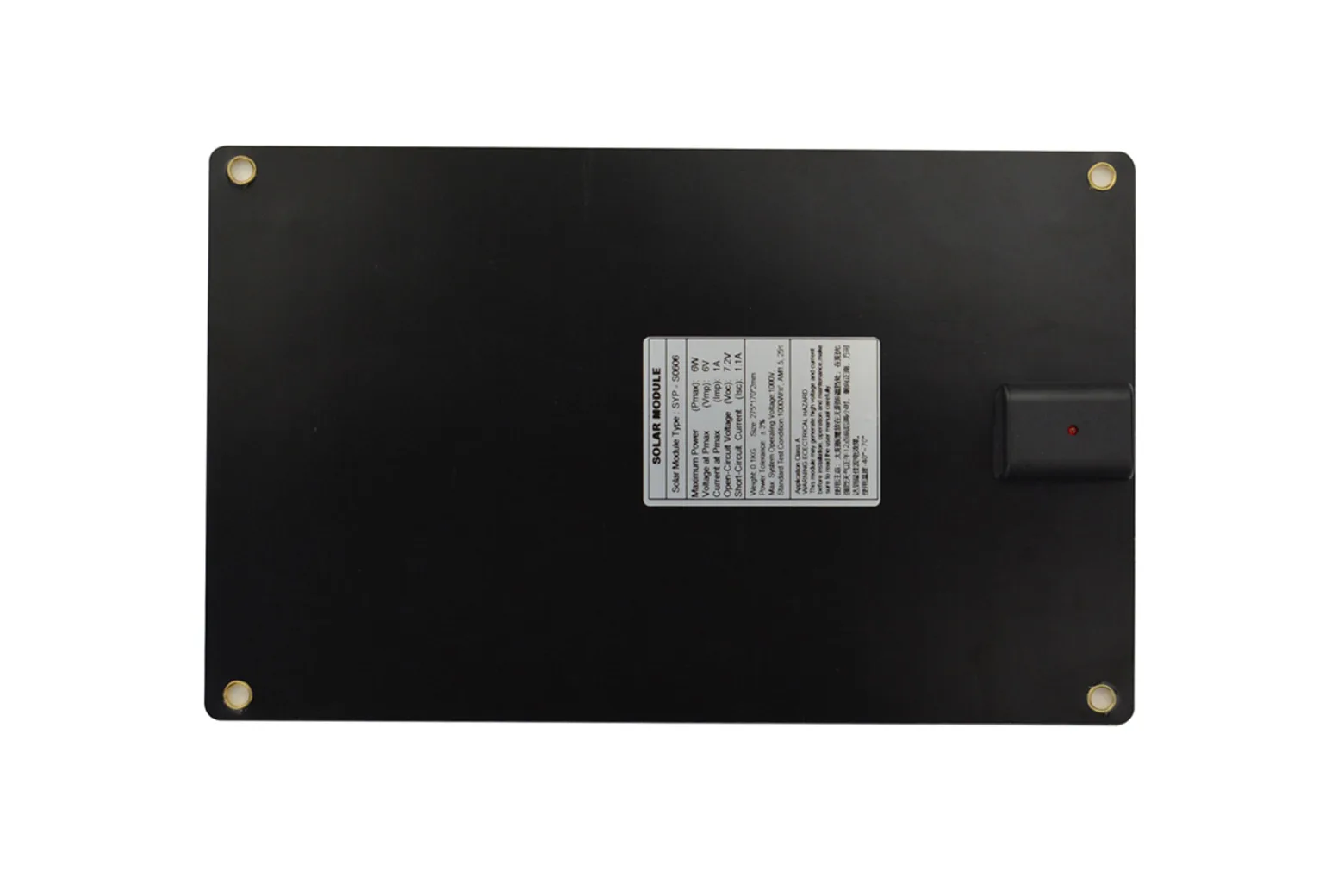

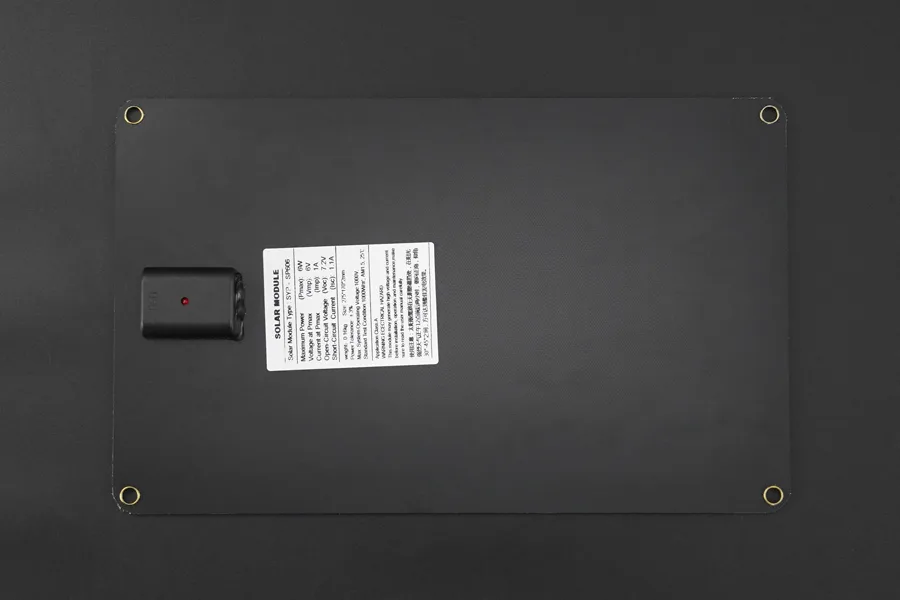

An onboard voltage regulator module delivers a stable 5V output at up to 1A via a standard USB Type-A port. Built-in working indicators provide real-time status feedback during operation.

Ultra-thin and lightweight construction

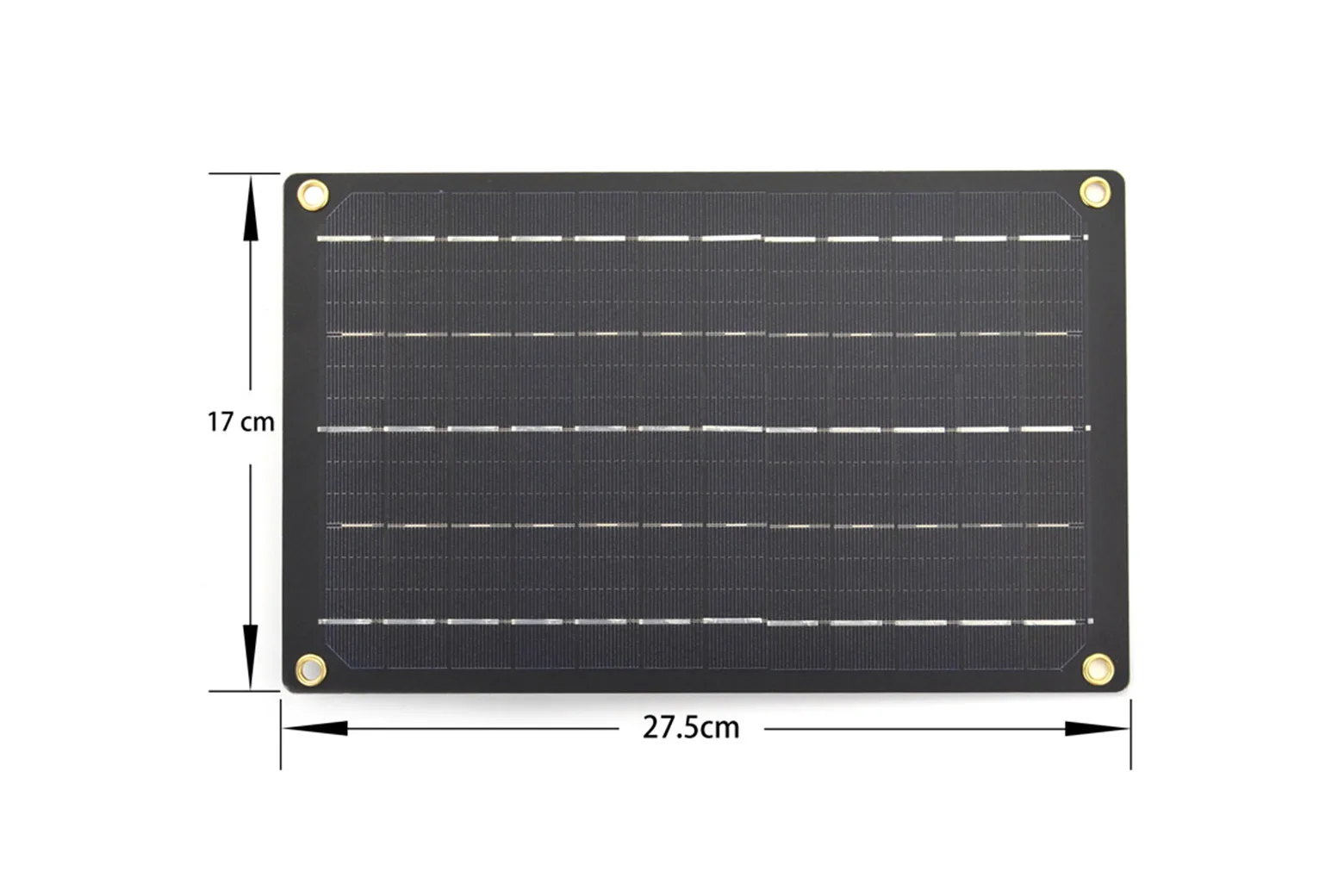

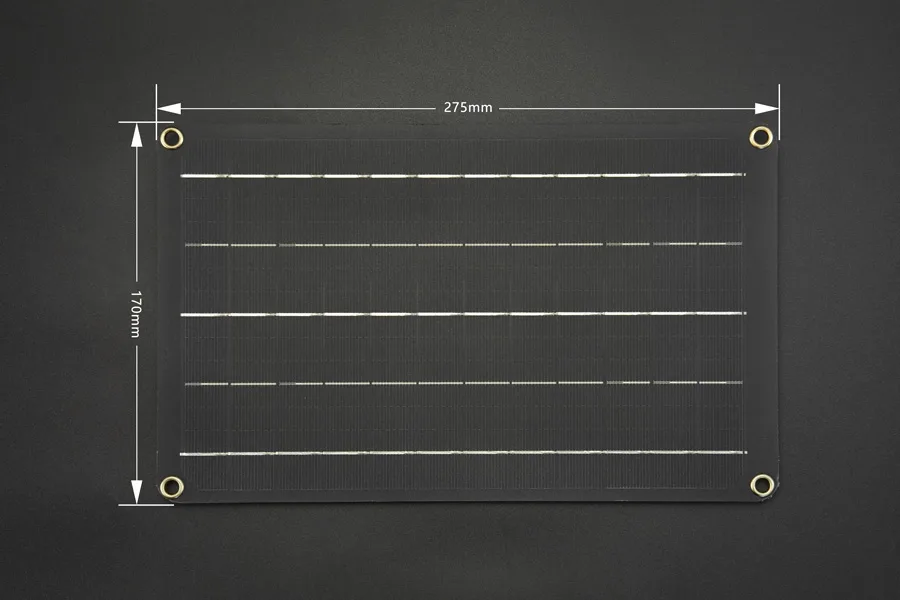

Built from monocrystalline silicon with a flexible PET lamination, the panel weighs just 90g and measures 275 x 170 x 2.5 mm. This slim design makes it considerably lighter and more resilient for field use than standard glass panels.

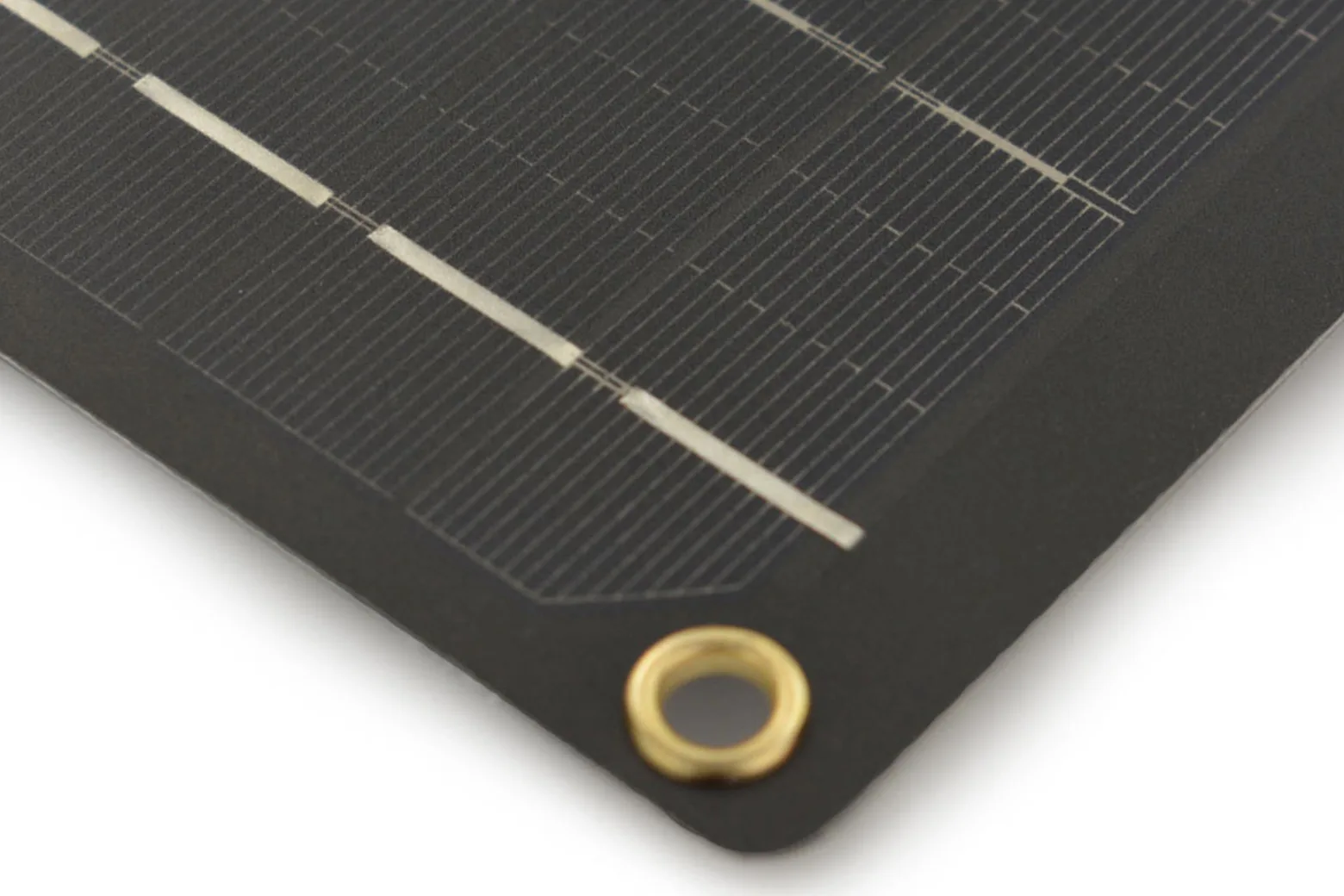

Reinforced mounting holes

Integrated open holes with copper clasps make it simple to fasten the panel directly to backpacks, enclosures, or mounting frames. For maximum efficiency, mount the panel fully exposed to direct sunlight without shading.

Electrical specifications and performance

The panel delivers up to 6W of peak power with an open-circuit voltage of 7.2V and a short-circuit current of 1.1A. It operates across an ambient temperature range of -30°C to 70°C.

Power management compatibility

Supplied with a 1m wire, the panel pairs effectively with solar power management boards to provide continuous power in varying conditions, including overcast days.

Package contents

The package includes one Monocrystalline Solar Panel (5V 1A) with integrated regulator and connected 1m lead.
