Miniware MDP-XP Smart Digital Power Supply Kit

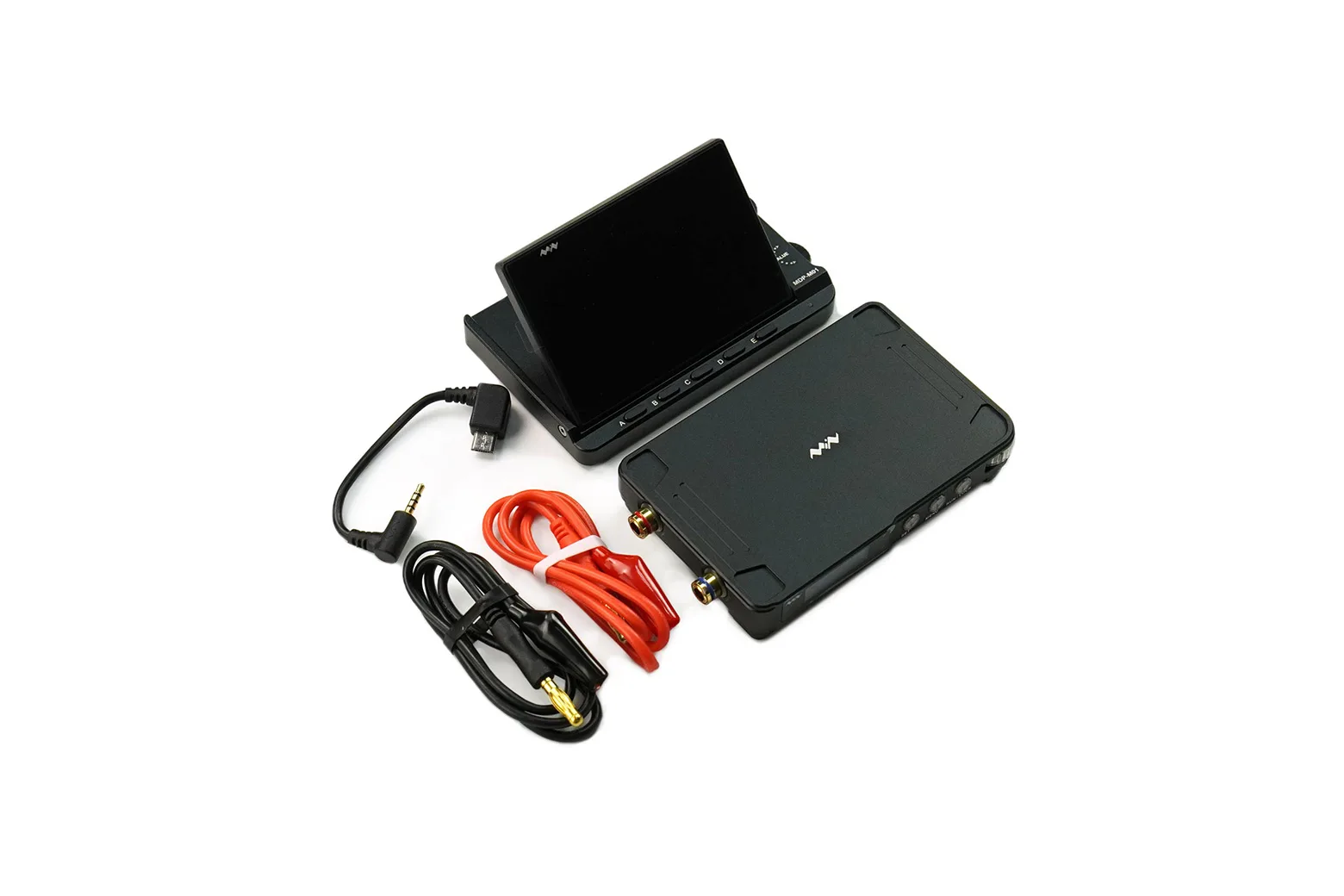

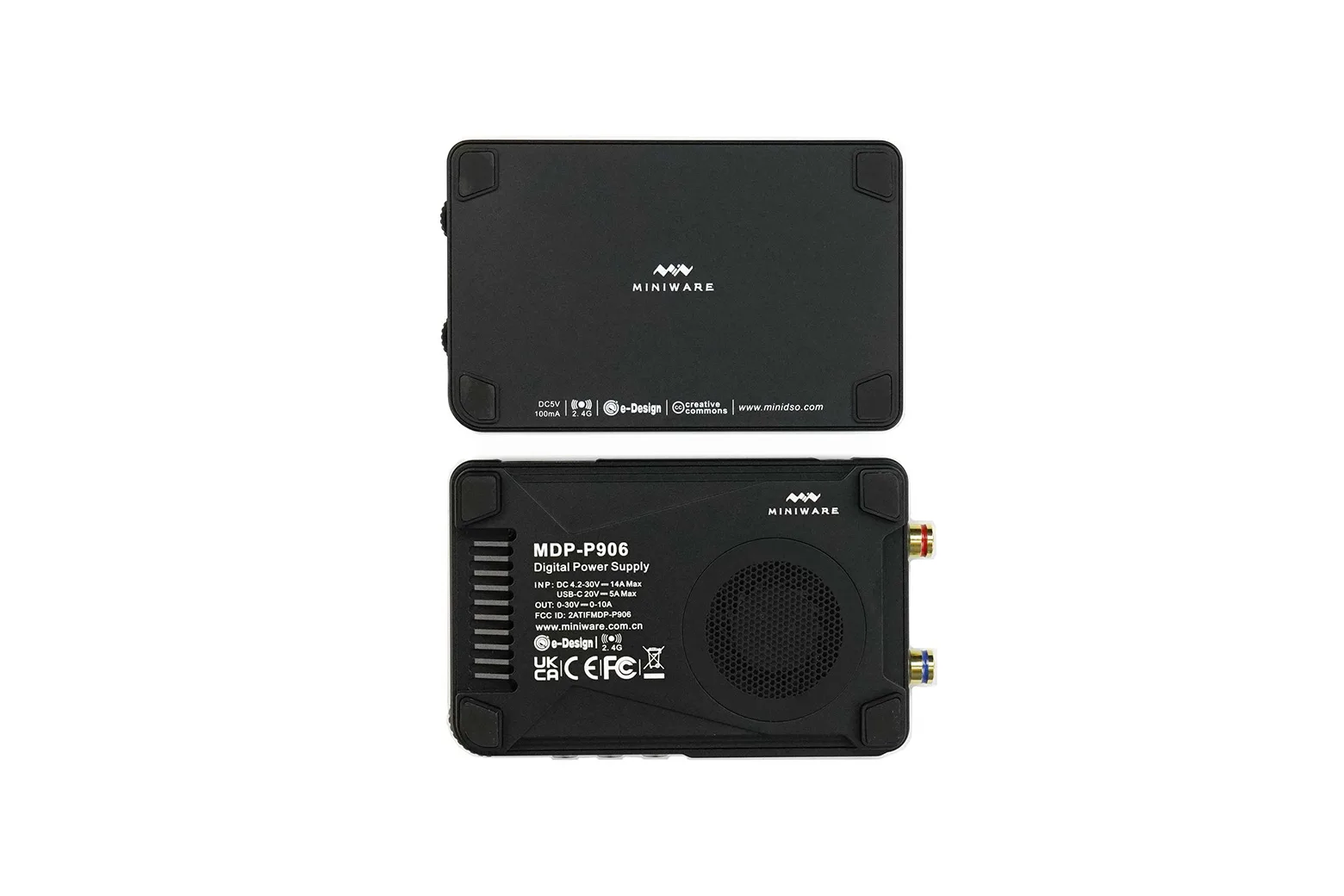

The Miniware MDP-XP is a modular, programmable linear DC power supply kit comprising the MDP-M01 display control module and the MDP-P906 digital power module. It delivers clean, highly stable output with real-time waveform sampling and 2.4G wireless operation. This versatile setup suits electronics hobbyists, repair technicians, educators, and R&D engineers requiring precise benchtop power.

Modular architecture and wireless control

The MDP-XP system connects modular hardware over a 2.4G wireless link, enabling the MDP-M01 control module to automatically pair with and manage up to six power modules. The stackable design provides flexible multichannel power configurations while keeping your workspace organised.

2.8-inch real-time waveform display

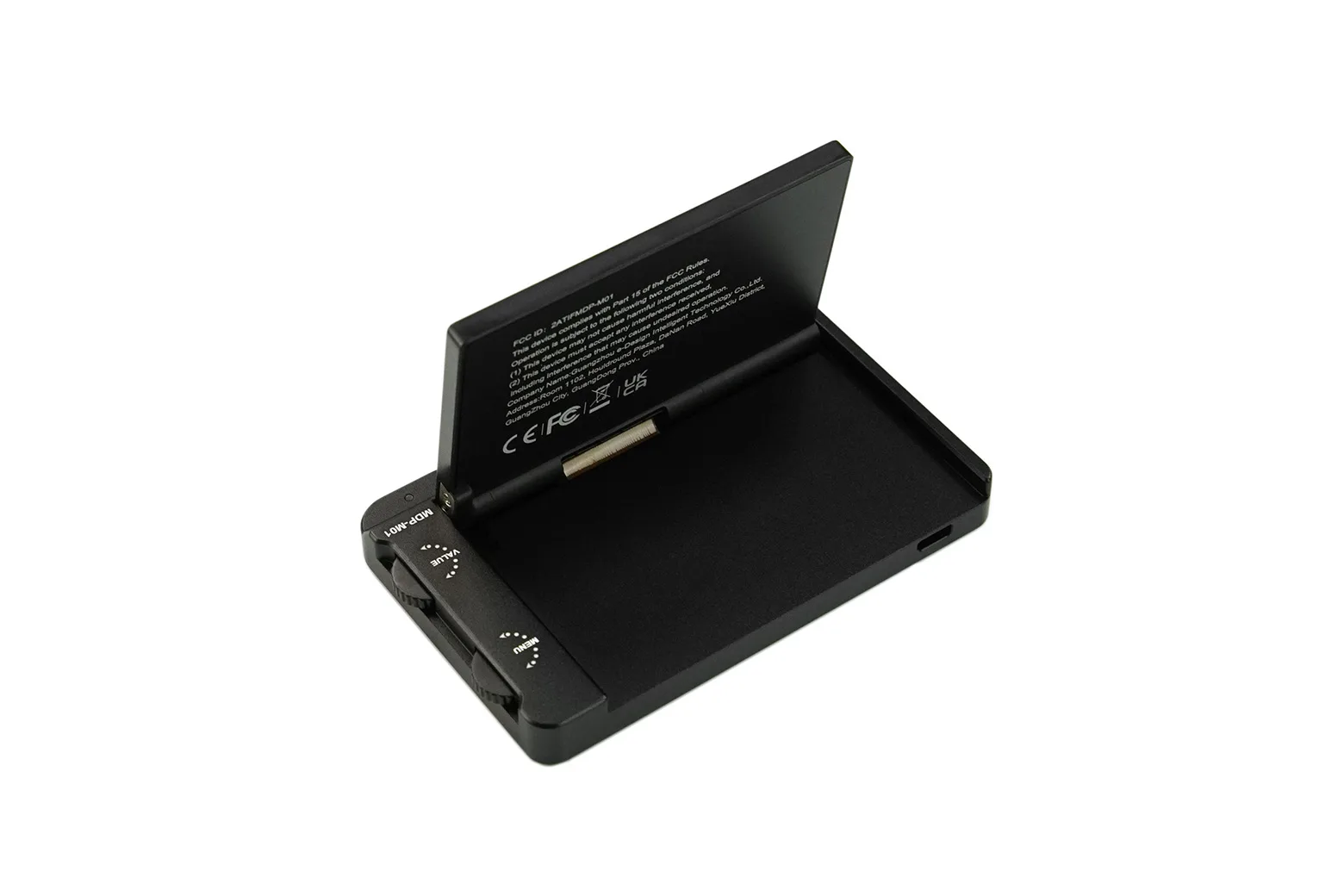

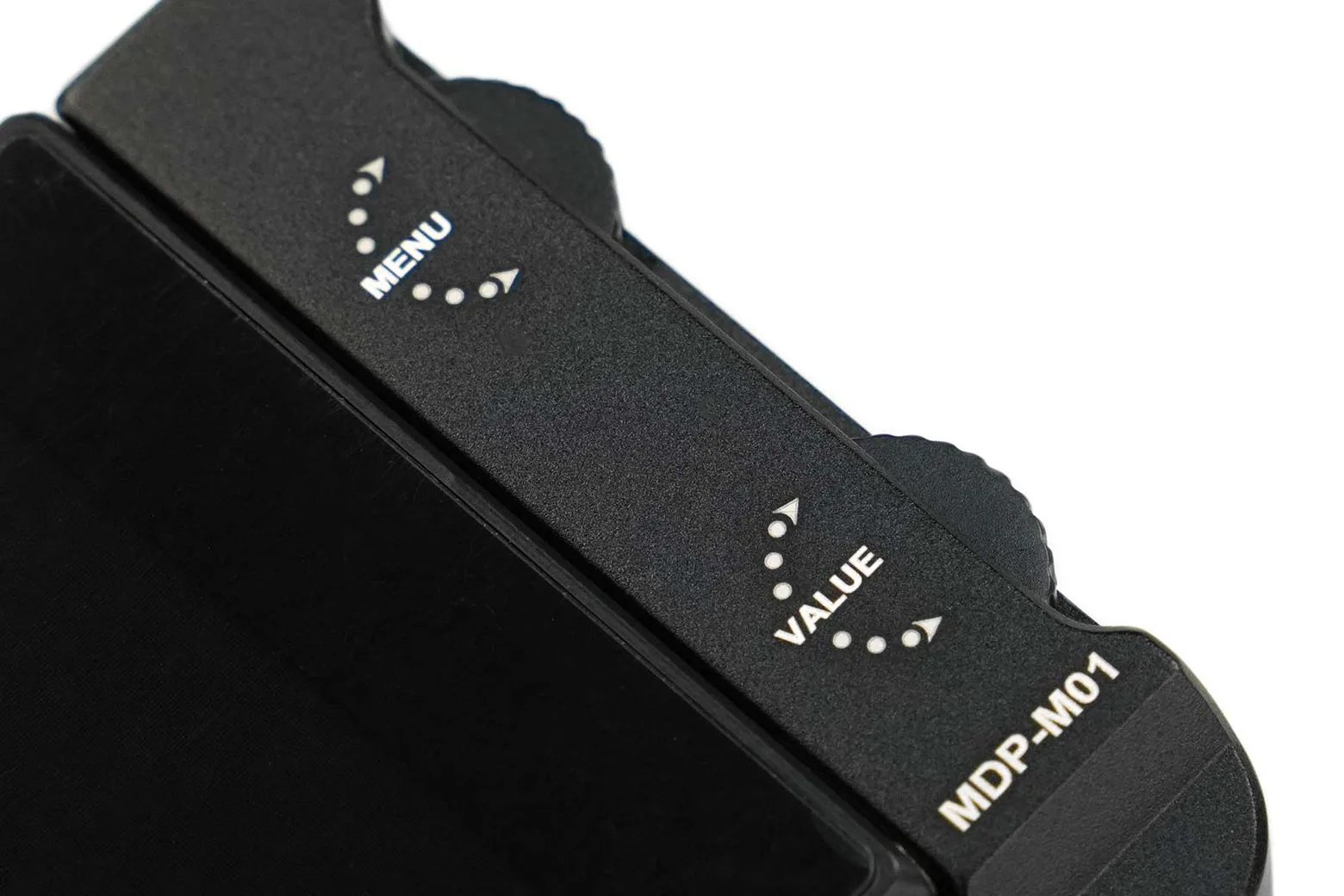

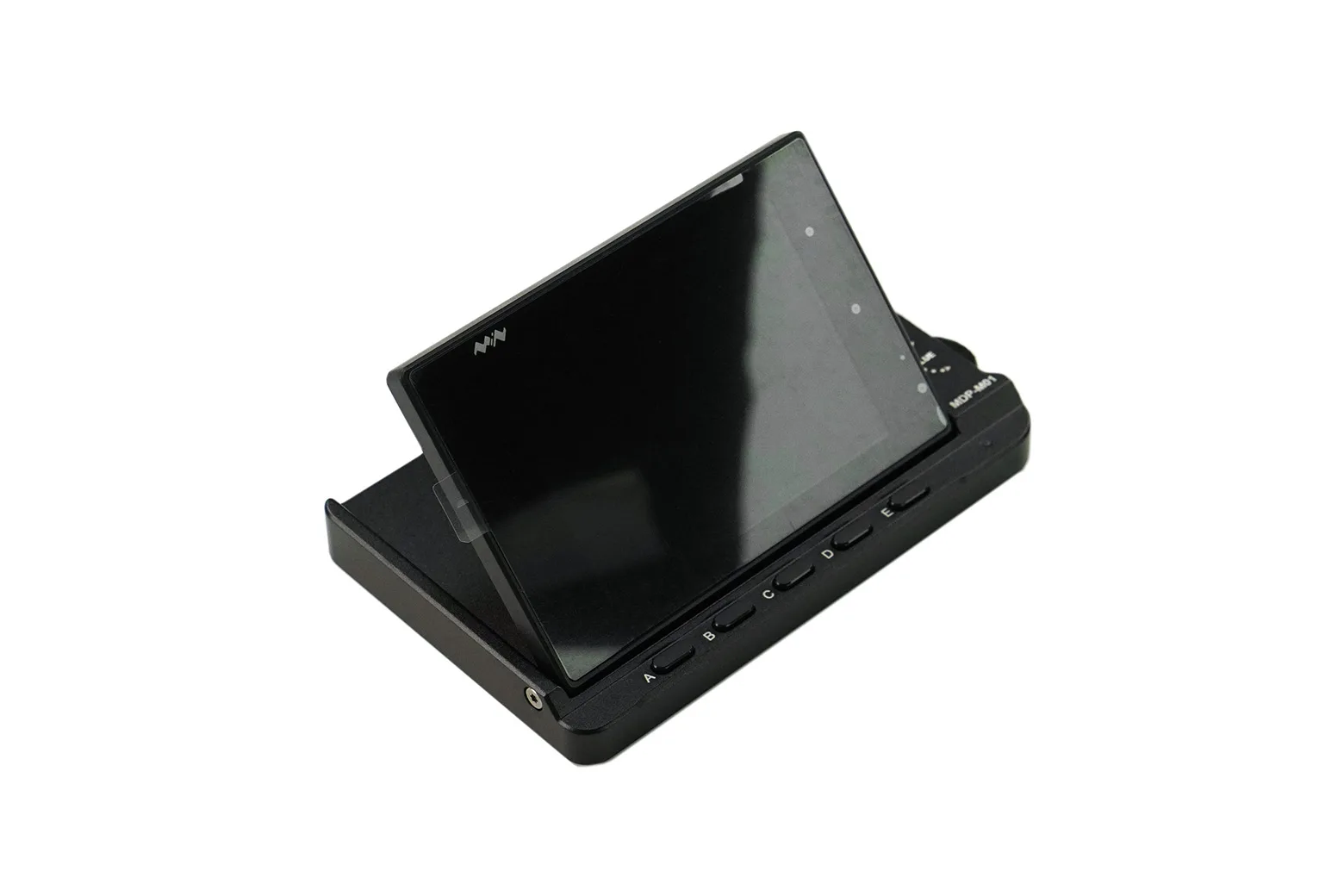

The MDP-M01 module features a 2.8-inch TFT screen that displays real-time voltage and current waveforms alongside data statistics. Dual thumb wheels and a 90-degree tilting screen design allow for comfortable viewing angles and fast parameter editing.

High-precision linear power delivery

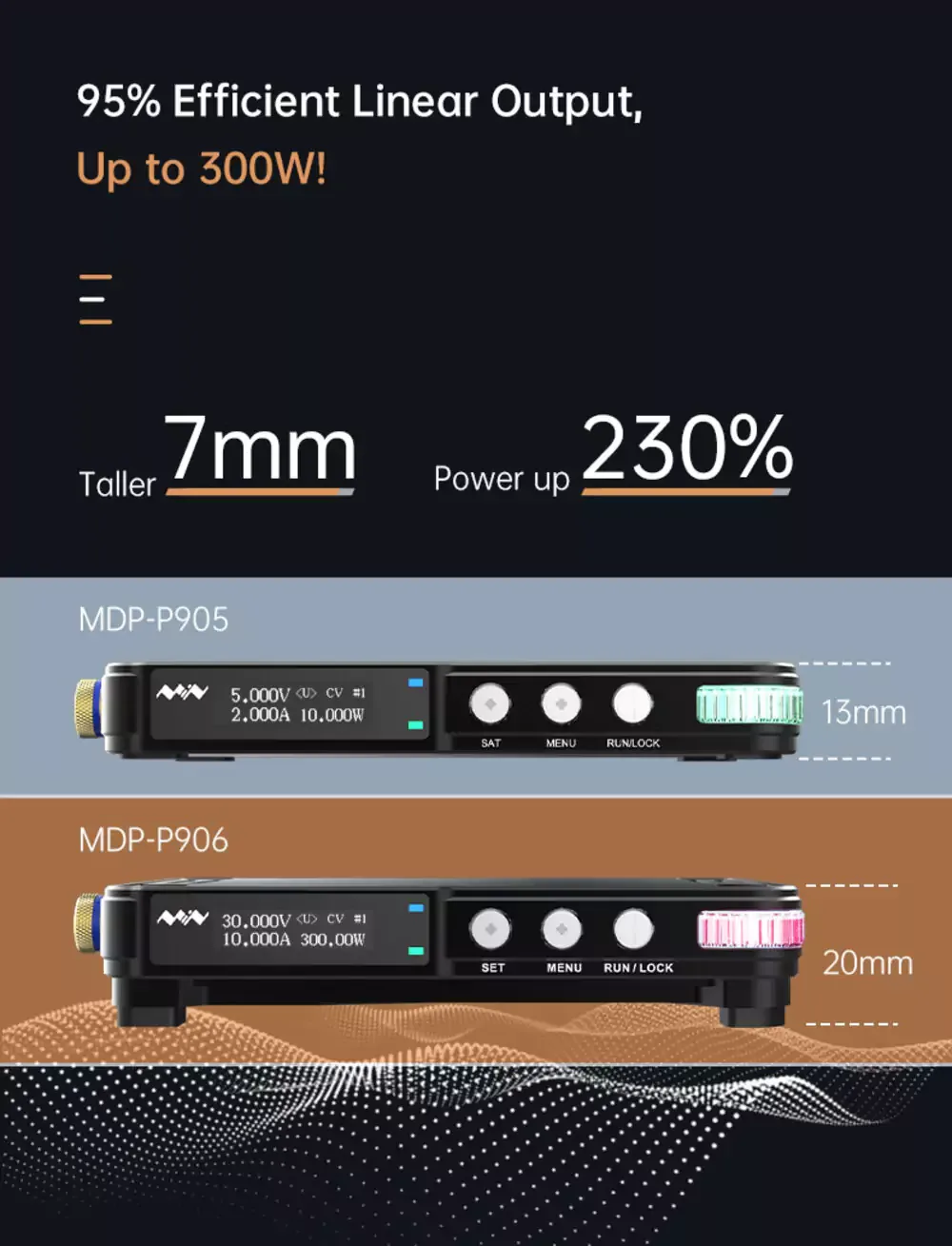

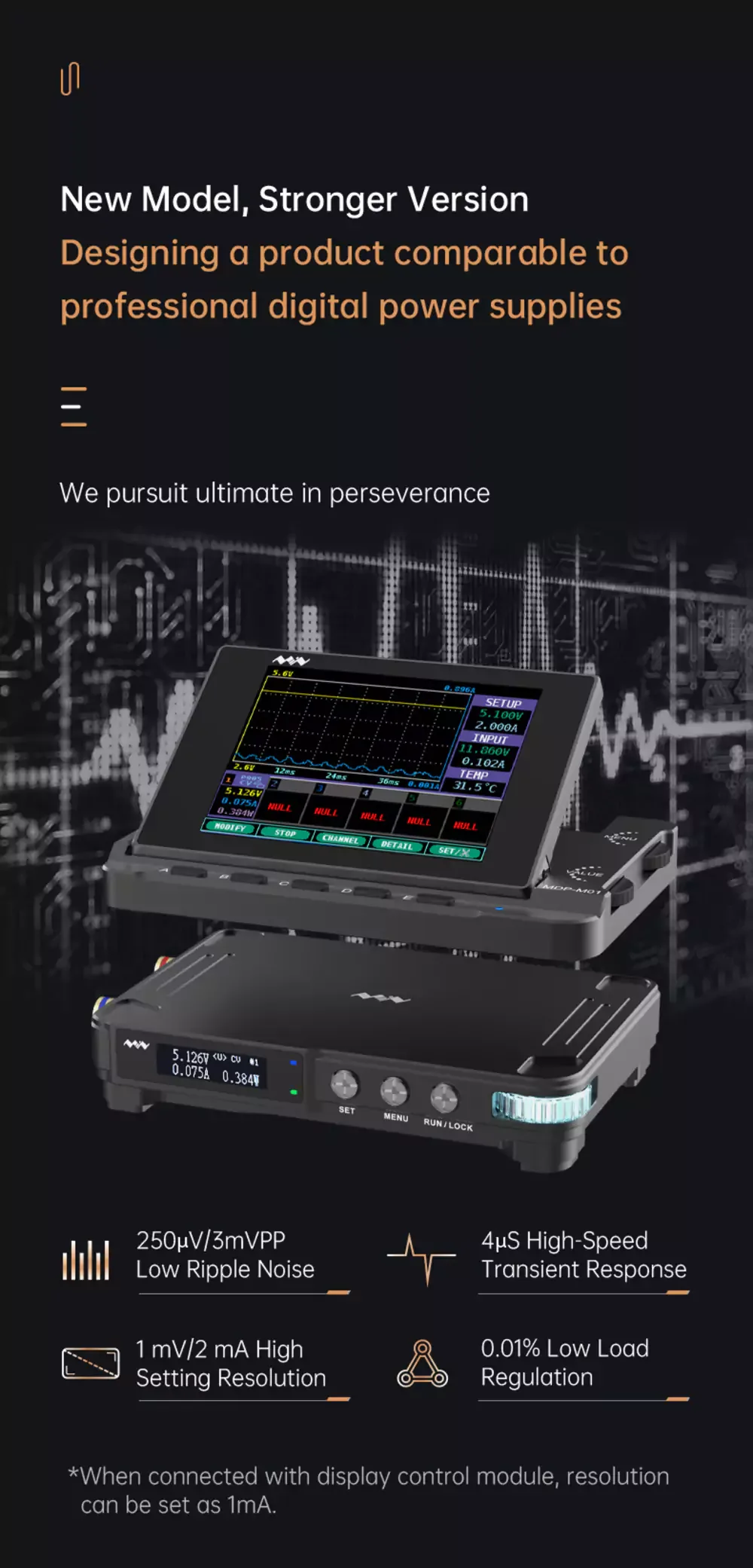

Capable of delivering adjustable output from 0 to 30V and 0 to 10A up to 300W, this power supply achieves ultra-low ripple and noise of just 250uVrms or 3mVpp. Both load and power regulation rates stay below plus or minus 0.01 percent for exceptionally stable power delivery.

Fast transient response and line compensation

With a transient response time of 4 microseconds or less, the unit swiftly adapts to dynamic load changes to protect sensitive digital and analogue circuits. Intelligent line loss compensation from 5mR to 100mR automatically corrects for voltage drop across your output leads.

Built-in multi-layer circuit protection

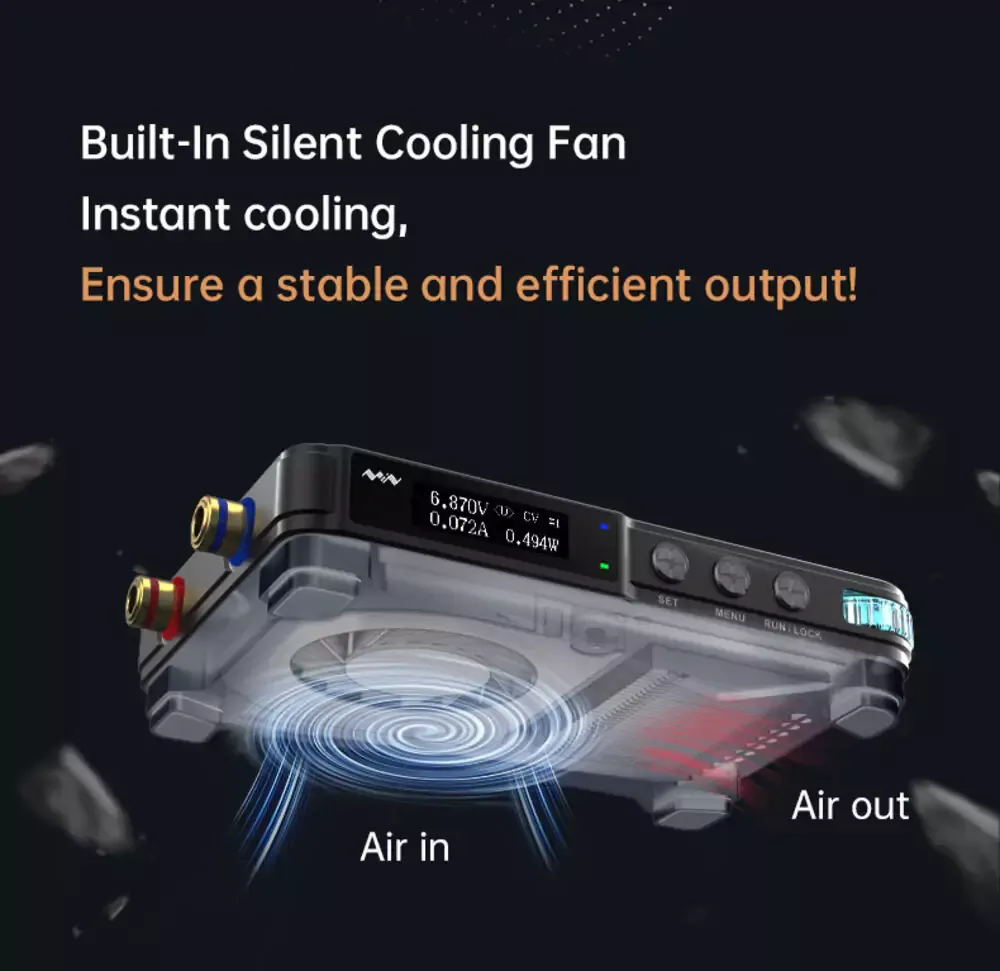

Comprehensive safety features include input over-voltage, under-voltage, and reverse-polarity protection, alongside output anti-backflow and over-temperature safety cut-offs. The device also shuts down automatically into a micro-power state when not in active use.

Onboard data logging and programmability

Driven by an STM32 processor, the supply offers programmable output sequences, user calibration, and USB firmware upgradeability. It includes 7MB of internal storage to log voltage and current data for testing sessions lasting up to 24 hours.
