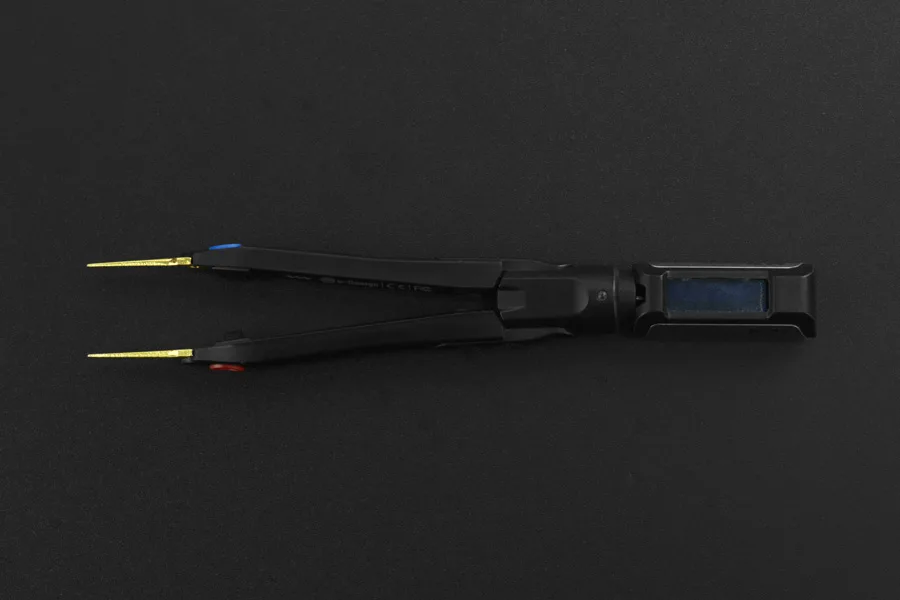

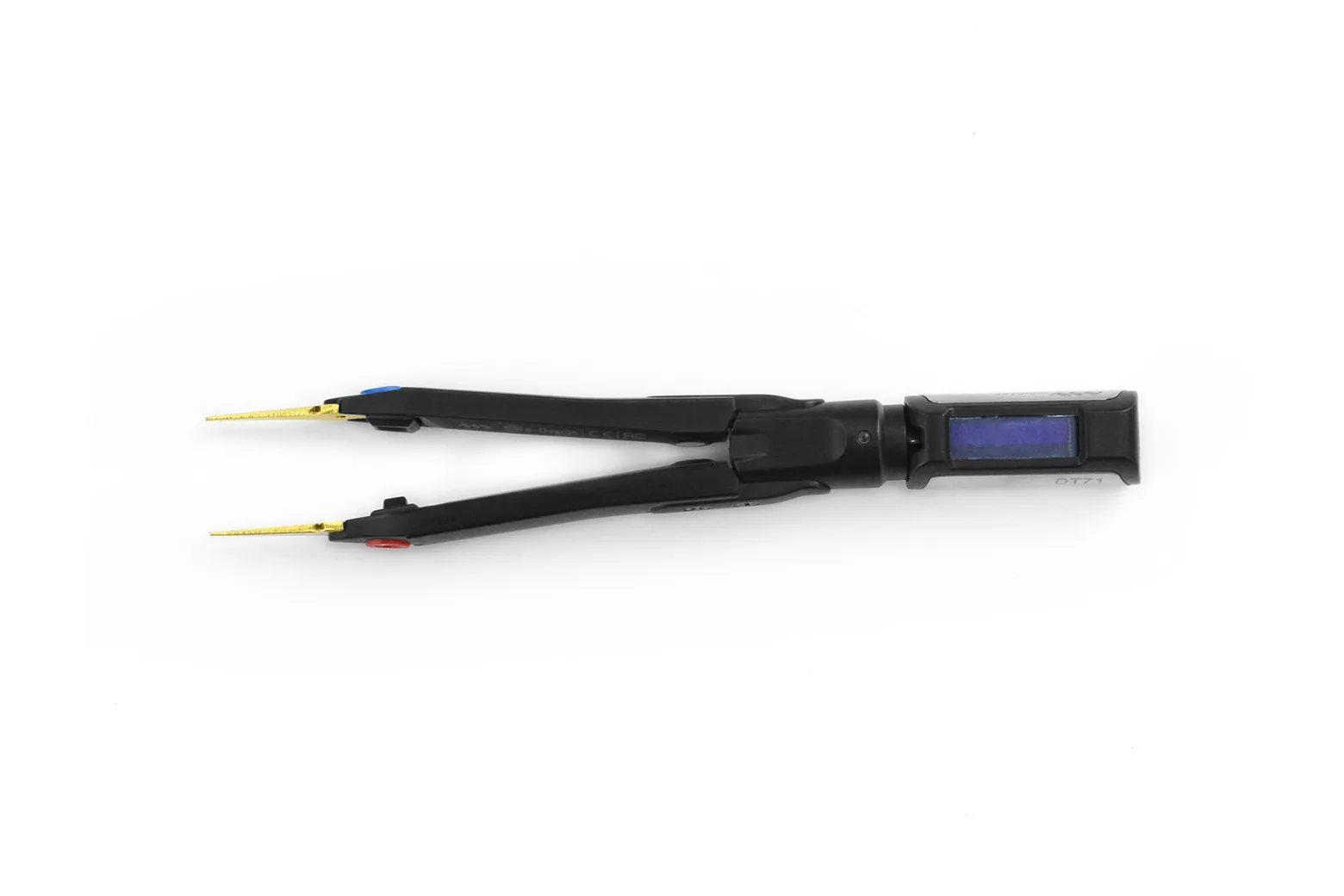

Miniware DT71 Mini Digital Tweezers

The Miniware DT71 Mini Digital Tweezers combine an LCR meter, fully differential input tester, and micro signal generator into a compact handheld format. Designed for electronics engineers, makers, and technicians, they streamline surface-mount component testing and circuit troubleshooting at the workbench or in the field.

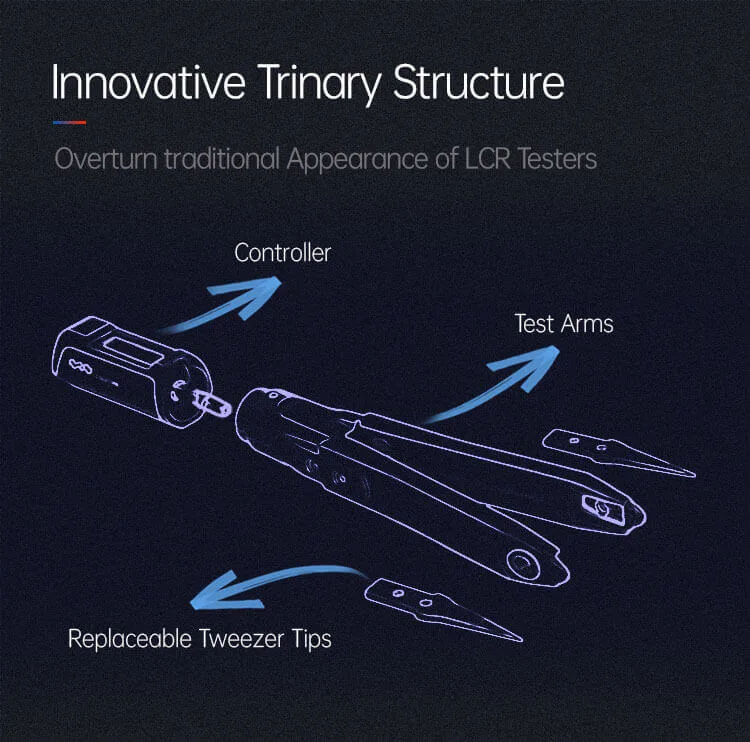

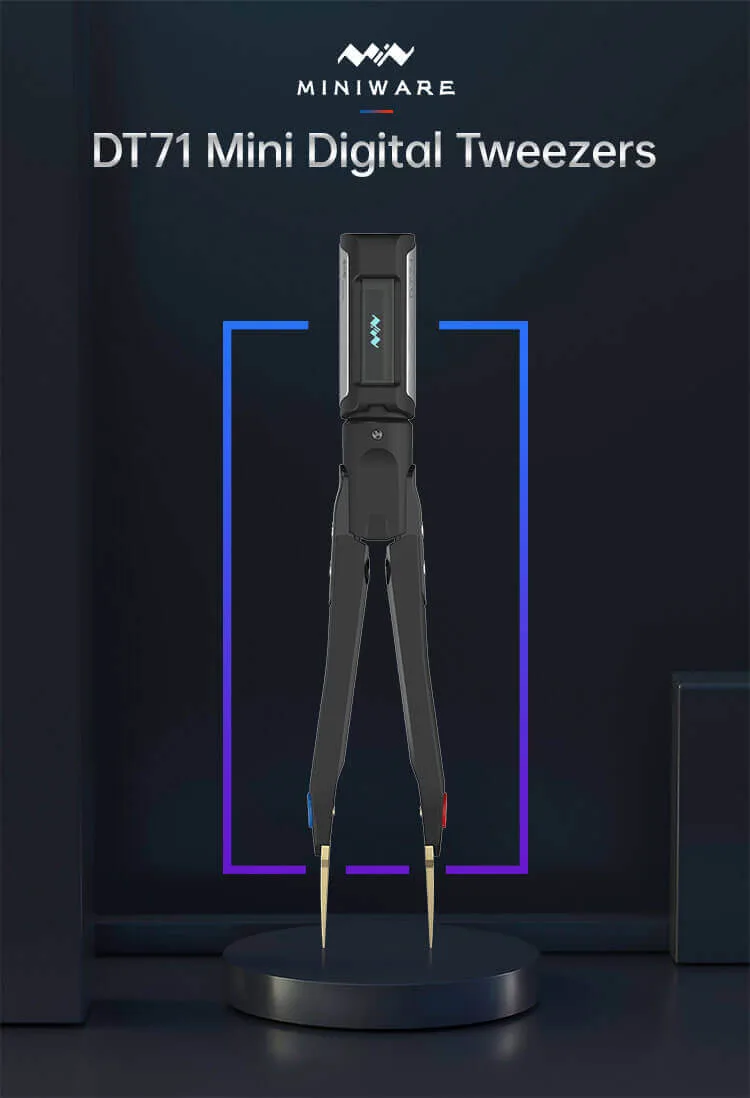

Modular three-part architecture

The DT71 features a trinary split structure comprising an independent controller, test arms, and interchangeable tweezer heads. This modular setup allows parts to be easily replaced and combined for versatile troubleshooting.

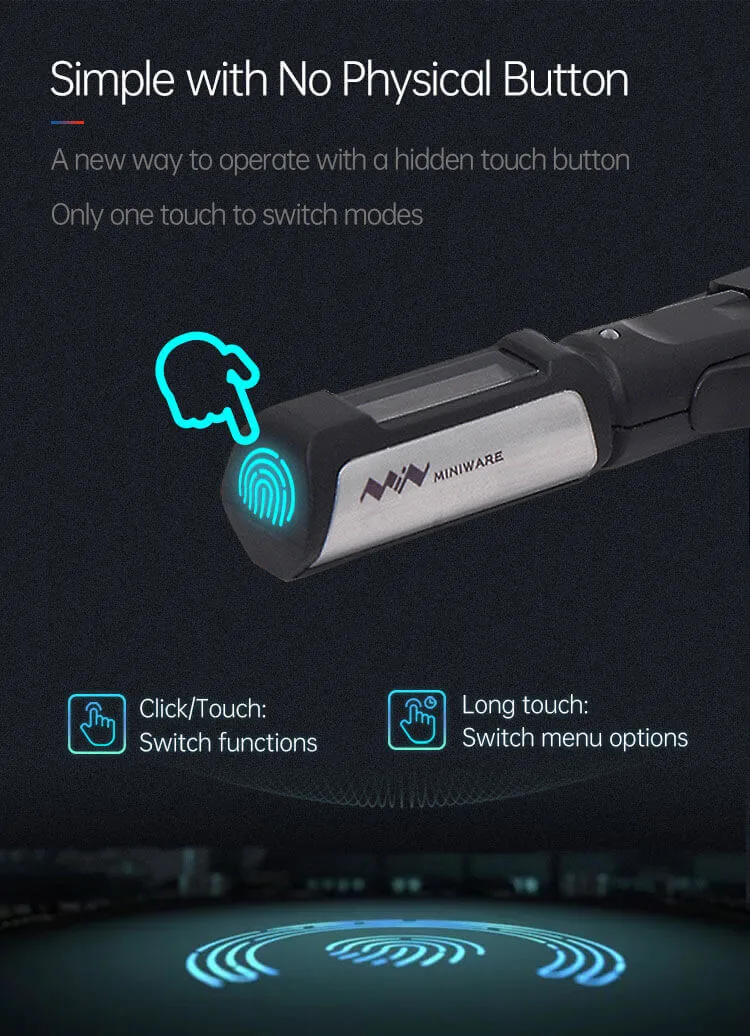

Rotatable OLED display and touch control

A 360-degree rotatable 96x16 OLED screen provides clear visibility from any angle and automatically adapts to left- or right-handed use via intelligent gesture recognition. Operation is handled seamlessly through a hidden touch sensor on top of the controller, eliminating mechanical buttons.

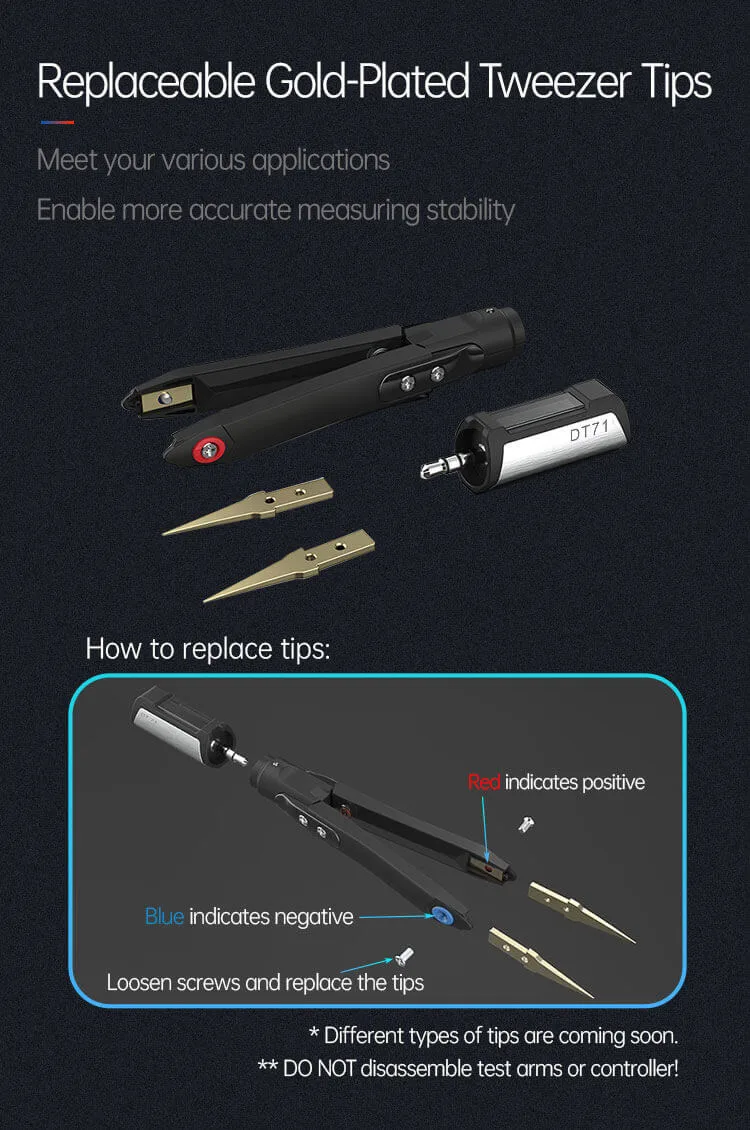

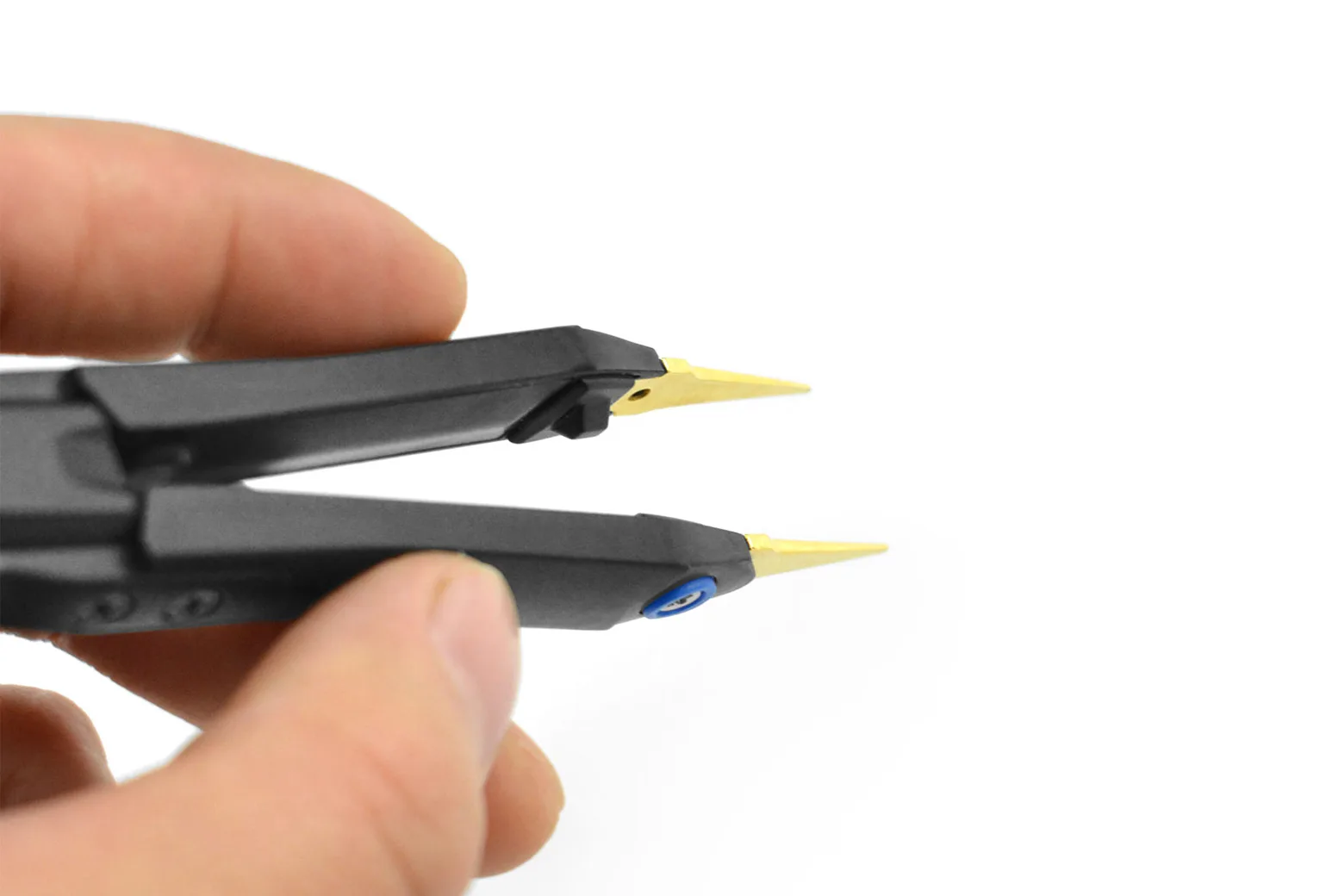

Magnetic arms and gold-plated tips

The test arms utilise magnetic elasticity to ensure smooth clipping, durable performance, and an ergonomic grip. Replaceable gold-plated tweezer tips provide reliable contact and high measurement precision across compact SMD components.

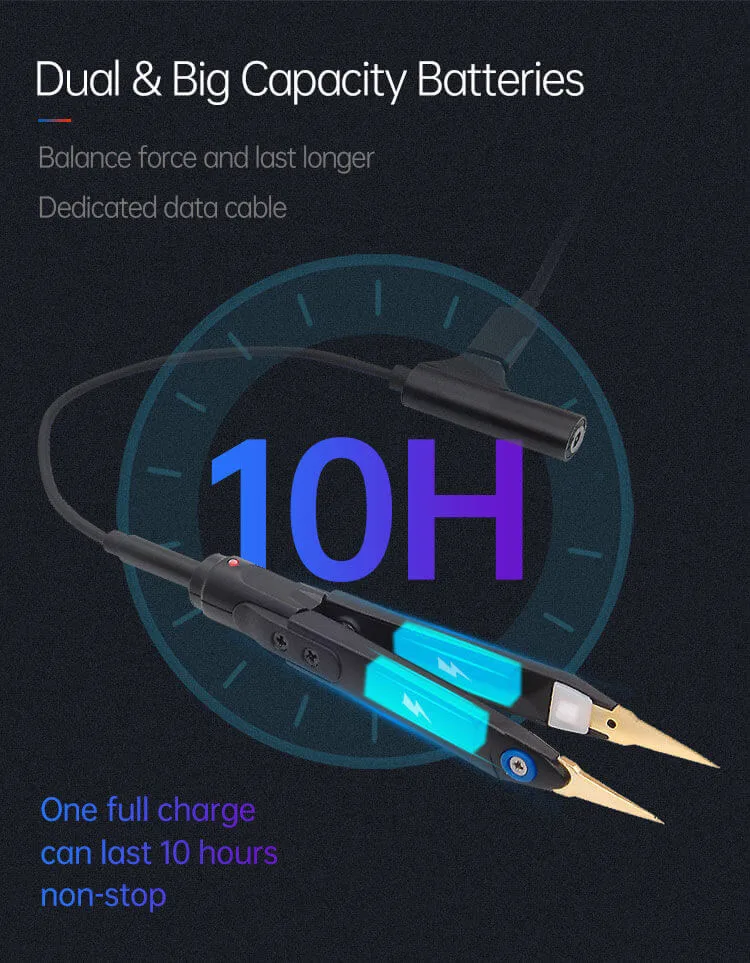

Dual rechargeable battery system

Powered by built-in dual lithium batteries, the DT71 delivers up to 10 hours of continuous operation on a full charge. A complete recharge takes approximately 2 hours using the dedicated data cable.

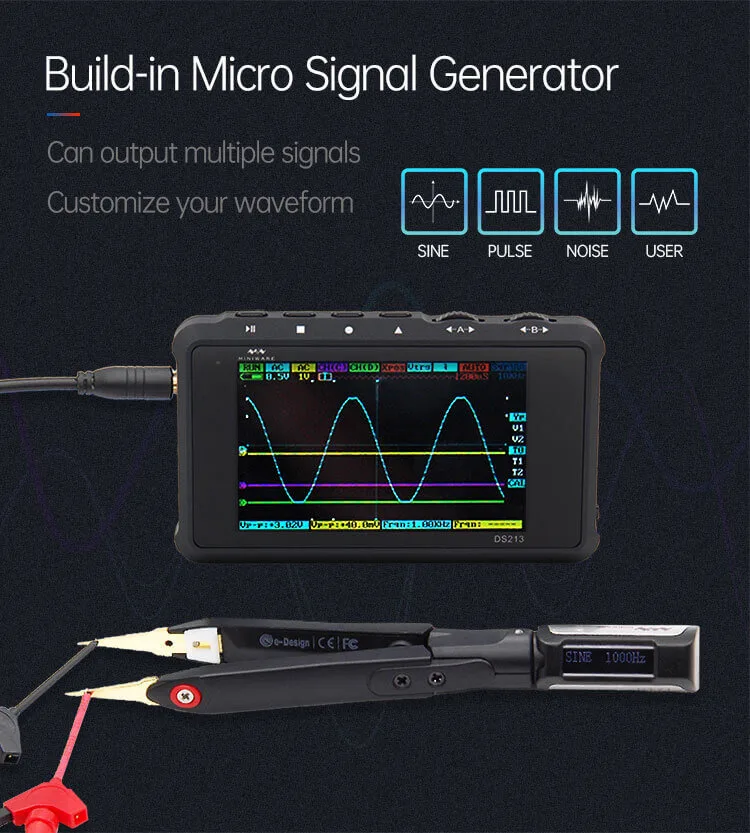

Automatic SMD identification and signal output

In automatic mode, the device identifies resistors, capacitors, inductors, and diodes while displaying primary and secondary parameters. An integrated miniature waveform generator also outputs test signals for debugging and maintaining complex electronic systems.

Pocket-sized portability and smart features

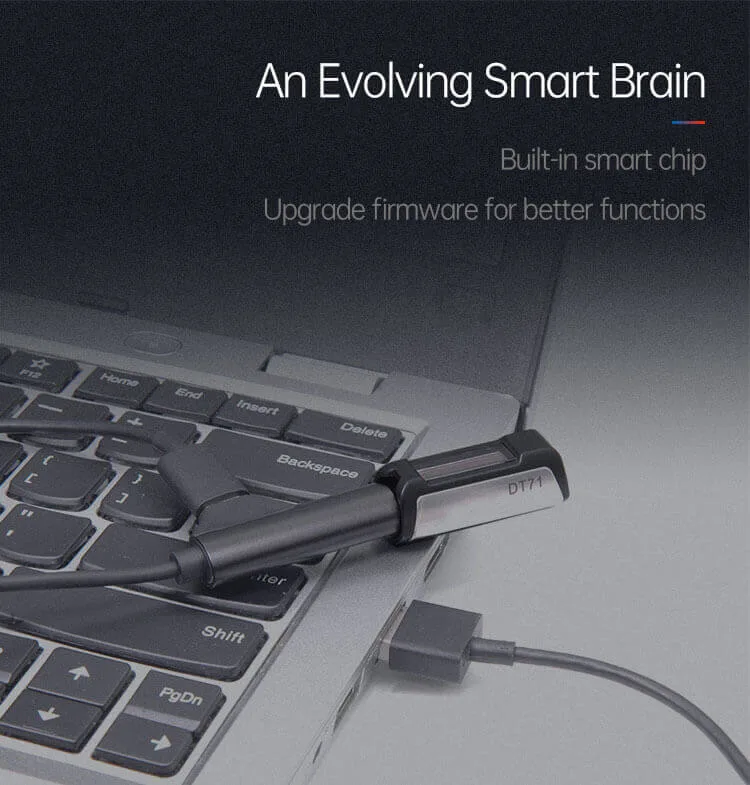

Replacing bulky traditional multimeters, this lightweight tool easily travels between workbenches, laboratories, and field sites. It also supports automatic shutdown and firmware upgrades for extended functionality.

Comprehensive measurement ranges

The instrument measures resistance from 0.1Ω to 2000kΩ, capacitance from 0.1pF to 400µF, inductance from 1µH to 50mH, voltage from 1mV to 40V, and frequencies up to 20MHz. It also tests silicon diodes, Schottky diodes, and LEDs with forward voltages between 0.1V and 3V.
