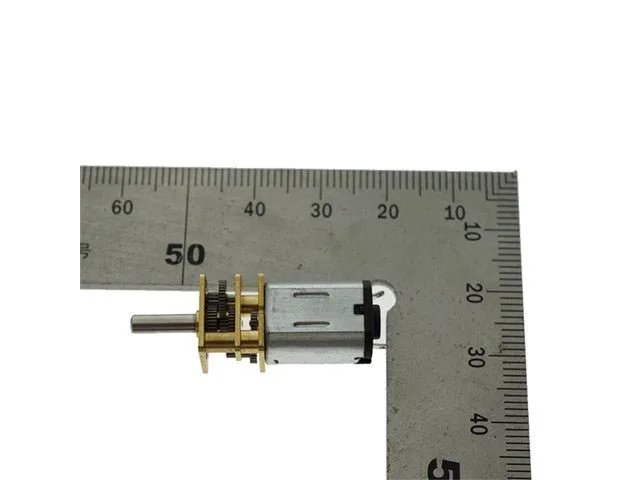

Mini N20 DC Metal Gear Motor, 6V 30 RPM
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This mini N20 DC metal gear motor delivers low rotational speed and high torque, making it ideal for compact robotic drive systems. It operates efficiently with low current draw, offering excellent stall characteristics for hill climbing. It is well suited to learners, makers, and hobbyists building smart robot cars and automated mechanisms.
High torque in a compact size
Featuring high internal gearing, this mini motor achieves 30 RPM while maintaining strong torque output. It runs efficiently at 6V, drawing approximately 17mA free-running and around 50mA under load.
Durable metal construction
Crafted from durable metal components, the motor is lightweight at 30g and resistant to wear. Its robust stall characteristics provide dependable performance when climbing gradients.
Robotics and smart car integration
The 3 x 10mm output shaft is designed for easily mounting standard robotic wheels. It is suitable for mobile platforms, including 4Borg builds and custom smart cars.
Specifications
| Device | Gear Motor |
| Type | Mini | N20 | DC | 5V |
| Voltage | 6V |
| Revolving Speed | 30RPM |
| Free Running Current | Approx 17mA at 6V |
| Load Current | Approx 50mA |
| Motor Size | 12 x 24mm (D x H) |
| Shaft Size | 3 x 10mm (D x L) |
| Material | Metal |
| Weight | 30g |
