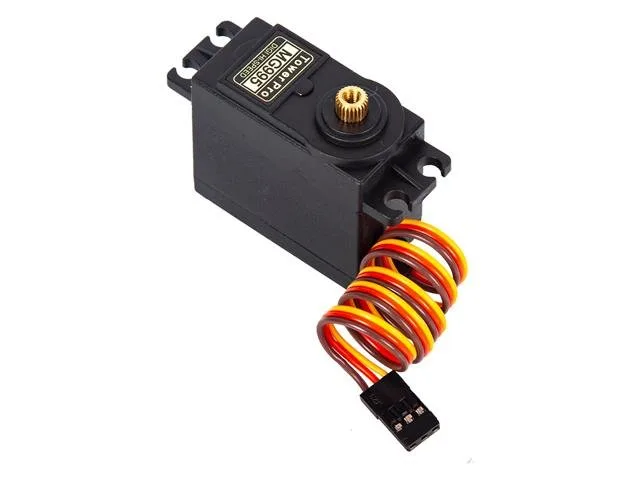

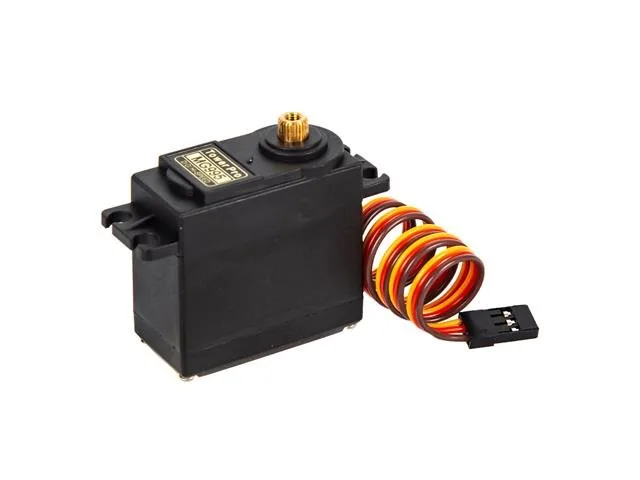

MG995 Full Metal Gear 360 Degree Servo Motor (12kg/cm)

The MG995 is a high-torque continuous rotation servo motor featuring durable metal gearing and a full 360-degree range of motion. Delivering up to 12 kg/cm of working torque, it is an ideal motion component for student robotics, maker builds, and RC vehicle projects. It operates smoothly across a wide 3.0V to 7.2V input range with standard pulse control.

Key features and build

This servo motor is constructed with internal metal gear teeth for improved durability under heavy loads. It supports 360-degree rotation with operating speeds up to 0.13 seconds per 60 degrees at 6.0V.

Included hardware and accessories

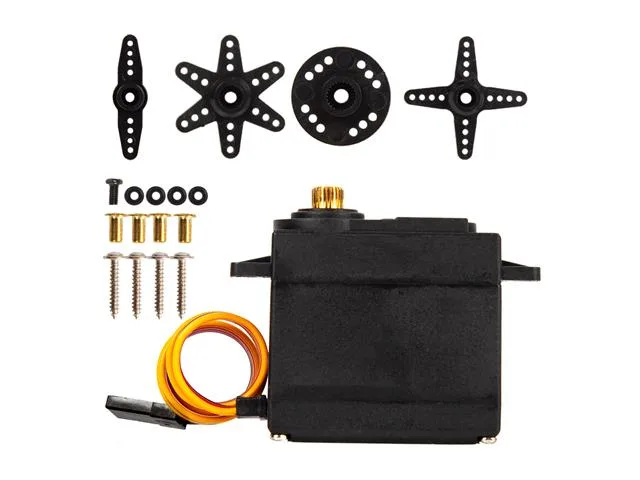

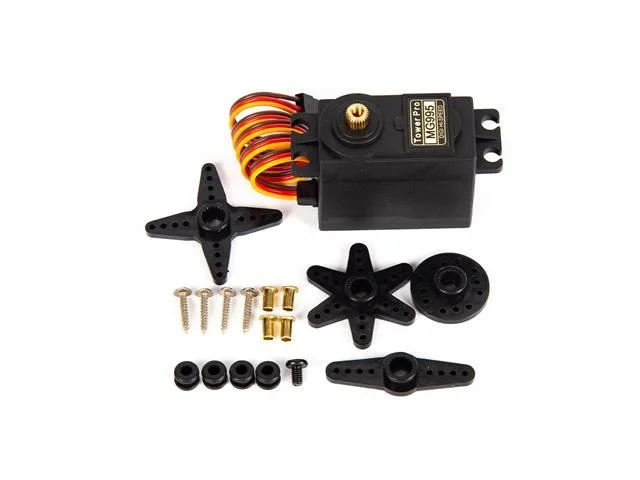

The motor is supplied with standard horns, fixing screws, vibration damping rubber sleeves, and aluminium sleeves to make mechanical mounting straightforward.

Wiring and connectivity

The attached 30 cm connection cable uses a universal JR/Futaba compatible plug with standard wiring: yellow for signal, red for power, and brown for ground.

Typical applications

It is well suited for biped walking robots, custom robotic arms, RC cars, Class 50-90 methanol fixed-wing airplanes, and 26cc-50cc gasoline fixed-wing aircraft.
