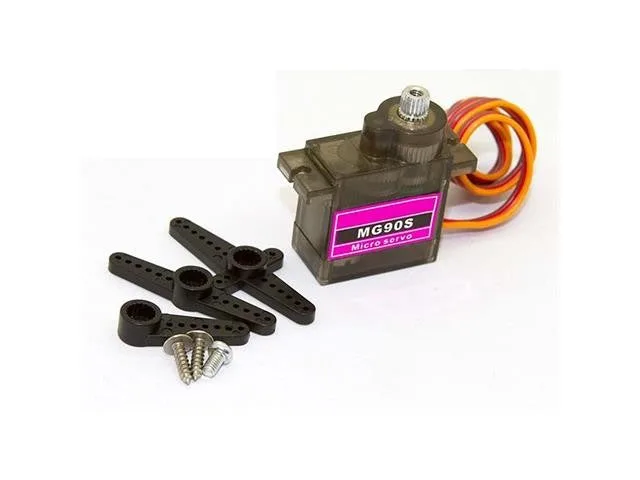

MG90S Metal Gear Micro Servo Motor, 4.8V–6.0V
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This compact and lightweight micro servo combines metal gearing with solid output torque for dependable motion in small spaces. It connects easily using standard servo code and libraries, eliminating the need to build separate motor controllers or gearboxes. Ideal for robotics enthusiasts, RC modellers, and students building automated mechanisms.
Durable metal gear construction
Built with metal gears for enhanced strength and durability, this micro servo provides high output power while remaining compact and lightweight.
Easy controller compatibility
The servo uses a standard JR style plug compatible with JR and Futaba connectors. It operates with standard servo libraries and hardware without requiring specialised motor controllers.
Included hardware
Each unit comes supplied with three servo horns and matching mounting hardware for straightforward assembly.
Versatile applications
Its compact dimensions make it well suited for RC aeroplanes, helicopters, quadcopters, and miniature robotics projects.
Downloads
Specifications
| Device | Micro Servo |
| Type | Metal Gear | RC | Micro Servo | MG90S |
| Gear Type | Metal gear |
| Servo Type | Digital |
| Weight | 13g |
| Dimension | 22.8×12×28.1mm |
| Stall Torque | 2.1kg/cm (4.8v) ; 2.5kg/cm (6.0V) |
| Operation Speed | 0.13sec/60degree (4.8V); 0.11sec/60degree (6.0V) |
| Operation Voltage | 4.8V~ 6.0V |
| Operation Current | 0.02A |
| Temperature Range | 0 °C - 55°C |
| Dead Band Width | 2us |
| Servo Plug | JR (Fits JR and Futaba) |
