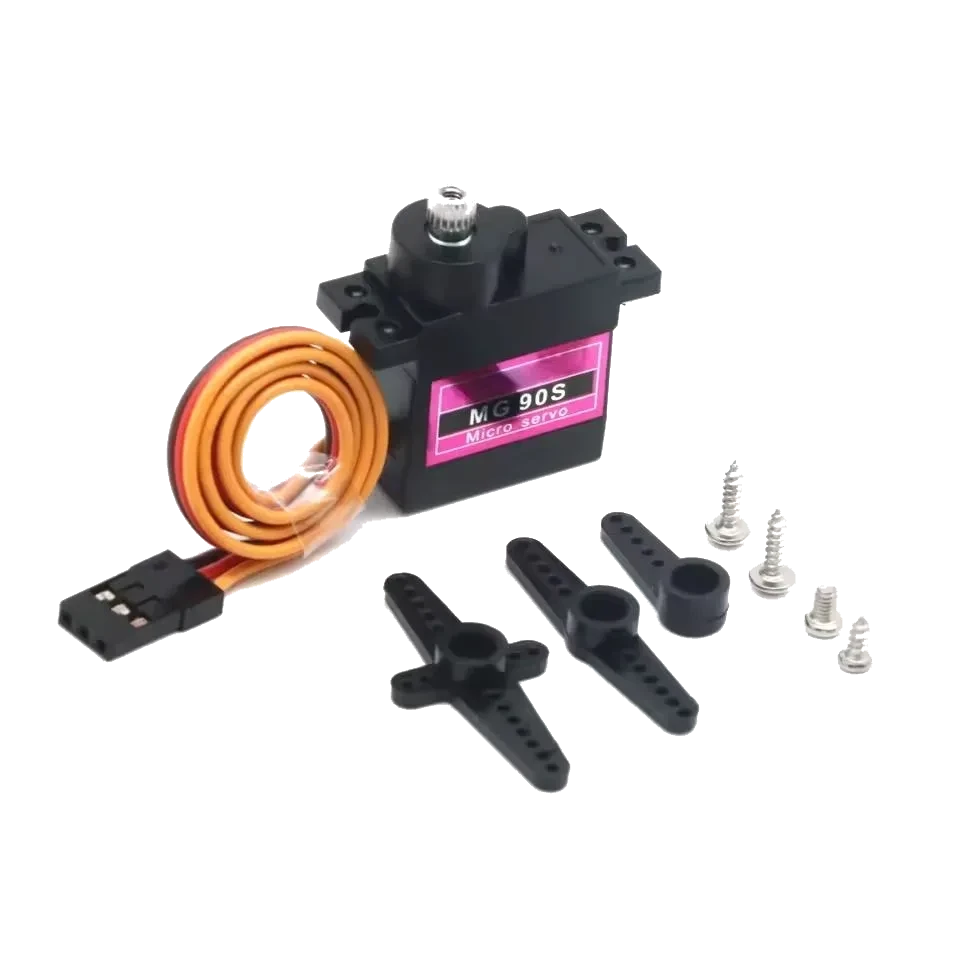

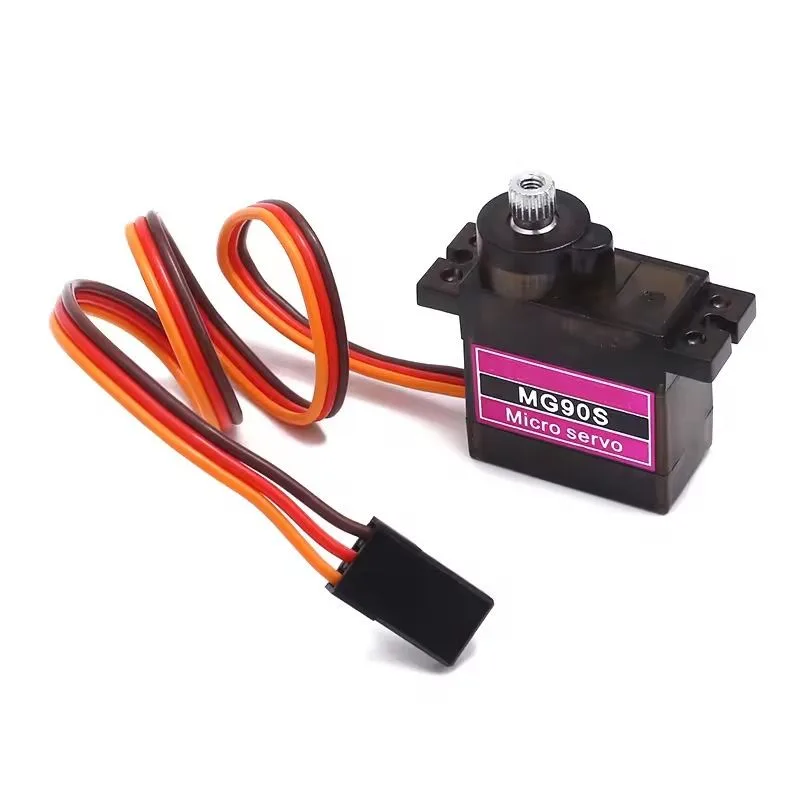

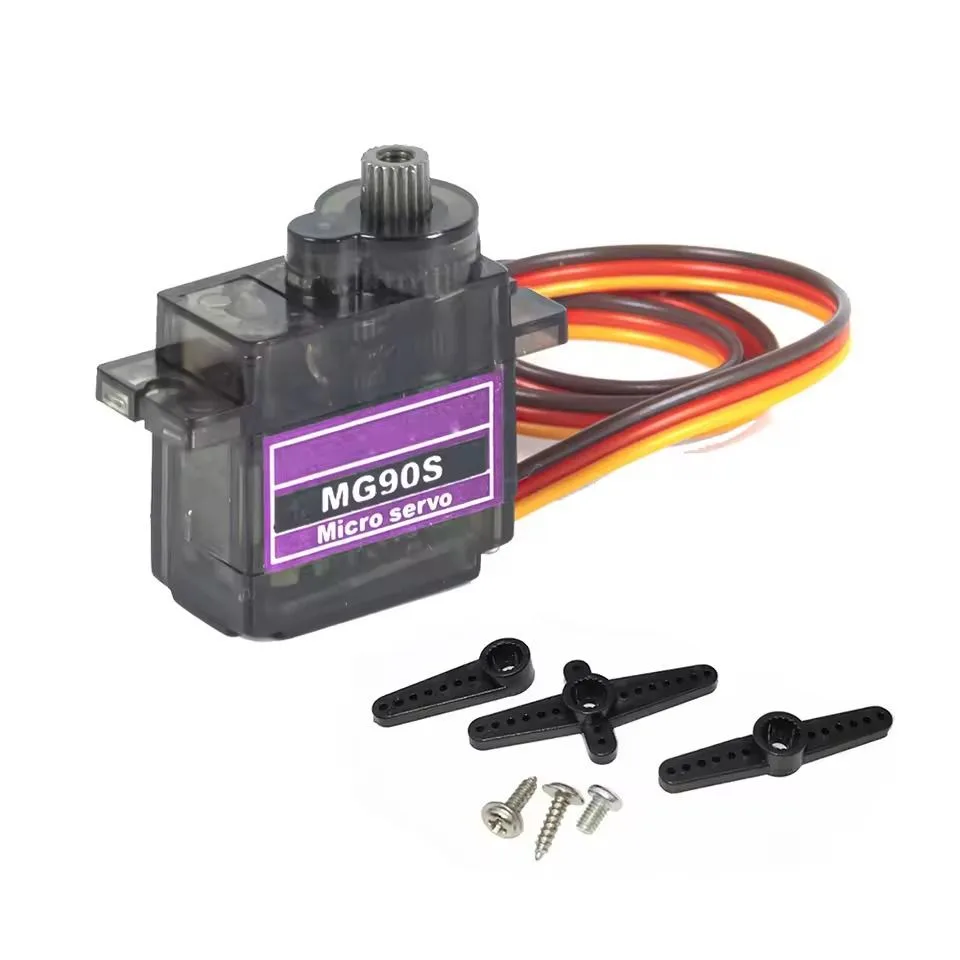

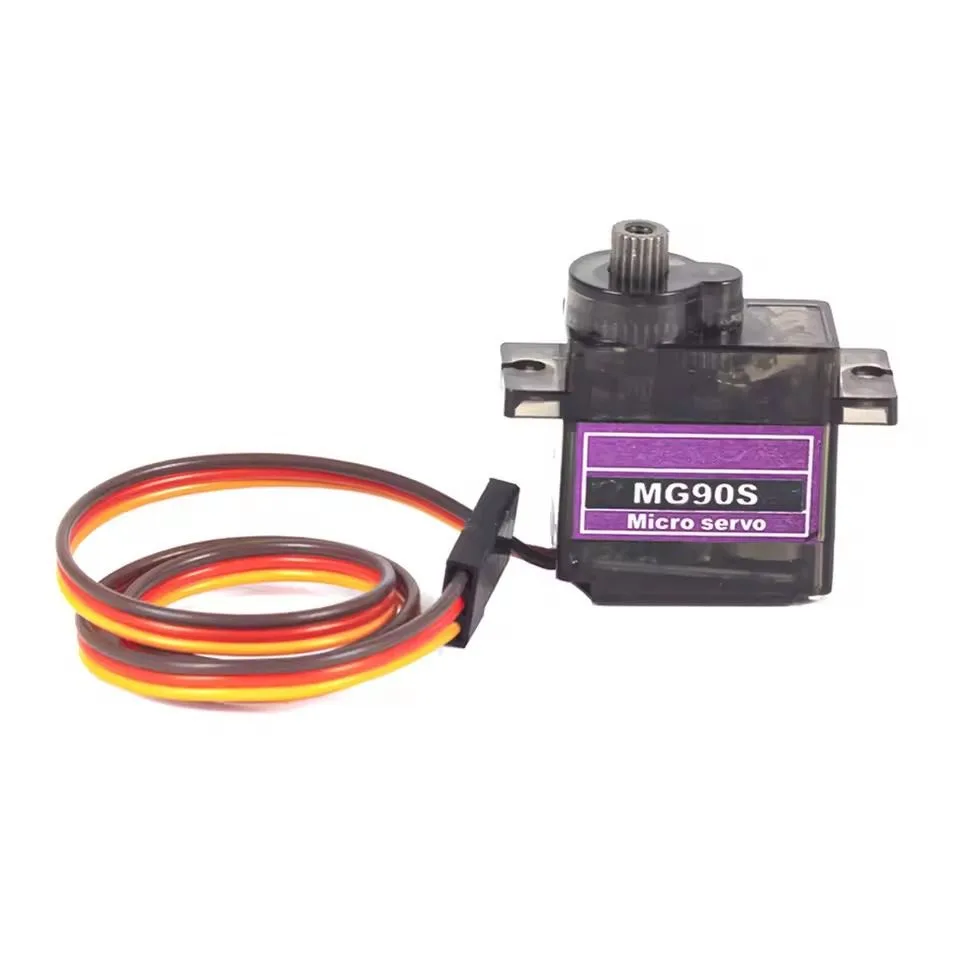

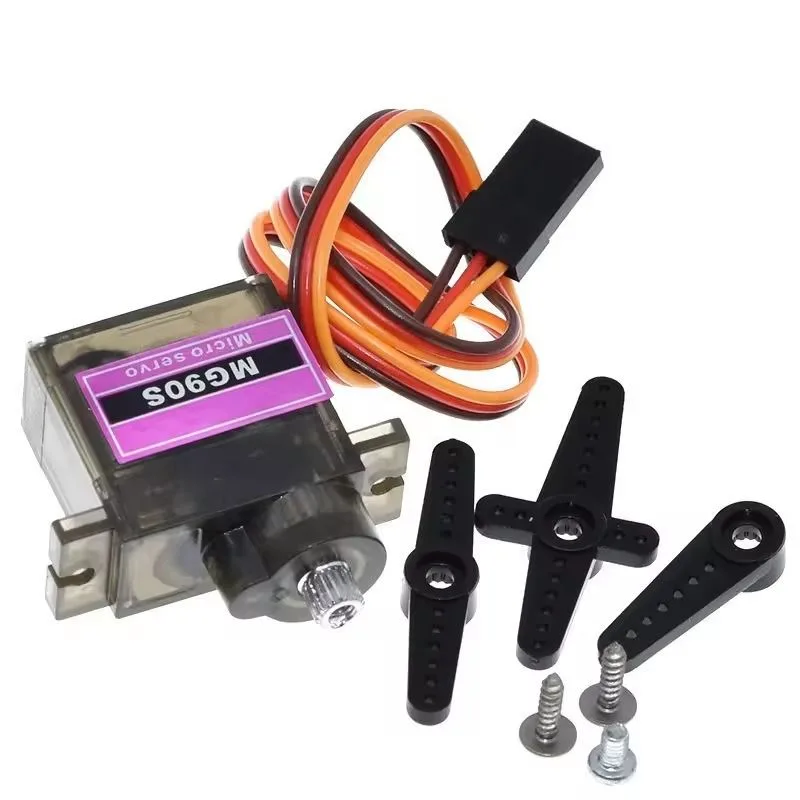

MG90S High Torque Metal Gear Micro Servo for RC Planes & Robots 180 Degrees

• Durable Metal Gears: Features high-quality metal gearing for increased strength and durability, preventing gear stripping during high-stress maneuvers or minor crashes.
• High Torque & Speed: Delivers a stall torque of 2.0kg/cm and a fast operating speed of 0.11s/60 (at 4.8V), ensuring precise and responsive control.
• Double Ball Bearings: Equipped with dual ball bearings to reduce friction, providing smoother operation and a longer lifespan compared to standard plastic servos.
• Universal Compatibility: Uses a standard JR/Futaba universal plug, making it compatible with most RC receivers and micro-controllers like Arduino and Micro:bit.
• Lightweight & Compact: Weighing only 13.6g, this micro servo is perfect for weight-sensitive applications like 450-class helicopters and small RC aircraft.
• Versatile Application: Ideal for RC helicopter swashplates, fixed-wing airplanes, gliders, and DIY robotics projects.

• Precision Control for Your Hobby ProjectsThe MG90S Metal Gear Micro Servo is a popular upgrade from the standard plastic-gear SG90. Designed for enthusiasts who demand more reliability, the full metal gear train ensures that your control surfaces or robotic joints stay precise and robust even under pressure.
• Built for Performance Whether you are performing 3D stunts with a 450-size helicopter or building a complex bipedal robot, the MG90S offers the perfect balance of weight, speed, and torque. Its coreless motor and double ball bearing design provide the smooth, jitter-free performance required for high-precision tasks.
• Easy Integration With its compact form factor and 30cm long connector cable, this servo is easy to mount in tight spaces. It integrates seamlessly with popular hobby hardware and STEM expansion boards (like Robotbit), making it a go-to choice for both hobbyists and educators.

• Model: MG90S
• Weight: 13.6g
• Dimensions: 22.8mm x 12.2mm x 28.5mm
• Stall Torque: 2.0kg/cm (at 4.8V)
• Operating Speed: 0.11s / 60 degrees (at 4.8V)
• Operating Voltage: 4.8V - 6.0V
• Gear Type: Metal Gears
• Motor Type: Coreless
• Dead Band Width: 5 s
• Operating Temperature: 0 C - 55 C
• Plug Type: JR / Futaba Universal

What's in the box
1 x MG90S Metal Gear Micro Servo - 180 Degree (with 30cm Cable)
3 x Plastic Servo Horns (Rocker Arms)
1 x Set of Mounting Screws
