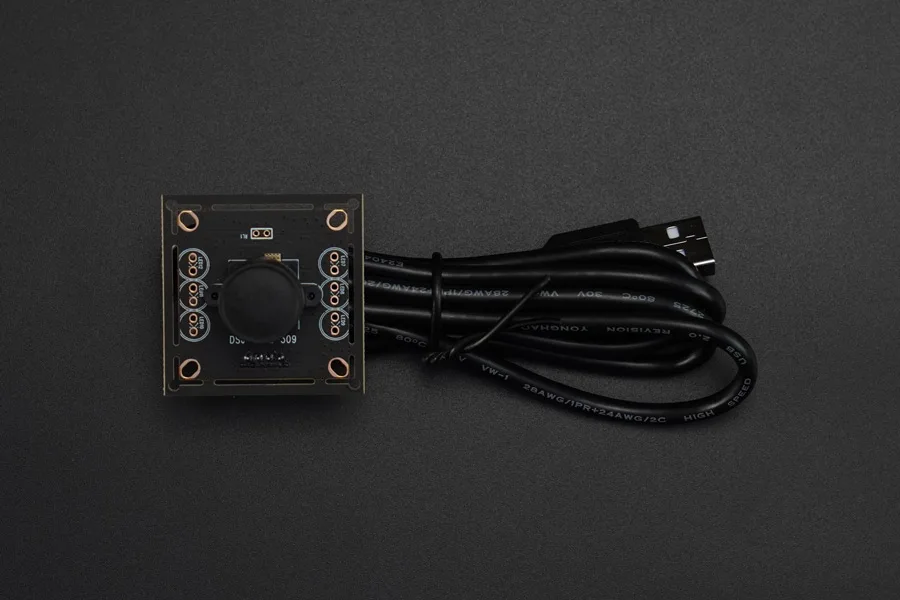

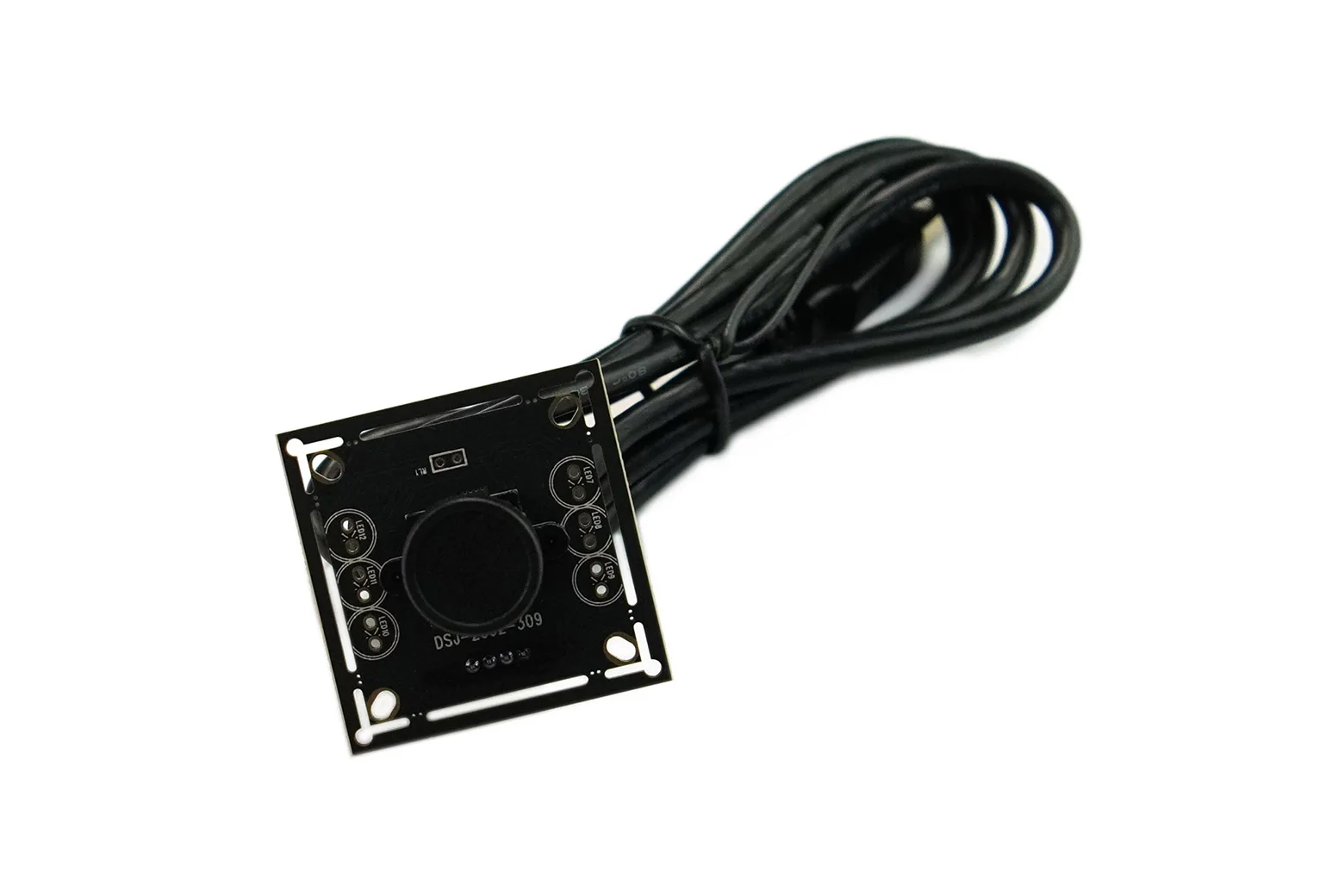

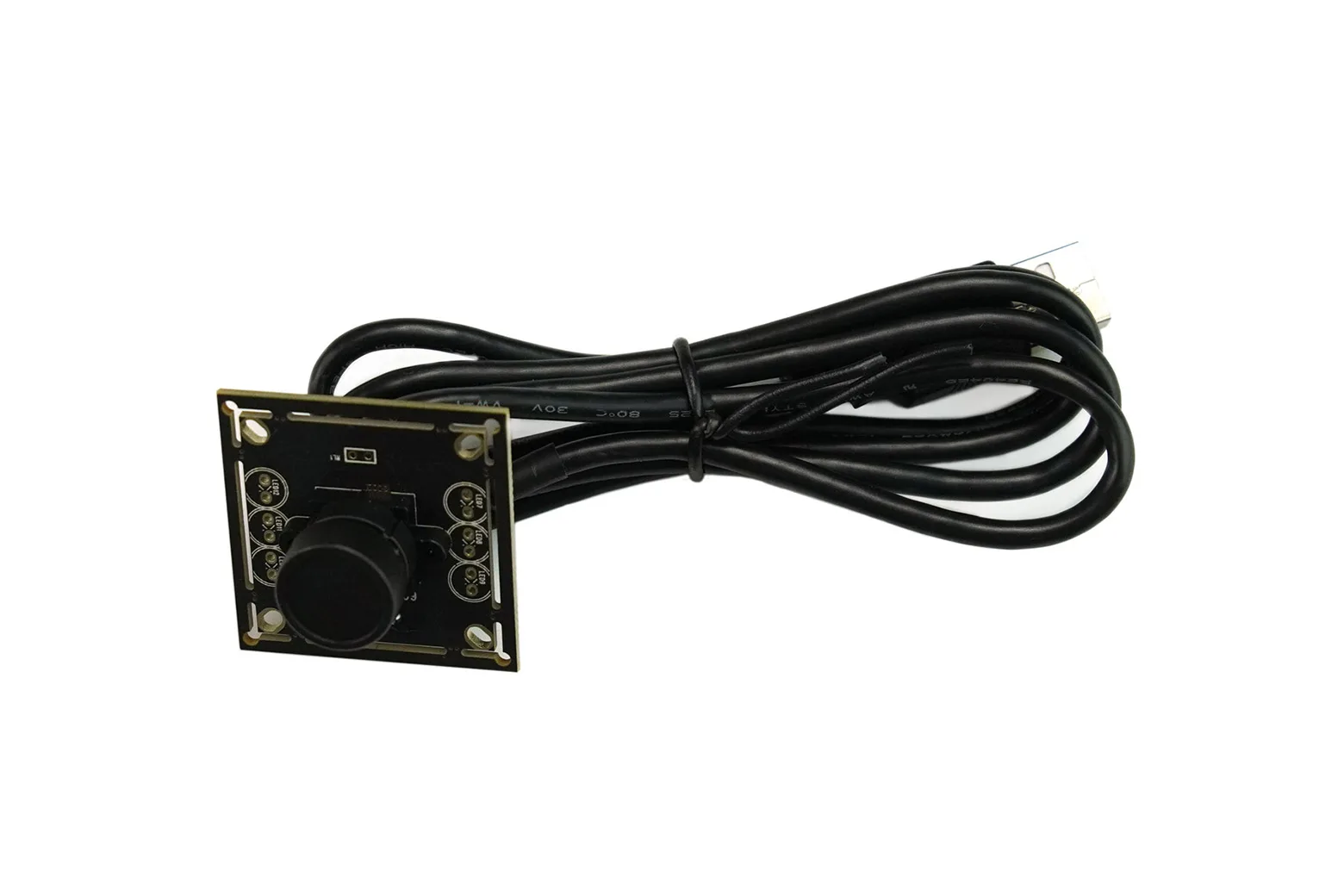

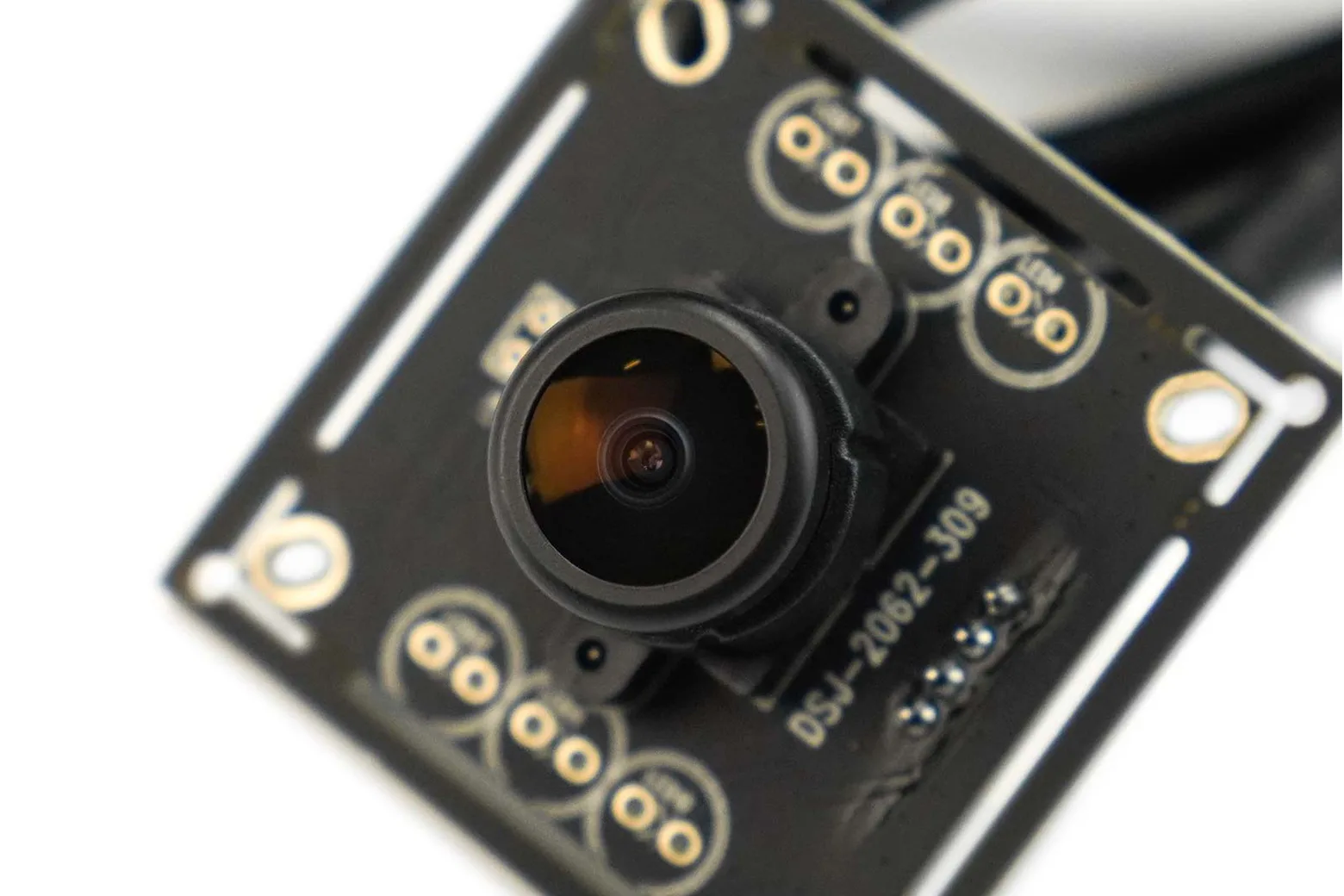

Megapixel 720p USB Wide-angle Camera for Raspberry Pi and NVIDIA Jetson Nano

This 720p USB camera module provides a 140-degree wide-angle field of view and high-definition video capture for embedded robotics and computer vision projects. It is an ideal plug-and-play solution for makers, students, and developers building on Raspberry Pi, NVIDIA Jetson Nano, or standard operating systems.

Wide 140-degree field of view

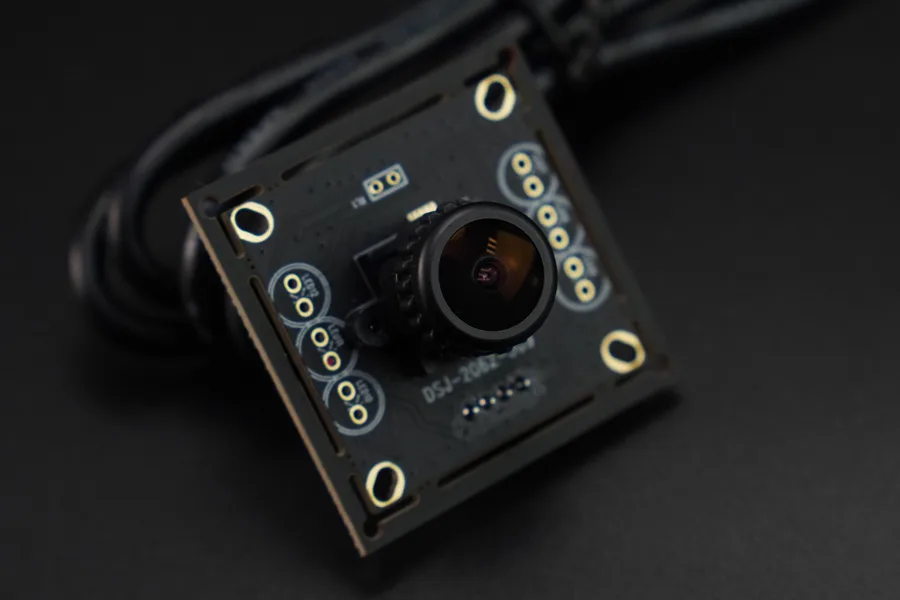

Featuring a 1/4-inch sensor with a 1280x720 maximum resolution, this camera captures expansive scenes with its 140-degree lens. It is well suited for image recognition, facial tracking, security monitoring, and remote teaching applications.

Driver-free UVC plug and play

The camera utilises standard USB Video Class protocol over a USB 2.0 connection for driverless setup. It works seamlessly across Linux, Windows, Android, and iOS, providing out-of-the-box compatibility with Raspberry Pi and NVIDIA Jetson boards.

Compact design for embedded builds

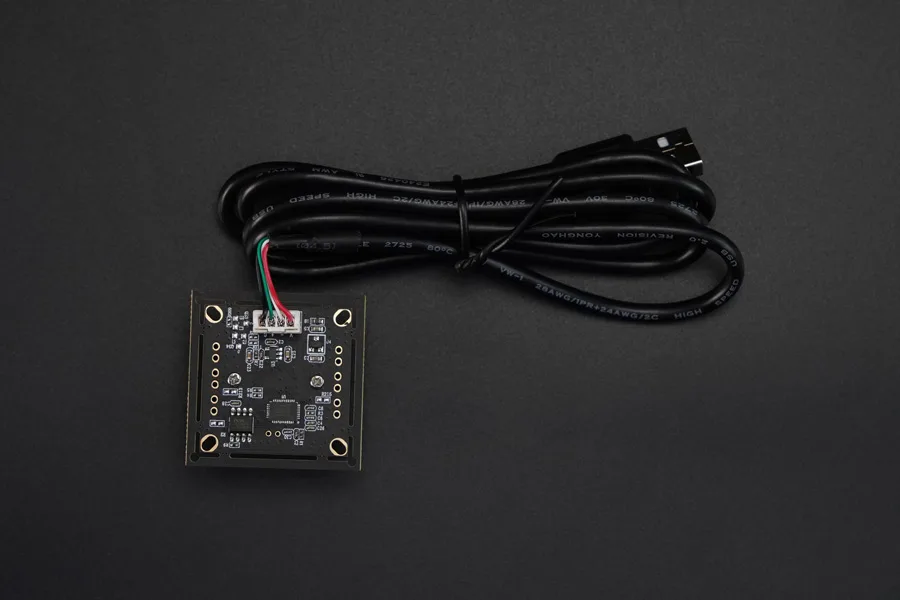

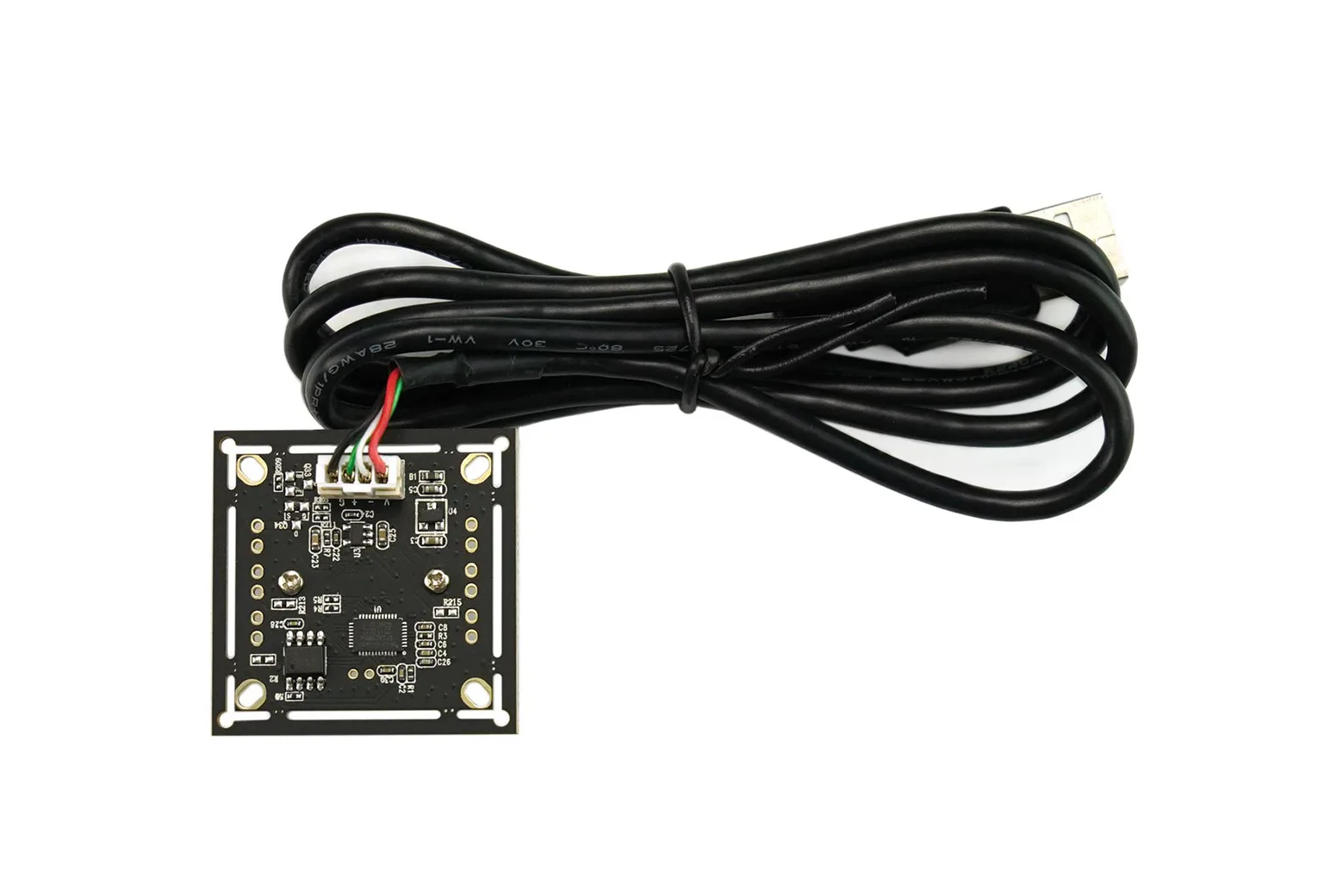

Measuring 38mm by 38mm with mounting compatibility for 32mm by 32mm layouts and weighing approximately 30g, the module fits neatly into tight enclosures. Power is supplied directly via a 4-pin 2.0mm USB bus connector at 5V DC.

Onboard image correction and control

The module features automatic exposure control, auto white balance, and automatic gain control alongside lens and defective pixel correction. Users can also adjust parameters including brightness, contrast, hue, saturation, sharpness, and gamma.

Night vision and video output options

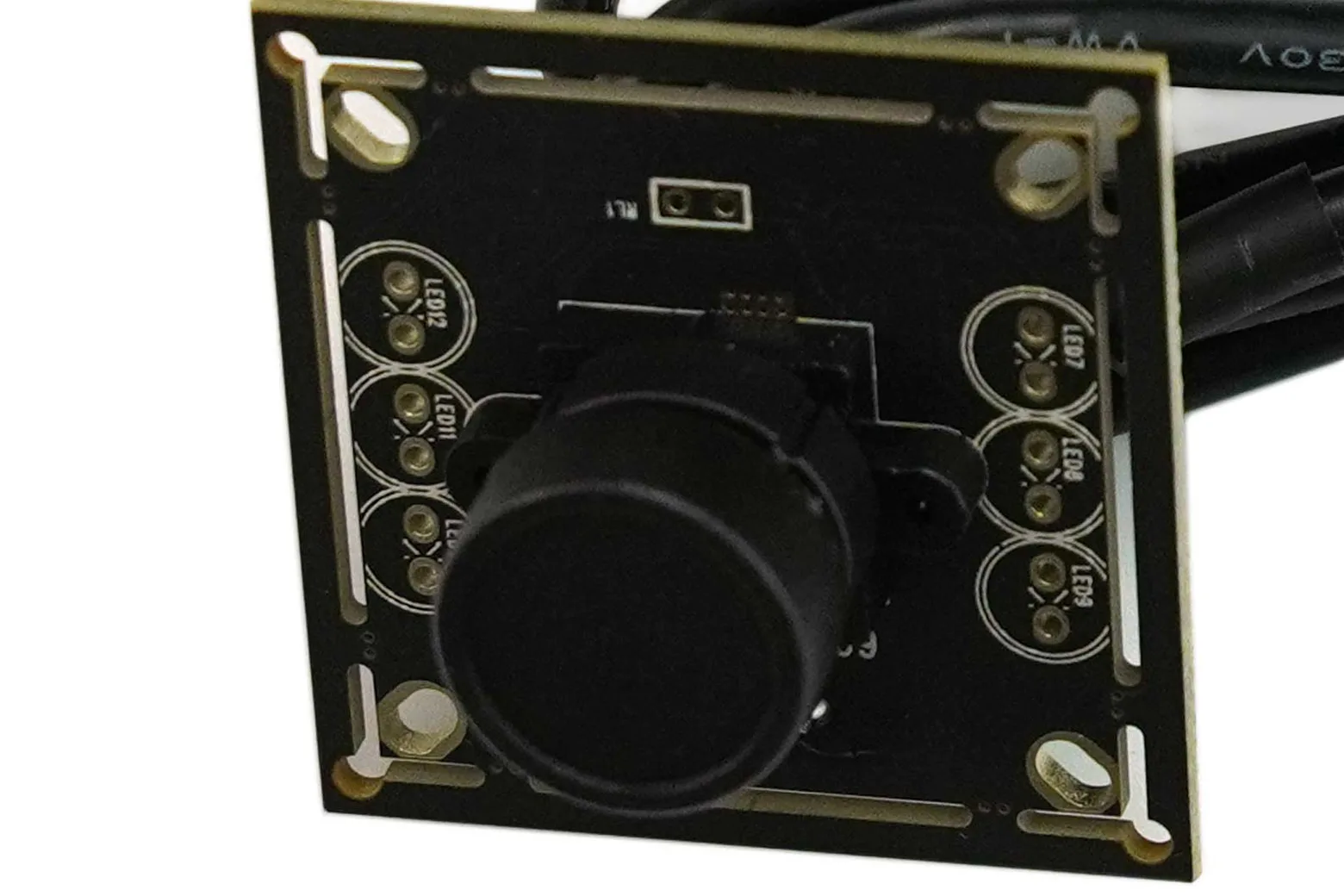

It supports MJPEG output up to 720p at 25 frames per second as well as YUV2 formats. It also includes a dedicated 2-pin 2.0mm power interface for infrared light boards, enabling night vision capability when paired with an IR lens.
