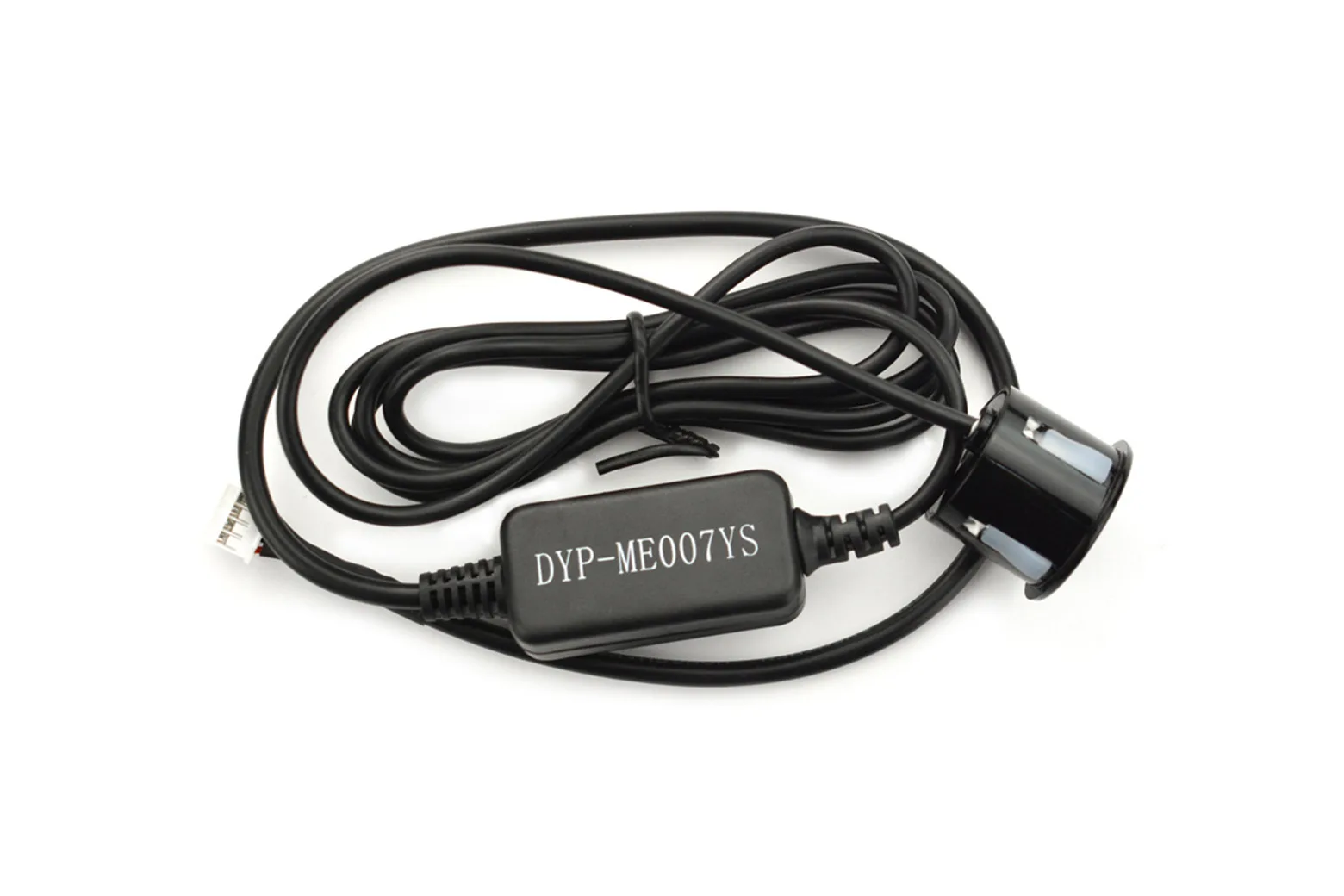

ME007YS Waterproof Ultrasonic Distance Sensor (28~450cm, UART, IP67)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The ME007YS is an industrial-grade waterproof and dustproof ultrasonic distance sensor with a 28cm to 450cm detection range and UART output. Operating at 5V with IP67 protection, it penetrates dust and smog to deliver steady readings for robotics, vehicle proximity systems, and outdoor maker projects using Arduino or Raspberry Pi.

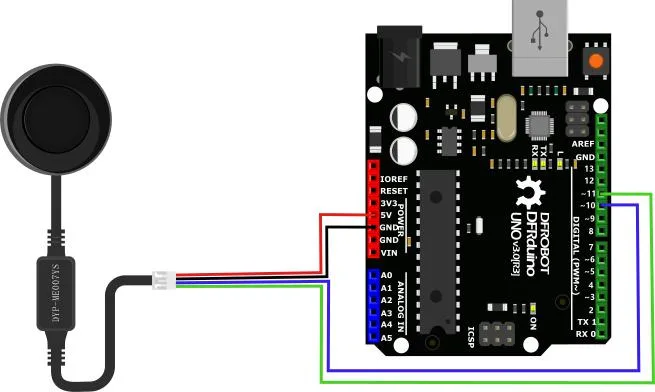

Seamless Arduino integration
The sensor connects straightforwardly to Arduino controllers over an asynchronous serial UART interface running at 9600 baud. Onboard signal processing calculates distances internally, allowing your microcontroller to read measurements directly.

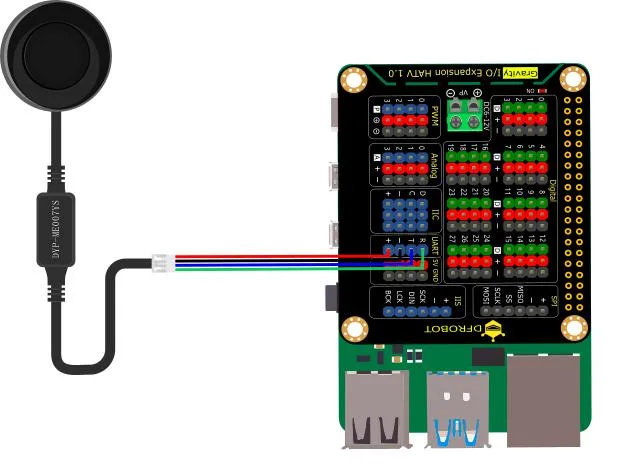

Raspberry Pi and MCU compatibility
With its standard serial communication and 100ms duty cycle, the module interfaces smoothly with Raspberry Pi boards and other upper-host controllers. This direct serial output simplifies software development and shortens prototyping time.
Versatile sensing applications
Offering a 28cm to 450cm detection range with plus-minus 1cm accuracy, this sensor suits obstacle-avoiding robots, backing-car annunciators, and object proximity detection systems.

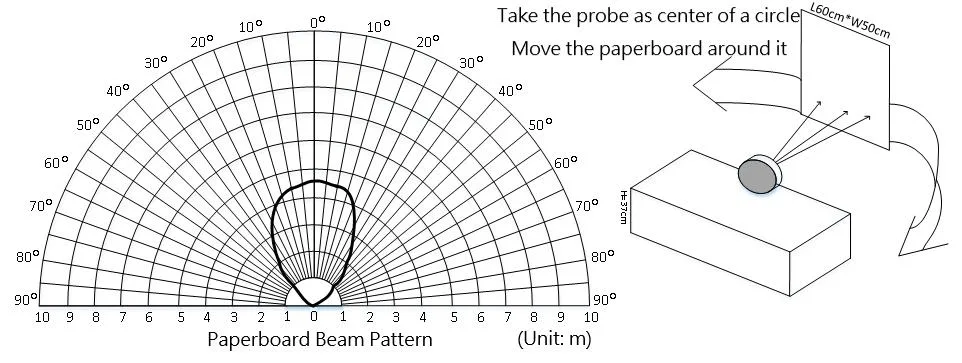

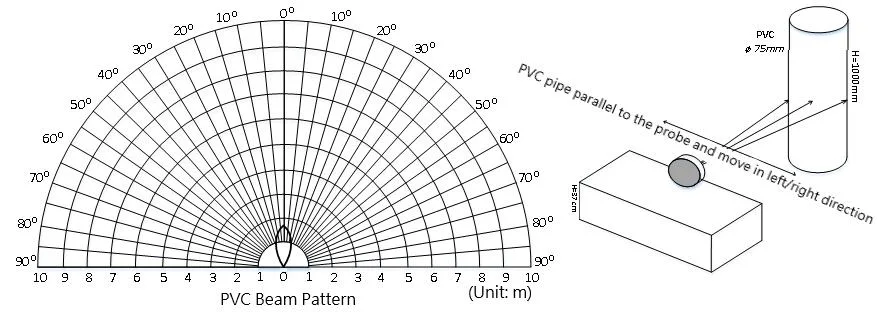

Targeted acoustic beam directionality
Driven by a 40kHz probe frequency, the transducer provides stable distance data along a defined beam pattern. The ultrasonic pulse maintains reliable target tracking even in the presence of smog and ambient dust.

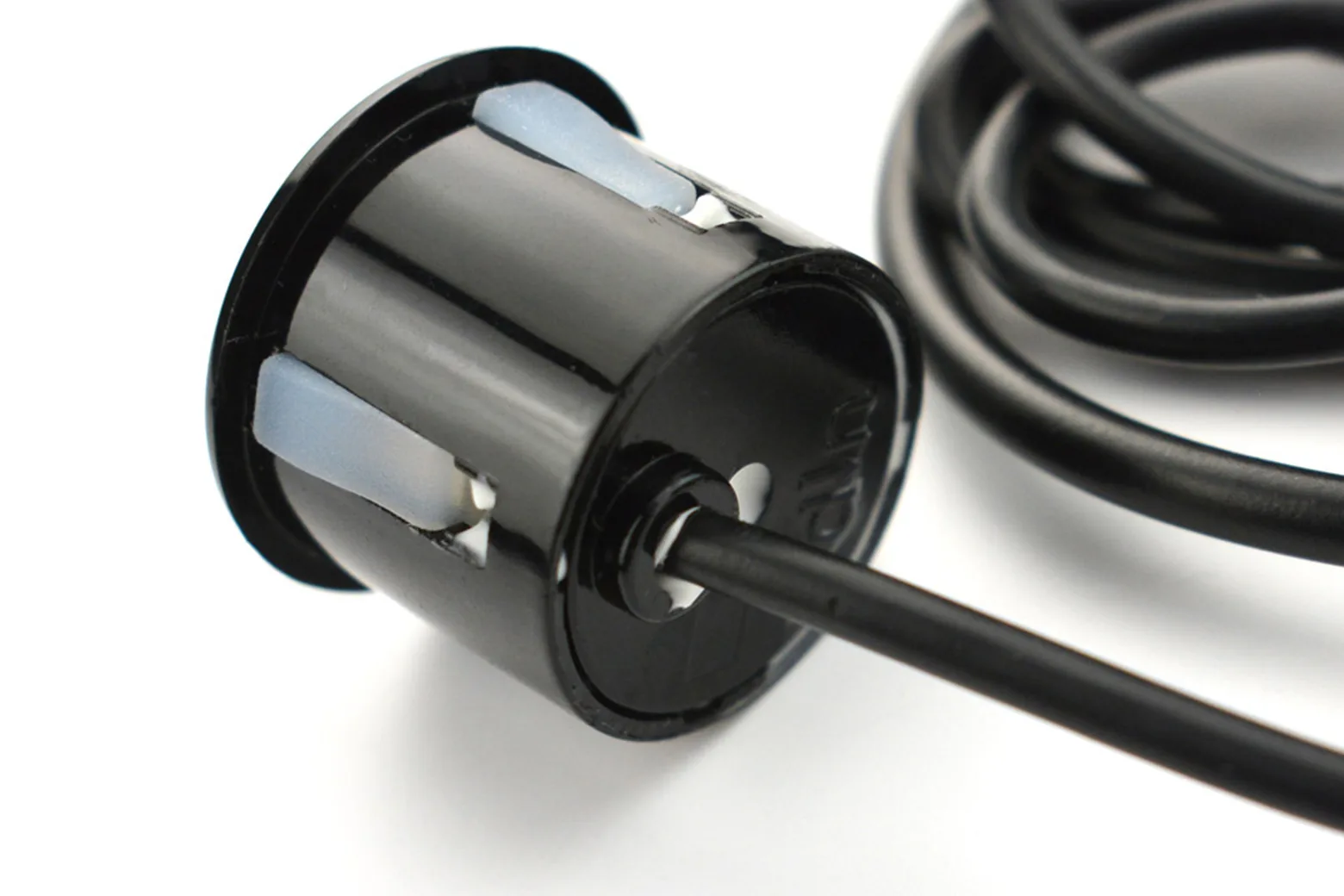

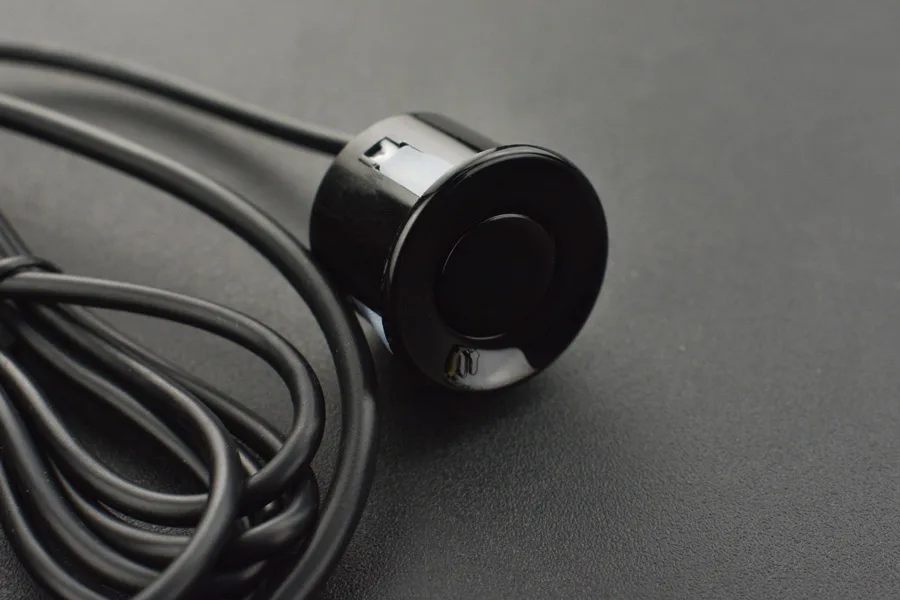

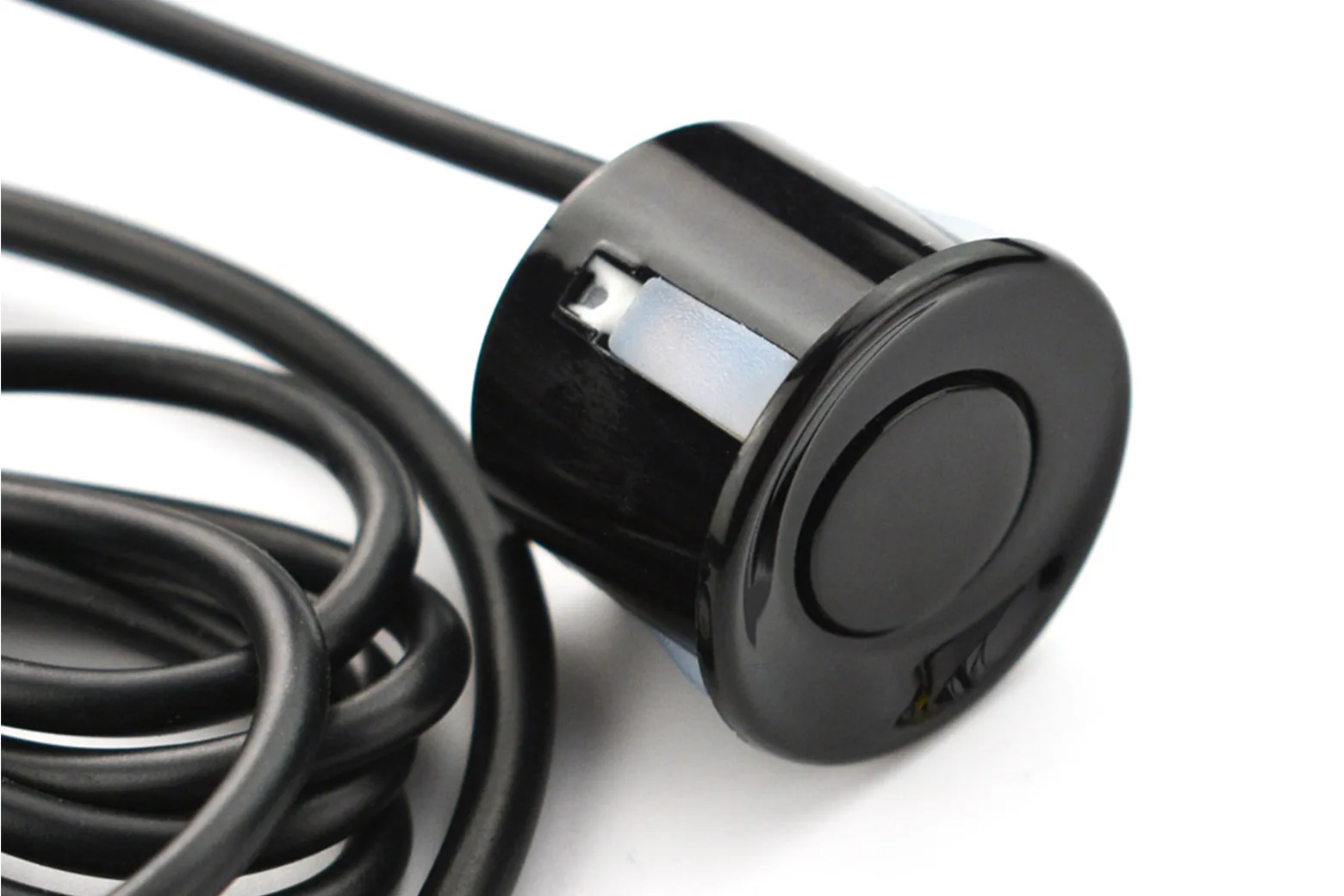

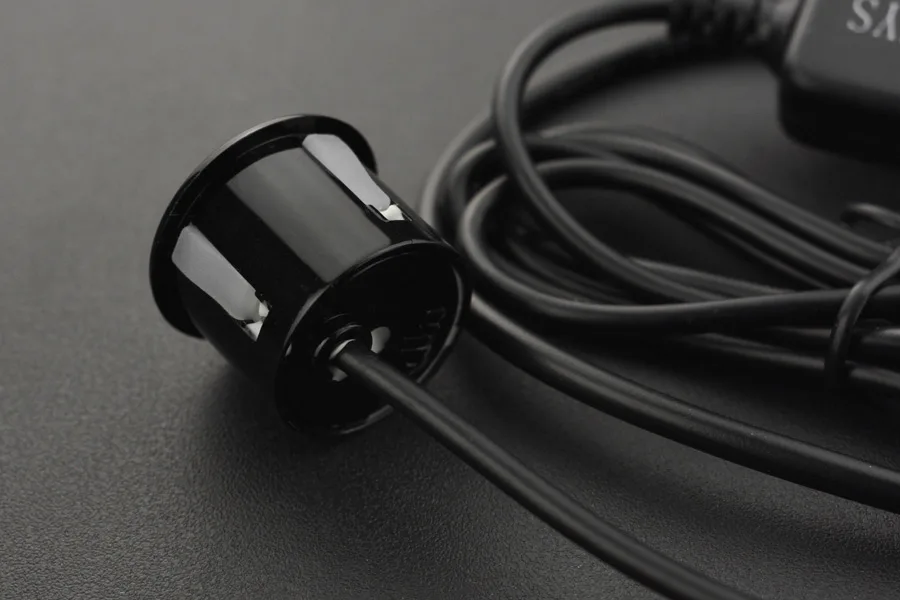

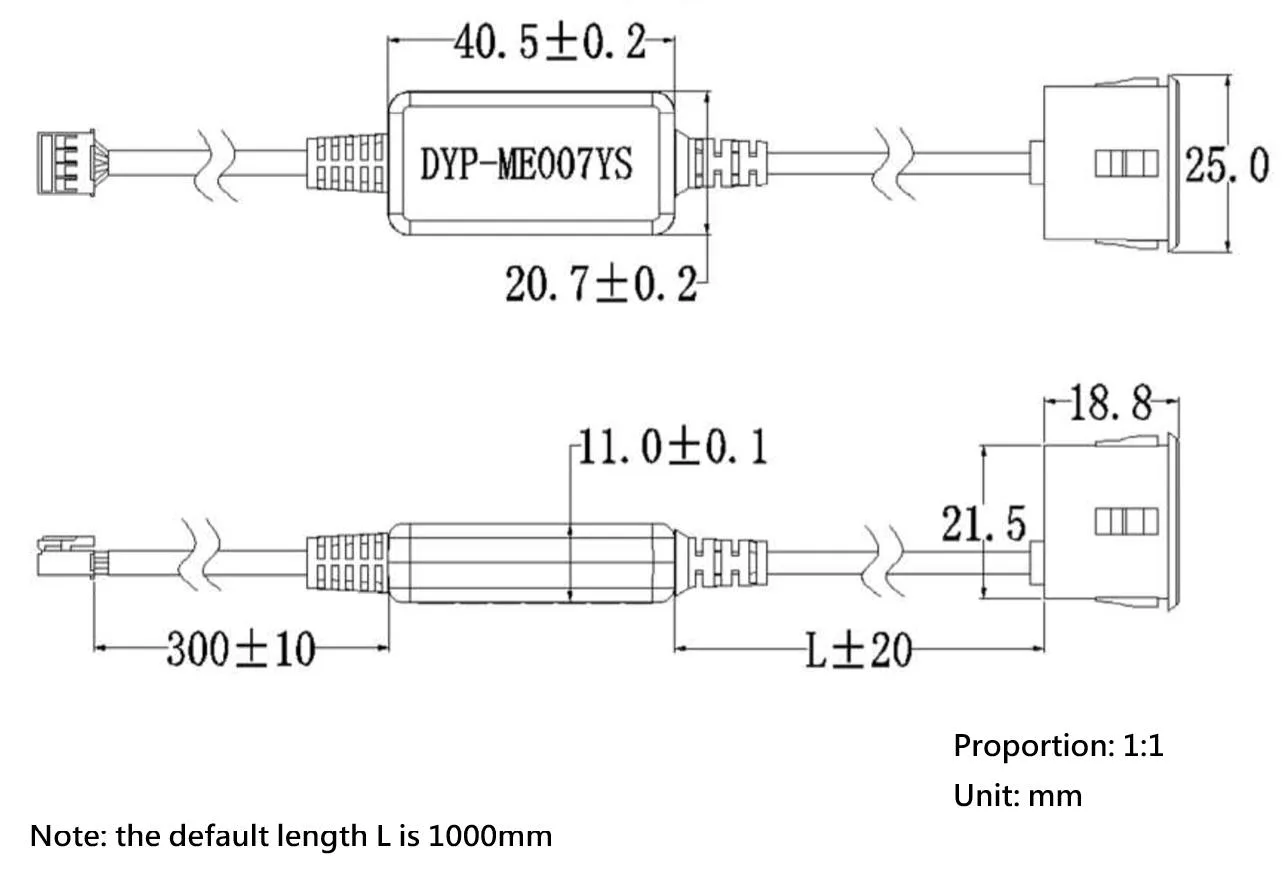

Durable IP67 waterproof housing
The module integrates an enclosed transmitter and receiver probe inside a sealed, dustproof, and IP67 waterproof enclosure. It operates reliably between -15 degrees Celsius and 60 degrees Celsius with a peak current draw of 50mA or less at 5V.

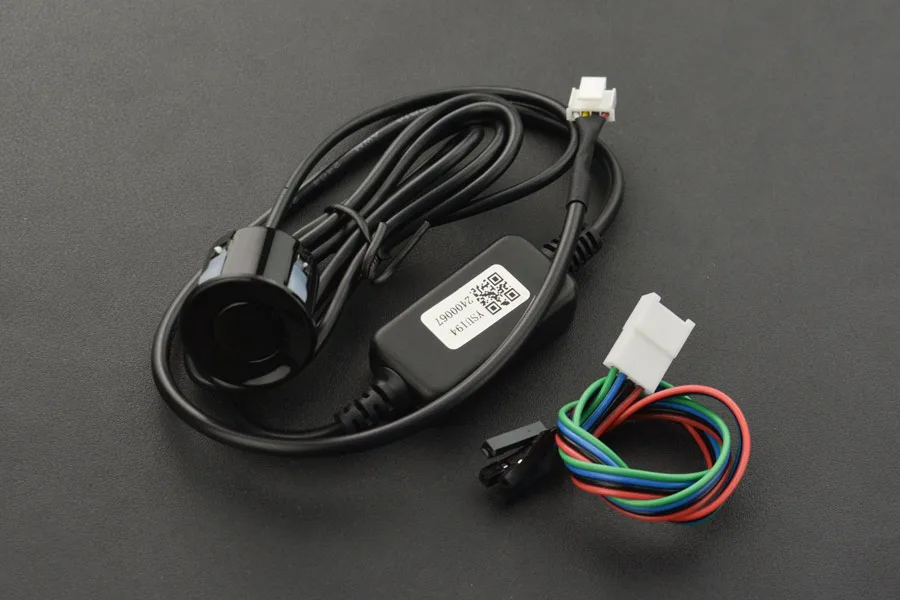

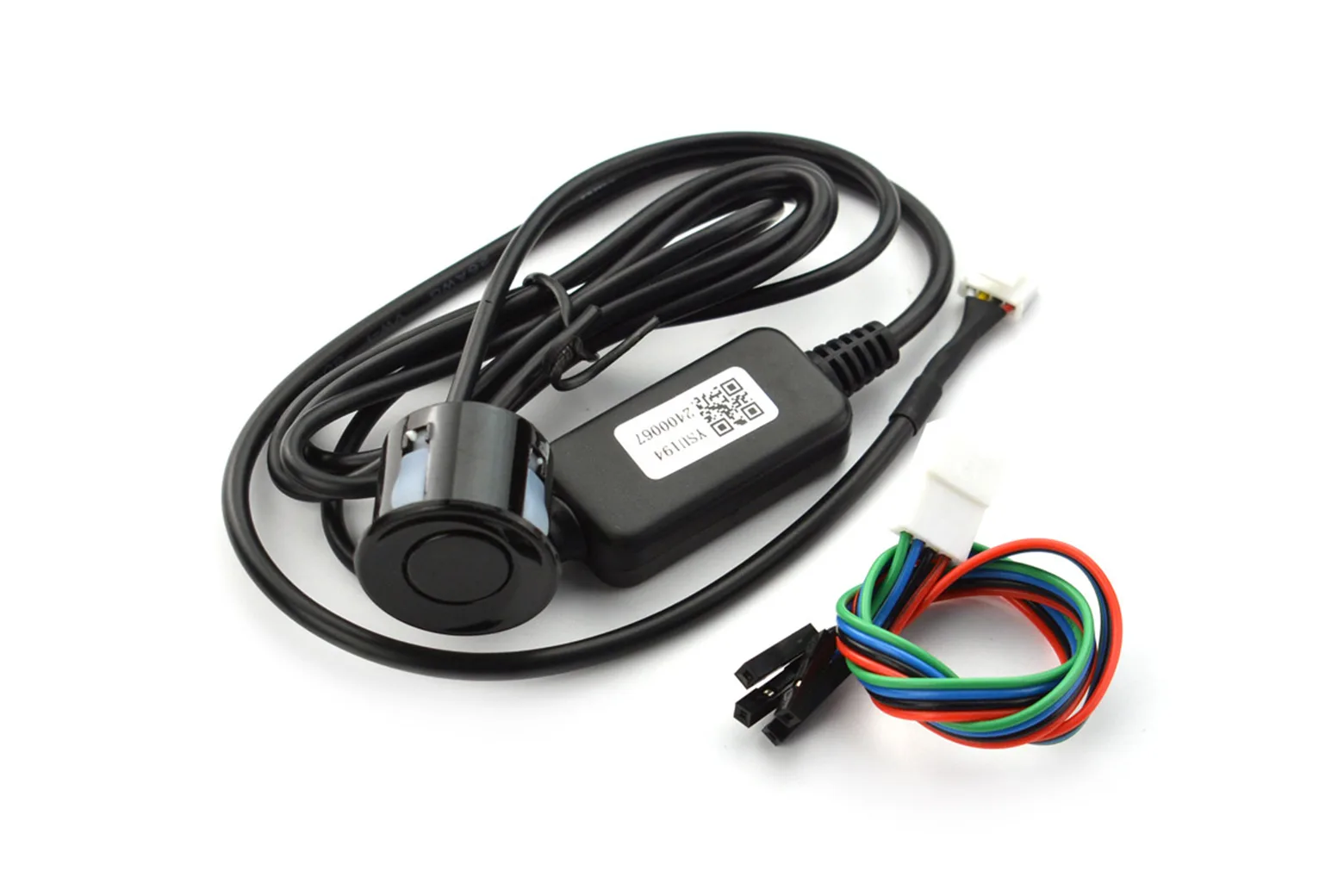

Package contents
The package includes one ME007YS waterproof ultrasonic sensor and one PH2.0-4P connector cable.
Downloads & documentation
Specifications
| Accuracy | ±1cm |
| Operating Voltage | 5V |
| Peak Current | ≤50mA |
| Blind Zone Distance | 28cm |
| Detection Range (Flat Object) | 28-450cm |
| Output | UART |
| Duty Circle | 100ms |
| Probe Center Frequency | 40K±1.0KHZ |
| Operating Temperature | -15~60℃ |
| Storage Temperature | -25~80℃ |
| Operating Humidity | ≤80% |
| Storage Humidity | ≤90% |
| Waterproof Grade | IP67 |
In the box
| ME007YS Waterproof Ultrasonic Sensor | 1 |
| PH2.0-4P Connector | 1 |
