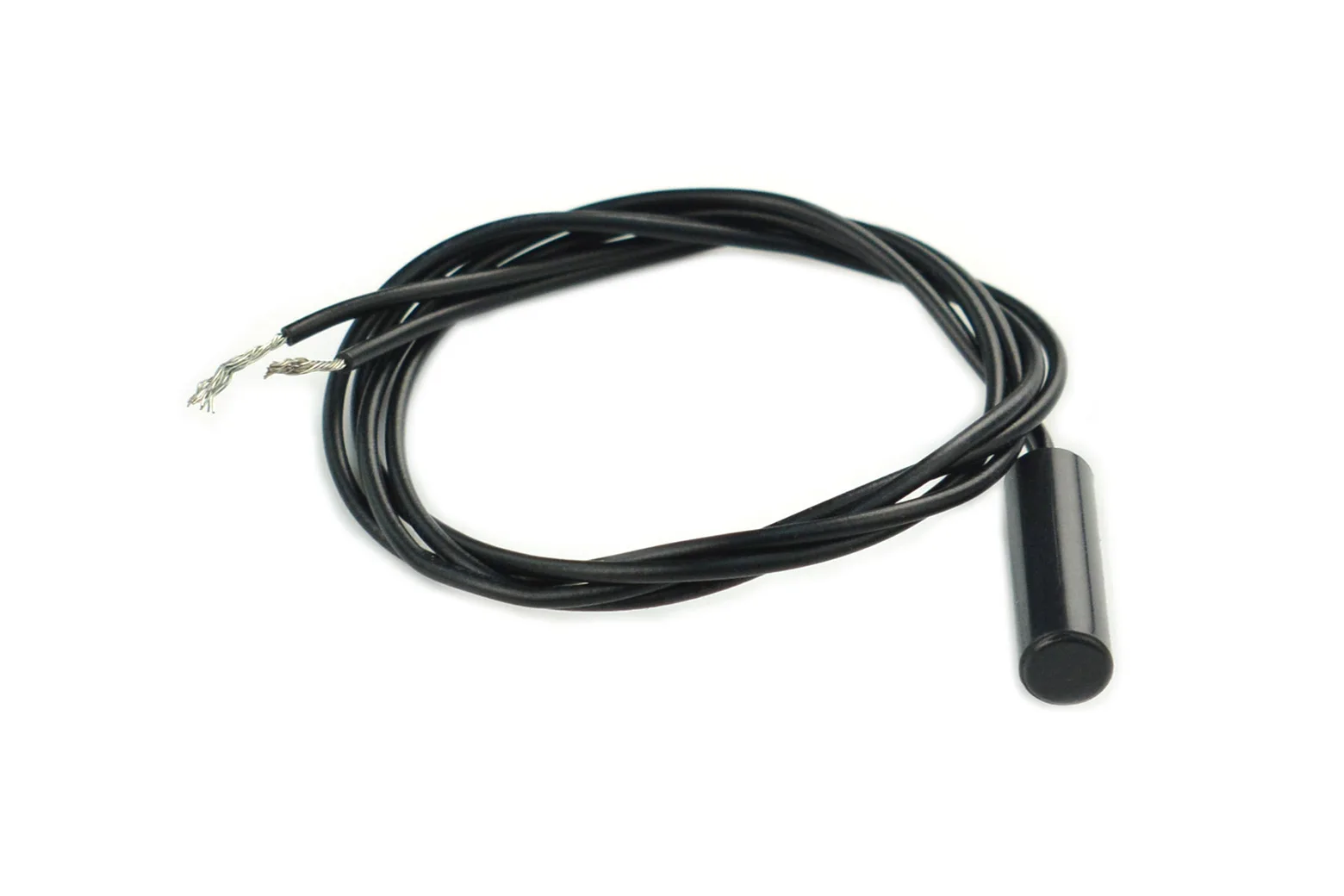

Magnetic Contact Switch Sensor for Arduino

The Magnetic Contact Switch Sensor is a compact reed switch module designed to detect object presence and movement using magnetic fields. It is ideal for makers, students, and hobbyists creating security systems, door monitors, and automation projects with microcontrollers like Arduino.

Magnetic reed sensing mechanism

The switch consists of two iron and nickel reeds separated by a small gap inside a plastic housing. When an external magnetic field enters within a 2cm range, the reeds make contact and conduct to output a switching value signal.

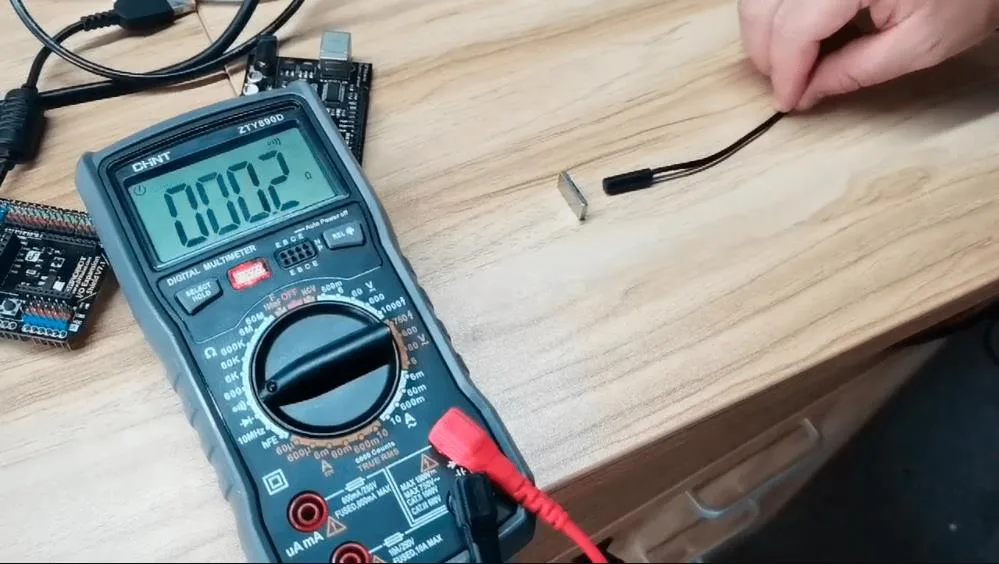

Hermetically sealed construction

The internal switching elements are sealed inside an inert gas atmosphere to isolate them completely from the environment. This protective design prevents corrosion and ensures a long operational service life.

Compact lightweight footprint

With dimensions of 6 by 20 by 350mm and minimal weight, the sensor fits easily into tight spaces. This makes it suitable for miniaturised equipment and low-profile installations.

Wide operating voltage support

The switch supports an operating range from 0 to 100V DC. This broad voltage tolerance provides flexibility across various microcontrollers and custom electronic circuits.

Broad application compatibility

This sensor is suited for door and window position limiting, proximity detection, measuring instruments, and smart home automation. It provides straightforward state detection for security and transportation setups.

Included connection accessories

The set comes with one magnetic switch, one sensor adapter, and one sensor data cable. These components allow for quick and easy integration into your development setup.
