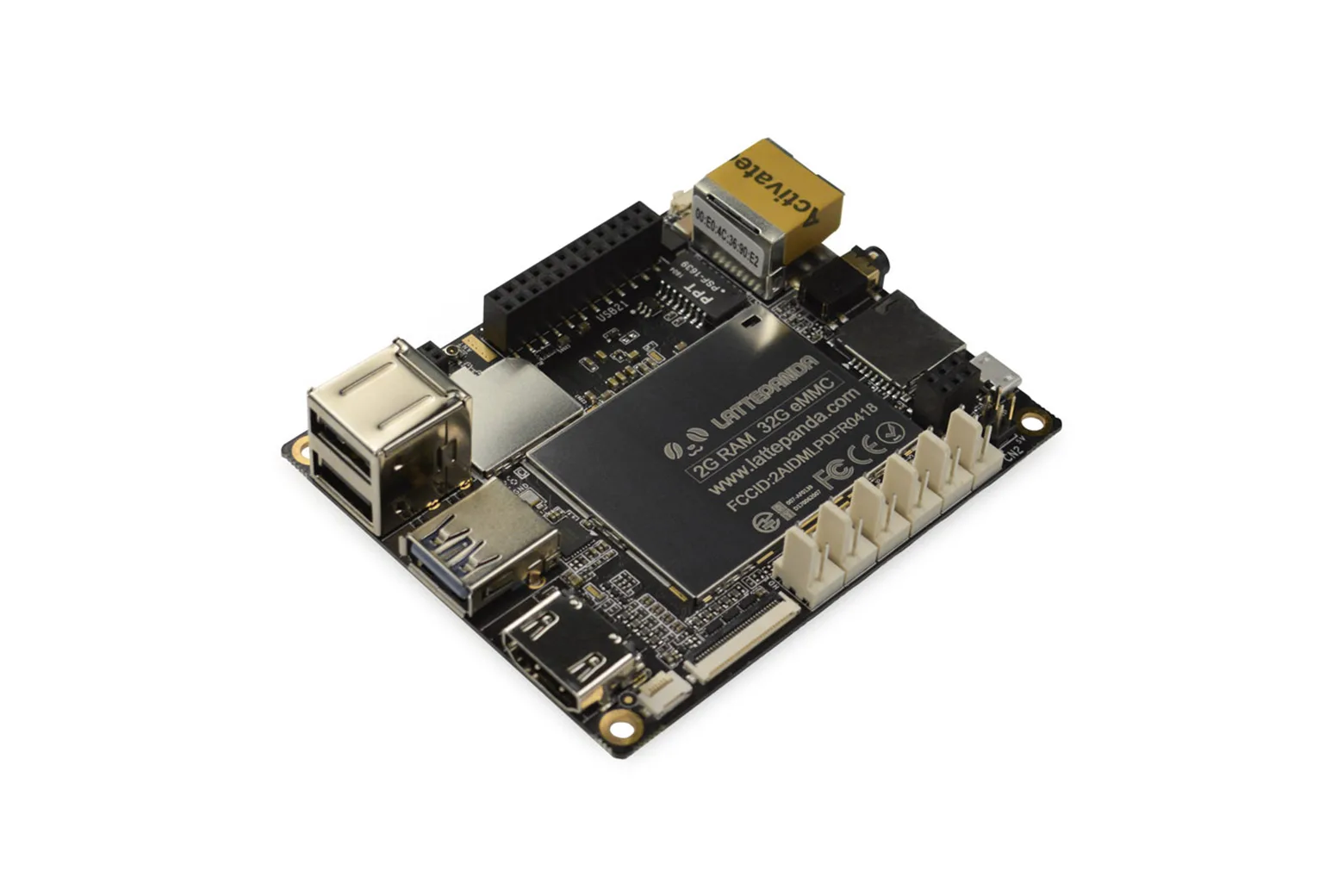

LattePanda V1 - The Smallest Windows 10 Single Board Computer with Win10 Home License (2GB/32GB)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The LattePanda V1 is a pocket-sized x86 single board computer powered by a quad-core Intel Cherry Trail Z8350 processor and supplied with an activated 64-bit Windows 10 Home licence. Equipped with 2GB DDR3L RAM, 32GB onboard storage, and an integrated ATmega32u4 Arduino co-processor, it combines desktop operating capability with direct hardware interfacing. It is an ideal platform for makers, educators, and engineers building embedded systems, IoT gateways, and robotics projects.
Quad-core x86 desktop performance
Powered by an Intel Cherry Trail Z8350 processor running up to 1.92GHz burst frequency, this board delivers standard x86 software execution in a compact 88mm by 70mm form factor. The architecture offers broad peripheral driver support and processing capability for portable instruments and smart devices.

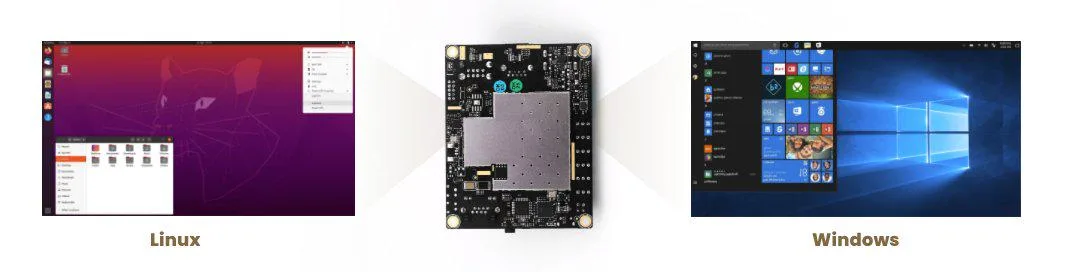

Windows 10 and Linux operating support
The board comes with a pre-activated Windows 10 Home 64-bit licence and also supports Linux distributions. This versatility allows developers to run standard graphical applications, standard Windows desktop software, or lightweight Linux microservices.

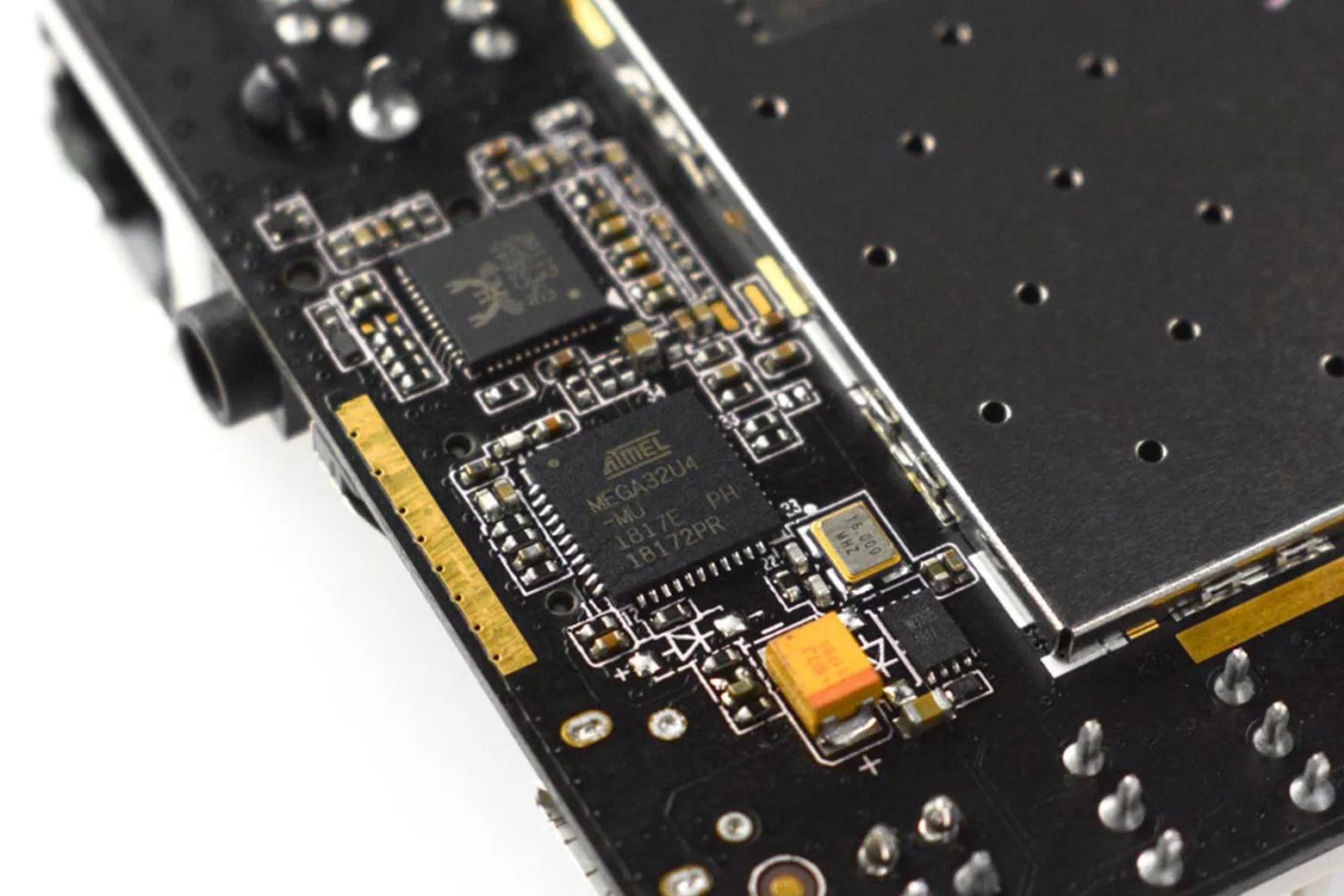

Integrated Arduino Leonardo co-processor
An onboard ATmega32u4 microcontroller provides 20 dedicated GPIO pins alongside 6 Intel processor GPIOs. It includes six Gravity interface connectors to enable direct, plug-and-play wiring of external sensors, actuators, and robotics modules.
Extensive peripheral connectivity
The board features one USB 3.0 port, two USB 2.0 ports, 100Mbps Ethernet, 2.4GHz 802.11n Wi-Fi, and Bluetooth 4.0. Display outputs include full-size HDMI and MIPI-DSI, complemented by an onboard touch panel connector.
Low-power fanless operation
Operating on a 5V/2A power supply with a thermal design power of just 2W, the board generates minimal heat during standard tasks. This low power consumption allows for near-silent, fanless operation, extending hardware longevity in continuous embedded installations.
Certified for embedded integration
Designed for reliable long-term deployment, the board has obtained CE, FCC, KC, and RoHS certifications. These compliance standards ensure device safety, structural reliability, and smoother certification pathways for commercial assemblies.
Specifications
| Base Frequency | 1.44GHz (1.92GHz Burst Frequency) |
| Operating System | Windows 10 Home Edition |
| RAM | 2GB DDR3L |
| Storage Capacity | 32GB |
| GPU | Intel HD Graphics, 12 EUs @200-500Mhz, single-channel memory |
| Integrated Arduino Co-processor | ATmega32u4 (Arduino Leonardo) |
| Video output | HDMI and MIPI-DSI |
| Voltage | 5V@2A |

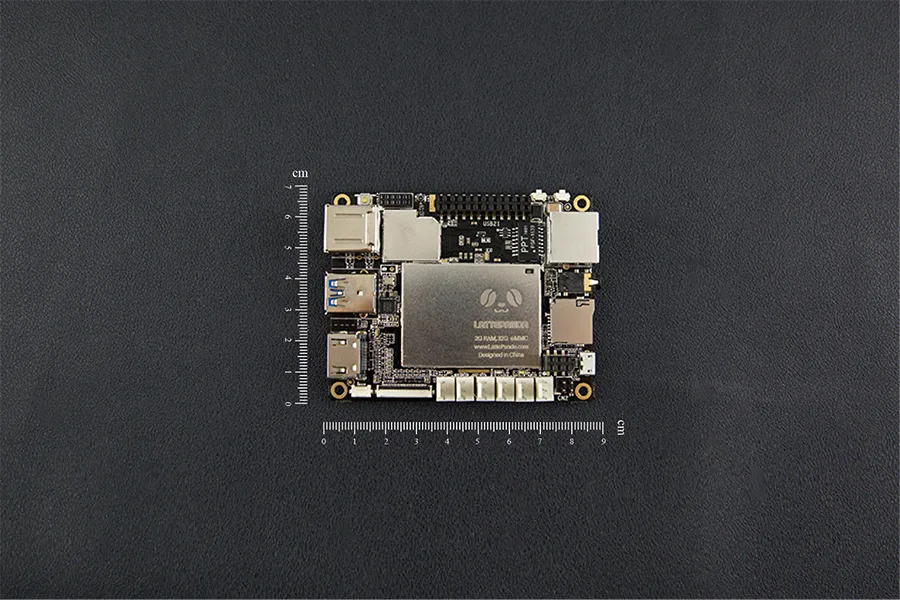

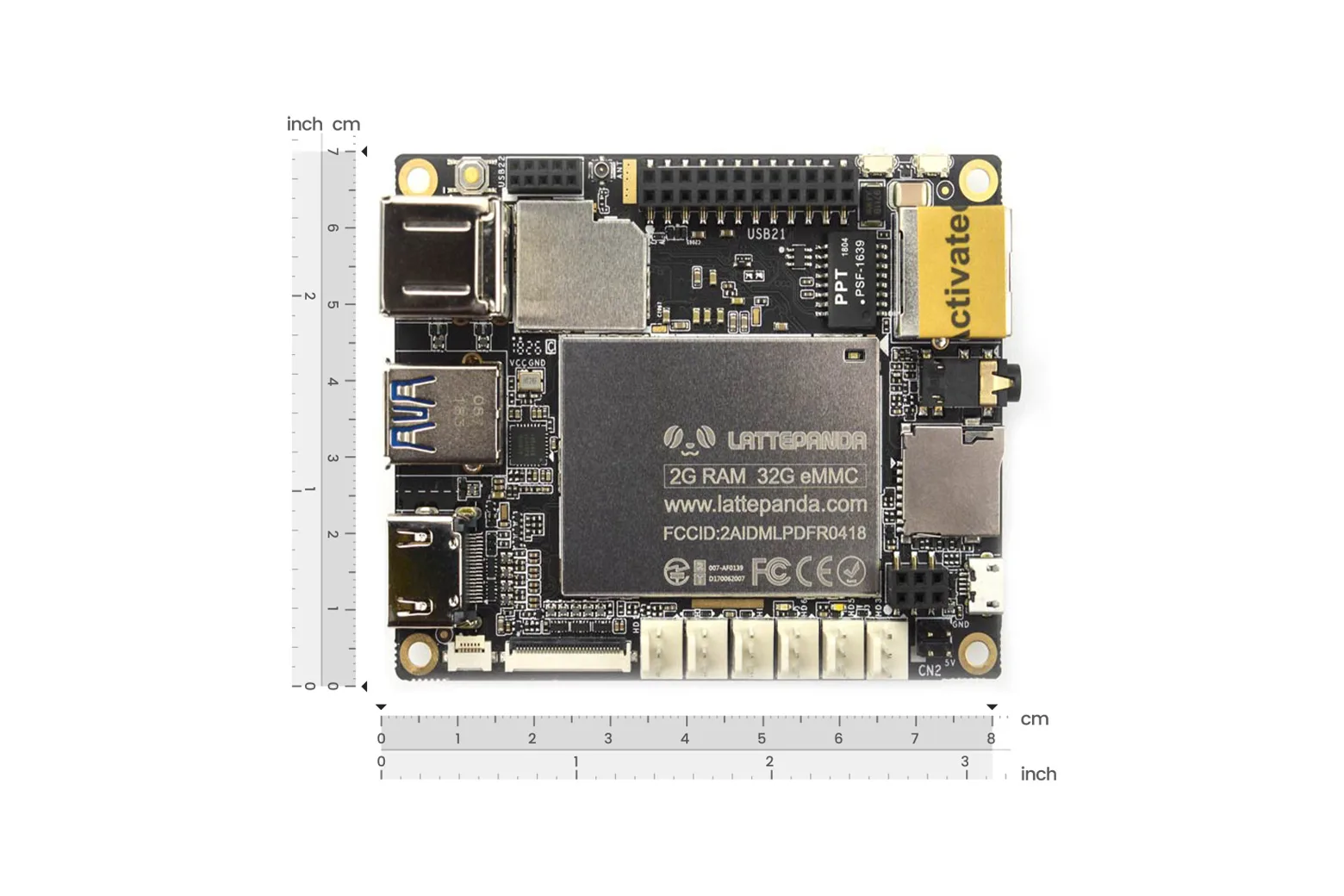

| Board Dimensions | 88 x 70mm / 3.46 x 2.76" |
| Package Dimensions | 110 x 94 x 30 mm/4.33 x 3.70 x 1.18" |
| NET Weight | 55g |
| Gross Weight | 100g |

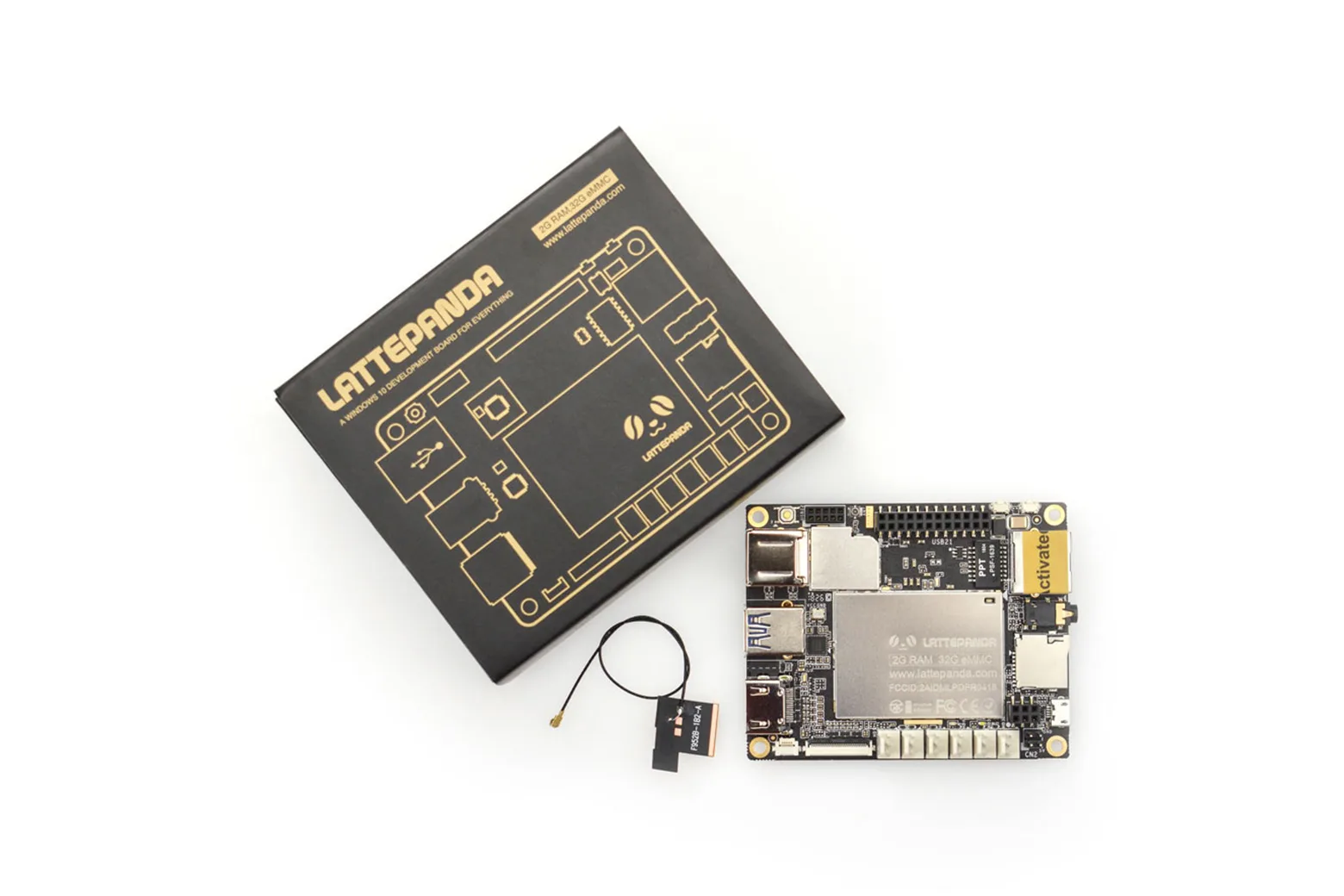

In the box
| LattePanda 2G/32GB | 1 |
| WiFi Antenna | 1 |
| Printed Safety Precautions | 1 |
