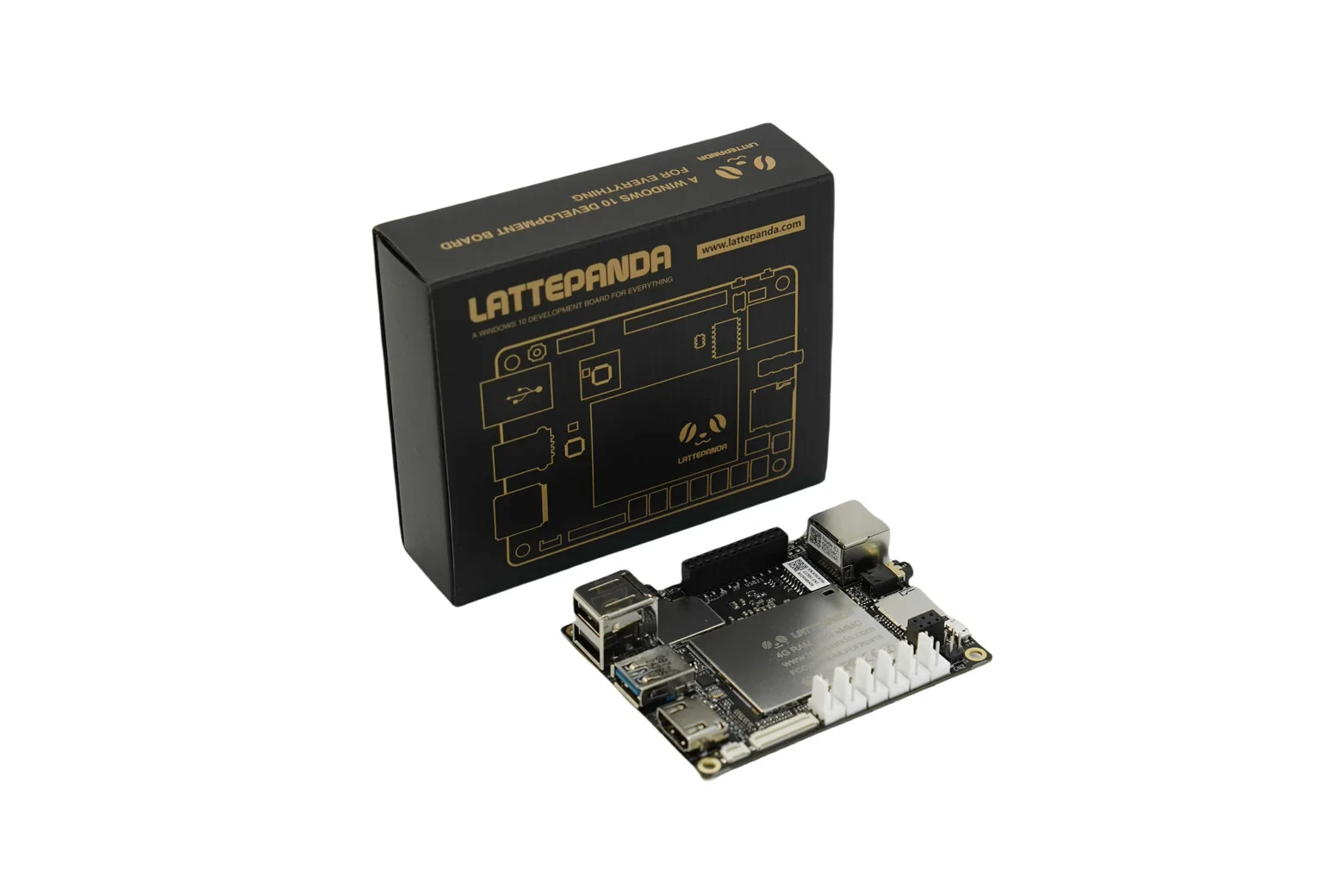

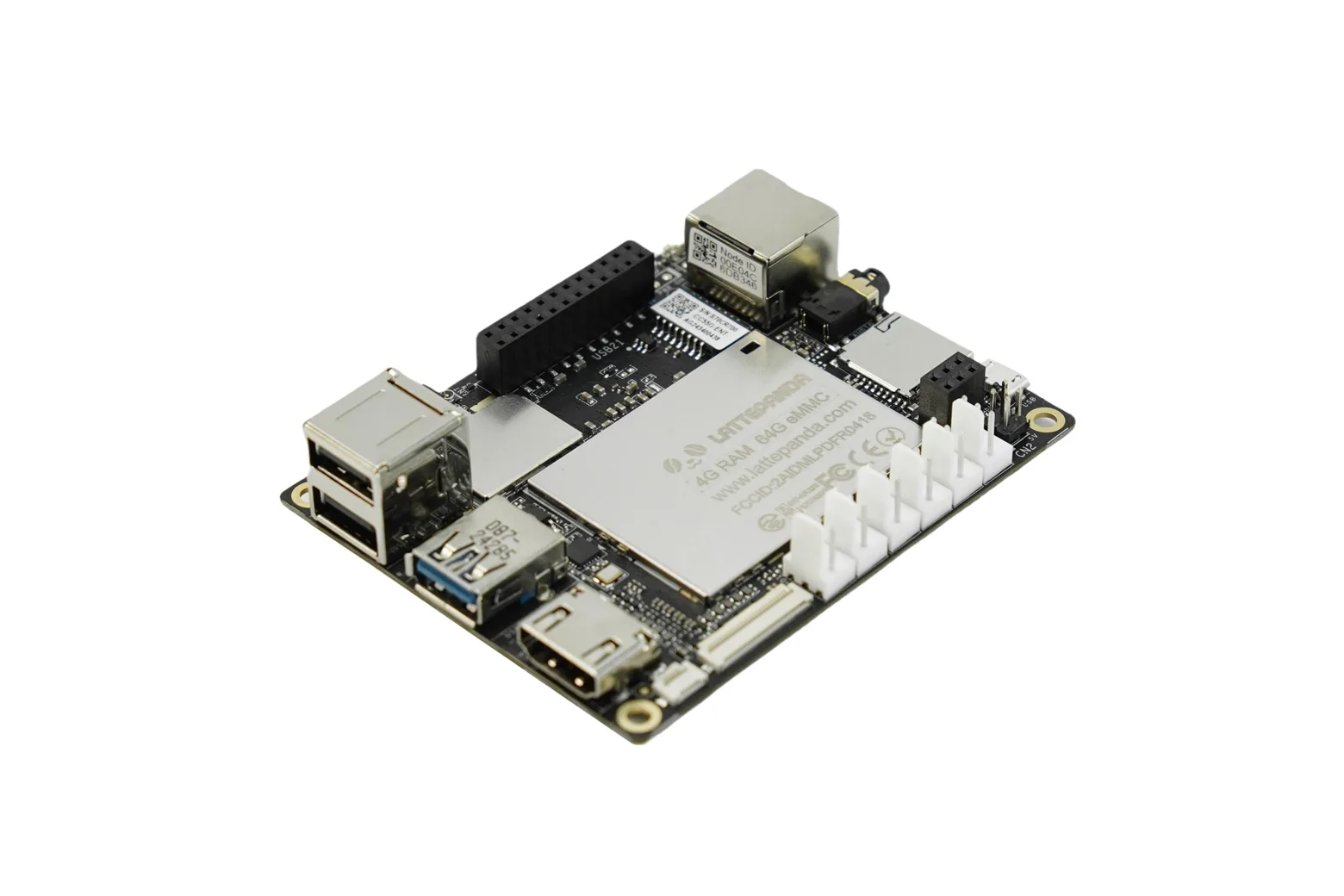

LattePanda V1 - The Smallest Windows 10 Single Board Computer with Win10 Enterprise License (4GB/64GB)

The LattePanda V1 is a pocket-sized x86 single-board computer powered by an Intel Cherry Trail Z8350 quad-core processor, 4GB of RAM, and 64GB of eMMC storage with an activated Windows 10 Enterprise LTSB licence. Featuring an integrated ATmega32u4 Arduino co-processor and full PC compatibility, it provides an all-in-one platform for makers, IoT developers, robotics builders, and interactive designers.

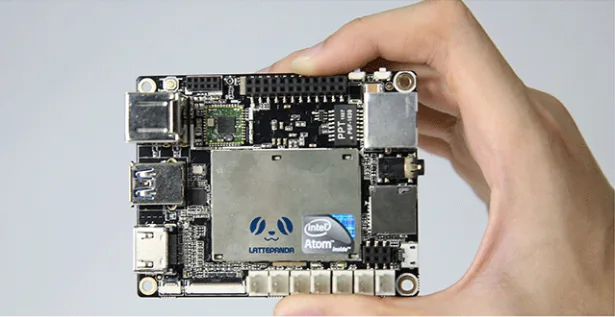

Pocket-sized x86 computer architecture

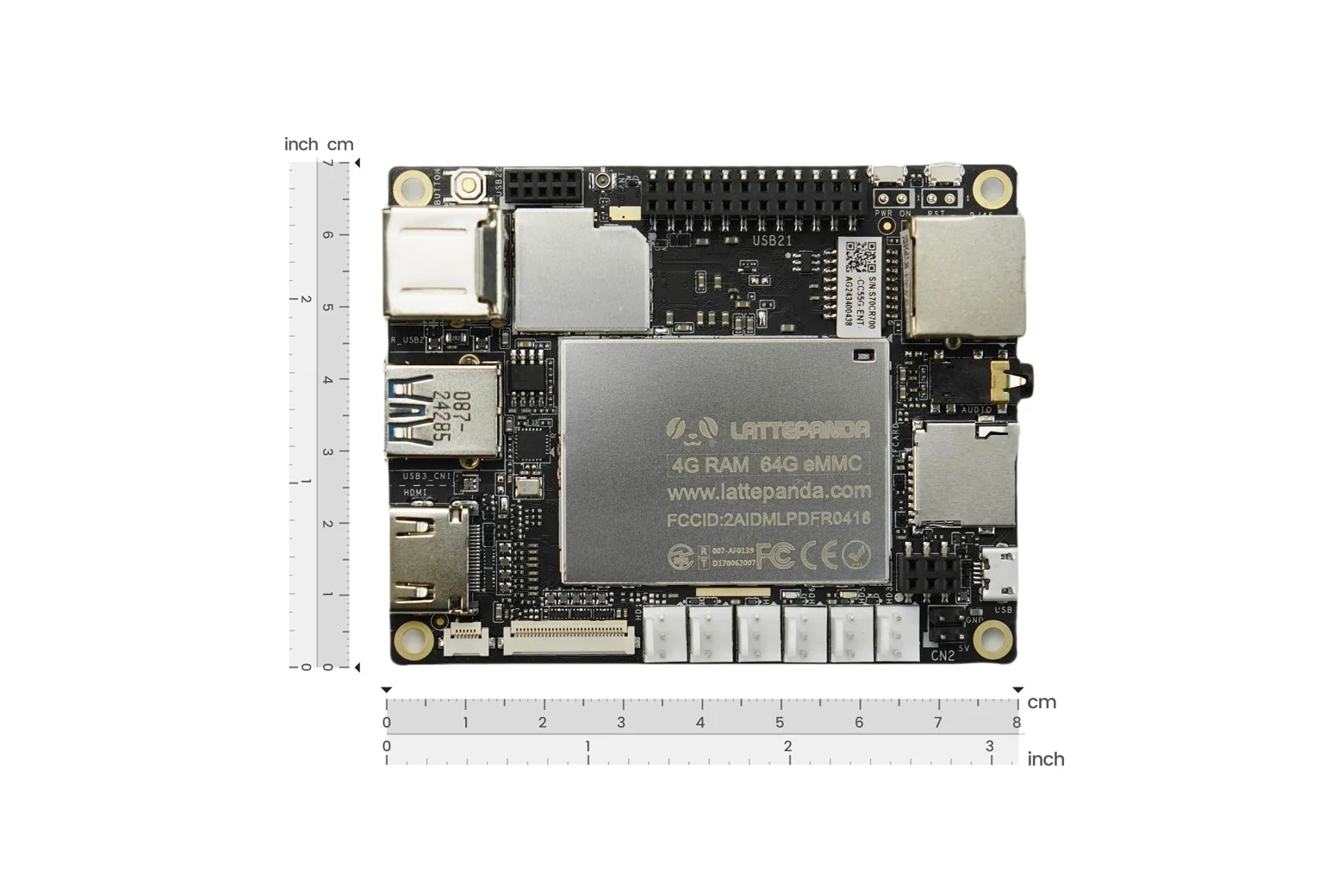

Measuring just 88 by 70 mm, this board functions as a complete x86 personal computer capable of running standard desktop software. It connects directly to standard PC peripherals such as printers, game controllers, and cameras without requiring specialised adapters.

Quad-core Intel processor performance

The board is driven by an Intel Cherry Trail Z8350 quad-core processor with a 1.44 GHz base clock and up to 1.92 GHz burst frequency. Paired with 4GB of DDR3L RAM and Intel HD Graphics, it provides the processing power required for embedded projects and digital signage.

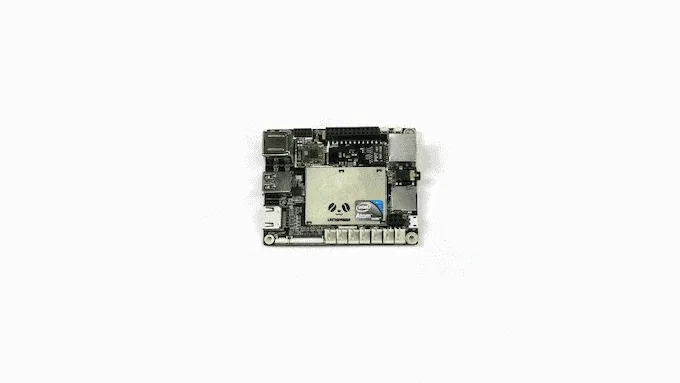

Integrated Arduino Leonardo co-processor

An onboard ATmega32u4 microcontroller allows direct interaction with sensors, actuators, and physical electronics without adding an external development board. The layout exposes 20 ATmega GPIO pins, 6 Intel GPIO pins, and 6 Gravity interface connectors for plug-and-play prototyping.

Windows 10 Enterprise LTSB included

Each unit comes with an activated 64-bit Windows 10 Enterprise LTSB licence, offering enterprise-level security and management tools including BitLocker, AppLocker, and Hyper-V. The hardware also supports development environments such as Visual Studio alongside alternate operating systems including Ubuntu and Android x86.

Reliable onboard eMMC storage

With 64GB of integrated eMMC memory, the board provides faster and significantly more durable storage than standard microSD cards. This built-in solid-state storage ensures dependable system uptime in long-running embedded installations.

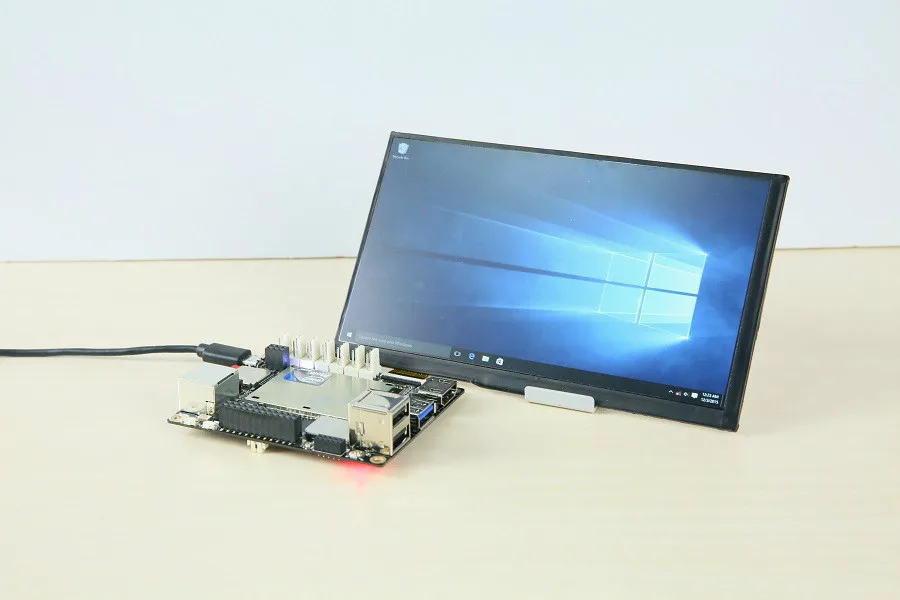

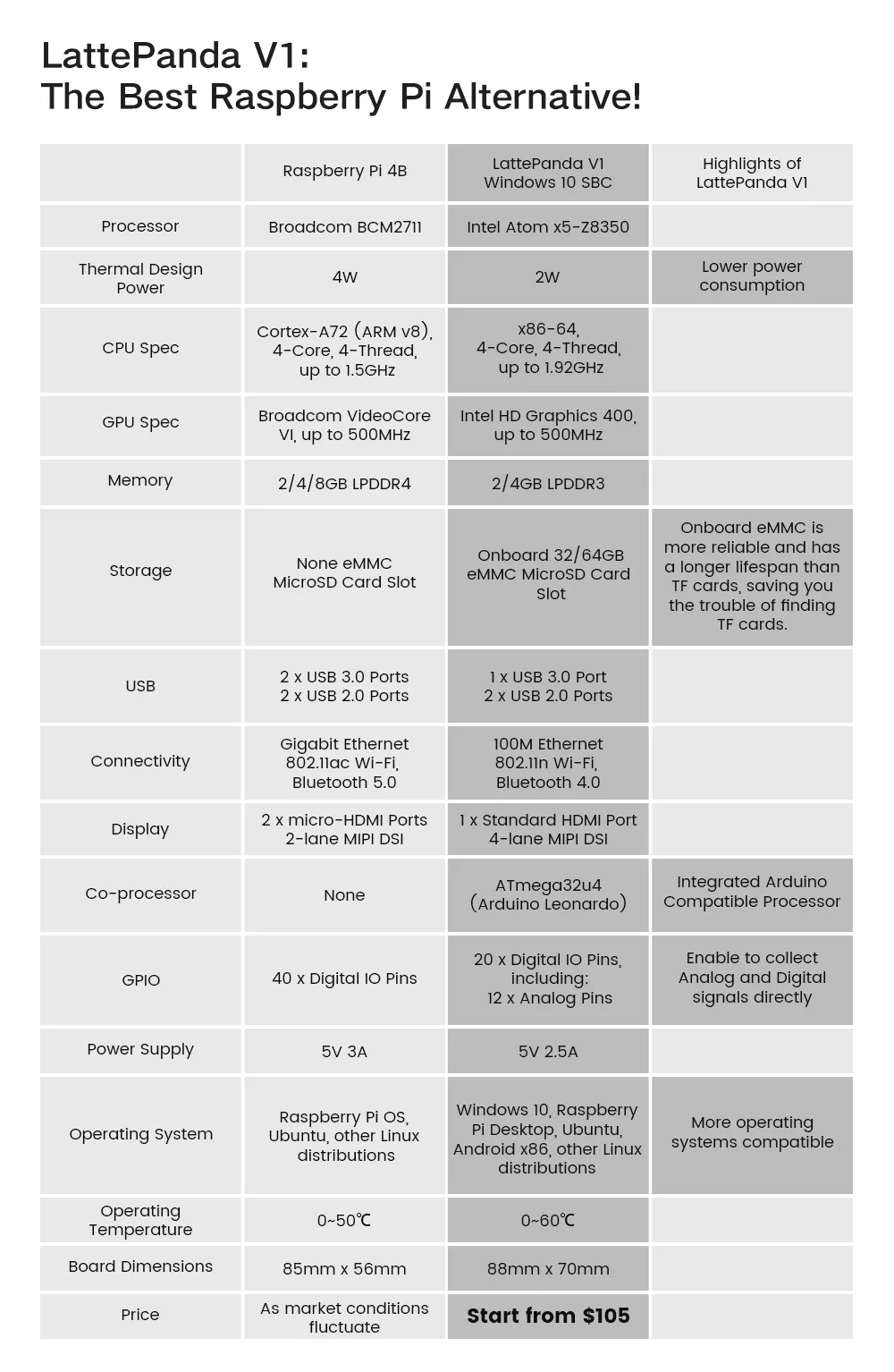

Versatile connectivity and display outputs

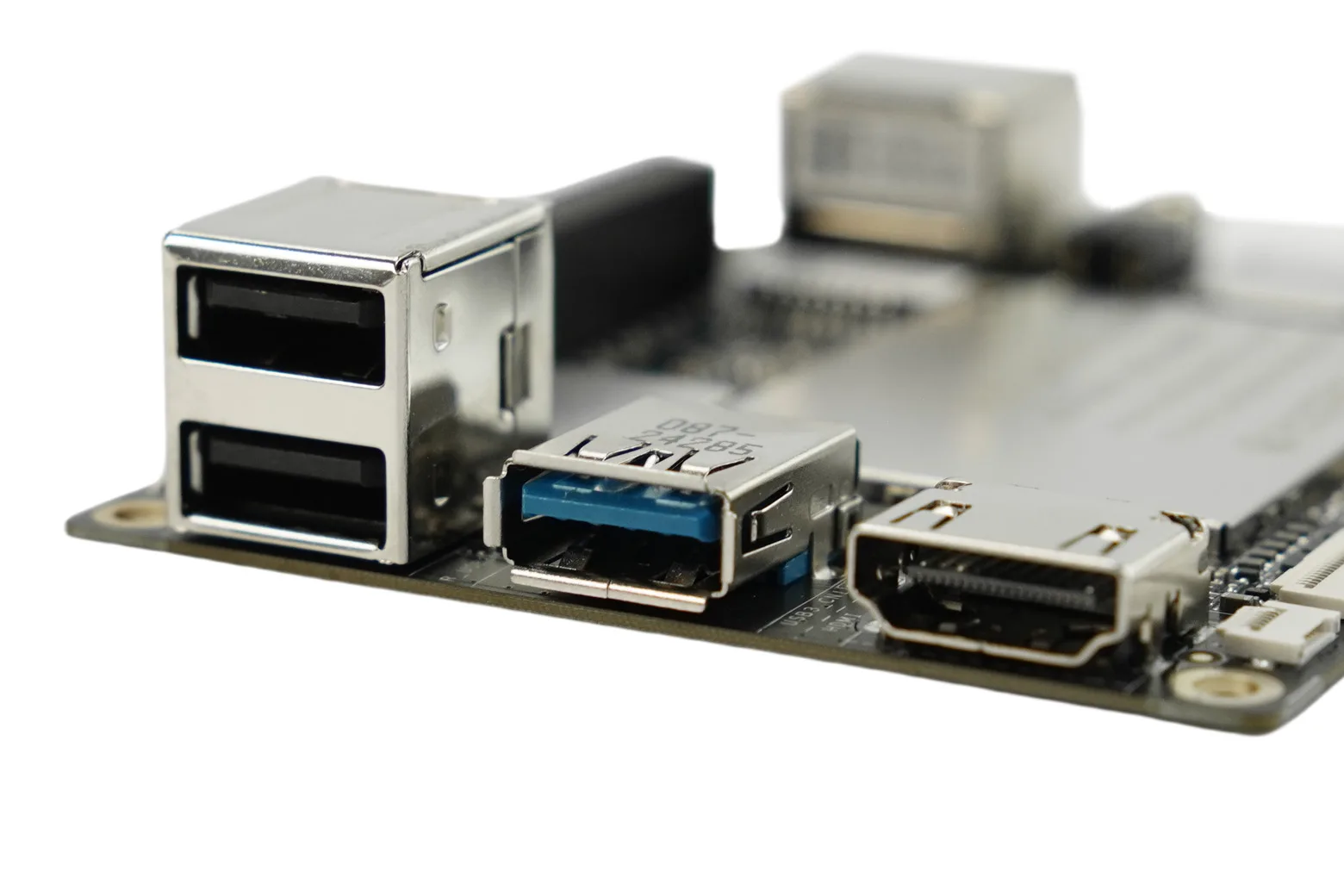

Hardware interfaces include one USB 3.0 port, two USB 2.0 ports, 100Mbps Ethernet, 802.11n Wi-Fi, and Bluetooth 4.0. Visual output is supported via standard HDMI, MIPI-DSI, and a dedicated onboard touch panel connector.
