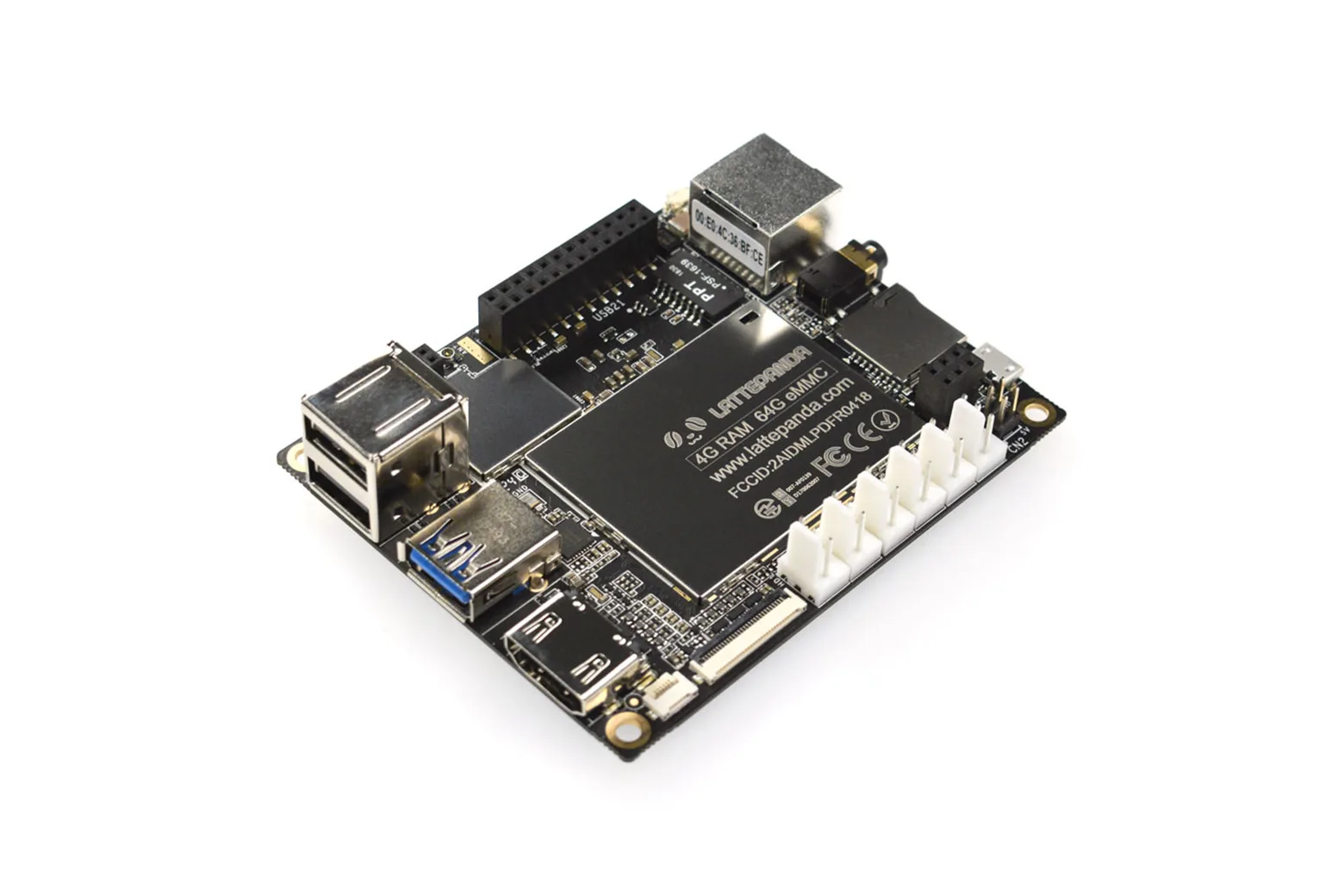

LattePanda V1 - The Smallest Windows 10 Single Board Computer (Unactivated, 4GB/64GB)

The LattePanda V1 is a pocket-sized x86 single board computer powered by an Intel Cherry Trail Z8350 quad-core processor and an integrated ATmega32u4 Arduino co-processor. Equipped with 4GB of DDR3L RAM and 64GB of onboard storage, it runs full 64-bit Windows 10 and Linux operating systems. It is an ideal platform for students, makers, and engineers creating robotics, IoT gateways, portable instruments, and embedded automation projects.

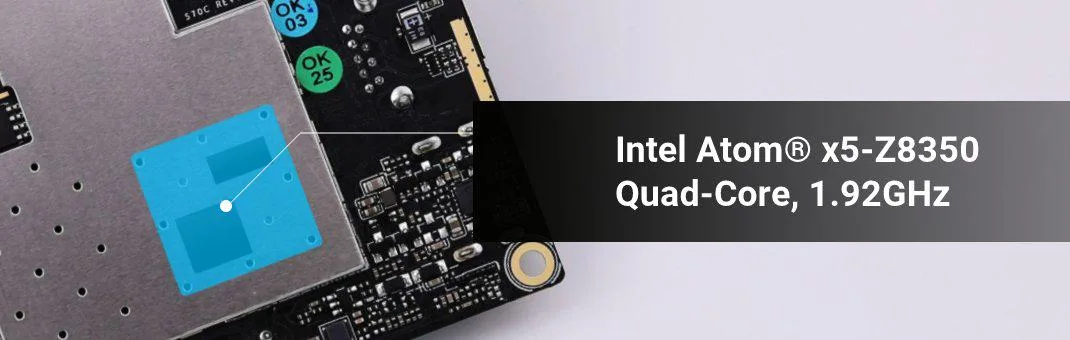

Quad-core Intel x86 processing

Driven by an Intel Cherry Trail Z8350 processor with a base frequency of 1.44GHz and burst capability up to 1.92GHz, the board delivers desktop-class x86 computing in an embedded footprint. This ensures wide software compatibility, robust peripheral driver support, and efficient execution for desktop and edge computing applications.

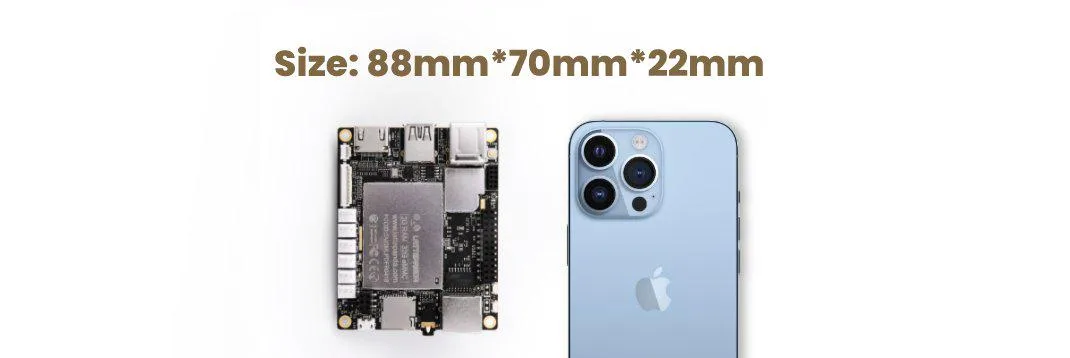

Ultra-compact form factor

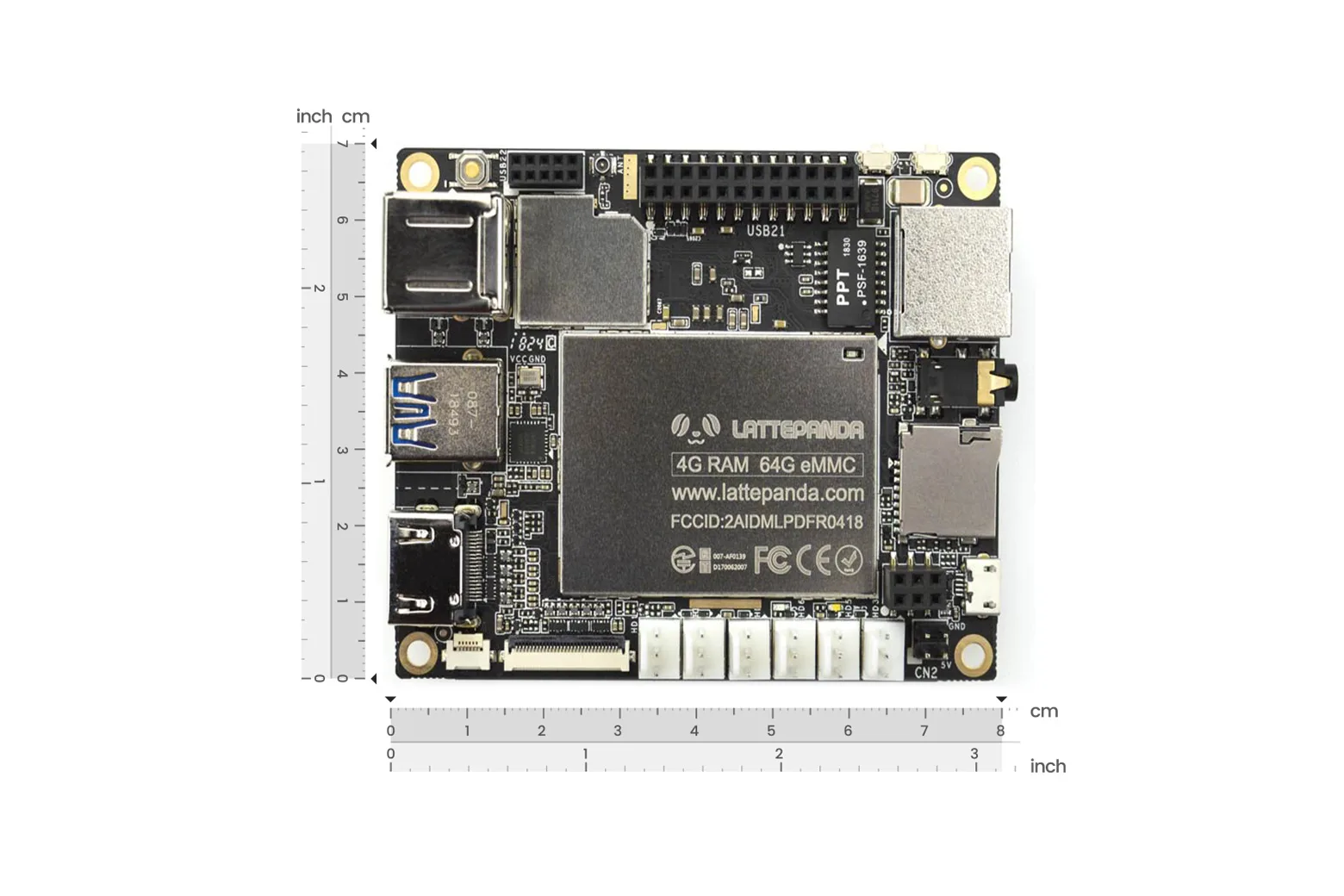

Measuring just 88 x 70mm and weighing 55g, the LattePanda V1 integrates into exceptionally tight enclosures. Its minimal footprint makes it straightforward to embed within existing hardware systems, handheld devices, and compact robotics chassis.

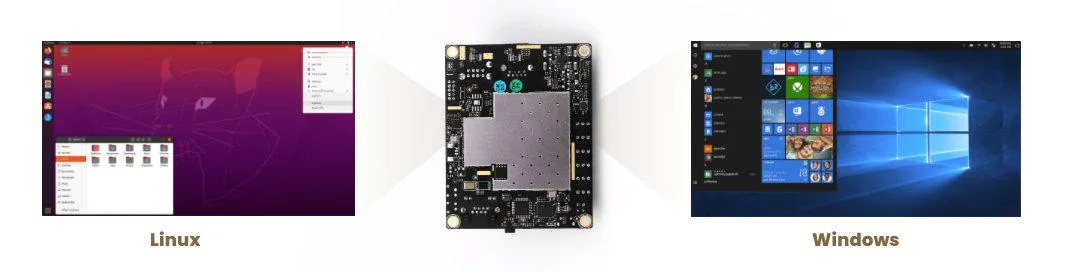

Dual Windows and Linux compatibility

The x86 architecture enables full support for 64-bit Windows 10 as well as mainstream Linux distributions. This allows developers to deploy full graphical user interface applications or configure lightweight microservice environments using standard development tools.

Low-power fanless operation

With a low thermal design power (TDP) of only 2W and a 5V 2A power requirement, the board generates very little heat during everyday tasks. This allows for silent, fanless operation that reduces component wear and extends operational life in continuous setups.

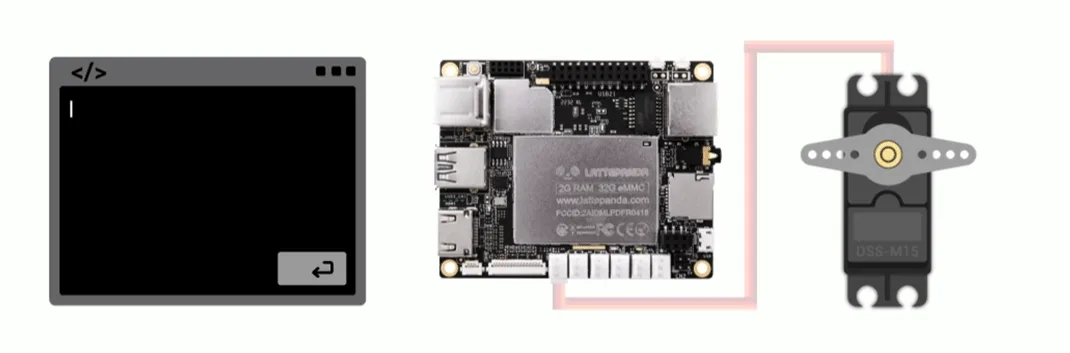

Onboard Arduino co-processor and expansion

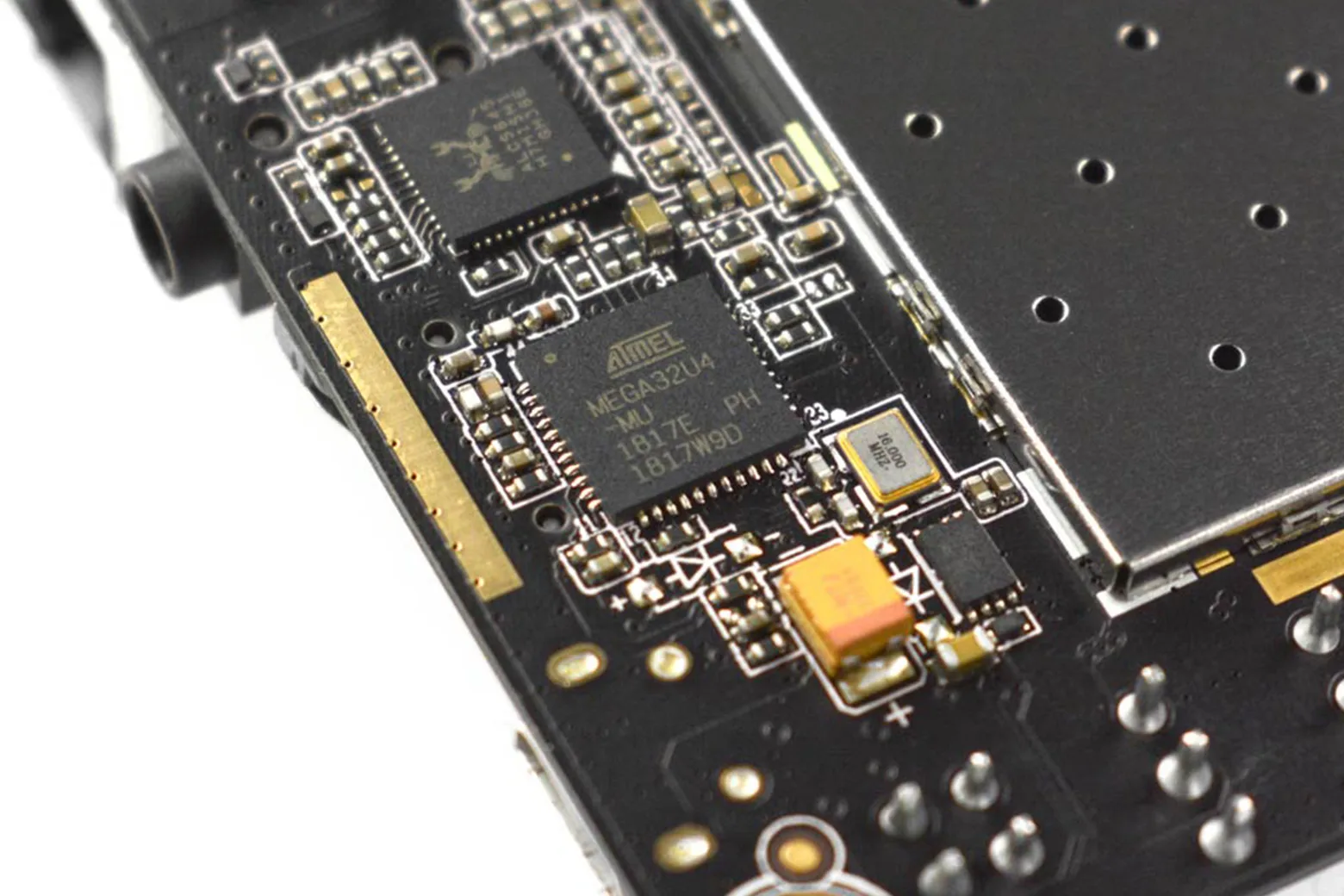

An integrated ATmega32u4 co-processor delivers direct Arduino Leonardo compatibility for real-time hardware interaction. The board exposes 20 ATmega GPIOs, 6 Intel processor GPIOs, and 6 Gravity interface connectors for direct connection to sensors and actuators.

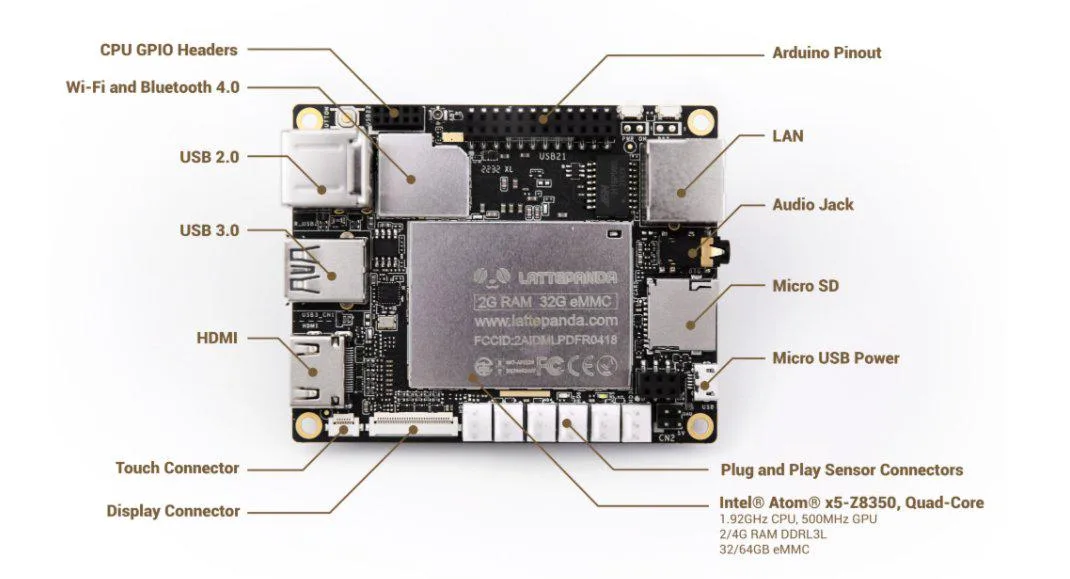

Comprehensive I/O and display options

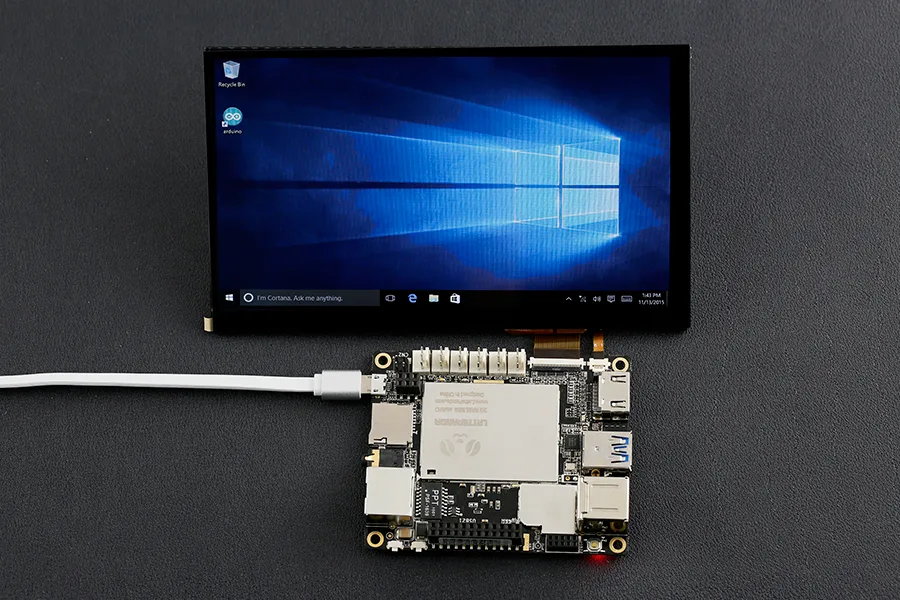

The board features one USB 3.0 port, two USB 2.0 ports, 100Mbps Ethernet, 802.11n Wi-Fi, and Bluetooth 4.0 for network and peripheral connectivity. Display output is supported via HDMI and MIPI-DSI, complete with an onboard touch panel connector.

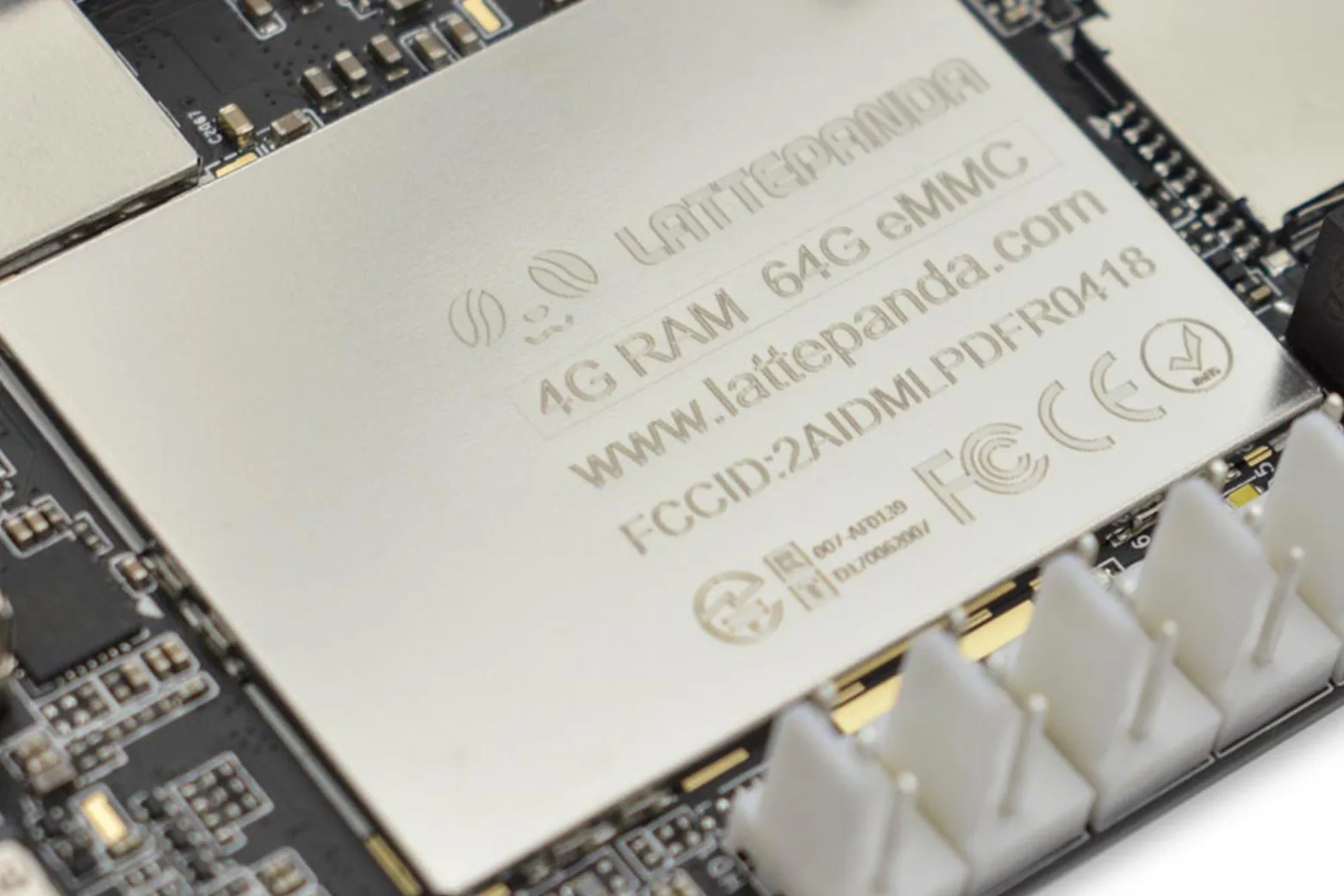

Certified industrial reliability

LattePanda V1 has obtained international certifications including CE, FCC, KC, and RoHS to ensure device safety and compliance. These rigorous standards guarantee dependable performance across educational, maker, and commercial deployments.
